DIY T-Slot Aluminum Boat Seat Base for Inflatable Boats

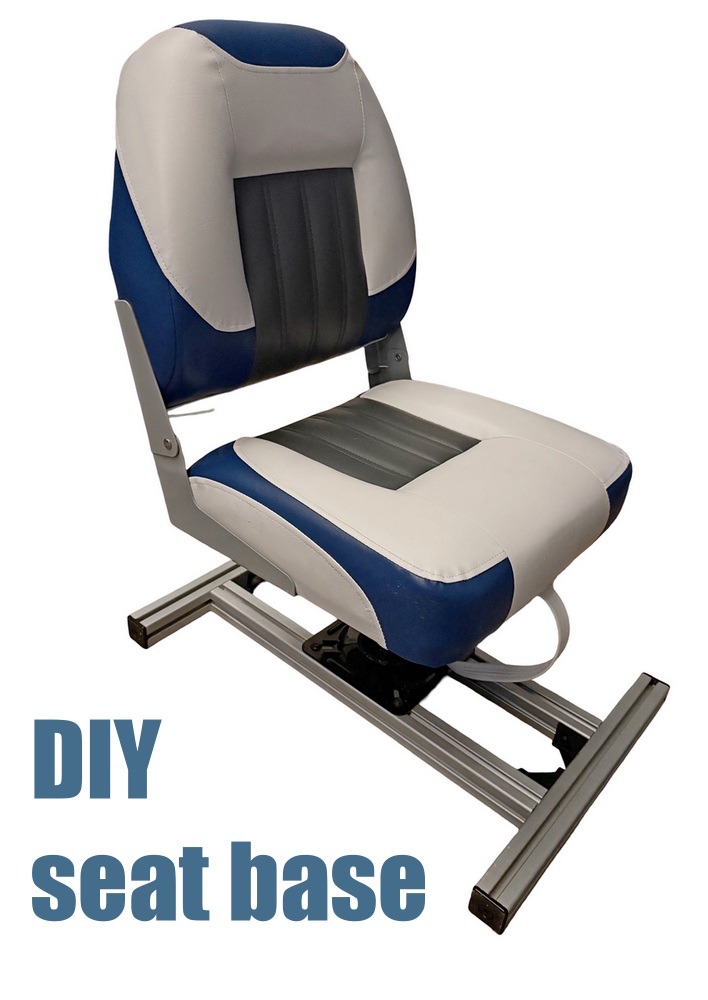

Finding a comfortable and secure seat for an inflatable boat can sometimes be challenging, especially when you want more support than a standard inflatable boat bench seat provides. This customer-designed project offers a clever solution: a DIY aluminum boat seat base made from 4040 T-slot aluminum extrusion.

The design creates a lightweight, strong, and adjustable inflatable boat seat mount that can support a standard pedestal boat seat and swivel. Because the seat can slide forward or backward along the aluminum rails, it is also easy to adjust the boat's balance depending on passengers, gear, or trolling motor placement.

Why Use T-Slot Aluminum for an Inflatable Boat Seat?

T-slot aluminum extrusion is commonly used for machine frames, workstations, and other DIY projects because it is lightweight, corrosion resistant, strong, and easy to assemble.

Those same characteristics make it an interesting material for creating custom seating for inflatable boats, inflatable kayaks, fishing boats, and catamarans.

Unlike a permanently installed seat mount, this design does not require drilling into the inflatable boat. The rectangular aluminum frame simply sits across the interior of the boat and fits between the existing D-rings.

Another advantage is adjustability. T-slot hardware allows the boat seat pedestal to be repositioned without rebuilding the entire frame.

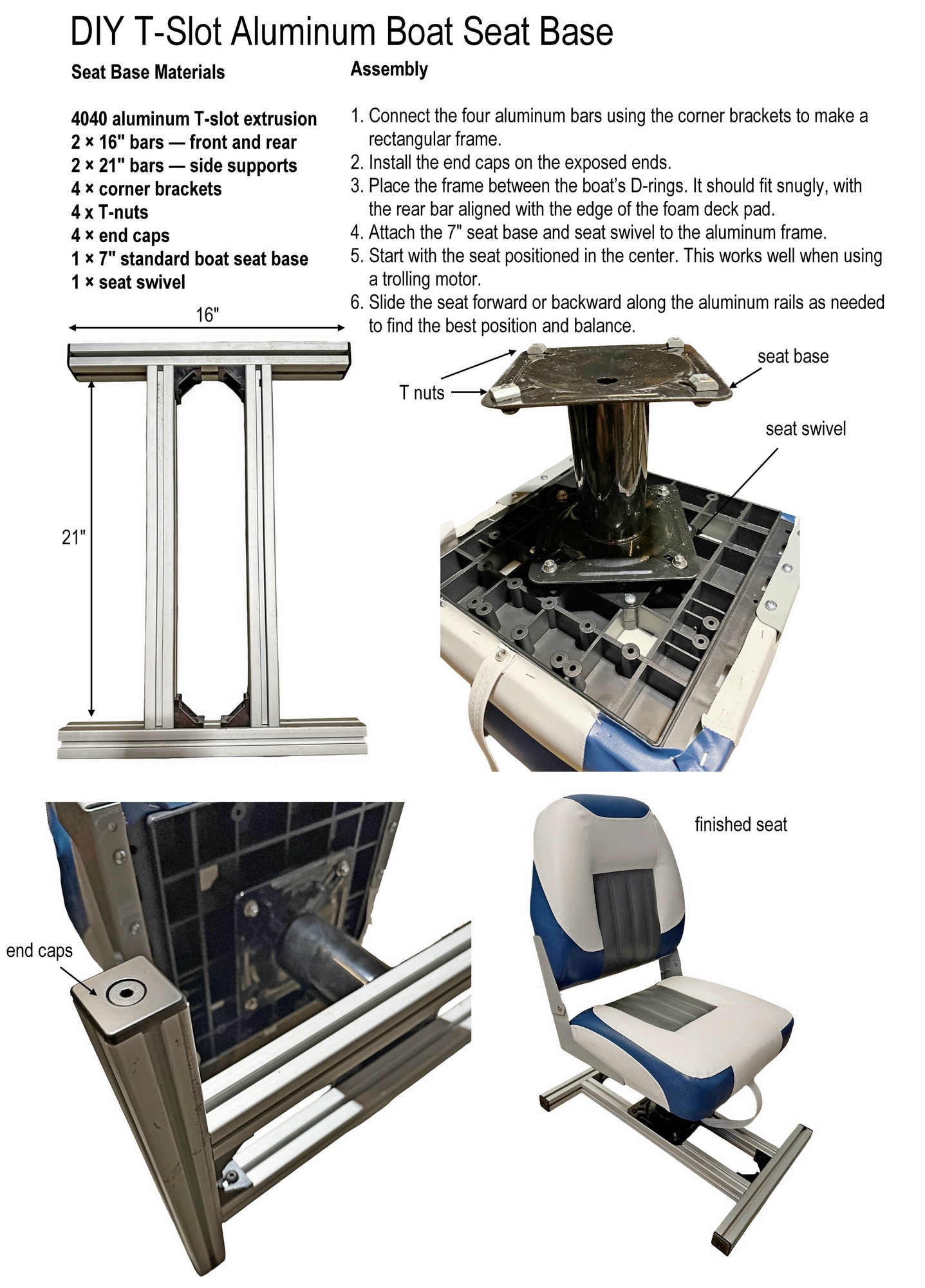

Materials for the DIY Inflatable Boat Seat Base

This particular seat frame was constructed from 4040 aluminum T-slot extrusion, which measures approximately 40mm × 40mm.

The project uses:

• 2 × 16" aluminum bars for the front and rear
• 2 × 21" aluminum bars for the side supports
• 4 × corner brackets
• 4 × T-nuts
• 4 × end caps
• 1 × 7" standard boat seat base
• 1 × seat swivel
• Standard marine boat seat

The dimensions shown here were made for this particular inflatable boat. Measure the inside width and available mounting area of your own boat before ordering or cutting aluminum extrusion.

How to Build the Aluminum Boat Seat Frame

Assembly is relatively simple and does not require welding.

Connect the four pieces of 4040 T-slot aluminum using the corner brackets to create a rectangular frame. Install end caps on all exposed aluminum ends.

Place the completed frame inside the inflatable boat. In this installation, the frame fits snugly between the boat's D-rings, while the rear aluminum crossbar aligns with the edge of the foam deck pad.

Next, attach the 7-inch boat seat pedestal base to the aluminum frame using T-nuts installed in the extrusion channels. Attach the seat swivel and marine seat to the pedestal.

One of the best features of this design is that the mounting hardware can slide along the T-slot rails. This allows the inflatable boat seat position to be moved forward or backward to find the most comfortable position and achieve better weight distribution.

Adjustable Seating Can Improve Boat Balance

Seat position is particularly important on a small inflatable boat.

Placing too much weight toward the stern can cause the bow to rise, especially when an outboard or electric trolling motor is also mounted at the rear. Moving the seat forward can help redistribute the weight.

Conversely, depending on the boat, passenger load and equipment, moving the seat farther back may provide a more comfortable operating position.

For this particular setup, starting with the seat approximately in the center provides a good seating position when using a trolling motor on the inflatable boat. From there, the seat can be moved forward or backward until the desired balance is achieved.

A Comfortable Alternative to Standard Inflatable Boat Bench Seats

Many inflatable boats use removable aluminum or plywood bench seats. They are simple and lightweight, but anglers and boaters spending several hours on the water may prefer a padded boat seat with a backrest and swivel.

This DIY system provides several potential advantages:

More back support: A conventional marine seat with a backrest can be considerably more comfortable during longer trips.

360-degree movement: Adding a boat seat swivel makes it easier to turn while fishing, operating a trolling motor, or reaching equipment.

Adjustable position: The seat pedestal can be repositioned along the T-slot extrusion.

No welding required: T-slot aluminum is assembled using brackets, bolts, and T-nuts.

Removable design: The complete seating frame can be removed from the inflatable boat when necessary.

Expandable platform: Additional T-slot components could potentially be added for fishing accessories, rod holders, equipment mounts, or other DIY modifications.

Great DIY Project for Inflatable Fishing Boats

This type of inflatable fishing boat seat setup can be particularly useful for anglers who want the portability of an inflatable boat while having seating closer to what they would find in a conventional fishing boat.

T-slot aluminum also makes the concept highly customizable. Rather than being limited to a single fixed design, owners can experiment with different frame dimensions, pedestal heights, seat locations, and accessories.

The same basic idea could potentially be adapted for inflatable dinghies, inflatable fishing boats, inflatable catamarans, KaBoats, and other portable boats, provided the frame is properly sized and supported.

Important Safety Considerations

This is a customer-created DIY project rather than a factory-designed seating system. Anyone building a similar seat base should make sure the frame is stable and cannot damage the inflatable tubes or floor.

Avoid sharp edges or exposed hardware that could contact PVC fabric. Make sure all bolts and brackets remain tight, and test the seating system carefully in calm, shallow water before regular use.

A raised pedestal seat also raises the passenger's center of gravity. The effect can be significant on smaller inflatable boats, so use an appropriate seat height and avoid standing, leaning excessively, or making sudden movements.

DIY Inflatable Boat Customization

One of the advantages of inflatable boats is how easily they can be customized for fishing and recreational use. This DIY T-slot aluminum boat seat base is a great example of using readily available materials to create a practical accessory without permanently modifying the boat.

For boaters searching for an inflatable boat seat, inflatable boat seat mount, inflatable fishing boat seat, boat seat pedestal for an inflatable boat, adjustable boat seat base, or DIY inflatable boat accessories, T-slot aluminum extrusion provides an interesting platform for experimentation.

The finished result is a strong-looking, adjustable seating frame that combines a conventional marine swivel seat with the portability and versatility of an inflatable boat.
