Seating Frame For KaBoats, Kayaks and Boats.

NEW PRODUCT

$69.00
Short description:
MSRP: $138.00
FRAME
$19.00
Out of stock

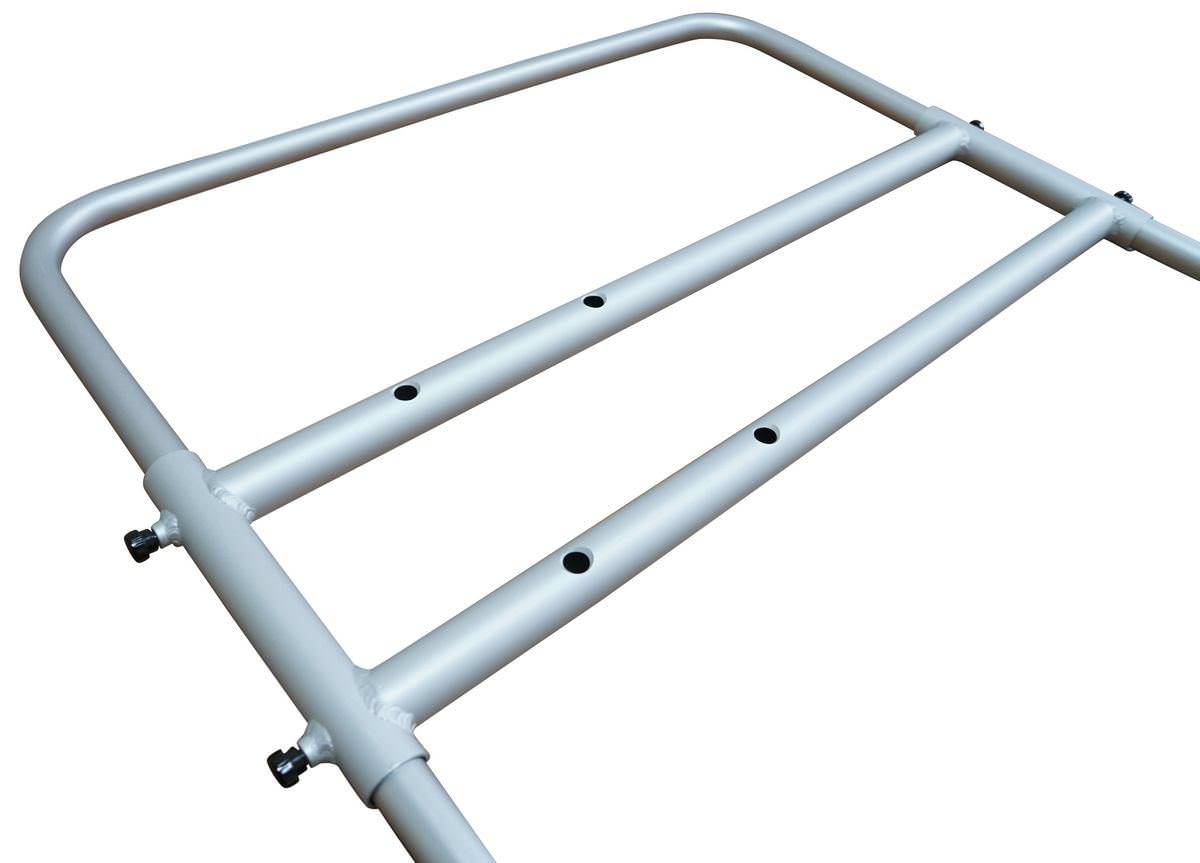

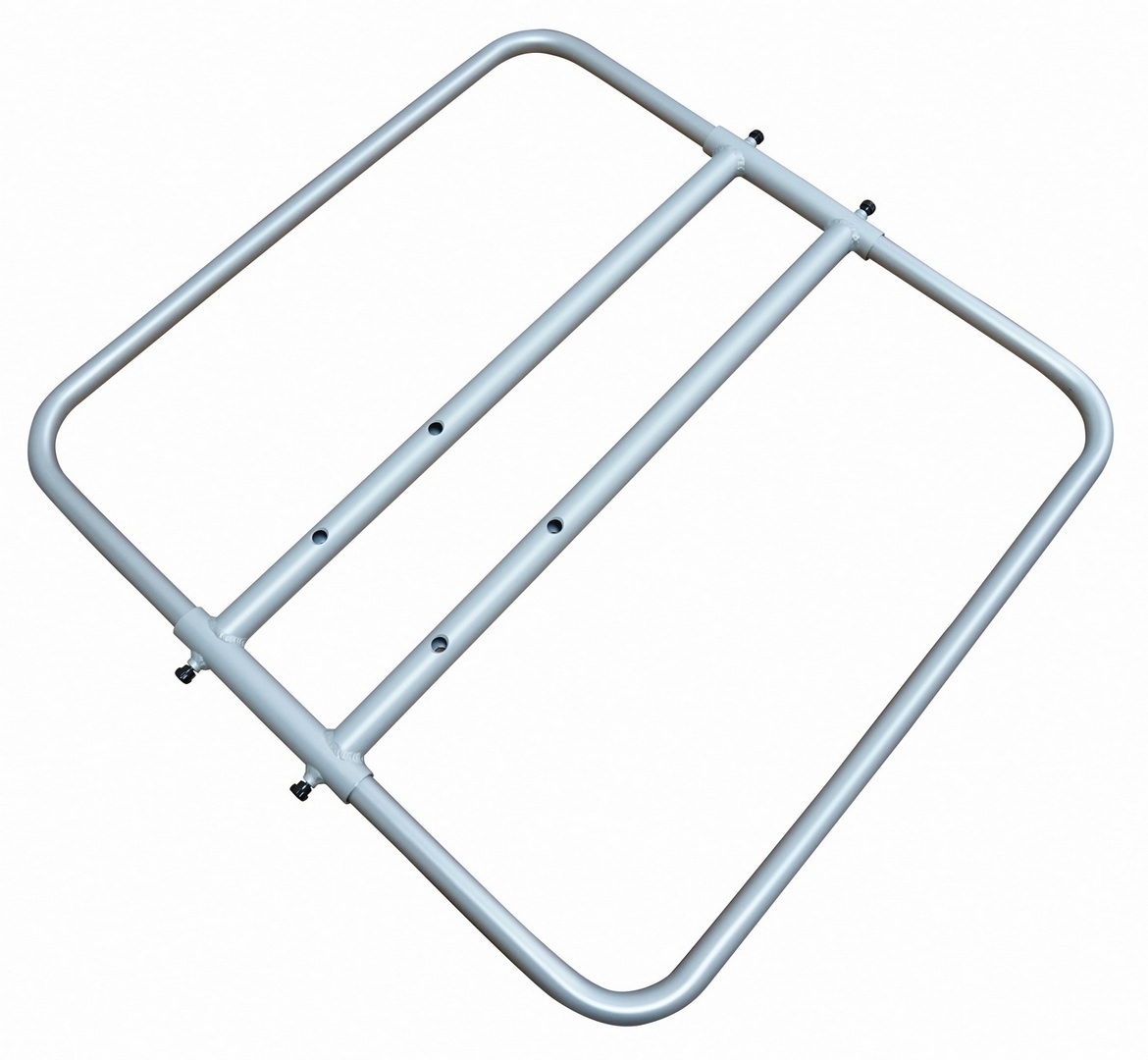

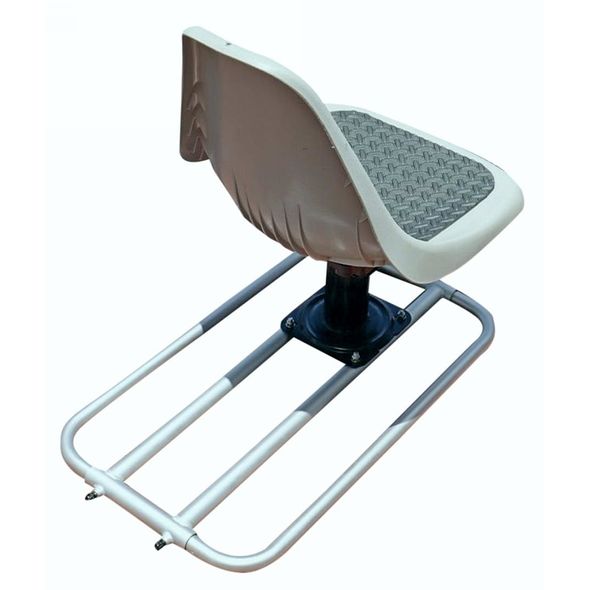

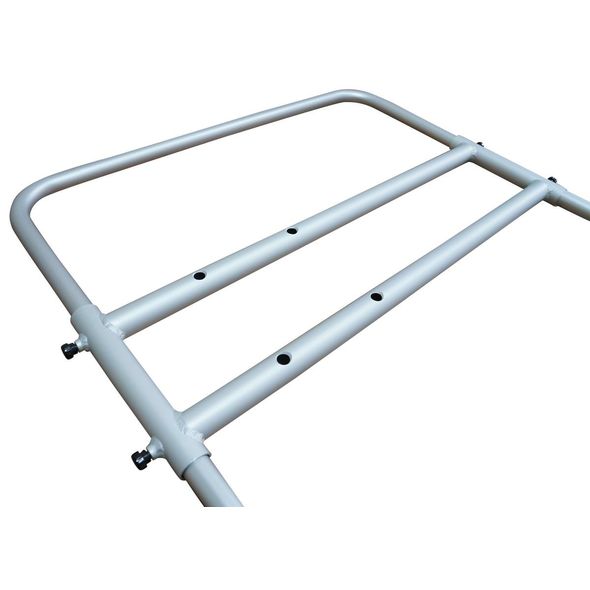

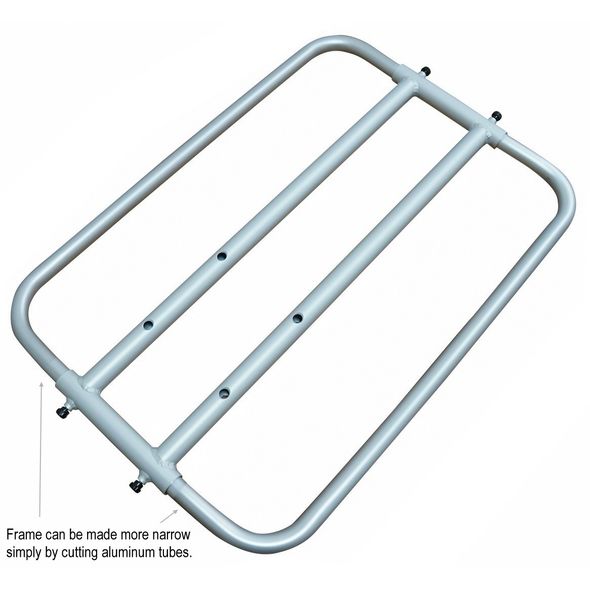

Adjustable Width, Seating Frame for KaBoats, Kayaks and Boats.

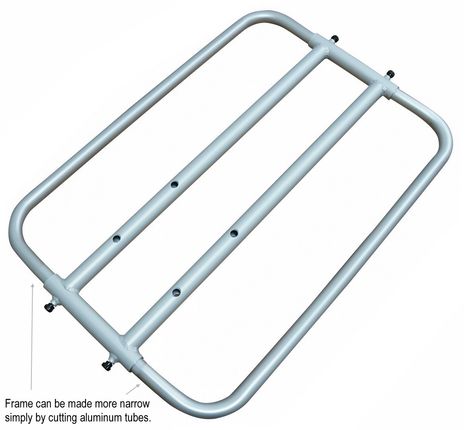

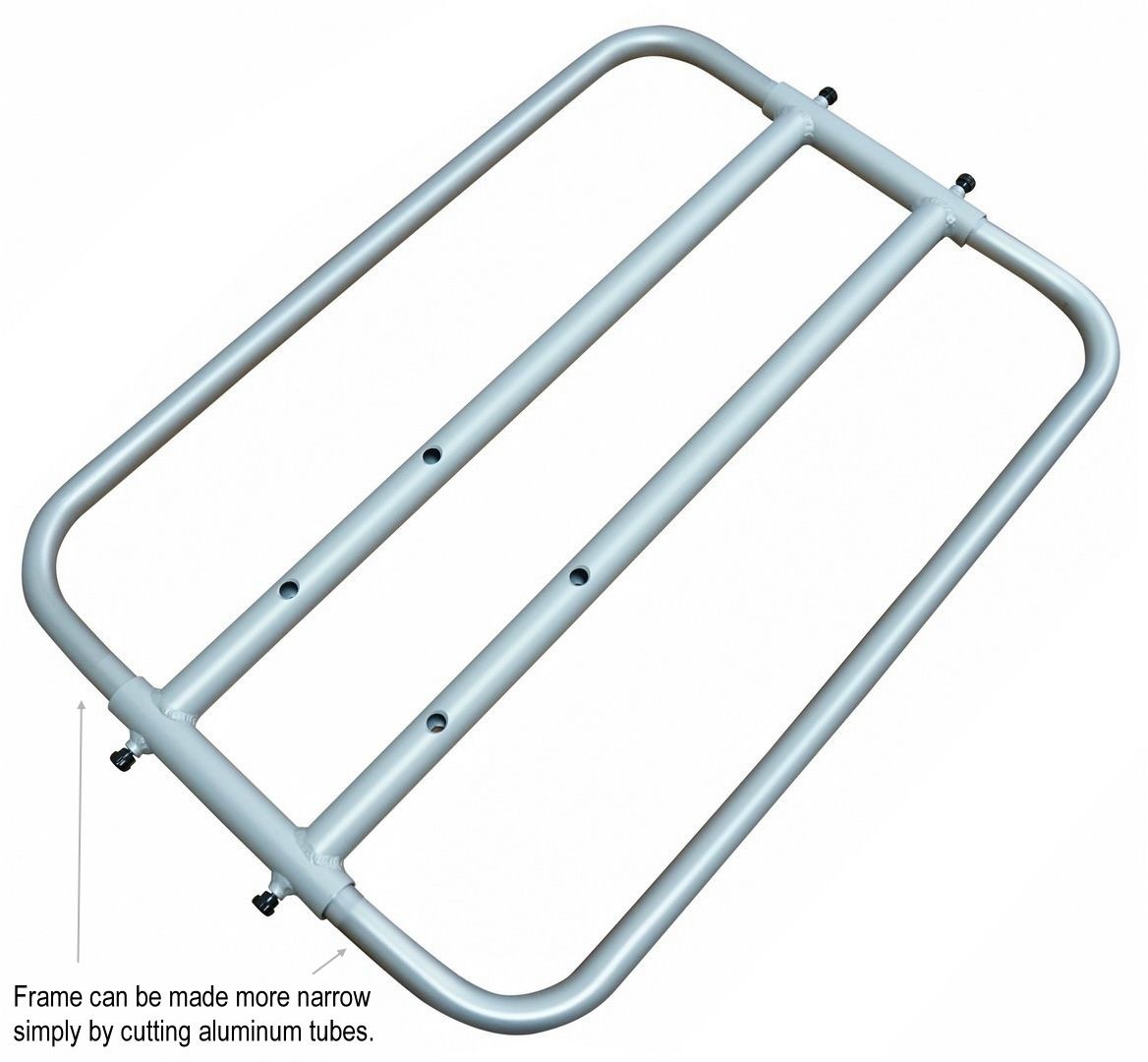

Both sides adjustable length. Can be cut shorter to fit into narrow KaBoats and kayaks.

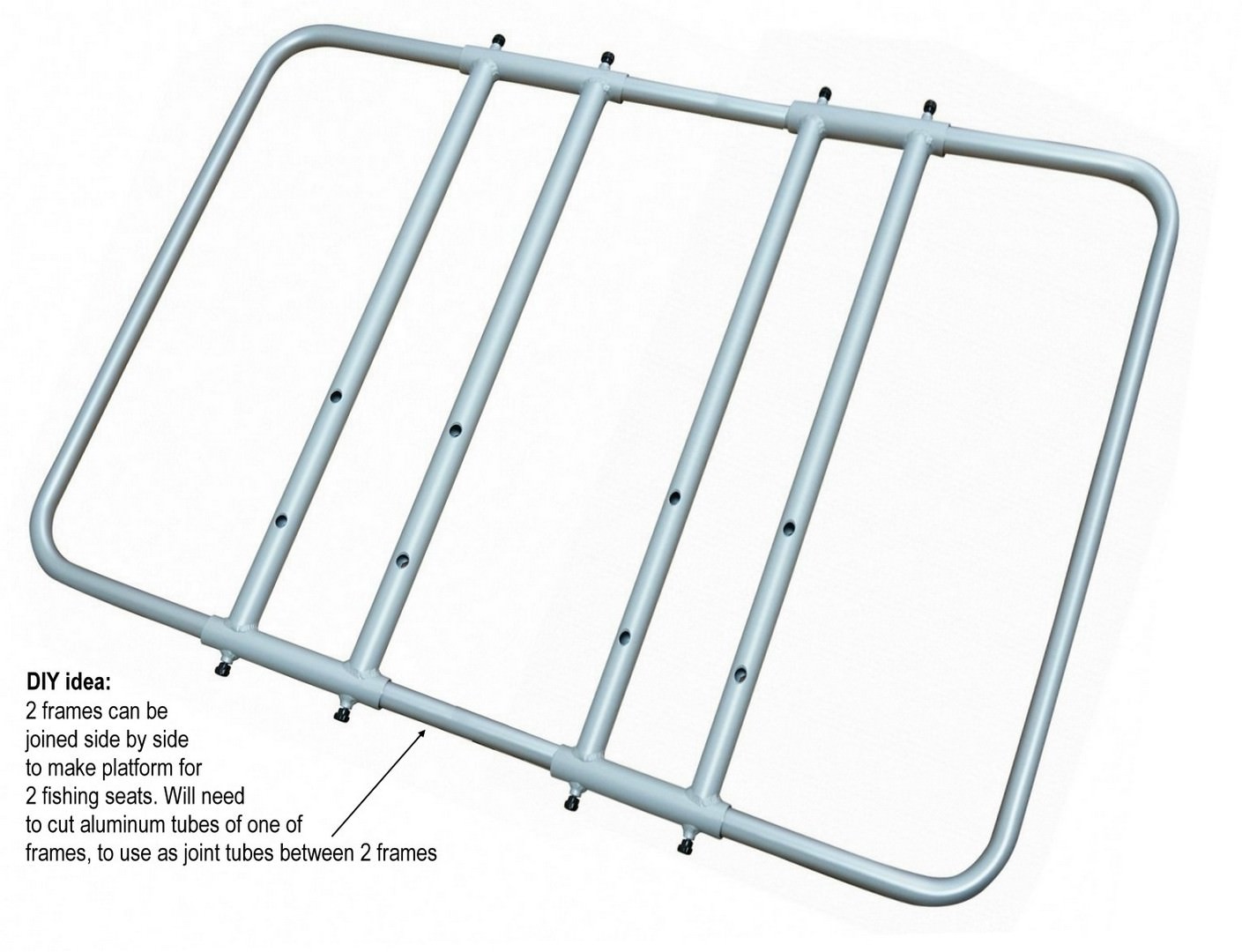

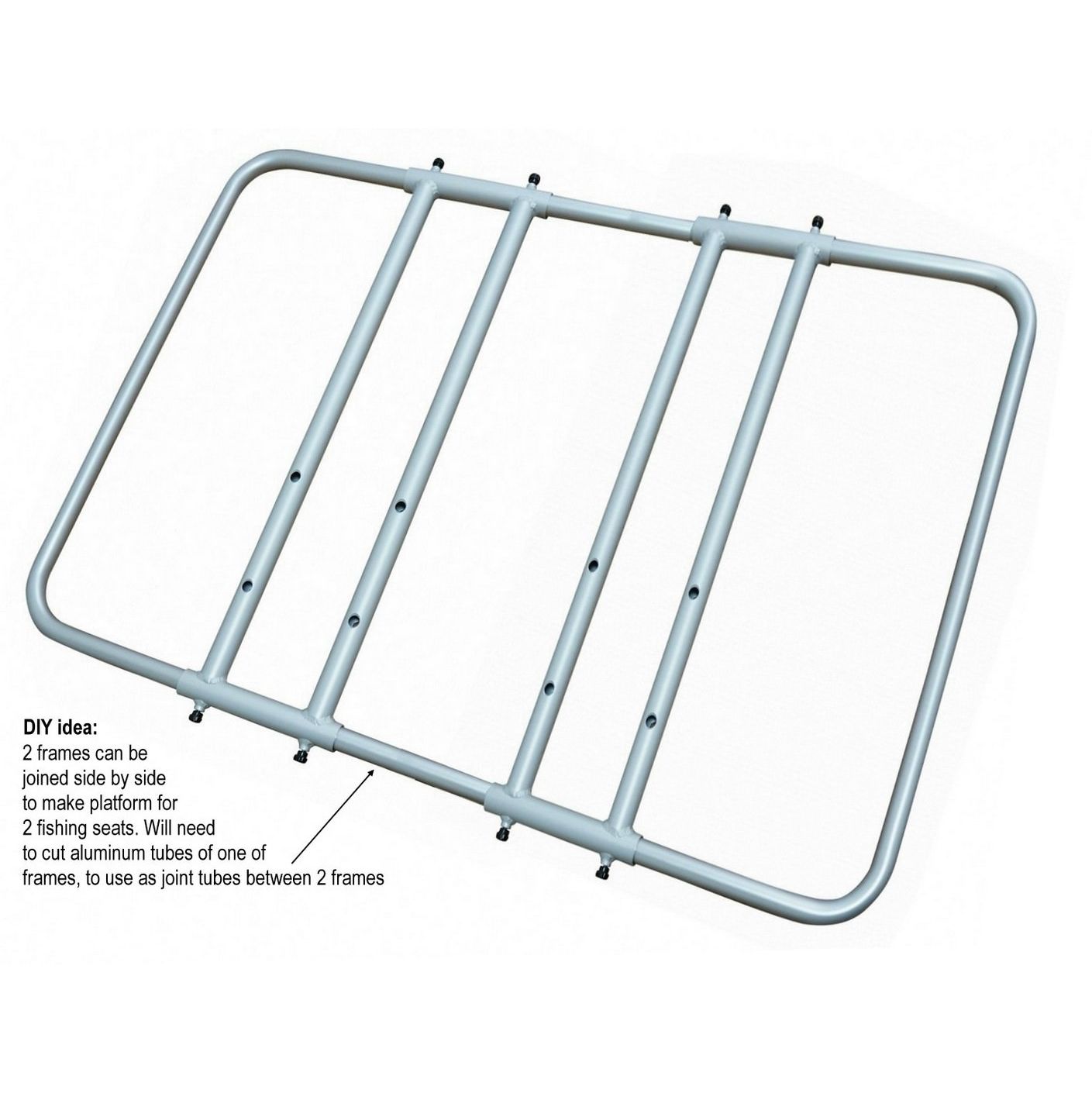

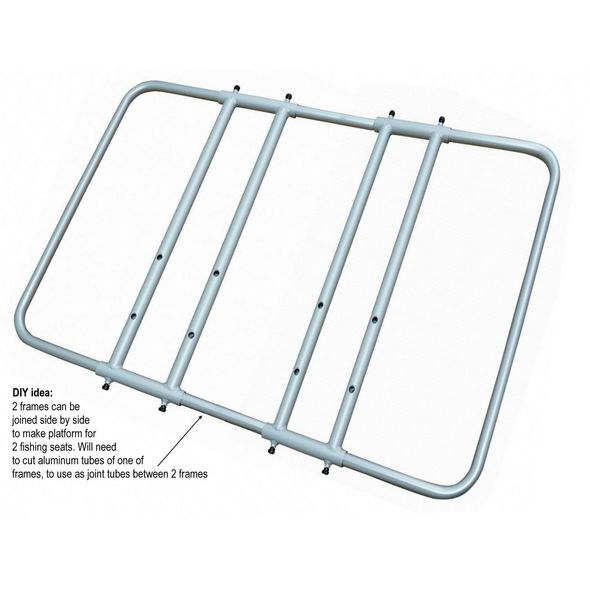

What makes this frame different from our regular seating platform for boats, is that both sides can slide in and out, not just one side. That allows easy modifying frame to fit into much more narrow KaBoats, and even kayaks. Just cut tubes shorter on all 4 sides, and you can install this frame into any KaBoat or kayak with as small as 14" inner width. You can't do that with regular platform that was designed for much wider boats. Also, 2 frames can be joined together, to make seating platforms for 2 fishing seats, side-by-side.

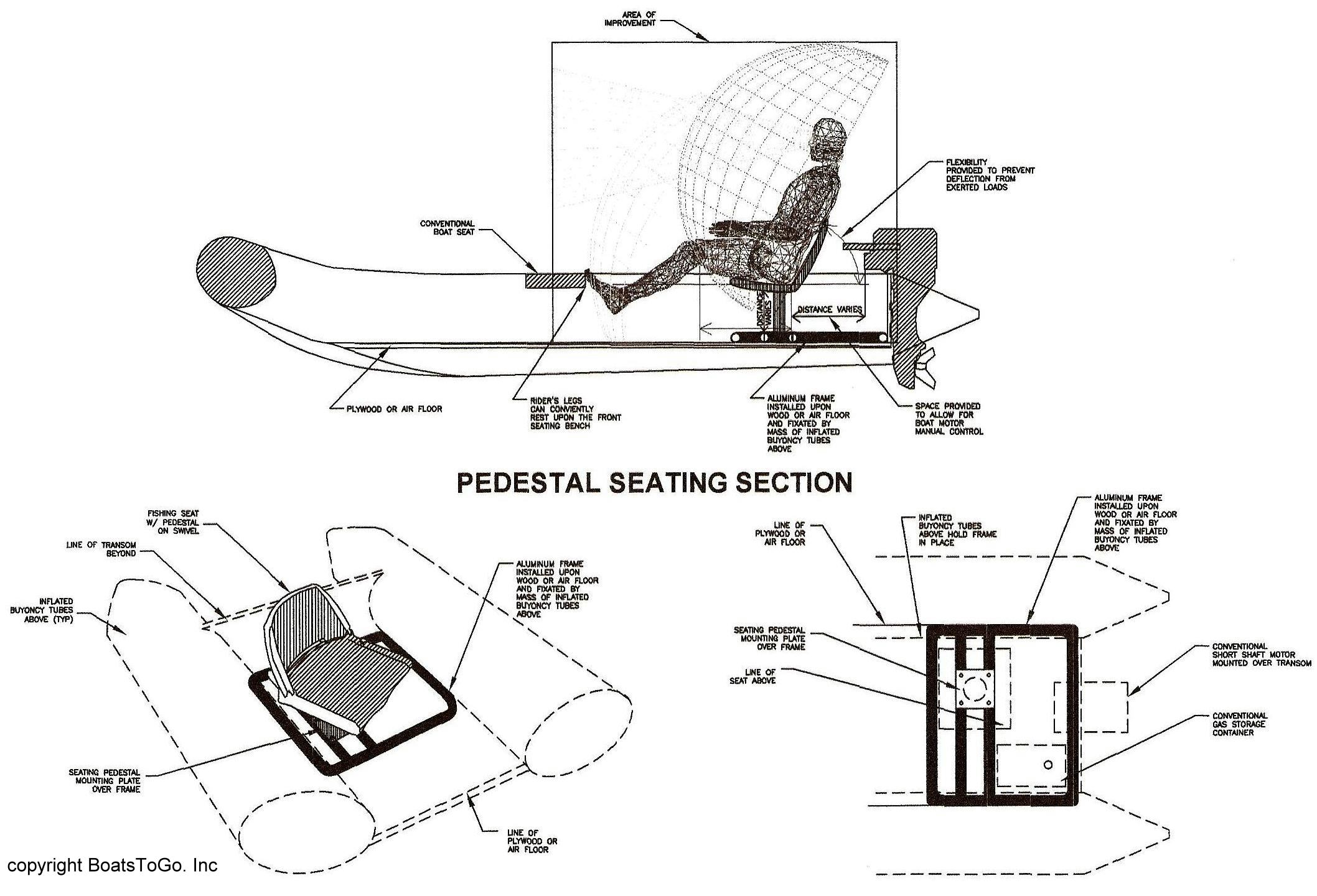

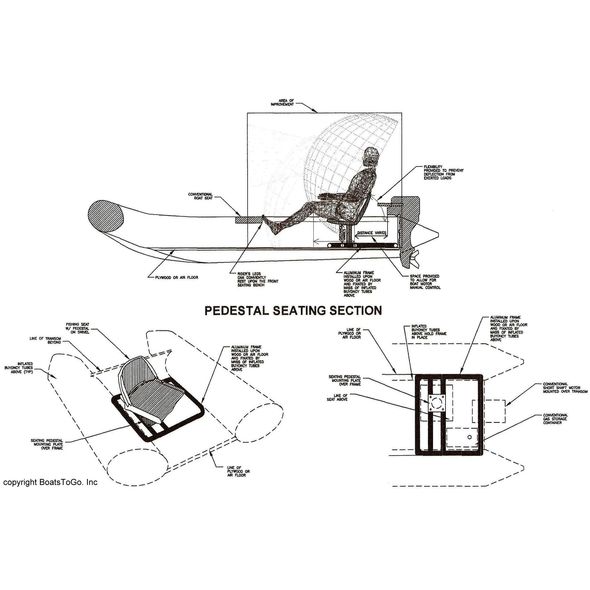

Due to the fact that this system is mounted to the floor and not to the boat tubes, vibration and bumps during a choppy ride are significantly reduced.

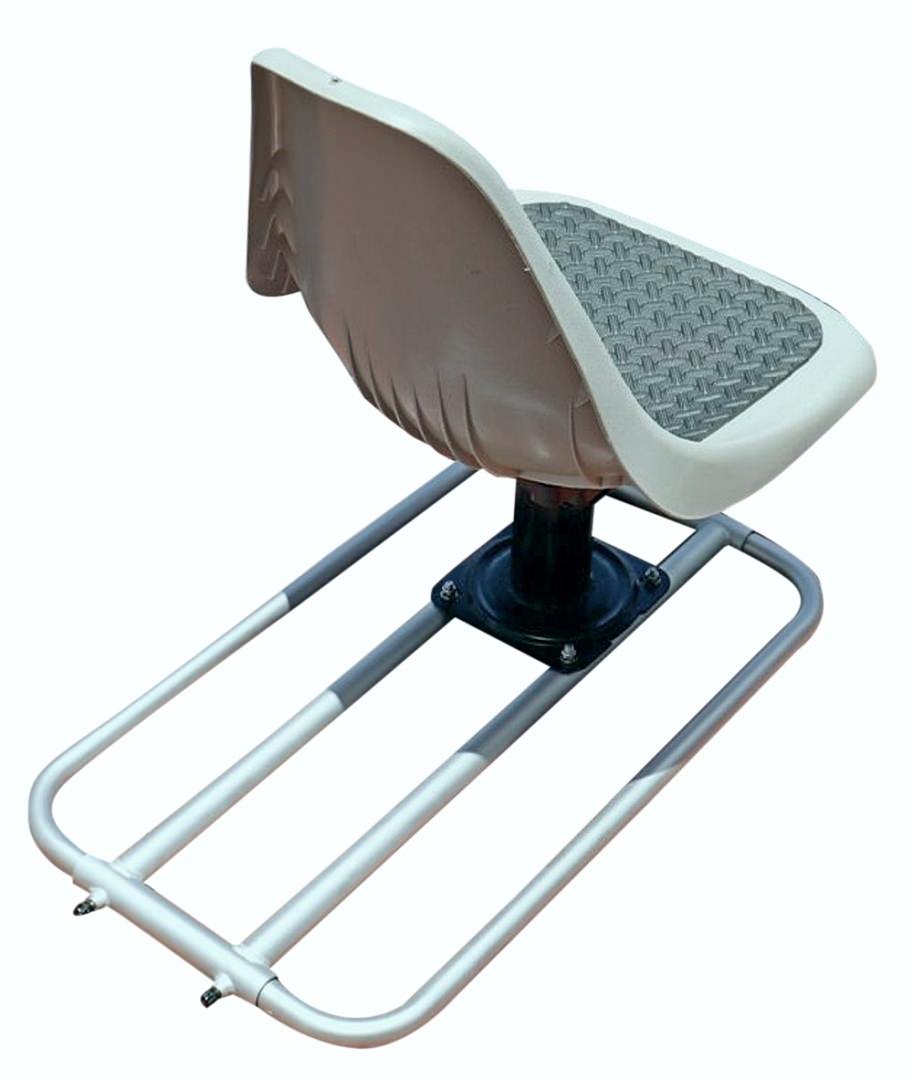

Holes in the aluminum frames are designed to match 7" economy boat seat pedestals that are sold in many retail stores such as Kmart, Wal-Mart and Outdoor World. A swivel base and boat fishing chair with back support can easily be installed on top of the boat seat pedestal.

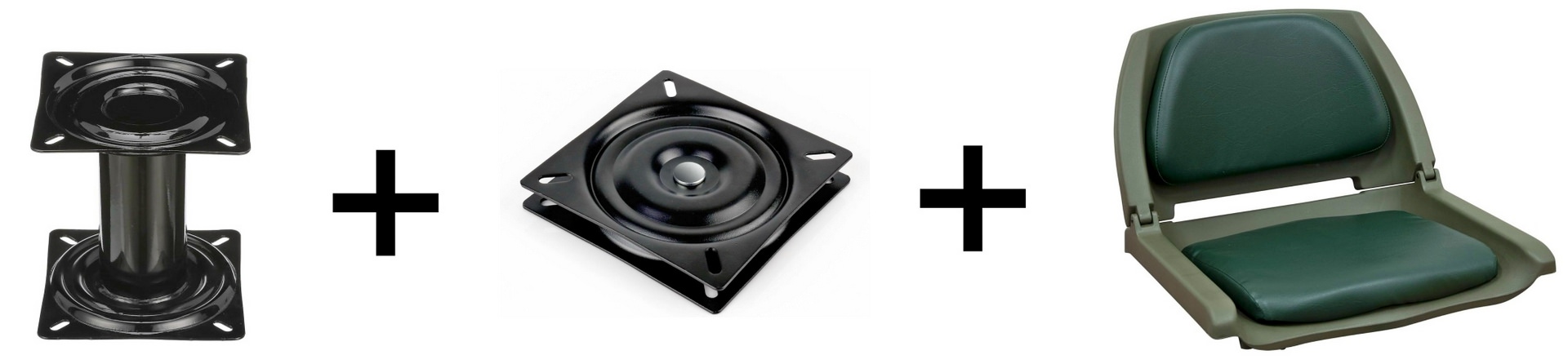

You will also need these:

+

+

An Economy boat seat pedestal retails for around $12, a swivel base costs $8, and fishing chair prices can vary depending on comfort level from $20 to $45. You also will need stainless steel mounting hardware. Bolts with round heads should be inserted in the frame from the bottom up, so that the round head of the bolt touches, but does not scratch the floor.

The installation is simple. First, deflate the tubes and simply place the platform inside the boat. Then, push the adjustable components away from each other until the outer sides of the aluminum frame tubes touch the inside of the boat tubes. Finally, tighten the screws and inflate boat tubes to squeeze the seating platform between the boat tubes. For boats with plywood floors, the platform will rest on the stringers.

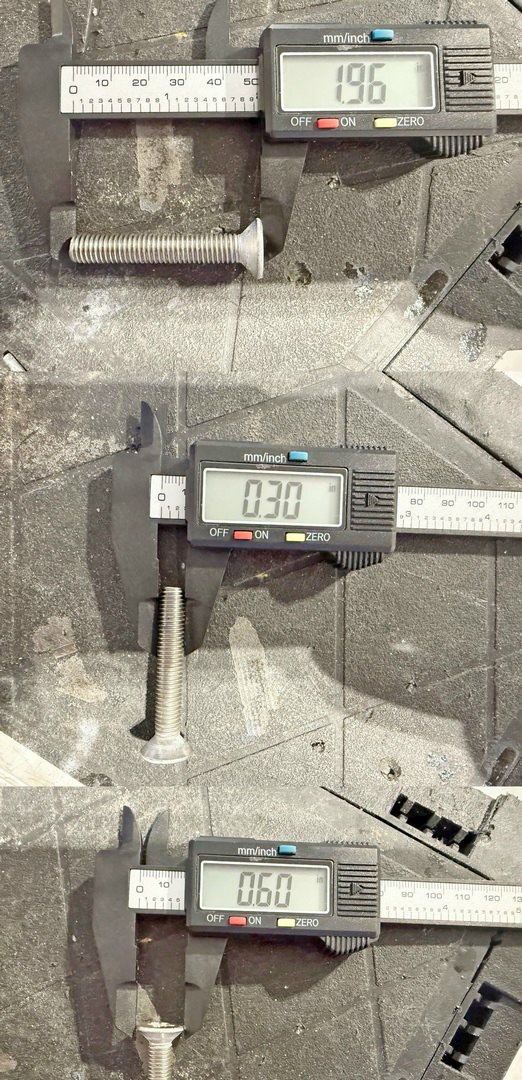

PLEASE NOTE: Boat chair pedestal, swivel platform, chair and hardware are not included, but can be purchased separately at many retail stores. Four bolts provided as free bonus gift, so that to secured pedestal to platform.

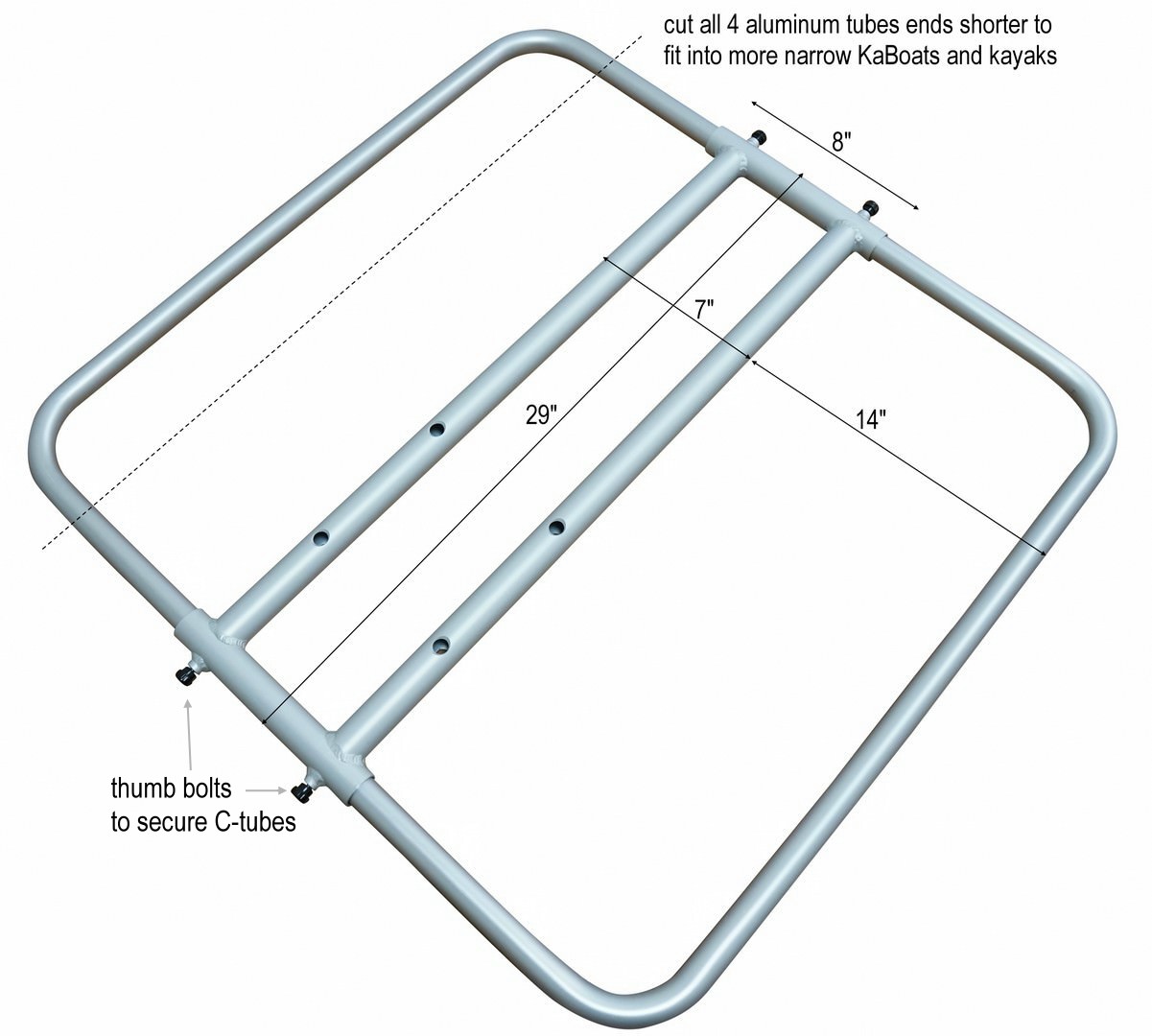

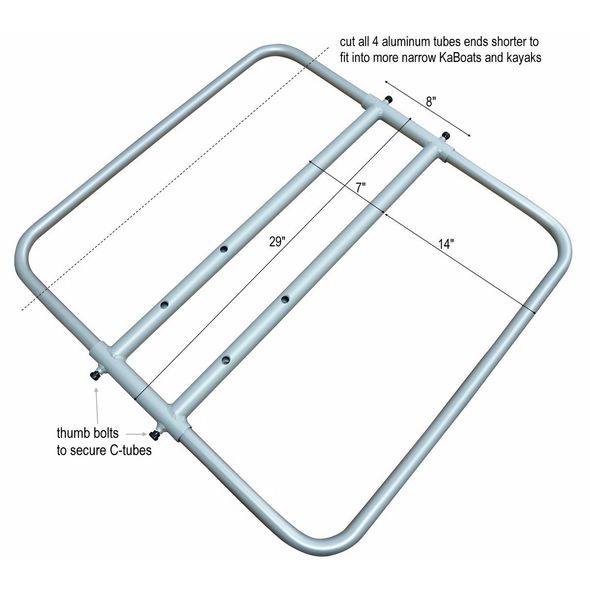

Sitting frame will extend from 14" to 35", fitting most inflatable boats with interior widths between those measurements. Please measure inside your boat to make sure.

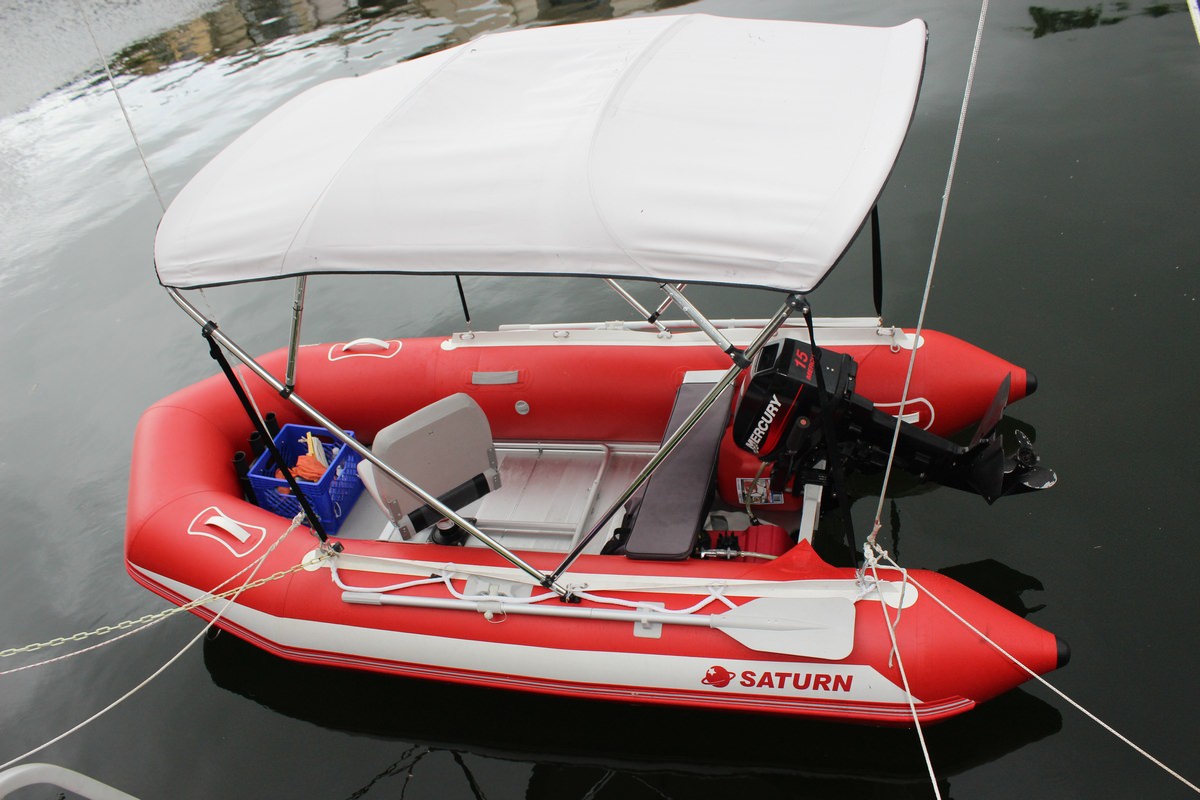

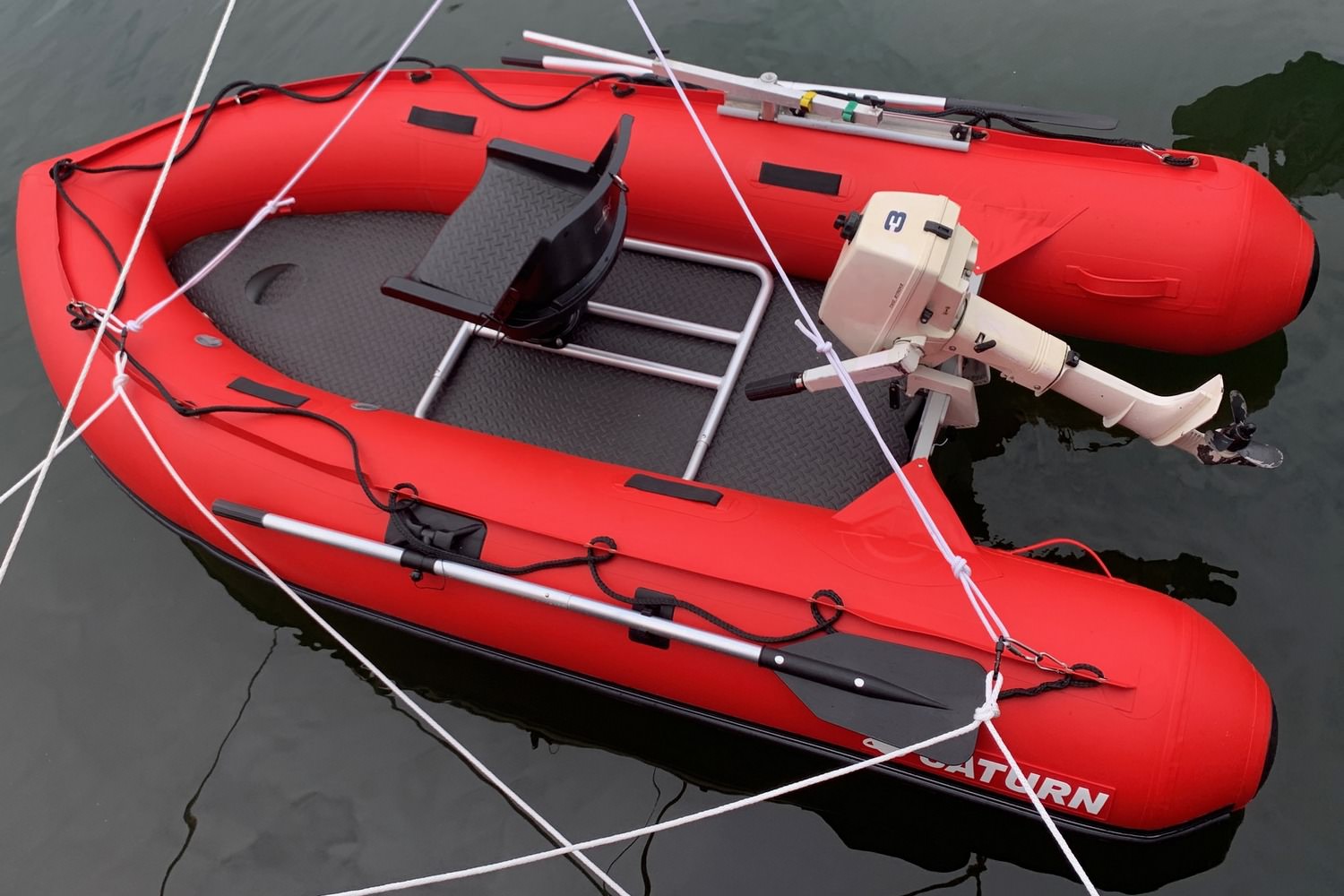

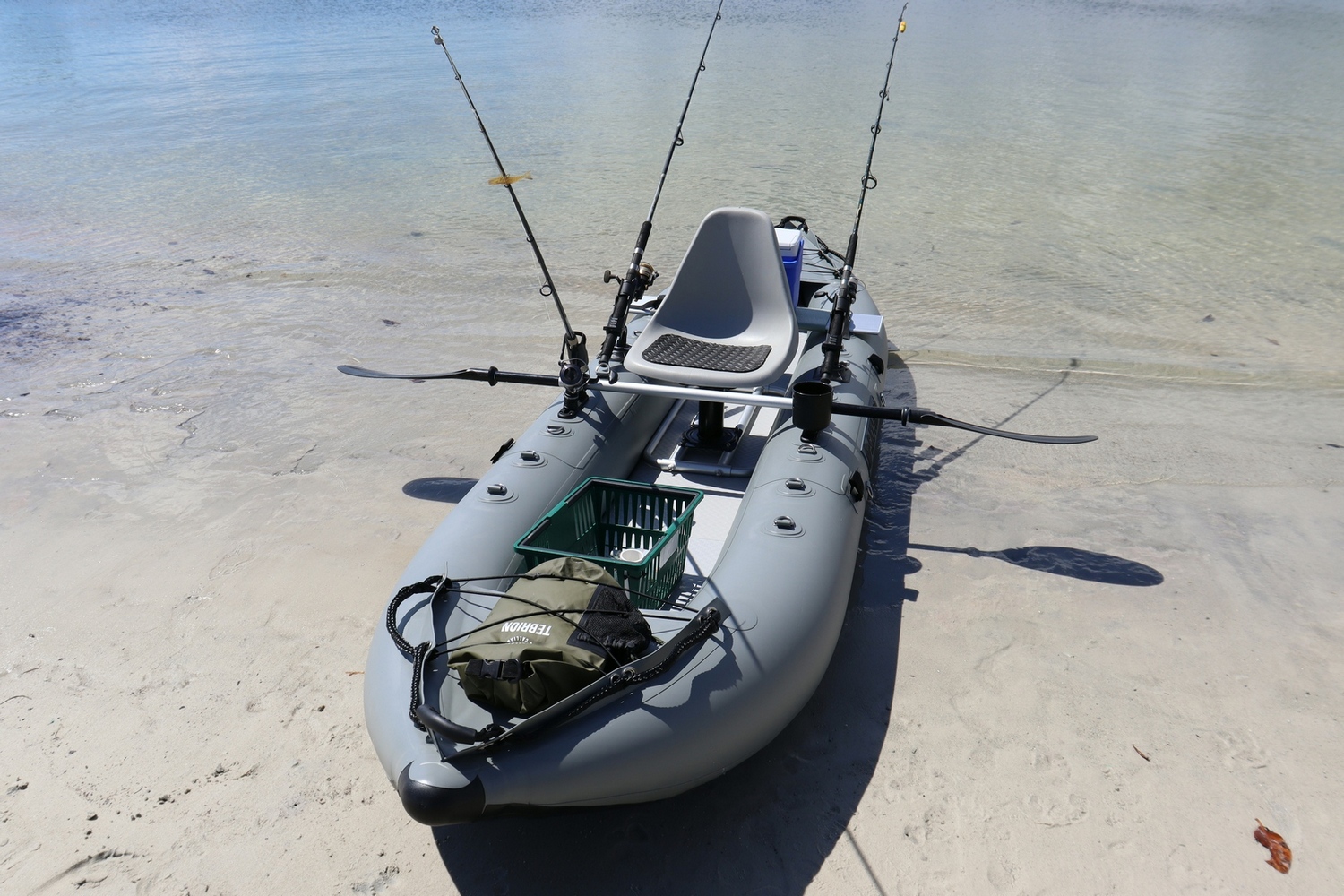

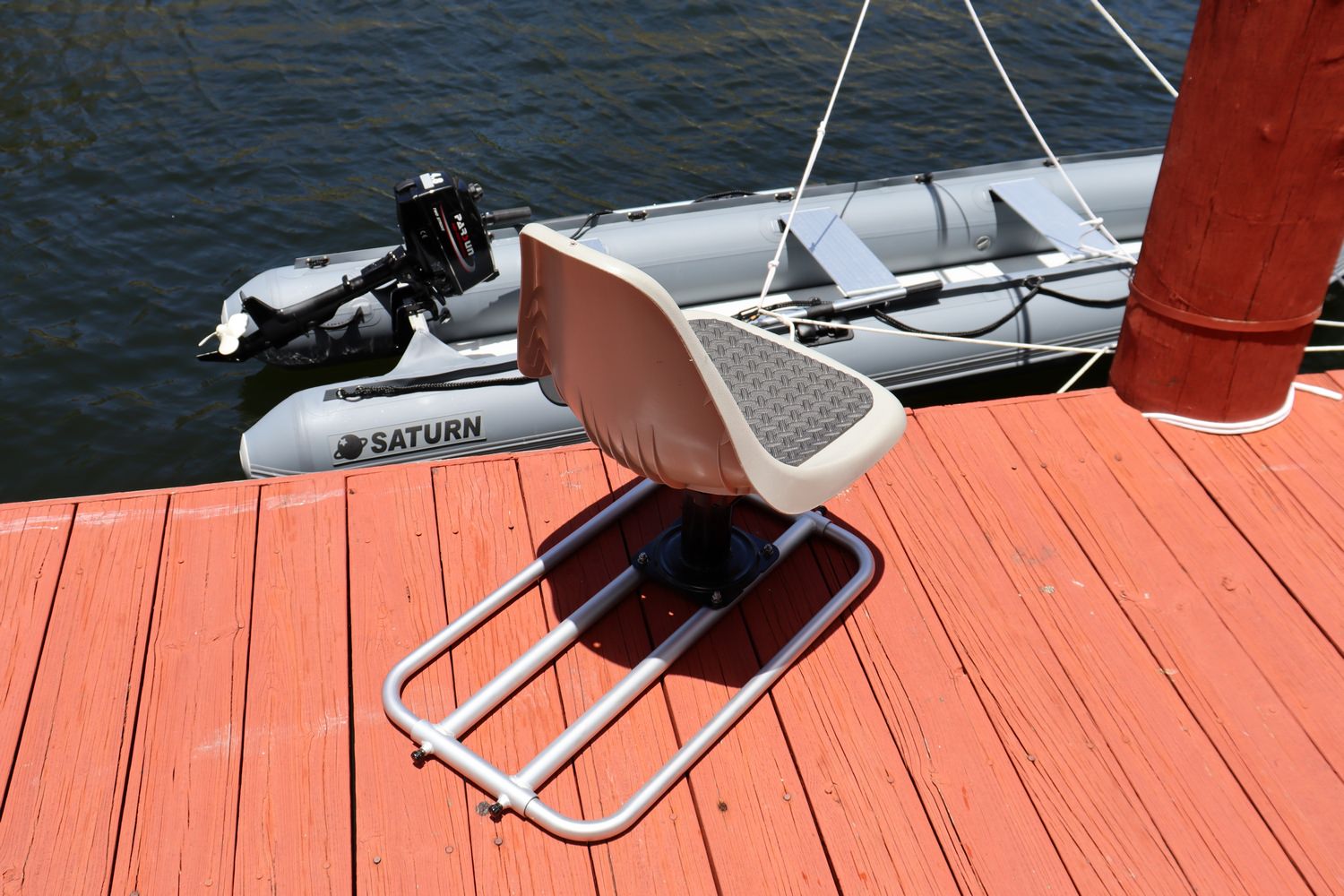

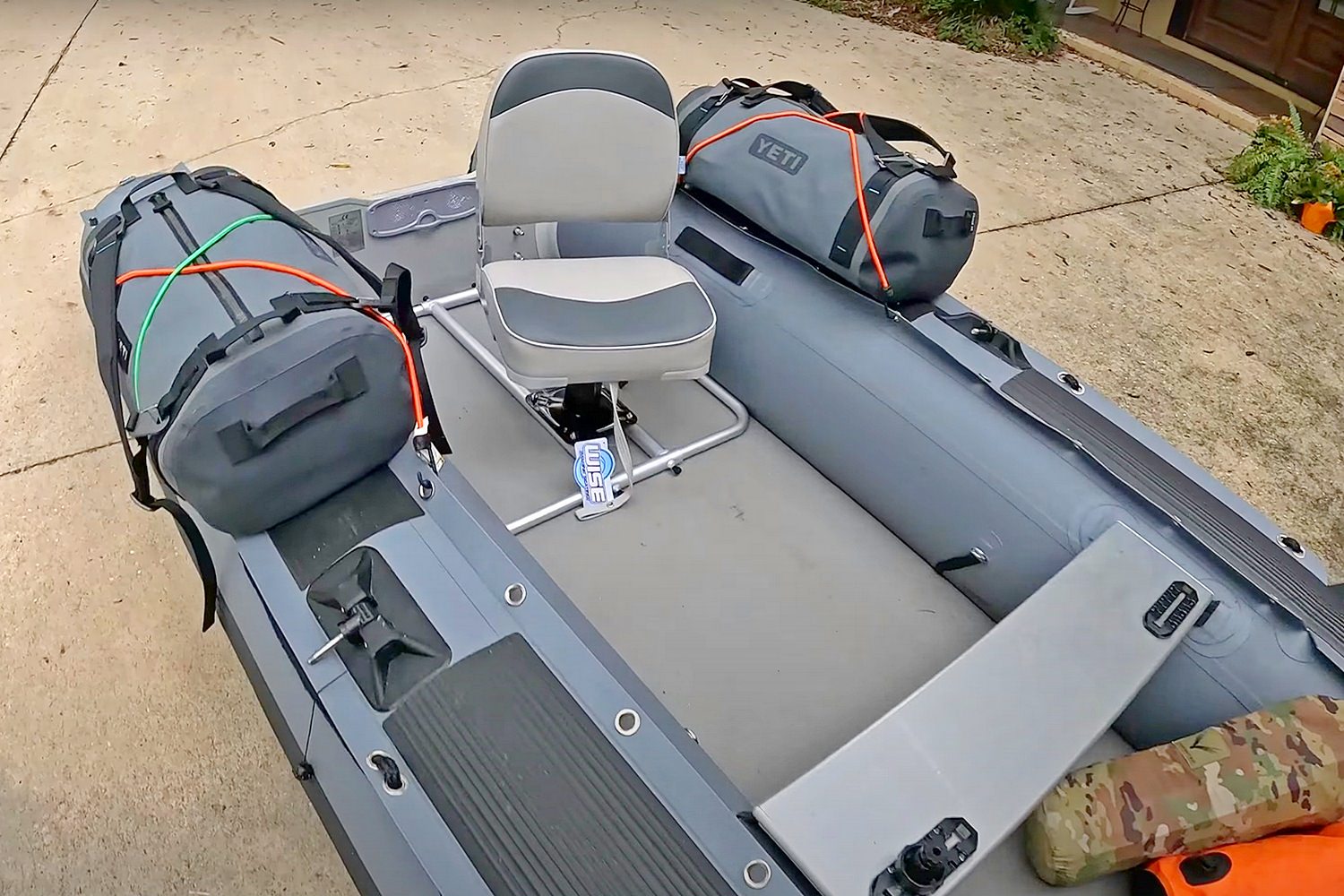

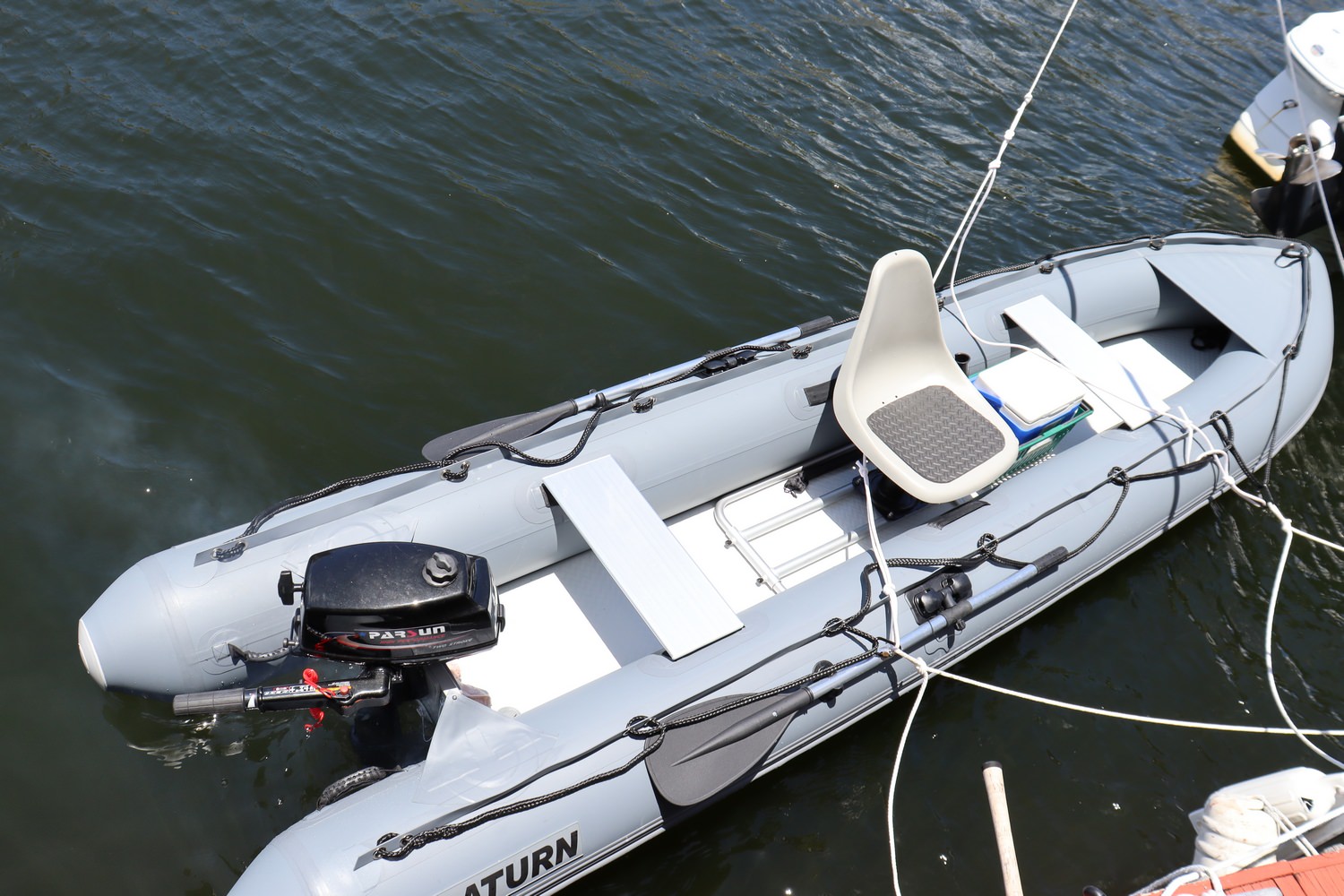

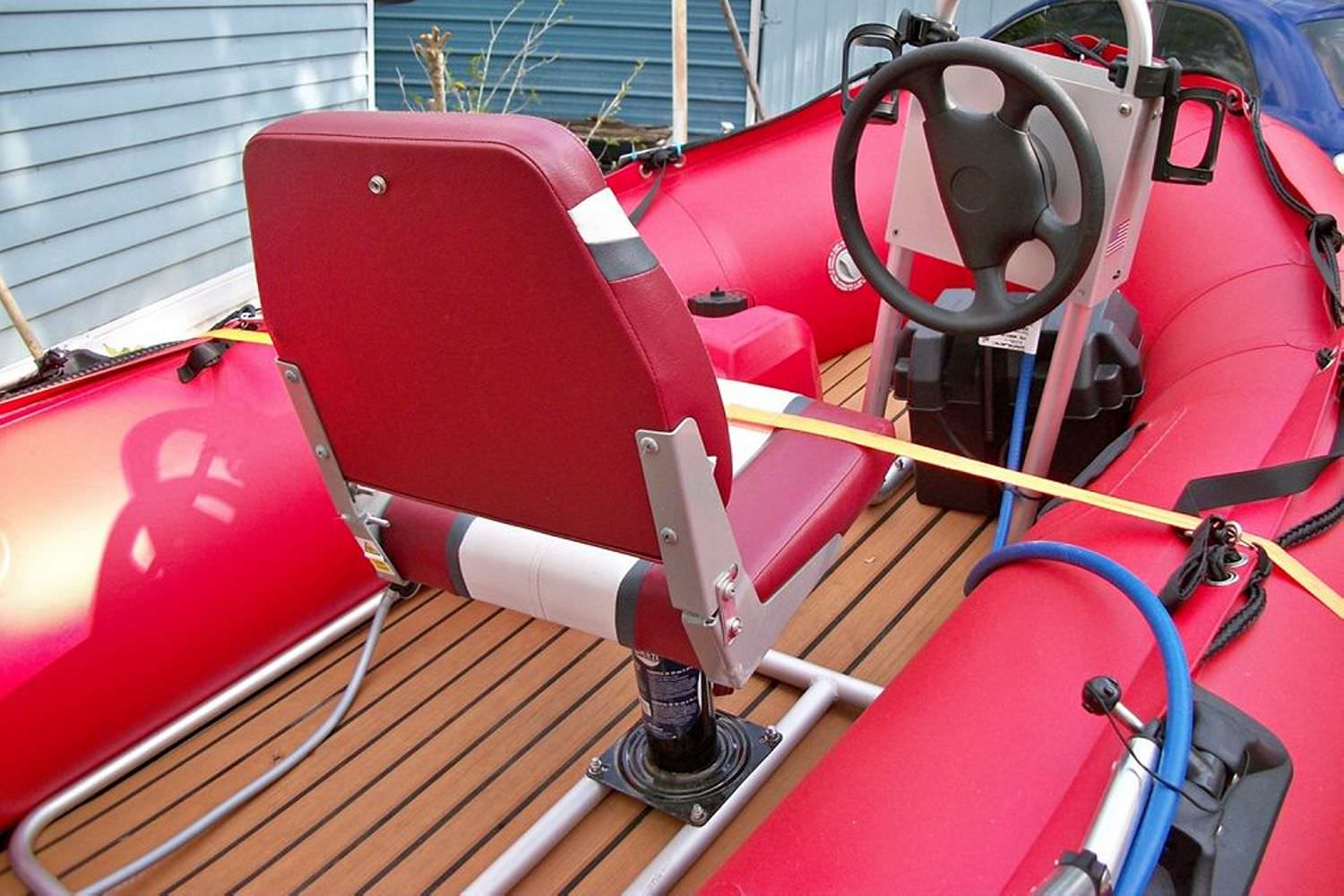

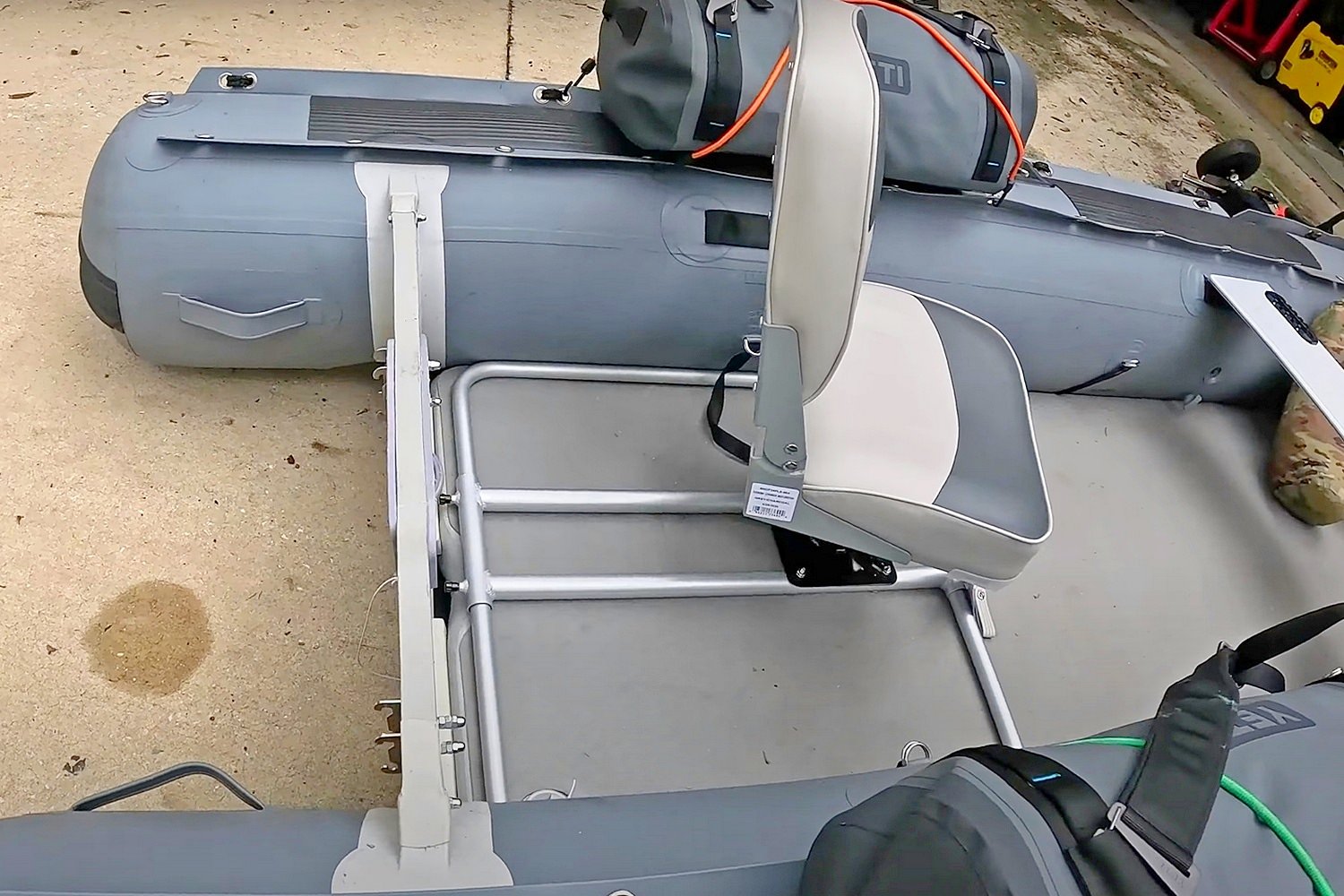

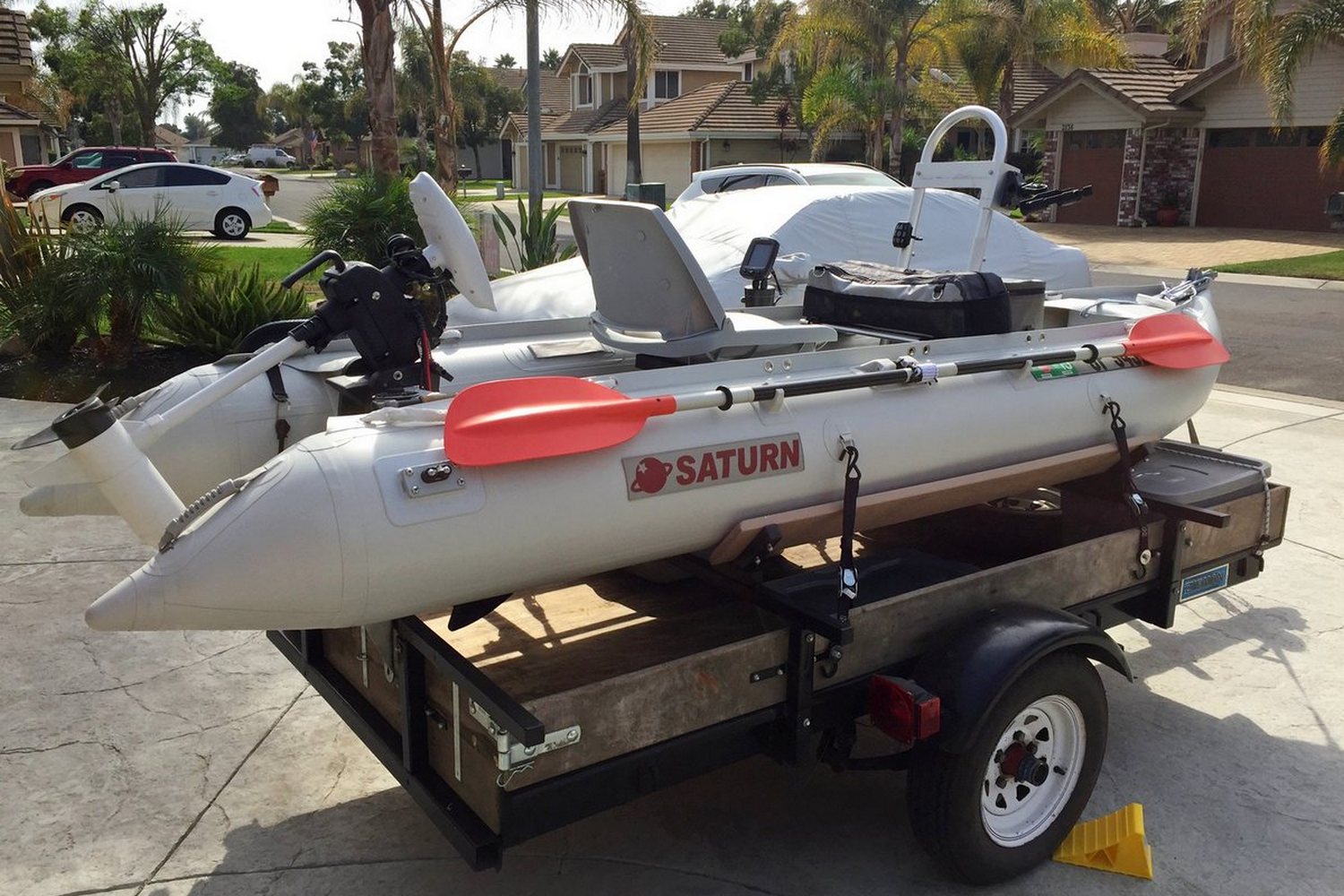

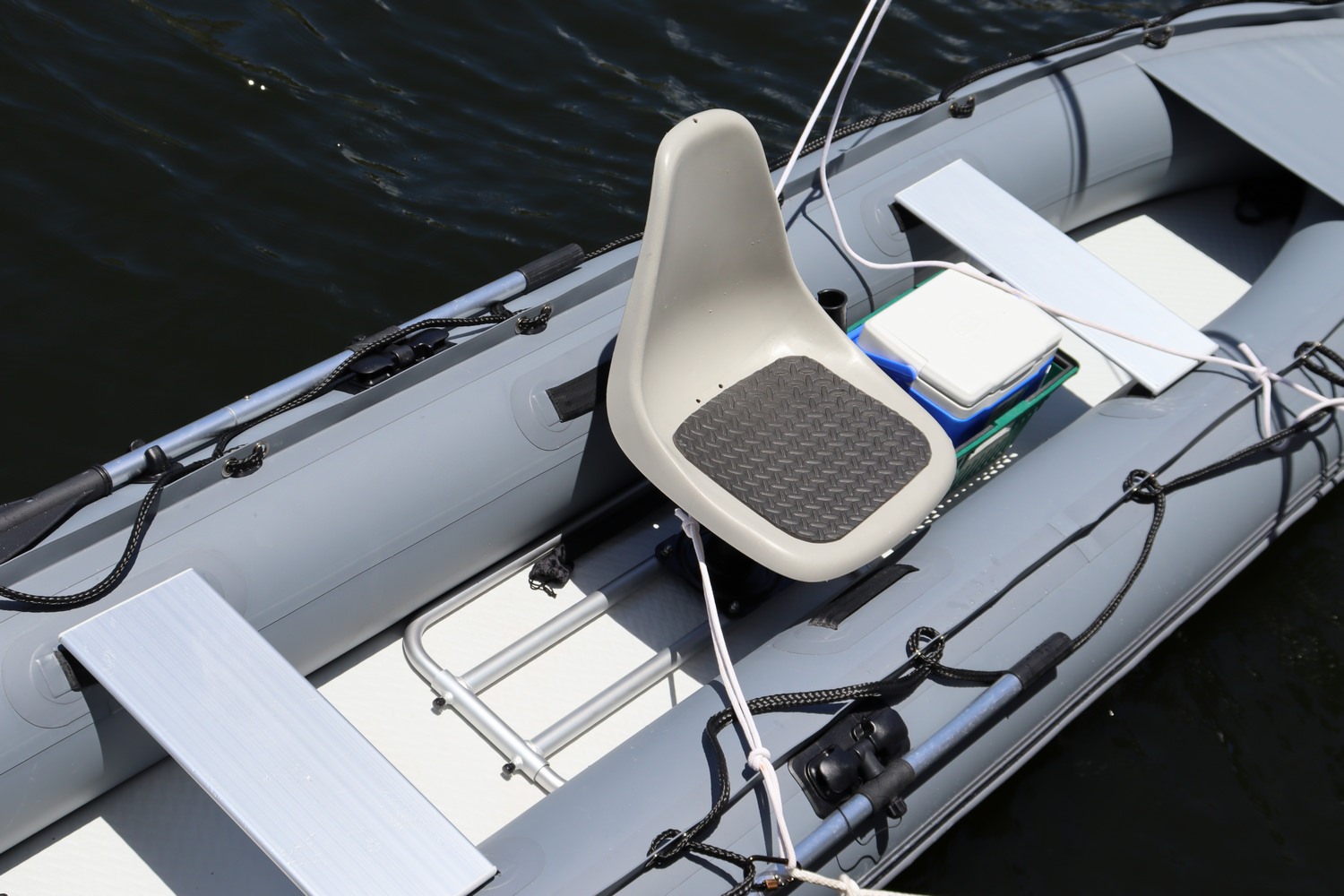

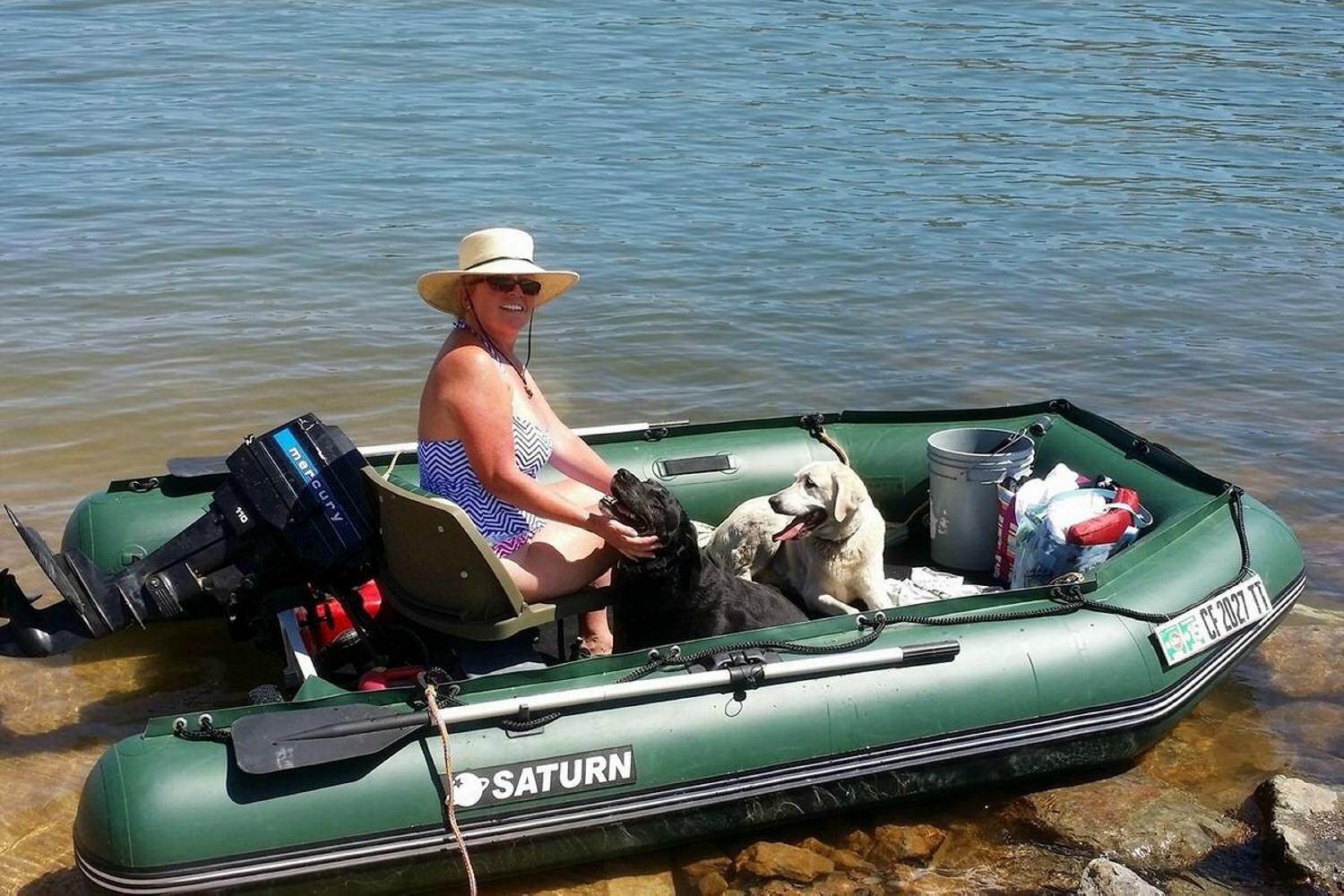

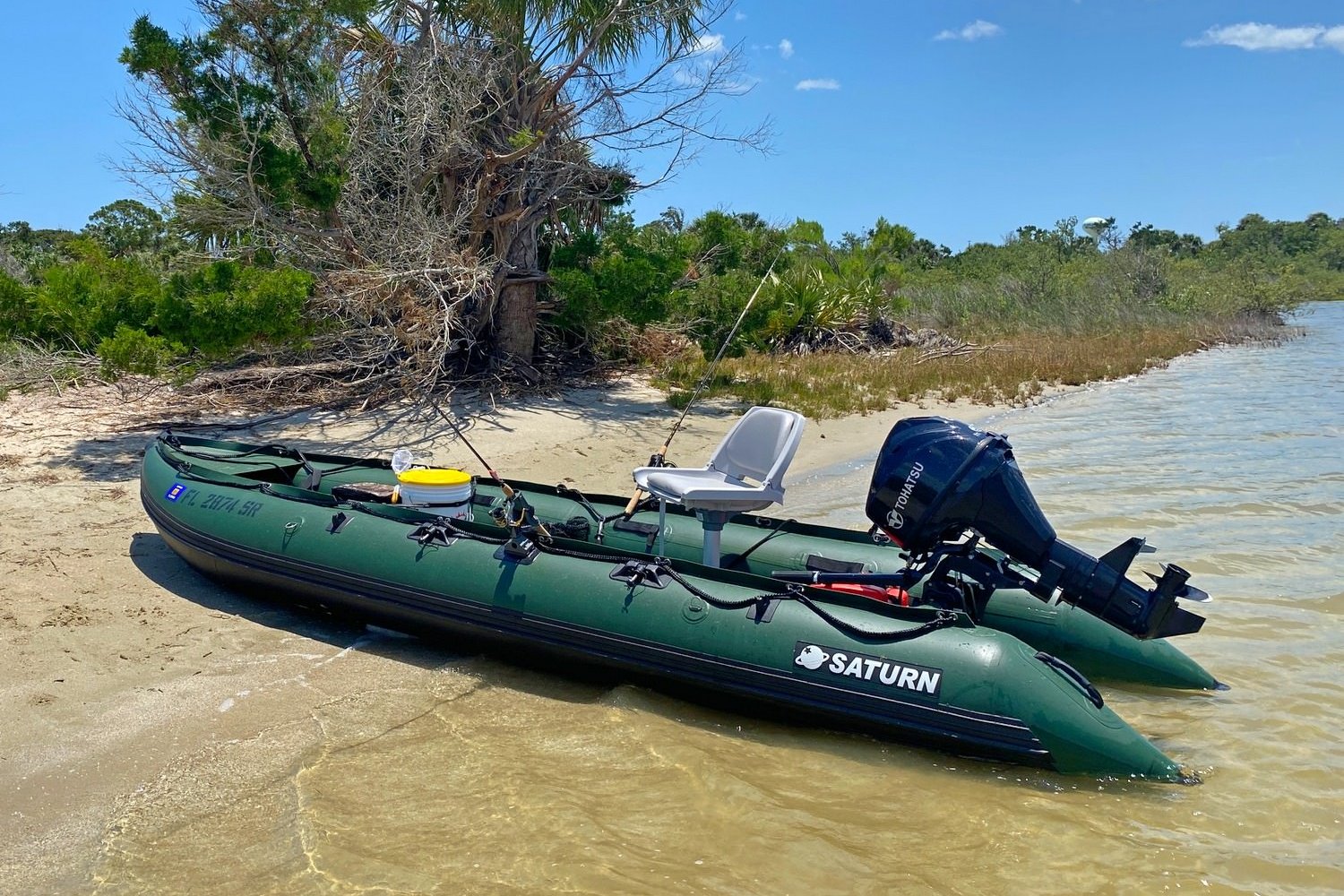

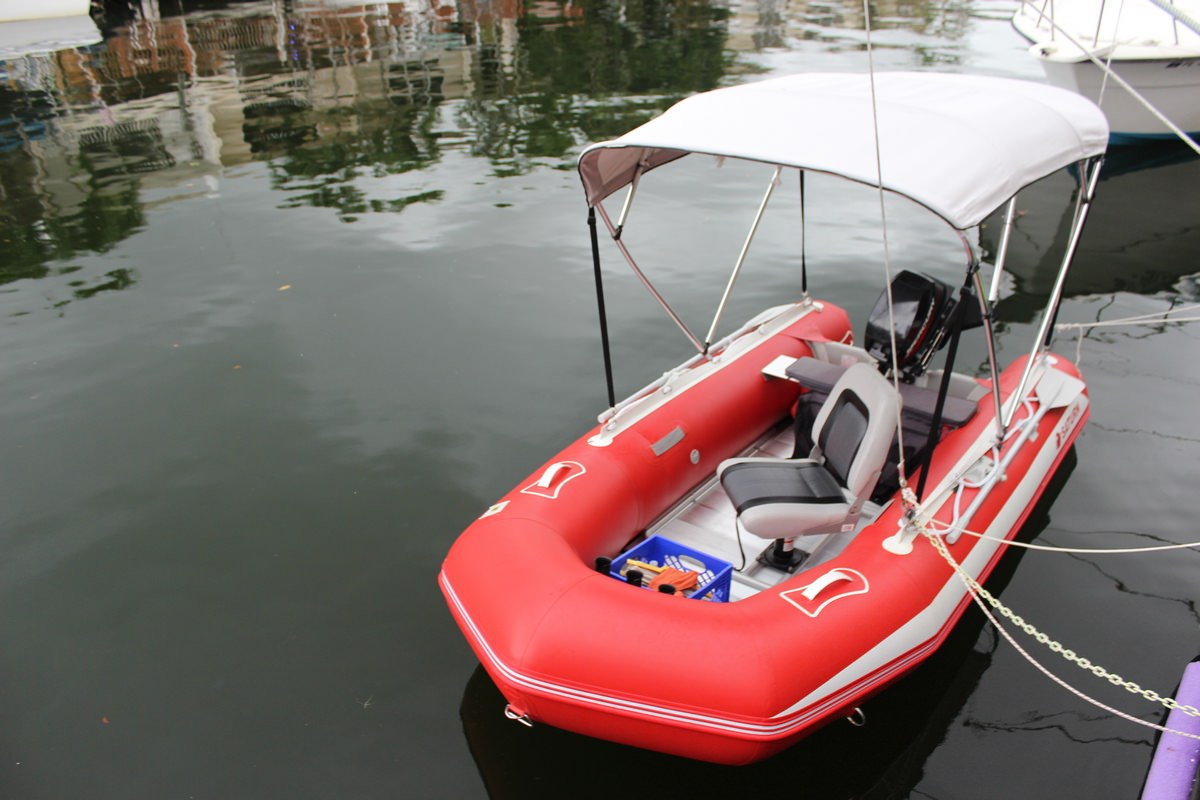

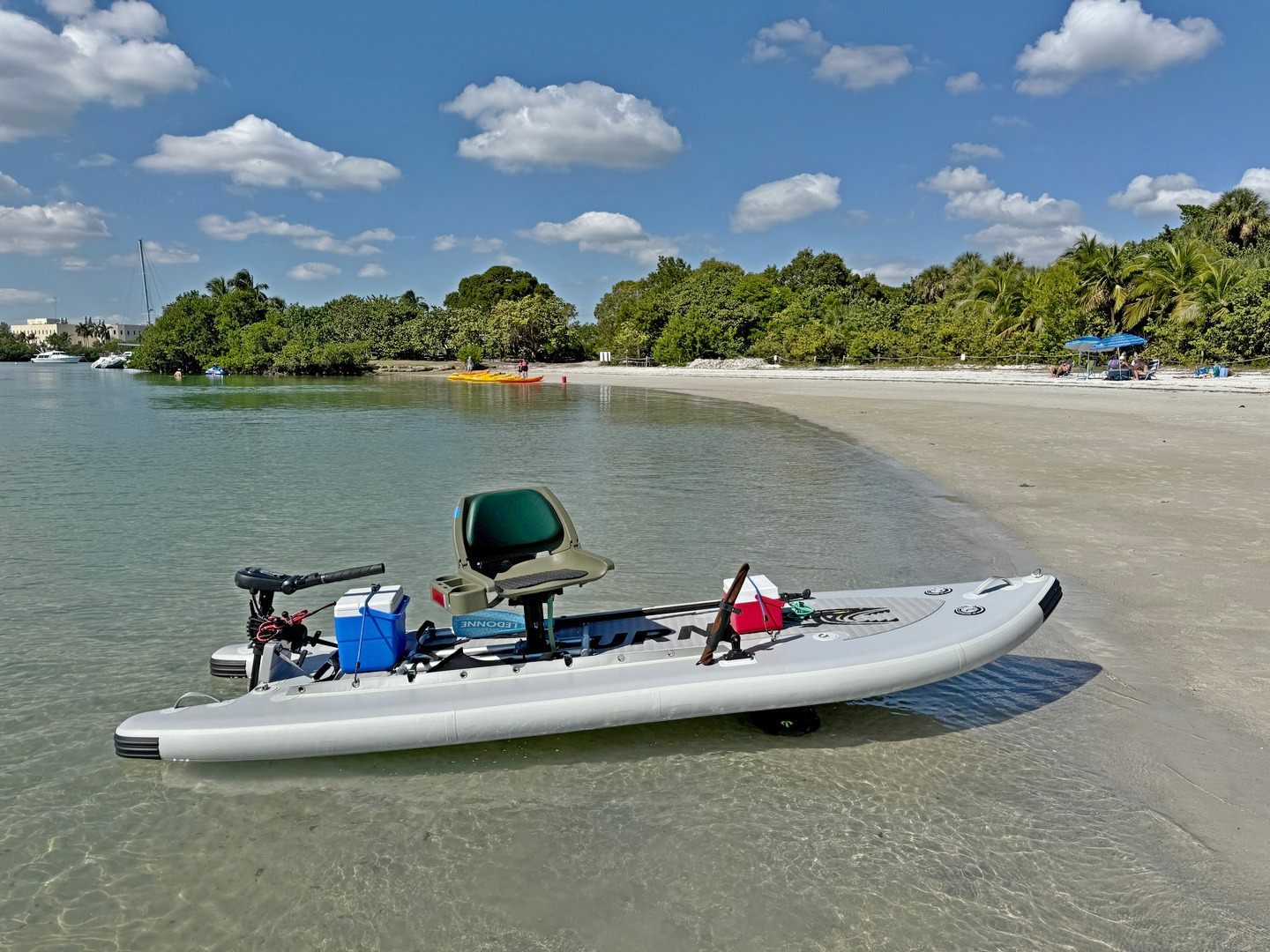

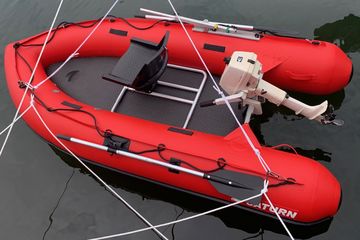

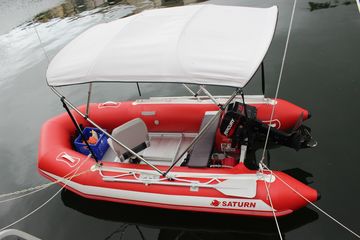

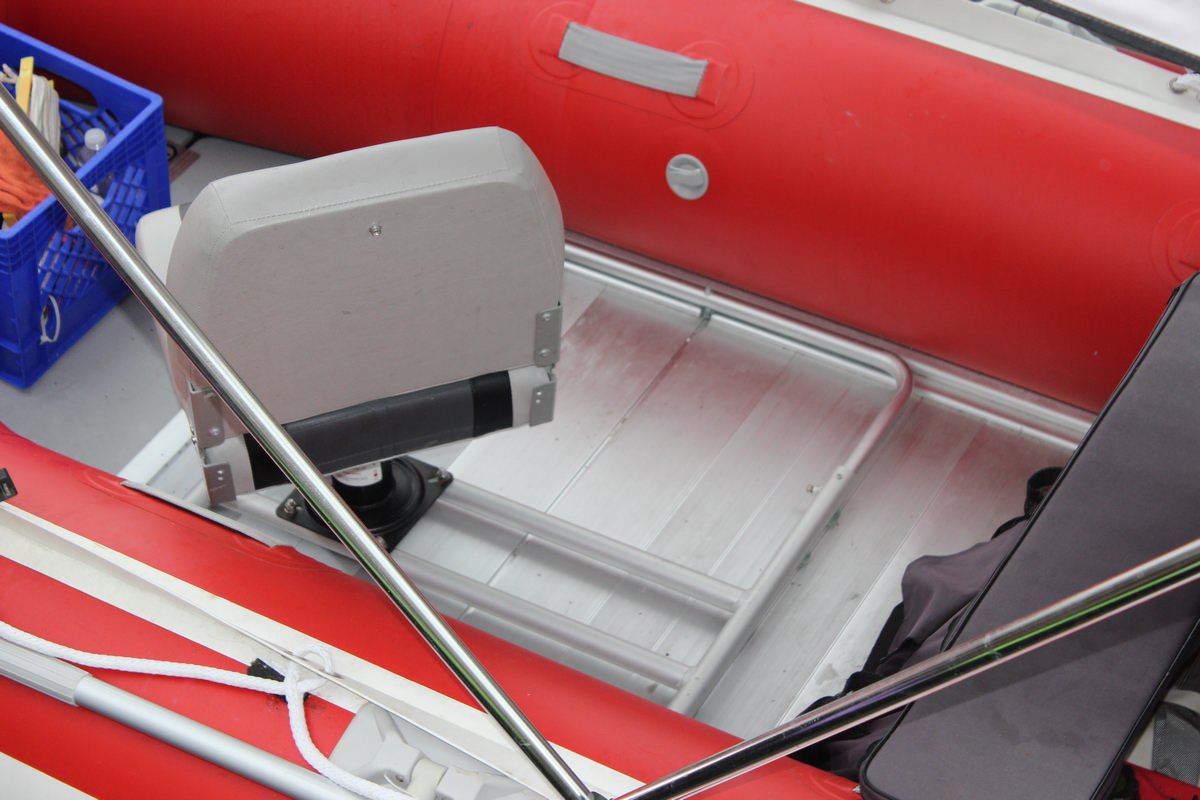

Example of boat with seating platform installed:

Quick Tips:
  • You may need to cut out C-frame shorter on all 4 sides, to make it easier to fit inside narrower type of boats and Kaboats.
  • We recommend using WD40 to make assembly/disassembly easier.
  • When inserting or removing C-frame into or from main frame, try to hold both hands at both insertion points at the same time, and then move C-frame inside or outside at equal distances/steps in order to avoid C-frame getting stuck under the angle inside main frame. If it happen, step on C-frame, spray with WD40 and pull main frame slowly, or use rubber mallet.

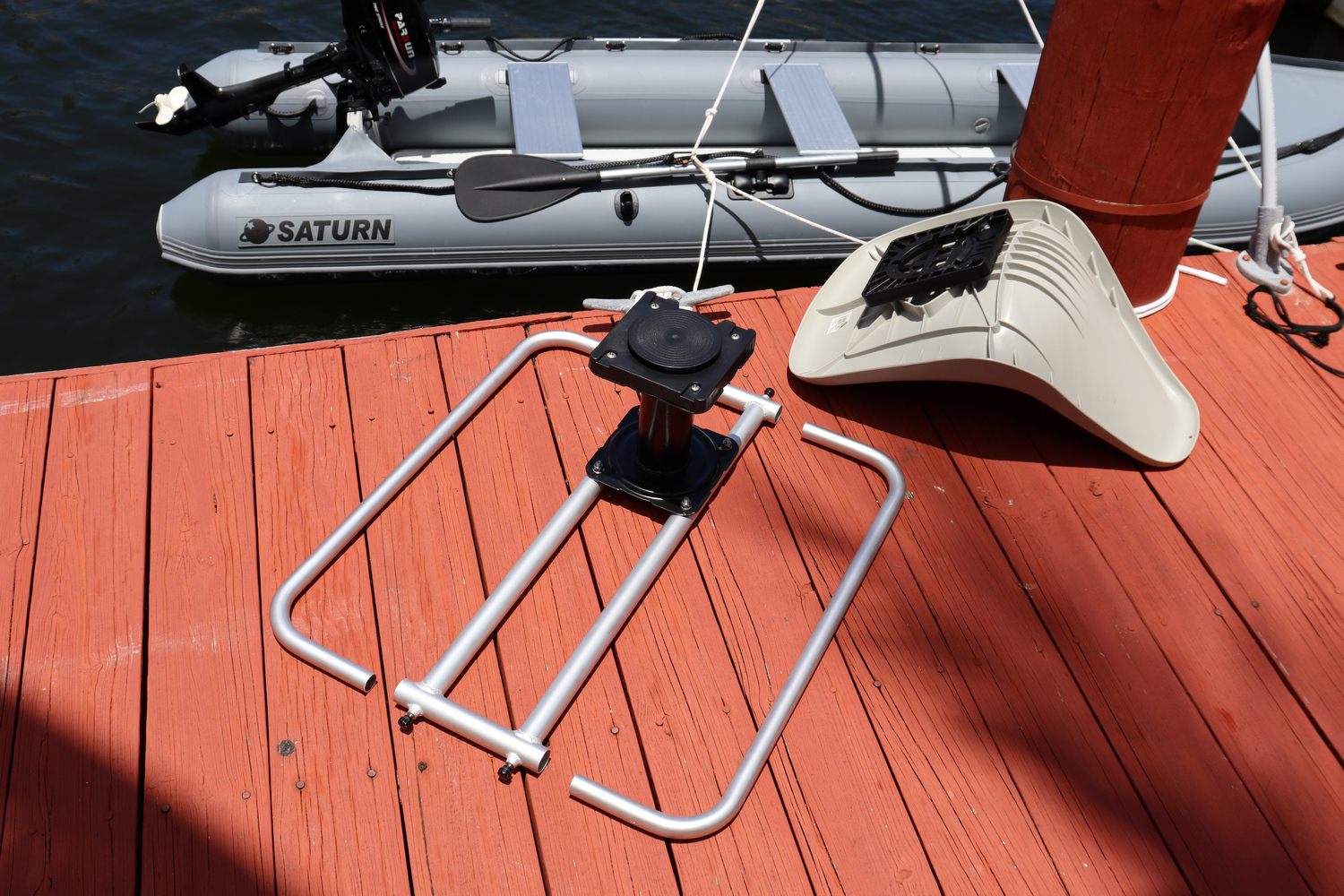

  • You just need to assemble frame at proper distance once, and then lock it with thumb screws. Then you simply deflate one tube, push frame with attached seat inside, on top of the floor, and then re-inflate tube to keep frame in place. To remove frame from boat, simply deflate one side of tube and pull frame out.
Outer Tube:
OD32x1.8 mm
Inner Tube:
OD25.6x1.6 mm
