Central Console For Boat

MORE COMING AROUND JANUARY
$69.00
Short description:
MSRP: $138.00
CONSOLE
$24.00
In stock
+

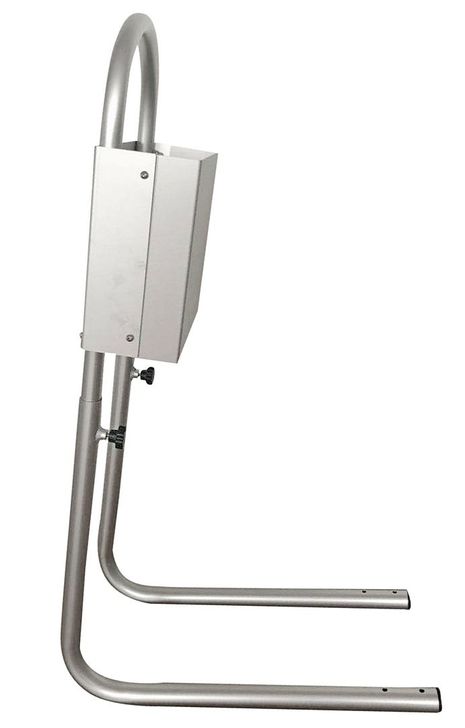

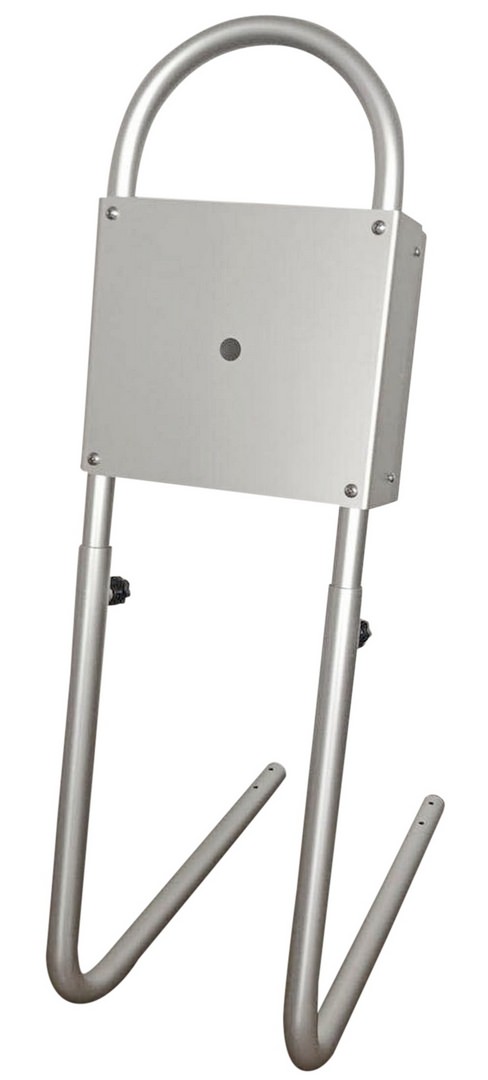

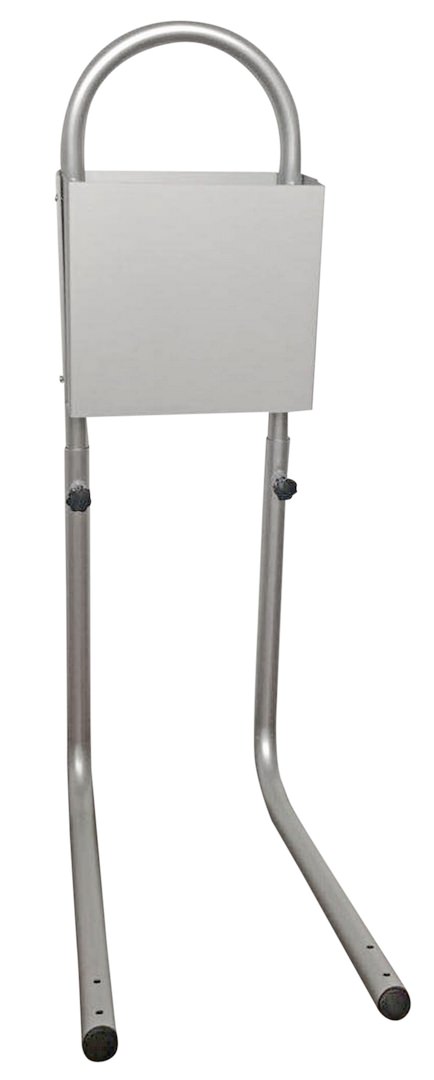

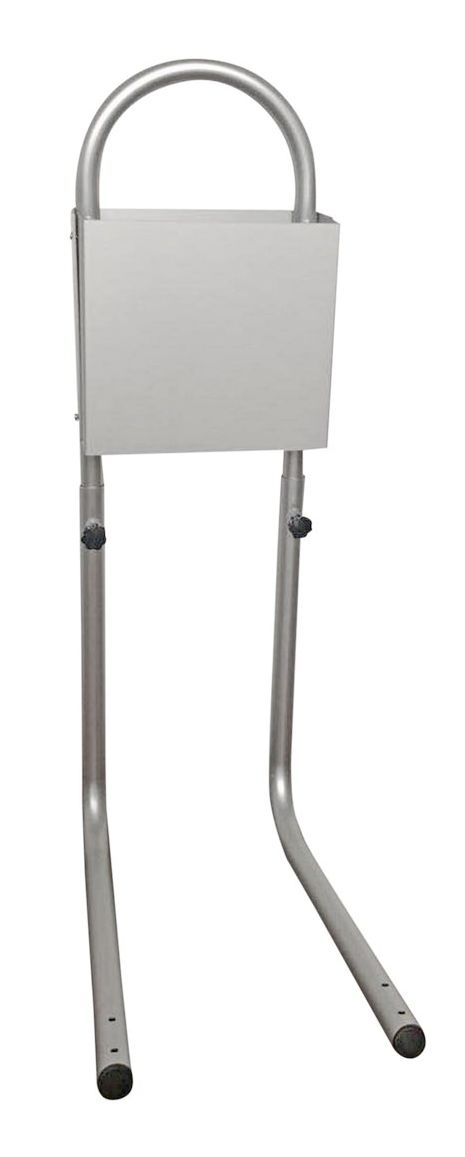

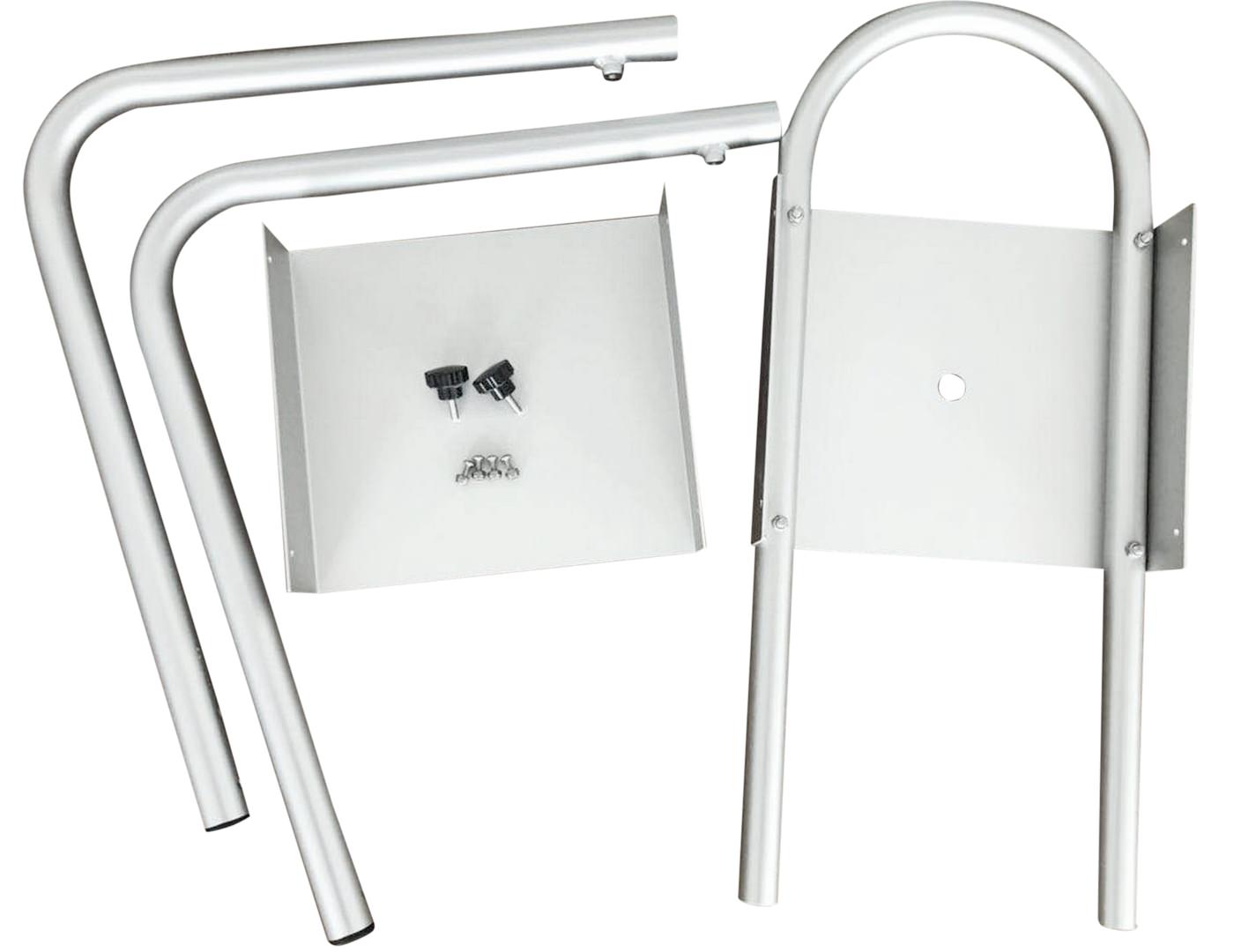

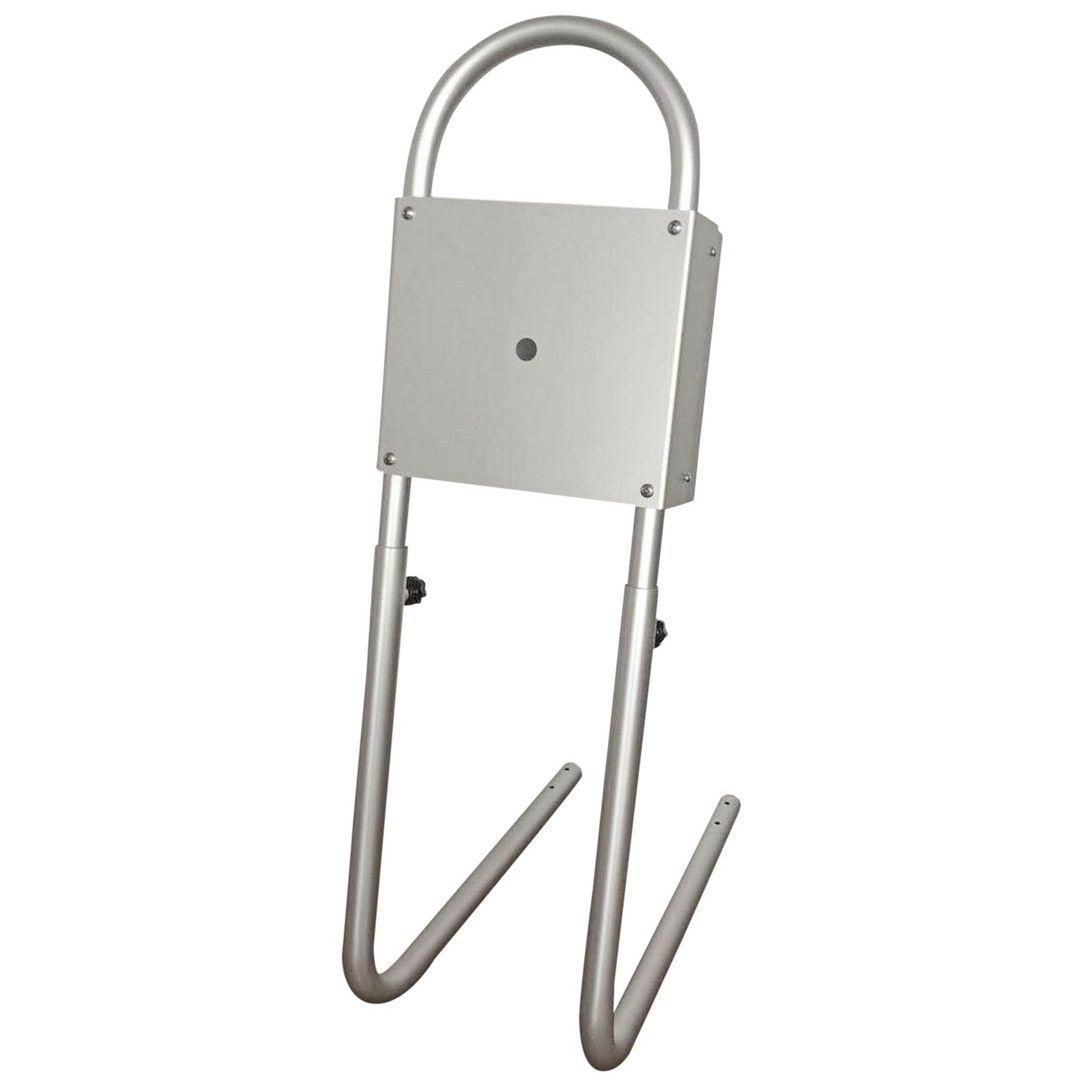

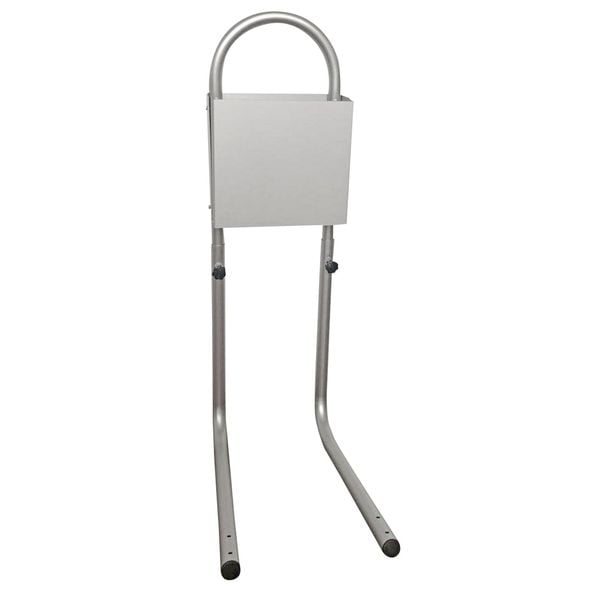

DIY Central Console Aluminum Frame For Boats.

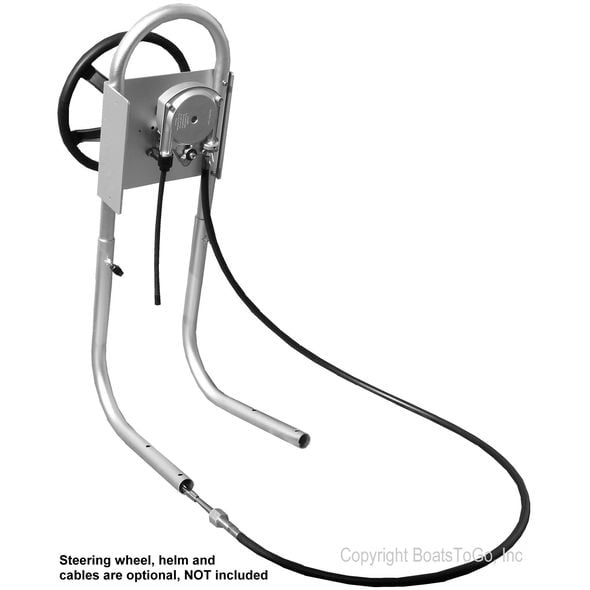

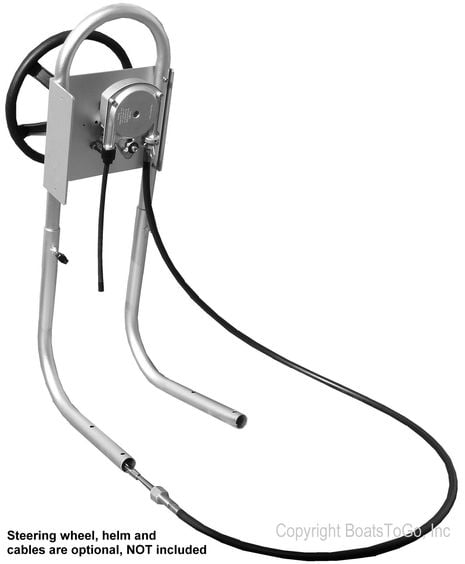

PLEASE NOTE: WE SELL ALUMINUM FRAME ONLY. STEERING HELM, STEERING WHEEL AND FLEX CABLE ARE NOT INCLUDED.

NEW: Optional rear cover now included as FREE BONUS!

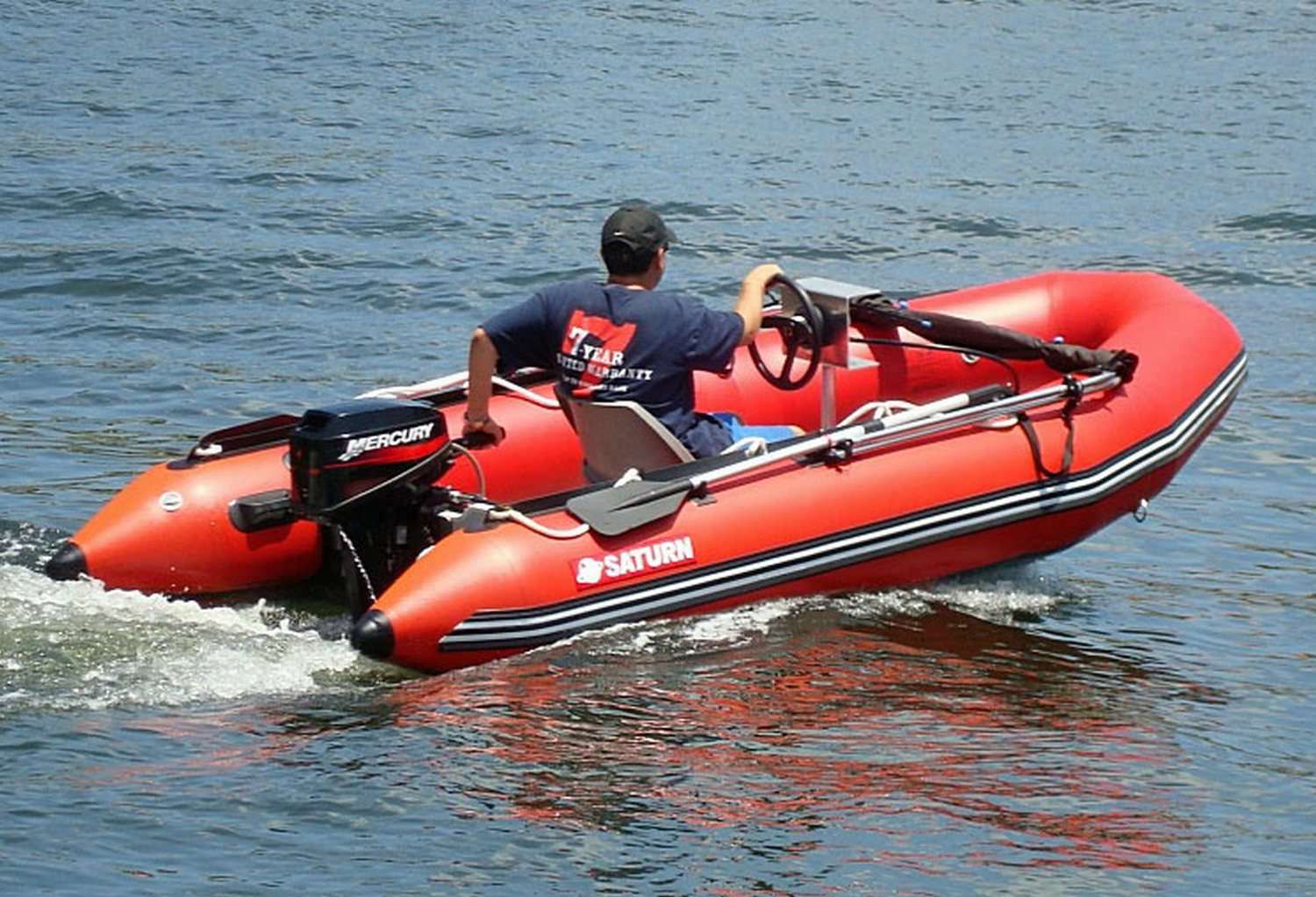

The Central Console will take riding comfort to the next level and will put you in a total control of your boat. It is similar to the difference between driving a car and riding a bicycle.

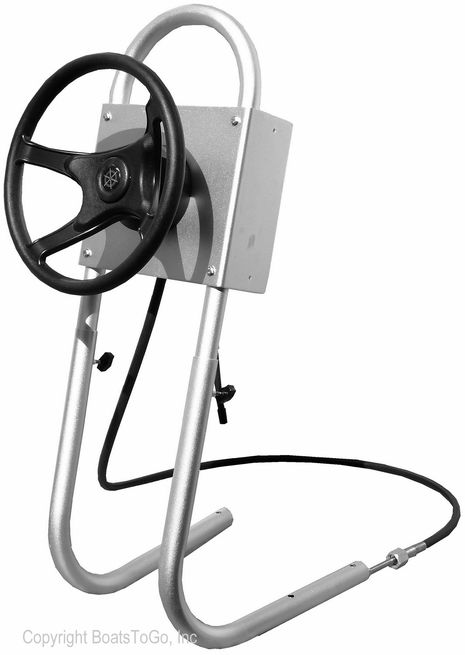

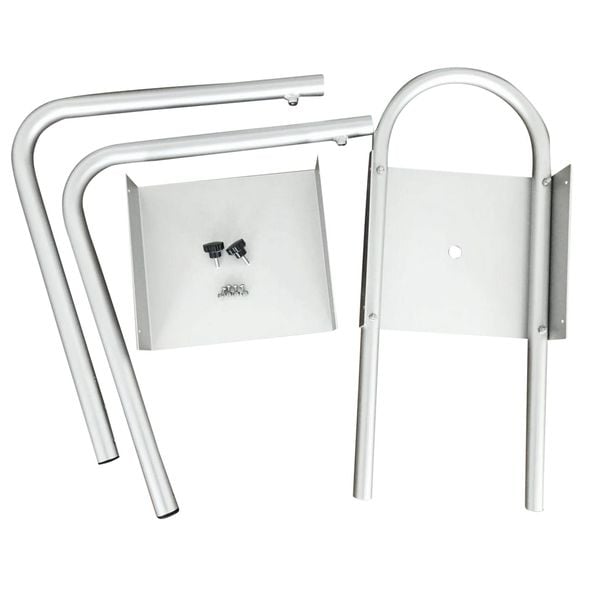

Assembly of the complete steering console system, including installation of a rotary steering control is an easy do-it-yourself project. You will need rotary steering system, 4 to 7' cable, and steering wheel. All of these are sold in any marine store and on-line. You will also need link control steering arm ($15 & up) specific to your outboard engine to accept a flex cable and to turn the engine right or left.

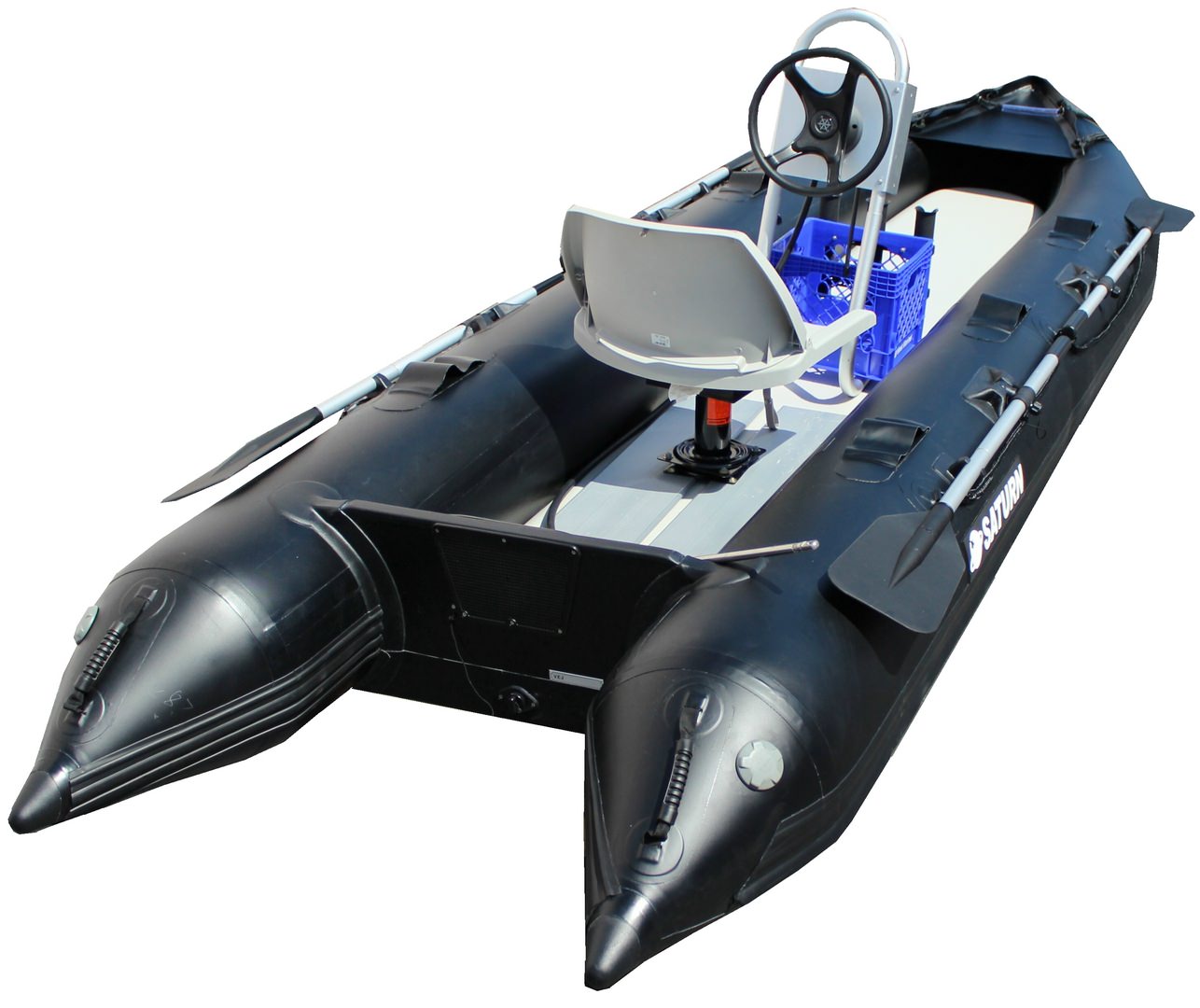

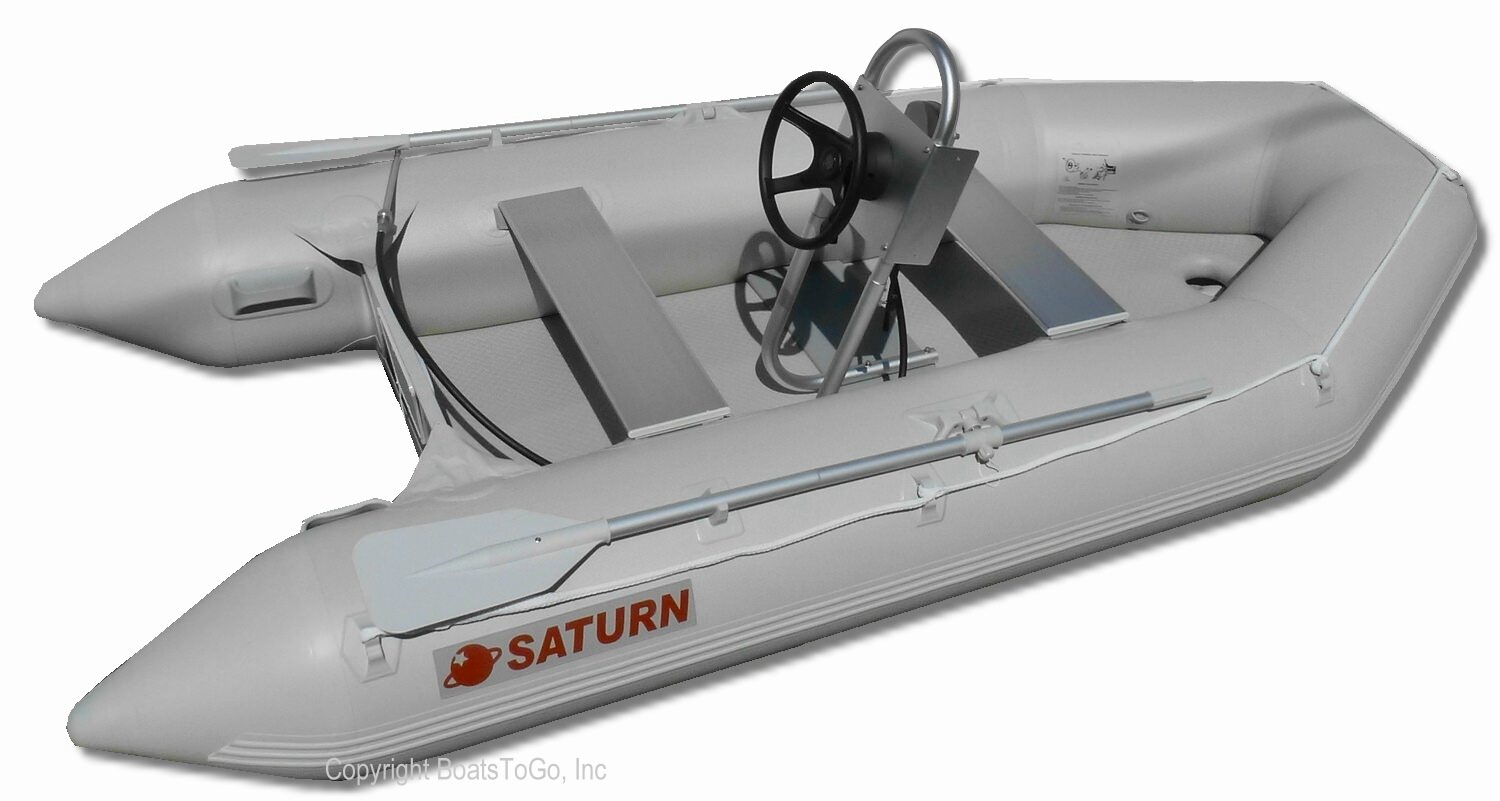

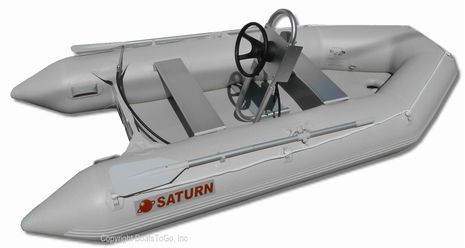

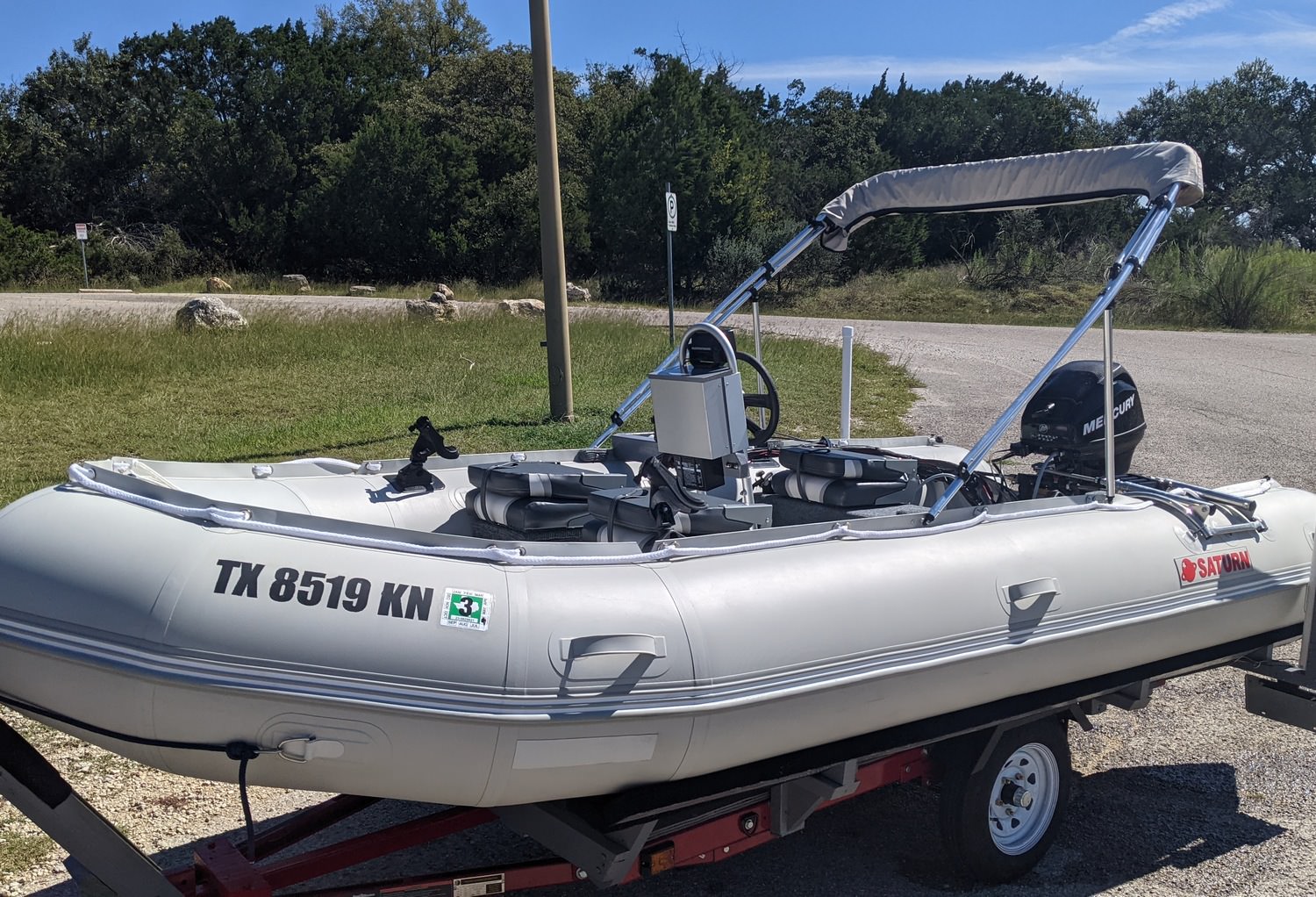

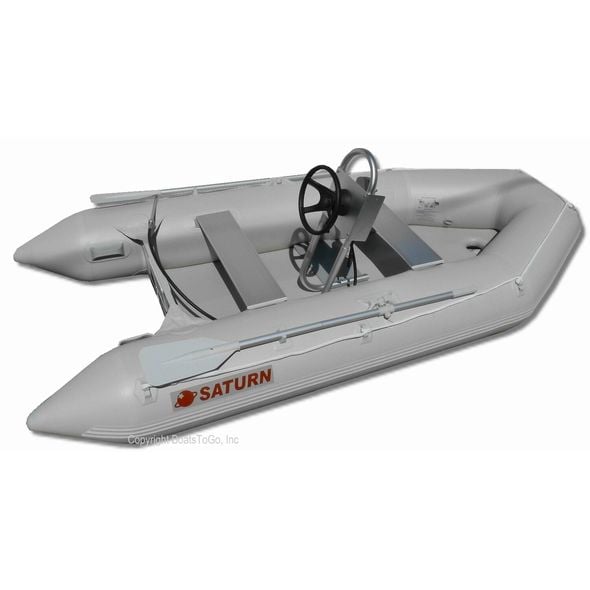

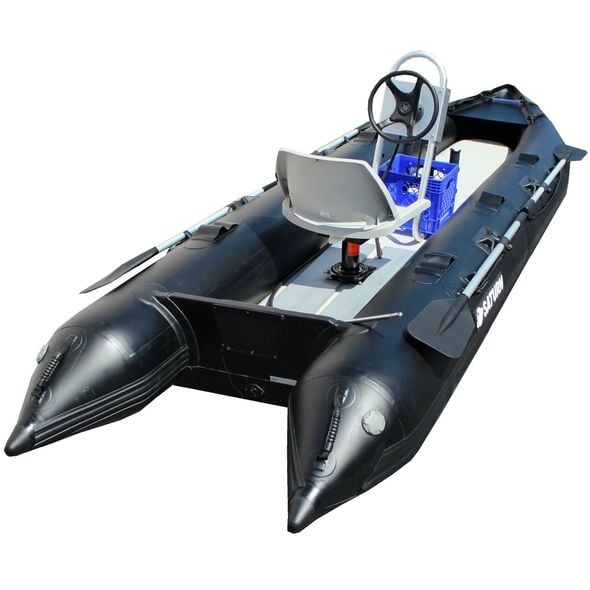

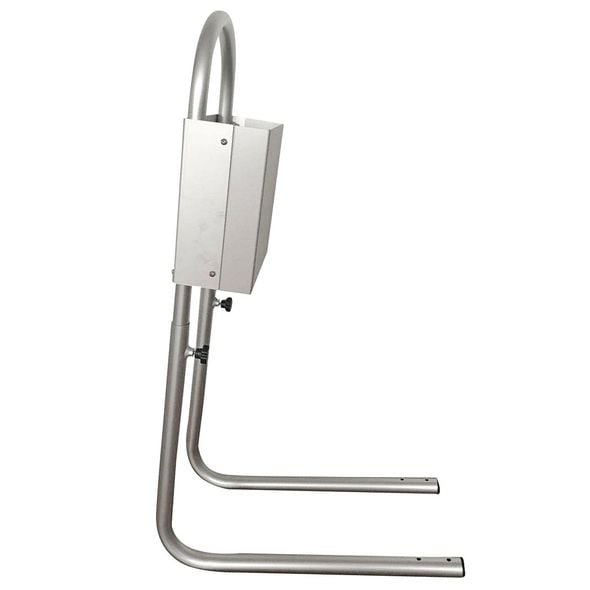

Our Aluminium Central Console System can be installed on variety of watercrafts, such as aluminium jon boats, small fiberglass boats, inflatable RIB boats, inflatable boats with aluminium or plywood floor, and even on inflatable boats with high pressure drop-stitch air floors. It has adjustable height from 34" to 40" and can be easily installed or removed from boat.

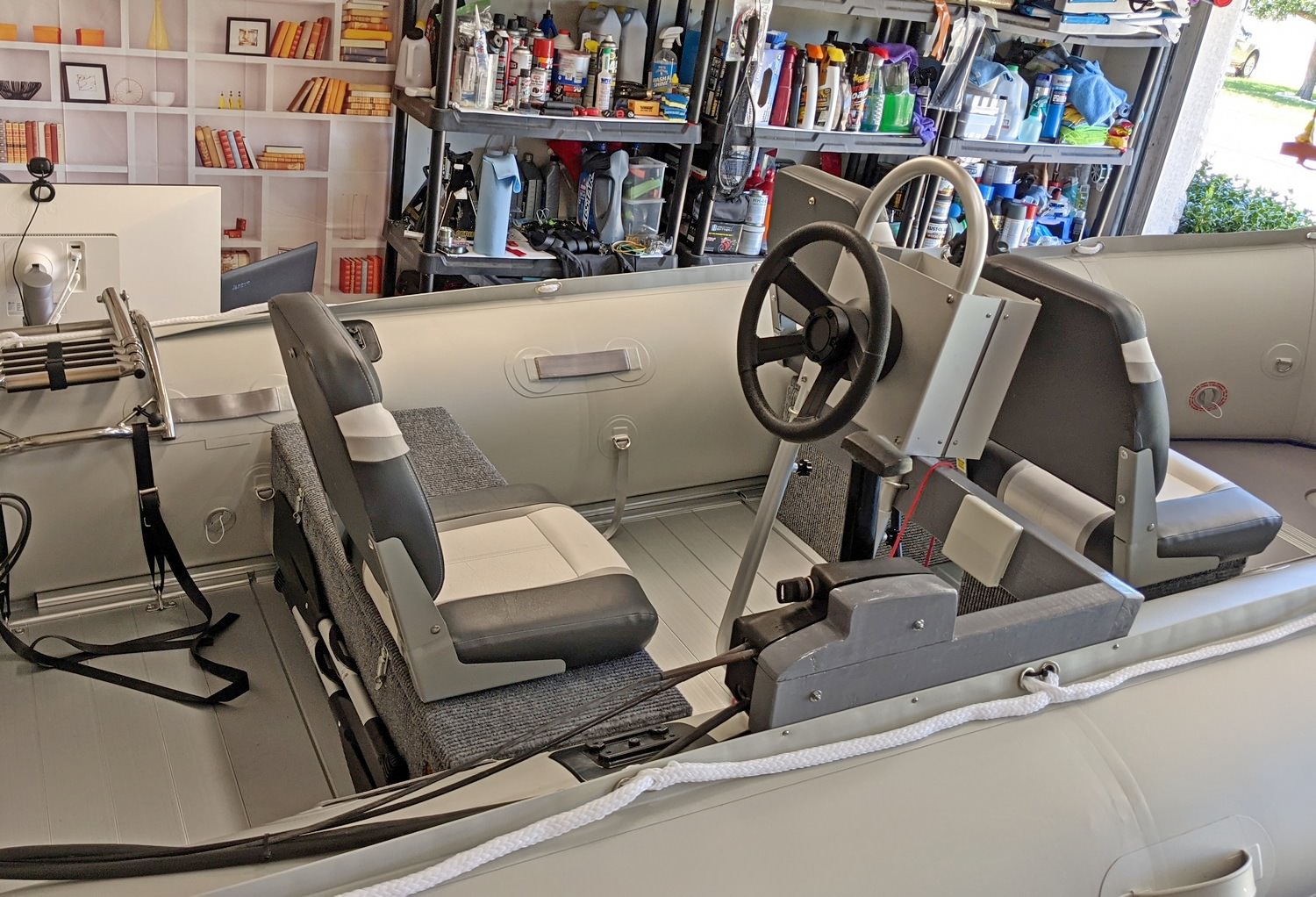

uflex engine control boxCentral Console System Dimensions. Click To Zoom In. An optional throttle control box can be attached directly to the side of our central console system. However, in our opinion, the throttle control is optional, because it's very easy to change the outboard engine speed by simply using the tiller handle.

90% of the time spent riding, you will be cruising at the same speed. For the most part, you only need to change throttle or reverse when you are leaving from or coming back to the dock, beach, etc. The adjustments in speed can be very easily made with the tiller handle of the outboard engine with a little bit of training. You can always stop the engine if needed by pulling the lanyard line or pressing the stop button on the tiller handle.

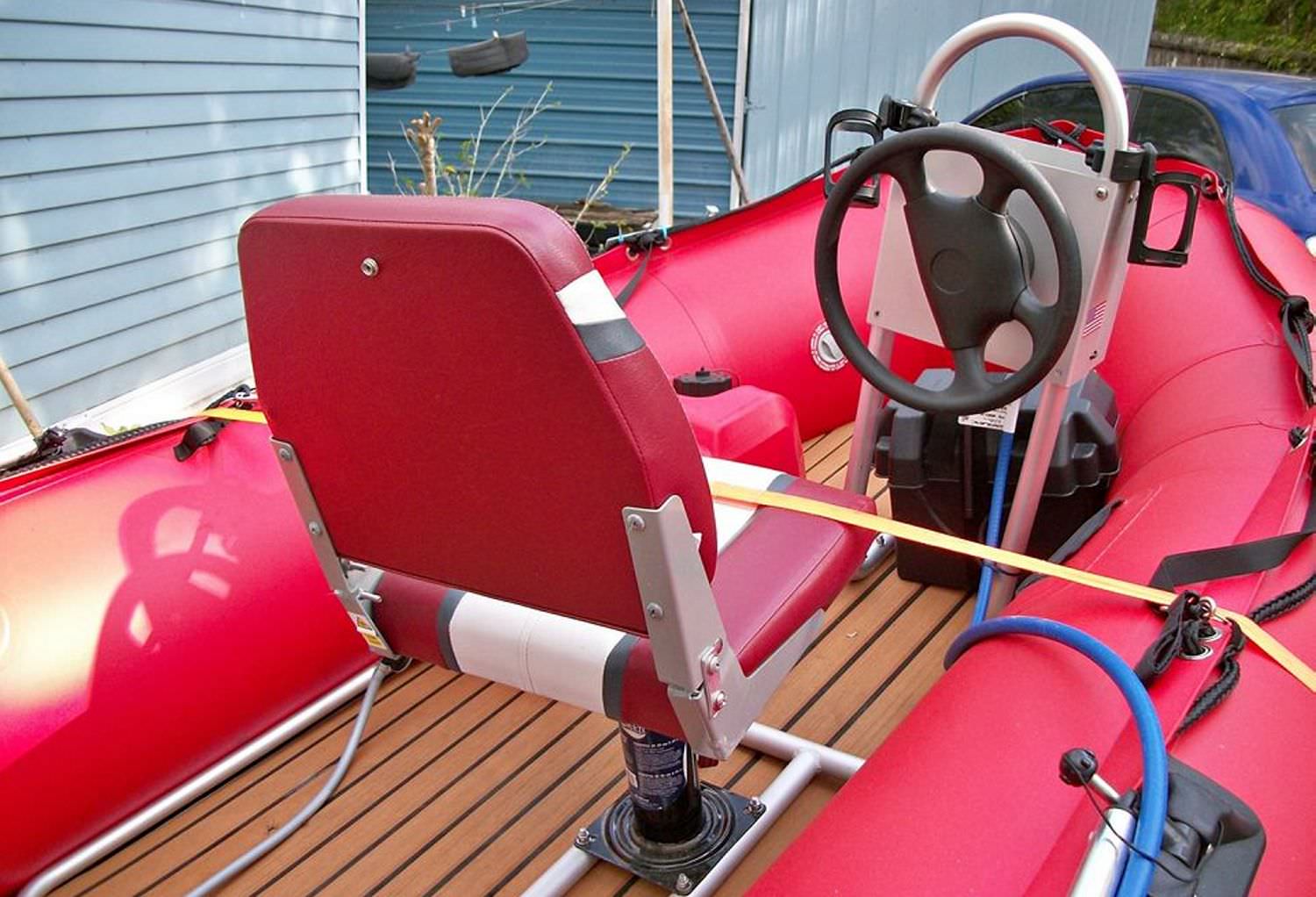

You can use our Central Console with existing seat benches or you can choose to install 7" boat seat pedestals that are sold on-line and in many retail stores such as Kmart, Wal-Mart and Outdoor World. A swivel base and boat fishing chair with back support can easily be installed on top of the boat seat pedestal. All that can be mounted directly on hard floor, on top of our single-seat platform, or on a piece of plywood placed on top of air deck floor of inflatable boat.

Please note that steering mechanism, wheel and cable are NOT included and must be purchased separately in a marine store or on-line.An Economy boat seat pedestal retails for around $12, a swivel base costs around $10, and fishing chair prices can vary depending on comfort level from $20 to $45. You will also need stainless steel mounting hardware. Bolts with round heads should be inserted in the boat's hard floor from the bottom up, so that the round head of the bolt does not puncture inflated boat bottom. For boats with inflatable air floors you will need to mount pedestal to rectangular piece of heavy-duty plywood with rounded and sanded edges placed across floor such way that edges are squeezed under tubes once fully inflated.

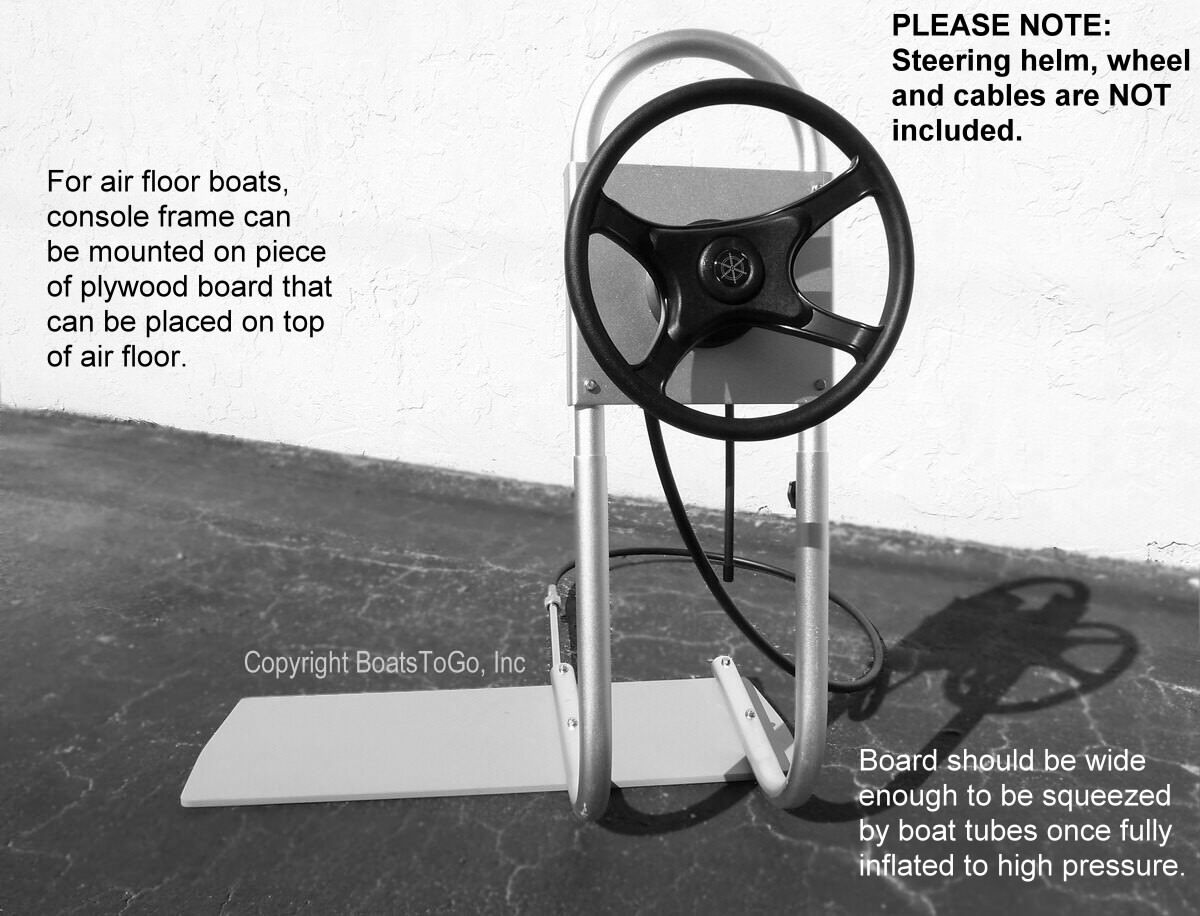

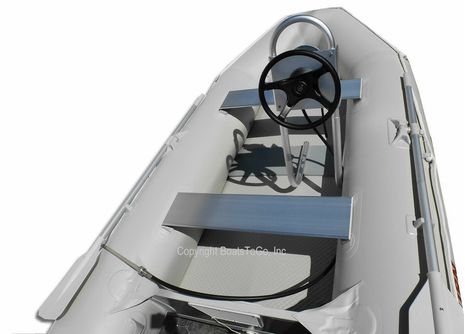

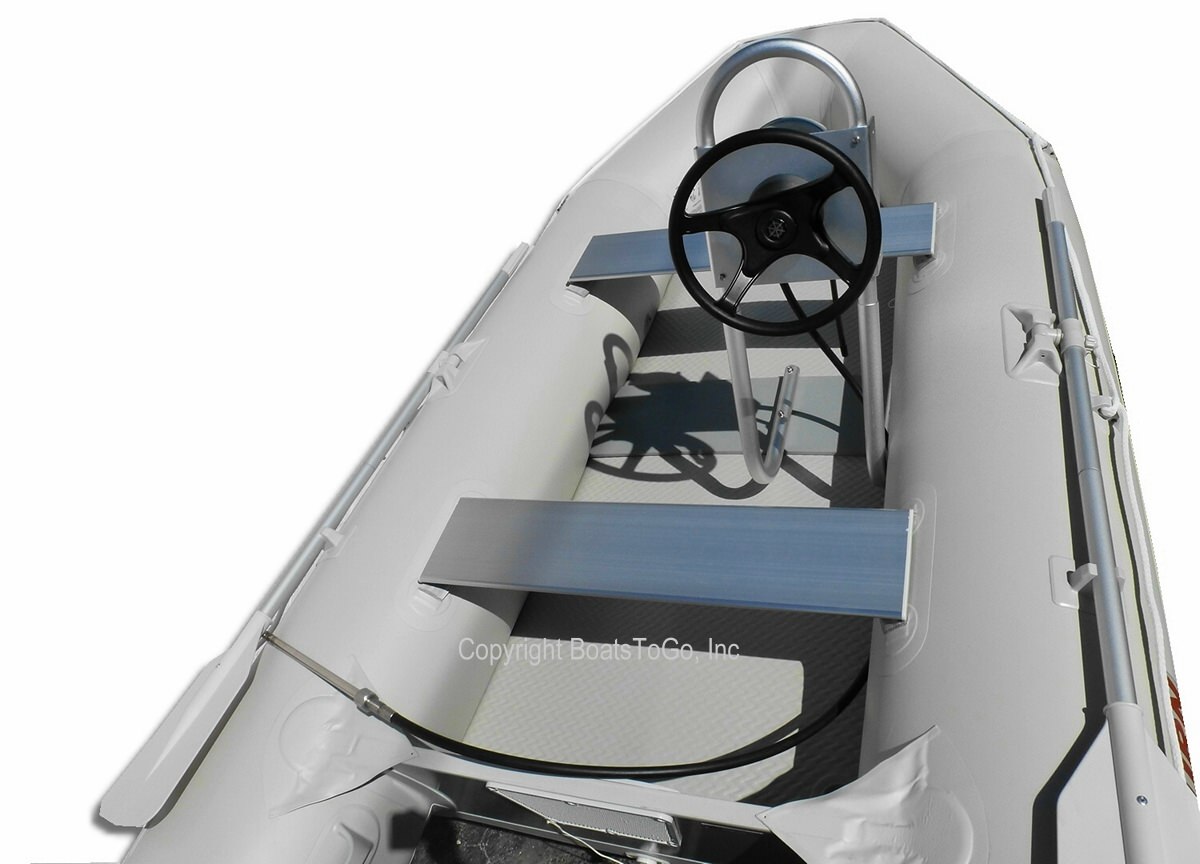

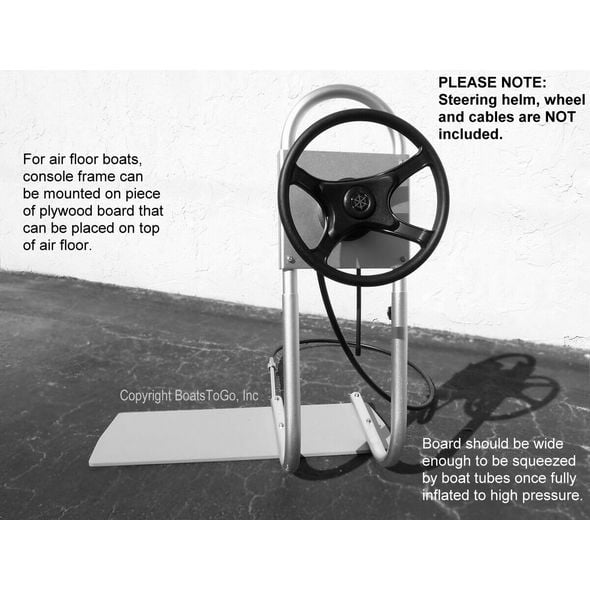

Central console can me mounted on top of plywood board cut to fit on top of air floor and to be squeezed in between tubes when they are fully inflated. Make sure that plywood board edges are sanded to remove sharp edges and use bots with round or flat heads inserted from bottom upward into the board. Cover heads of bolts with duct tape to prevent from cutting into air floor surface.

After trying this new system, you'll never go back to a regular plywood bench. Due to the fact that this system is mounted to the floor and not to the boat tubes, vibration and bumps during a choppy ride areuflex steering rotary system significantly reduced.

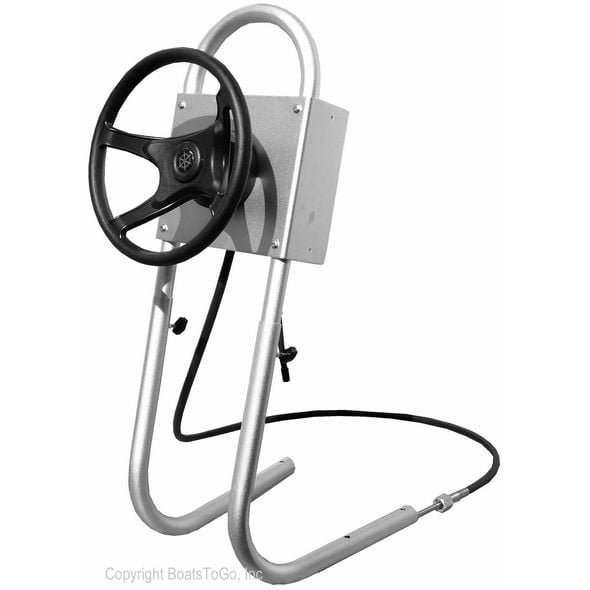

uflex steering wheel for central console Assembly of the complete steering console system, including installation of a rotary steering control is an easy do-it-yourself project. However, if DIY projects aren't your strong point, you can take it to the local marine mechanic or handyman to assemble.

Rotary steering systems are available on-line and in retail marine stores($119 & up). We recommend UFLEX Rotary Steering Systems with a 8' to 10' flex cable. You will also need a steering wheel ($25 & up) and link control steering arm ($26 & up) specific to your outboard engine to accept a flex cable and to turn the engine right or left.

  • Shipping size 19x26x4"
  • Weight 7 lbs

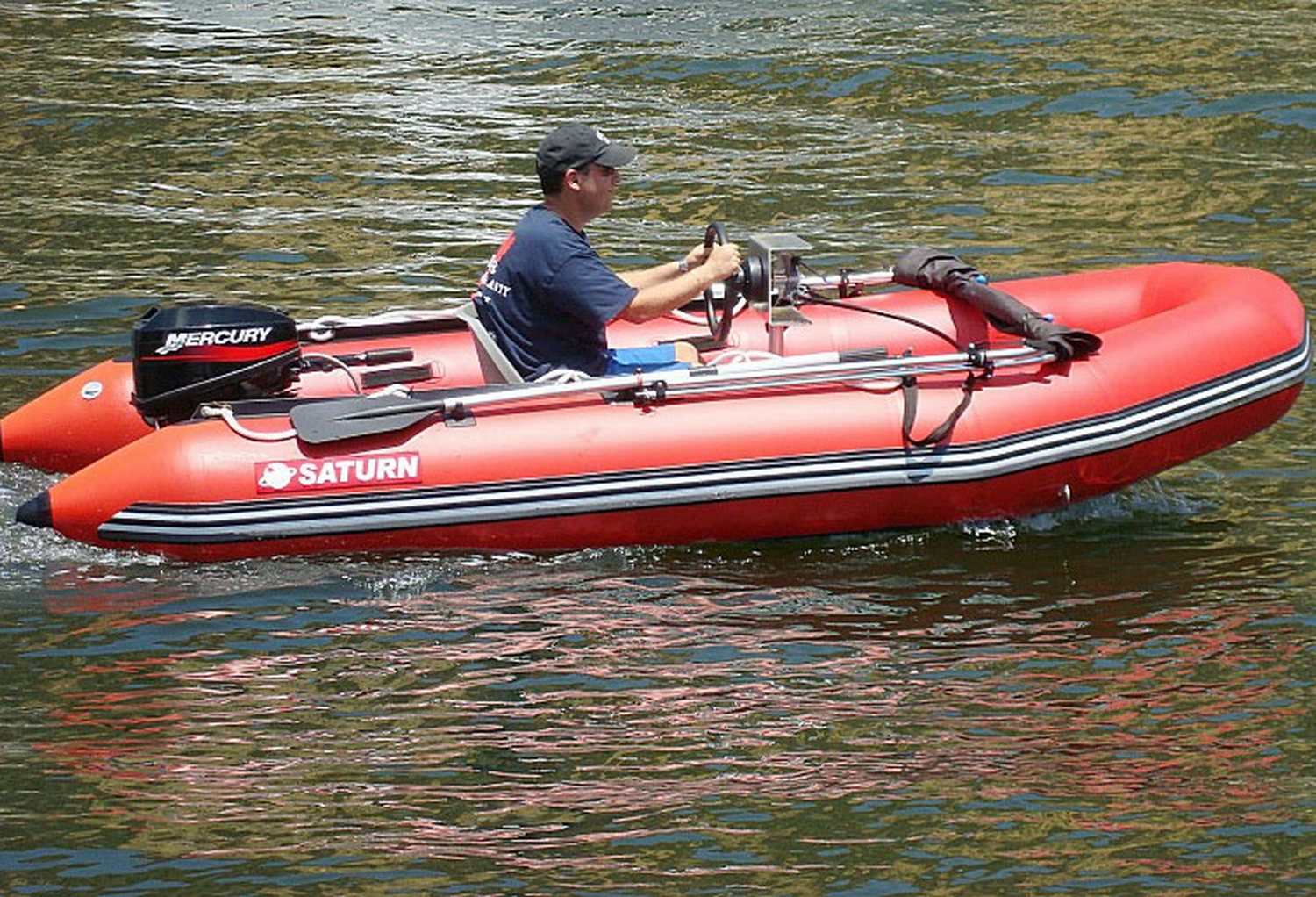

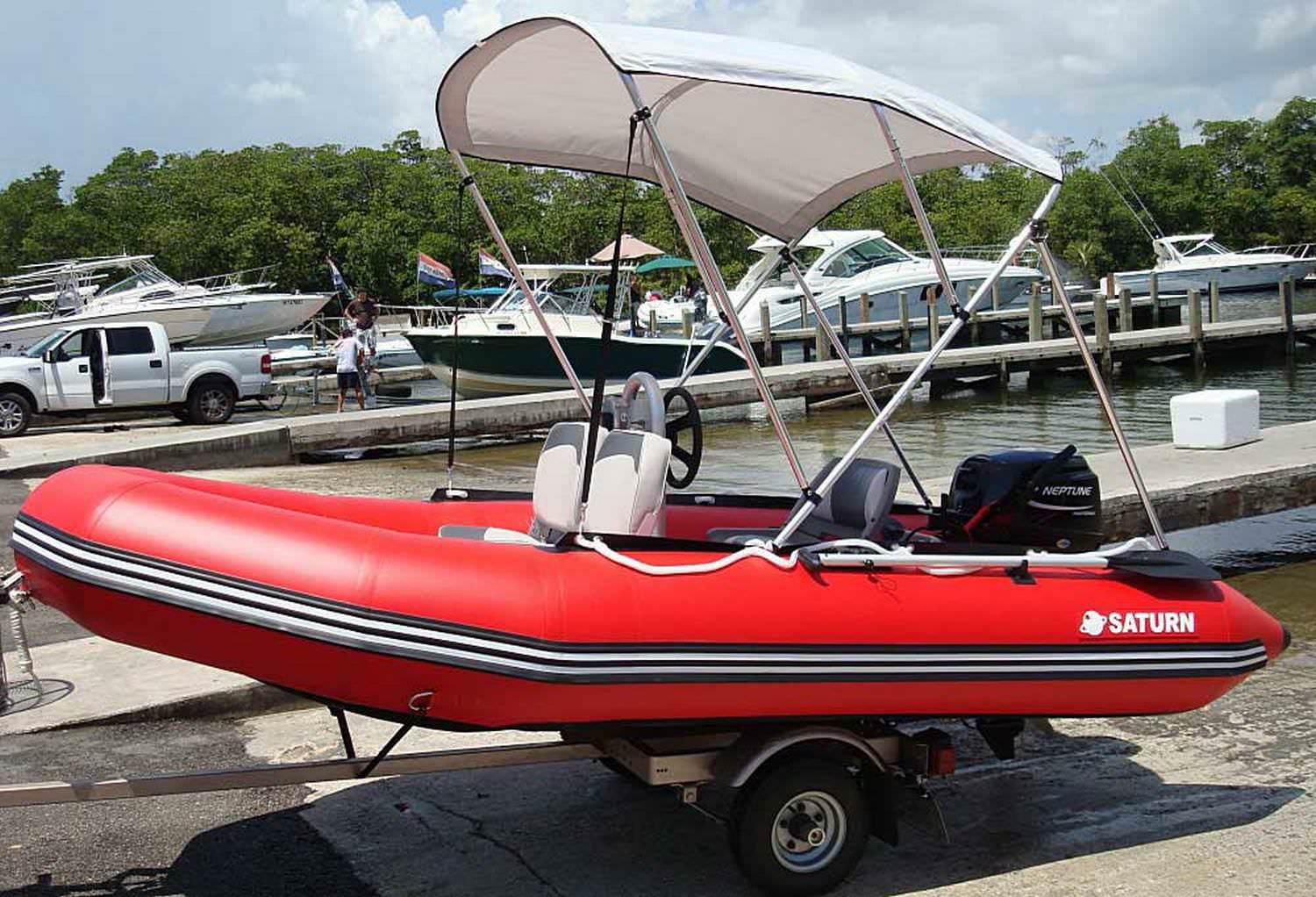

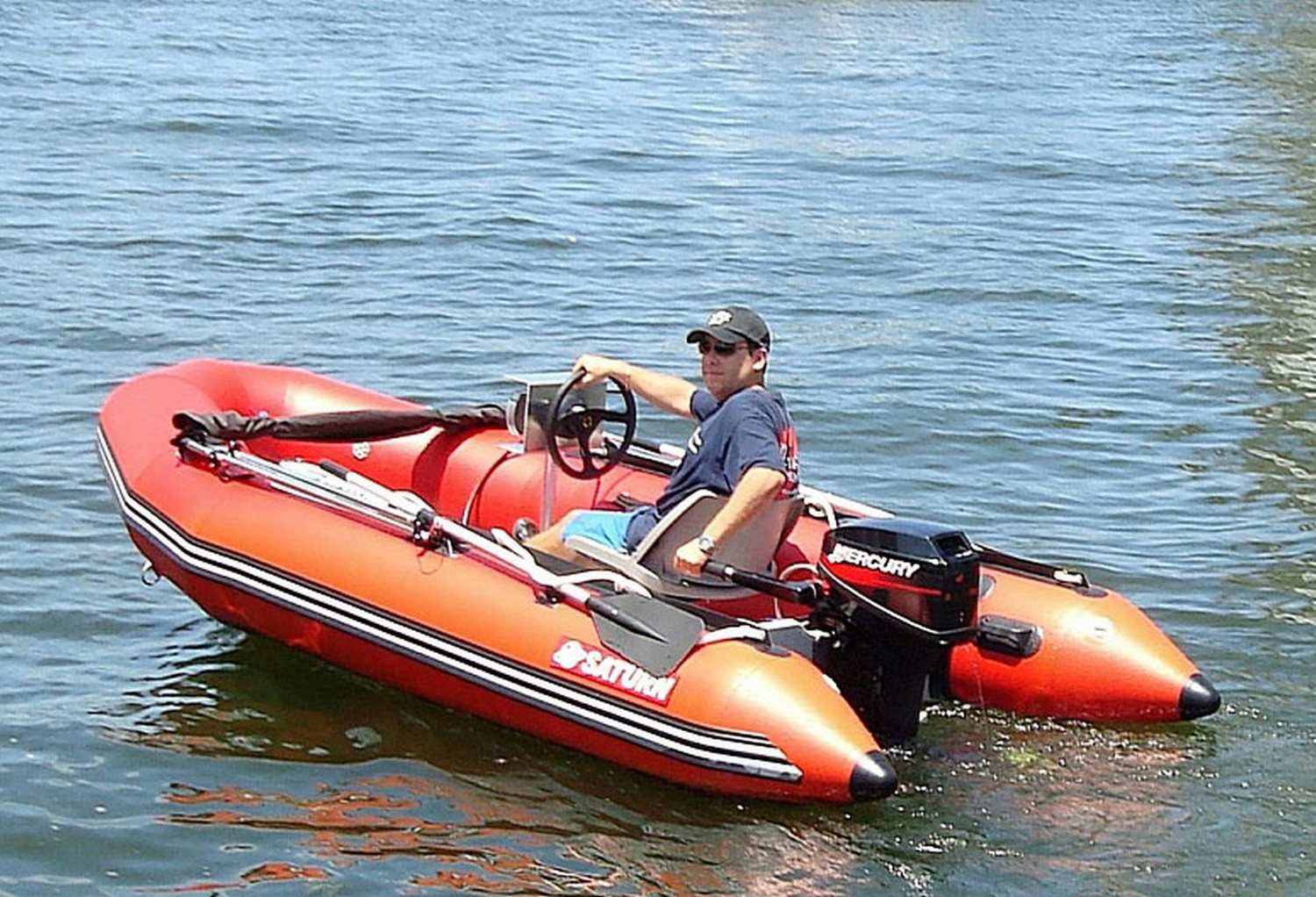

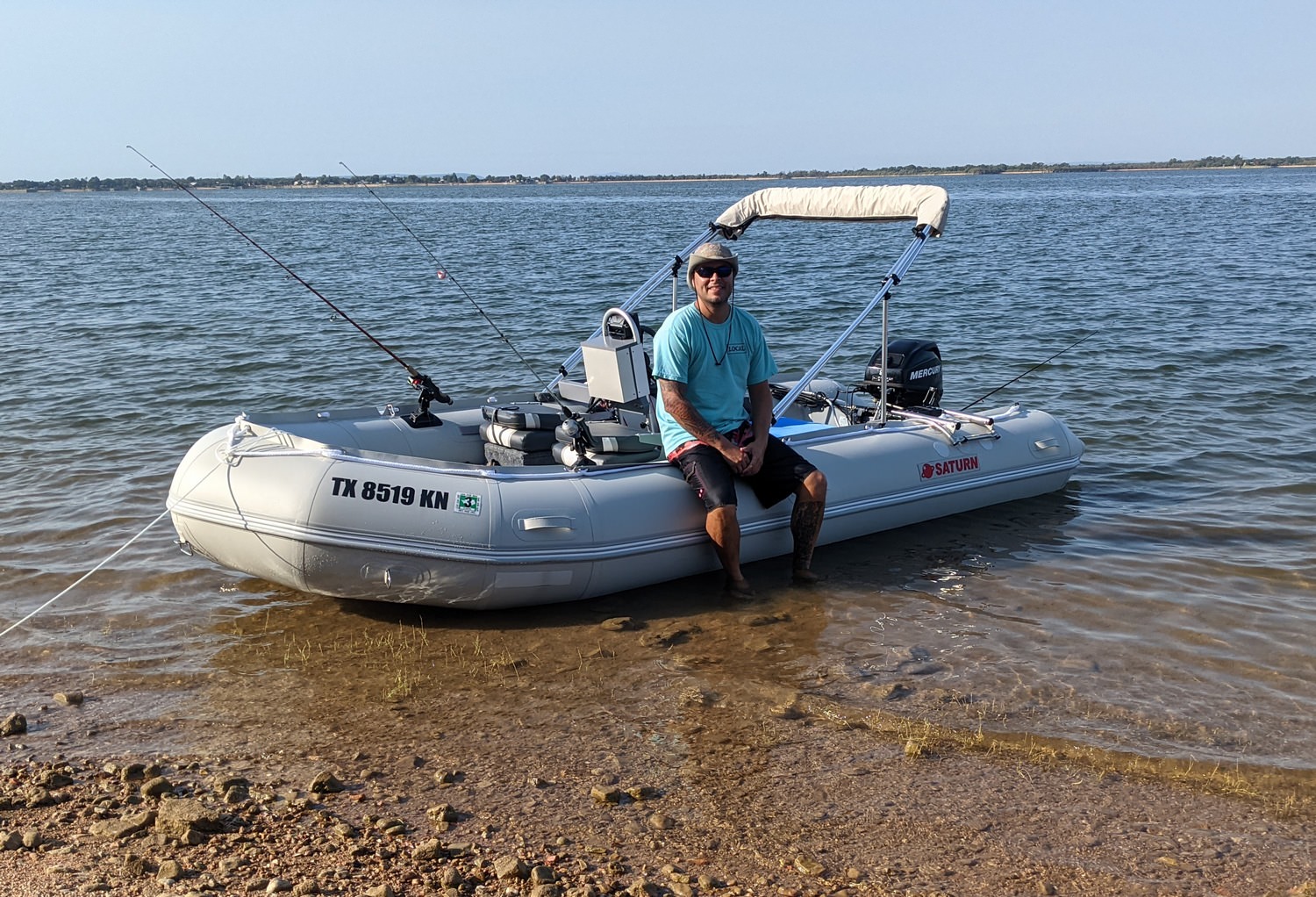

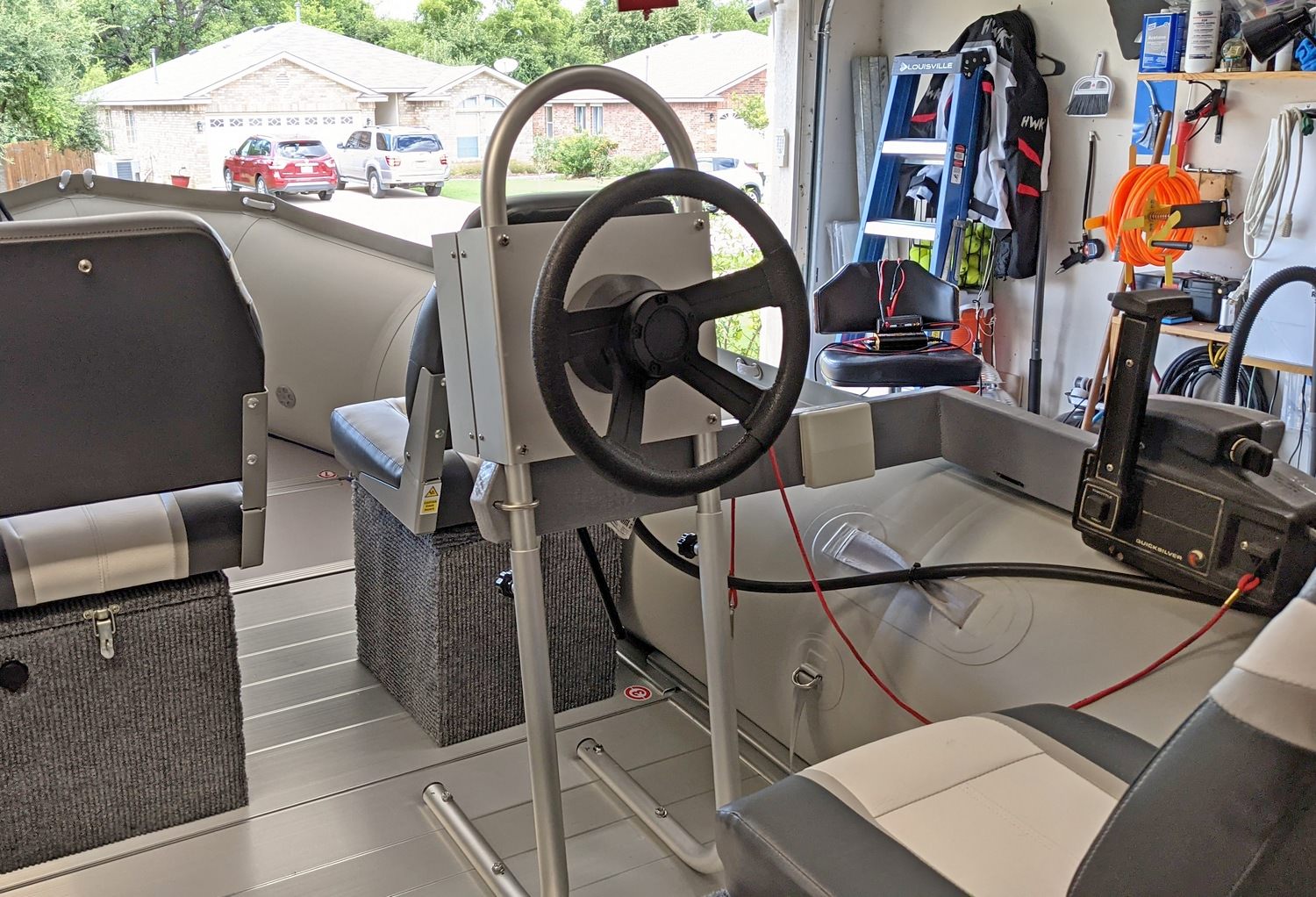

Example of central console use in DIY project.

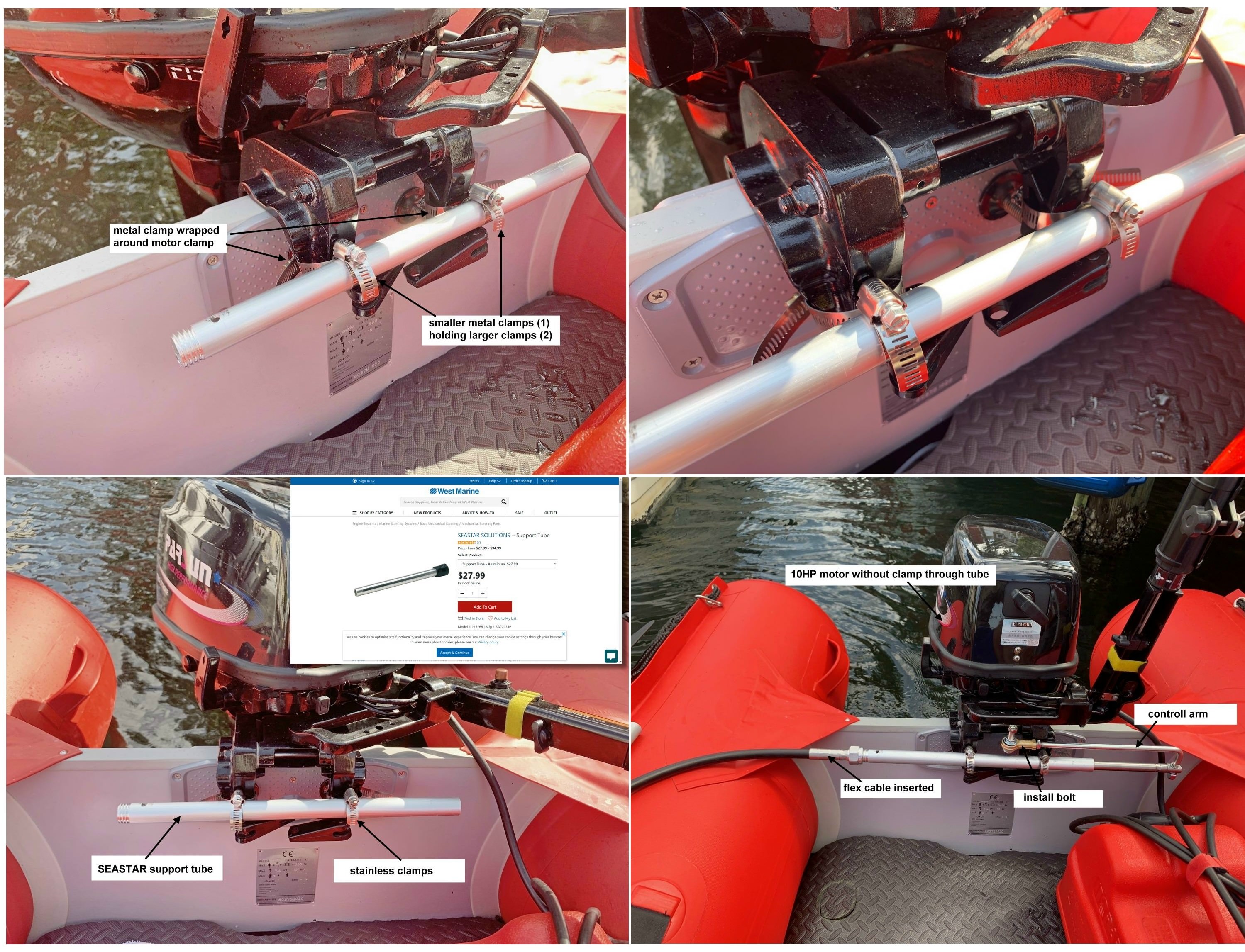

DIY Tip on installing steering option for smaller outboard motors that do not have clamp through support tubes.

Smaller outboard, such as 3HP up to 15HP might not have option for remote steering. There is no flex cable support tube running through the clamp. DIY work around can be attaching cable support tube outside of outboard clamp mechanism, attached with help of 4 stainless steel clamps. 2 smaller clamps wrapped around support tube, and larger clamps run through smaller clamps and then wrapped around outboard clamp assembly. Once all steel clamps are tightly screwed, that cable tube will be pretty rigid. Then you can run flex cable through cable support tube, and attach arm control to reach from flex cable to outboard handle. You might need to drill larger hole in a handle or add some additional angle attachment to secure to handle. Below images shows general idea of that assembly. Please note that is DIY project, and up to customer to make sure it is all safe and secure.

Click on image to zoom in:

Steering tube attachment to motor without steering tube

That's great to hear I have a 12 foot solid aluminium with 30hp tiller steer that console lightweight seems the way to go very keen to get one installed

The console arrived today and although I won't be installing it until spring, it appears to be just what I wanted. It looks very well made and solid. I'm going to be using it in a small sailboat when operating the outboard motor, easier than reaching out over the back for the motors tiller arm when turning.

Bought for a Jon boat, light weight and just what I needed.

-M

I bought this console for an 18' pontoon to replace a traditional console. I didn't need any features other than a steering wheel. This console was easy to put together and install. It works great and is easily adjustable. I've been using it for about a year and it was a great buy/bargain.
