Extruded Aluminum Swivel Fishing Seat Platform – DIY Kit
Adjustable Fishing Seat Frame for Inflatable KaBoats, CAT385/CAT396 Catamarans, Kayaks and Boats
Upgrade your inflatable boat with a sturdy, lightweight, and removable fishing seat platform. This Do-It-Yourself Extruded Aluminum Seat Kit provides a convenient way to install a comfortable swivel fishing seat with back support, making long hours of fishing or recreational boating more enjoyable.

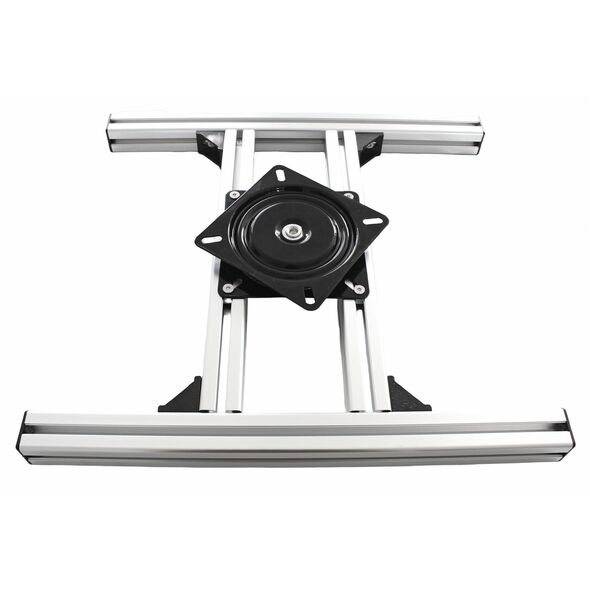

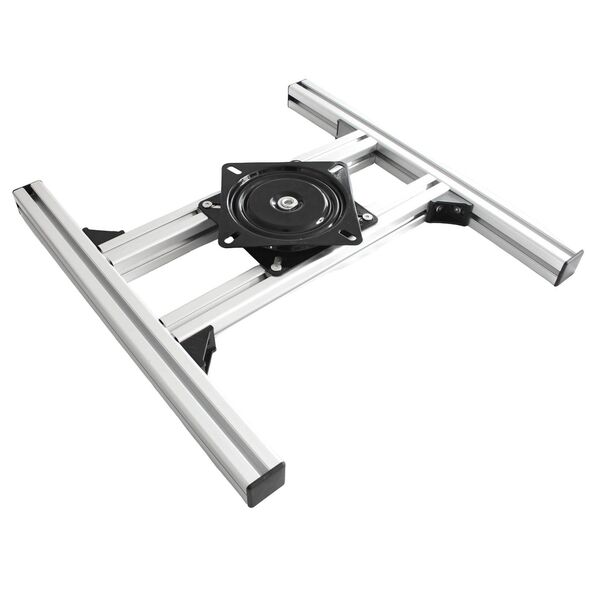

Constructed from durable 4040 extruded aluminum profiles, the platform features a rigid frame with two parallel center supports and a swivel mounting plate. The modular design allows for easy assembly, customization, and removal.
Ideal for Saturn KaBoats, CAT385 and CAT396 inflatable catamarans, inflatable kayaks, and other boats with sufficient interior space.
Features and Benefits
- Heavy-Duty Aluminum Construction: Made from sturdy 40 × 40 mm extruded aluminum profiles for a strong, lightweight, corrosion-resistant frame.
- 360° Swivel Seat Mount: Includes a rotating metal mounting platform that allows a compatible fishing seat to turn freely for convenient casting, fishing, and steering.
- Removable Design: The assembled platform can be quickly placed inside or removed from a compatible inflatable boat without permanent installation.
- Customizable T-Slot Profiles: Aluminum channels provide convenient attachment points for fishing rod holders, fish finders, GPS units, lights, umbrella mounts, and other accessories using compatible mounting hardware.
- Modular DIY Construction: Aluminum profiles and brackets can be repositioned or modified to accommodate different boat configurations.
- Optional Tie-Down Security: For additional stability, the platform can be secured using two optional lashing straps attached to existing boat D-rings.
- Versatile Applications: Suitable for fishing, recreational boating, or creating a comfortable seating position while operating an outboard motor.

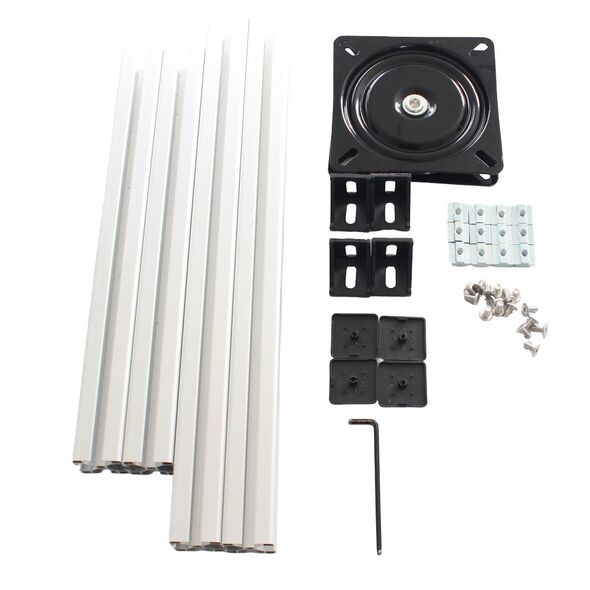

DIY Kit Includes
- 2 × 16" long 4040 extruded aluminum bars – front and rear crossbars
- 2 × 21" long 4040 extruded aluminum bars – parallel center supports
- 4 × corner connecting brackets
- 4 × protective end caps
- 4 × T-nuts
- 1 × metal swivel seat mounting platform
- Mounting bolts and hardware for assembly
- Allen wrench
Easy Assembly and Customization

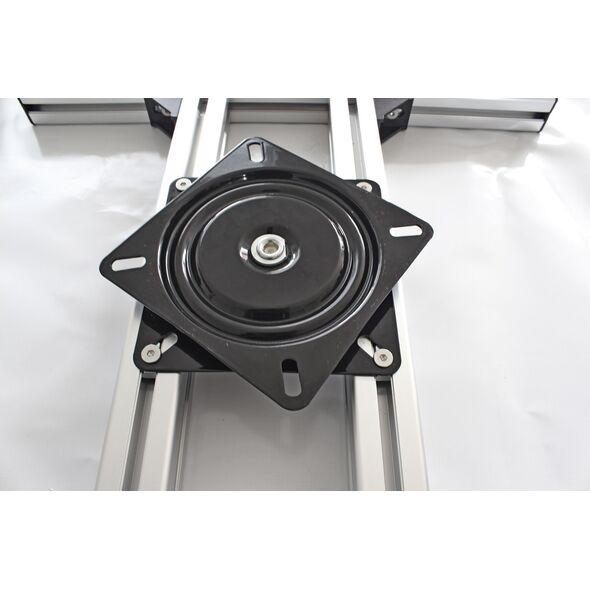

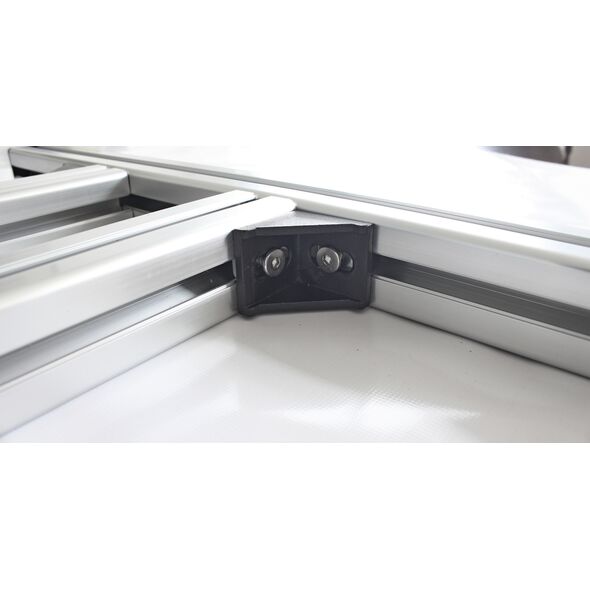

The aluminum frame is assembled using the included corner brackets, T-nuts, and bolts. The swivel mounting platform attaches to the two parallel aluminum supports, creating a solid base for a compatible fishing seat.

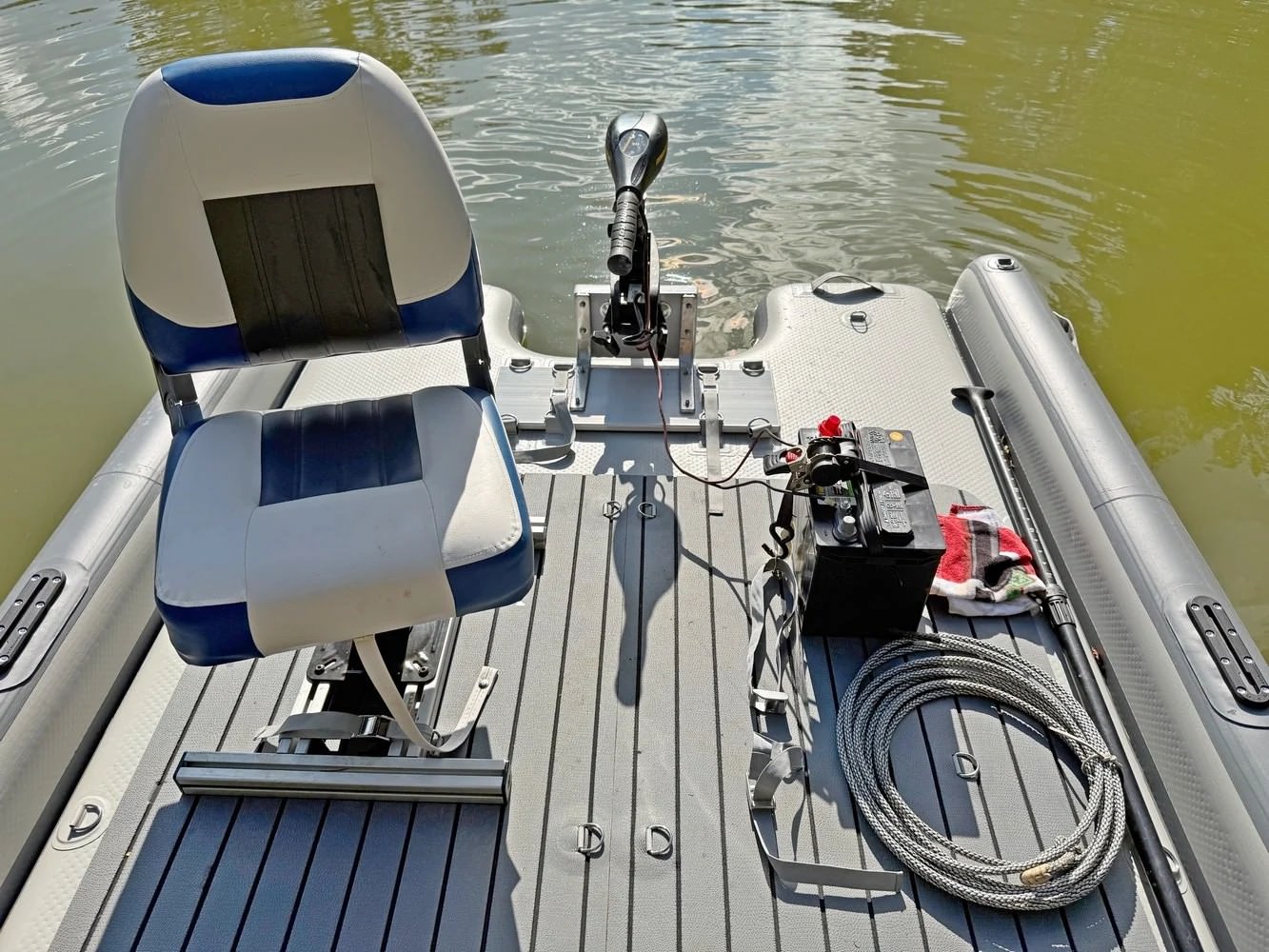

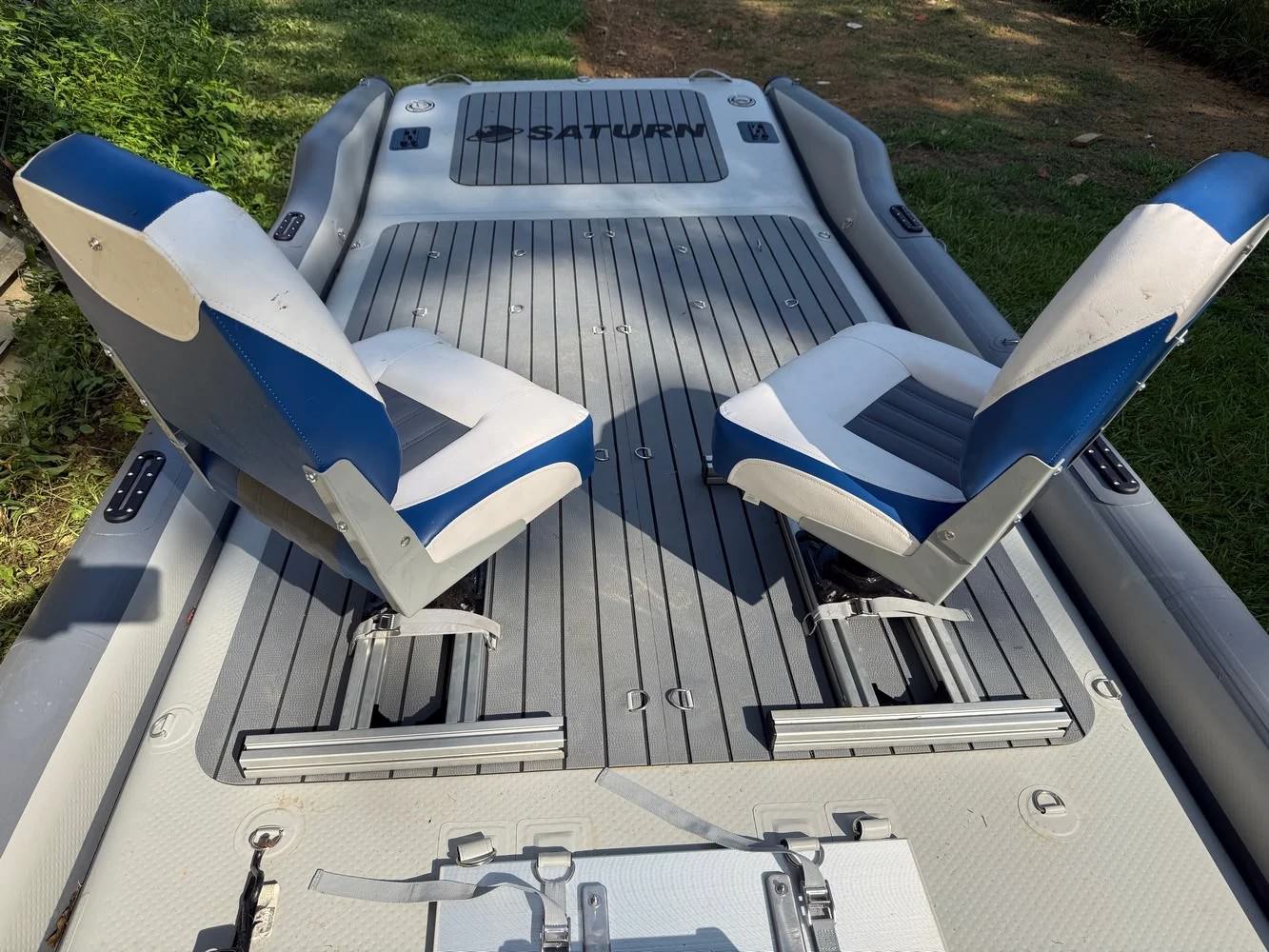

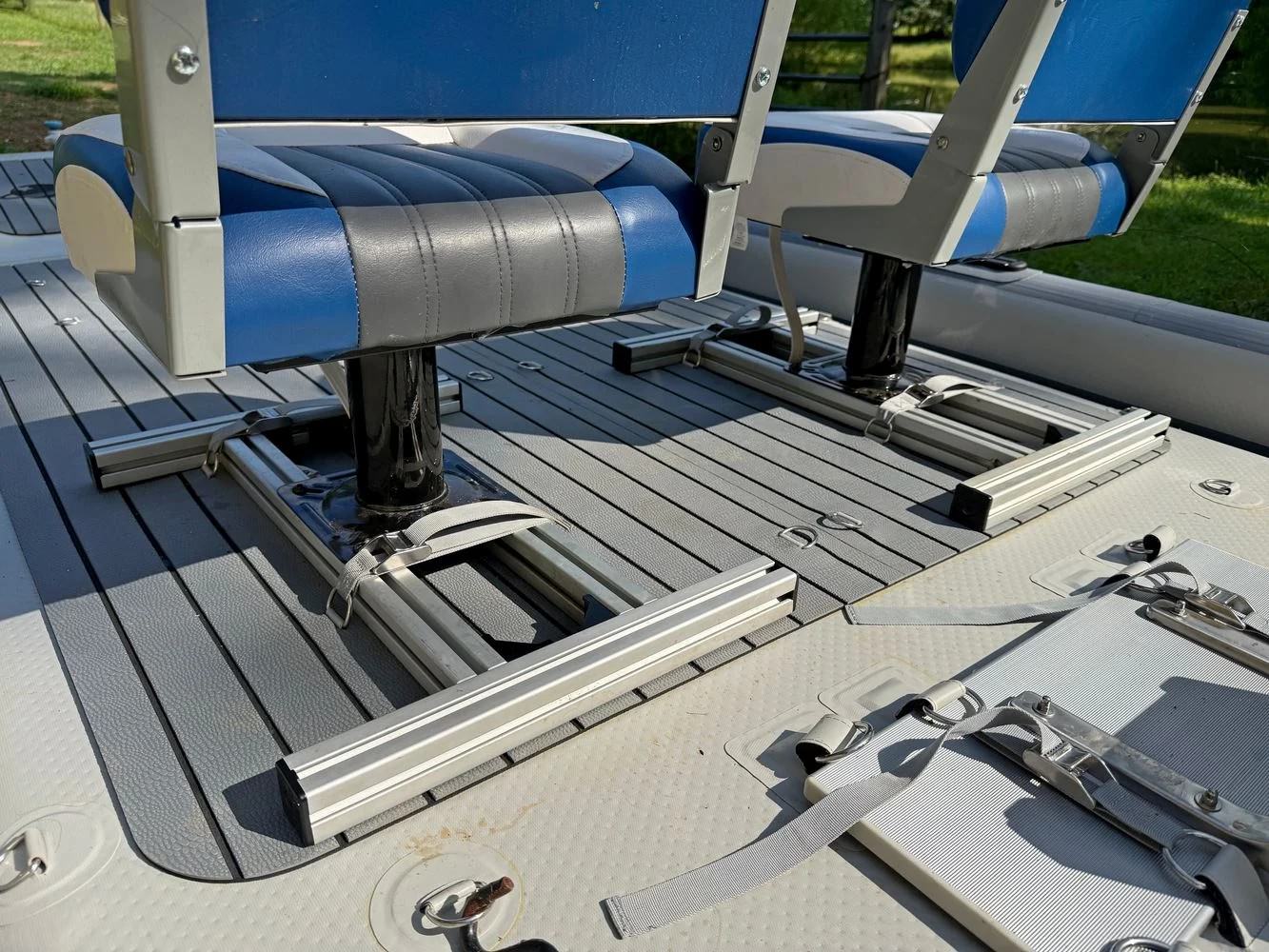

The completed assembly can be placed inside a suitable inflatable boat or kayak and removed when not needed. For greater stability, optional lashing straps can secure the frame to existing D-rings.
The 4040 extruded aluminum profiles also make this kit an excellent starting point for custom DIY projects. Additional accessories can be mounted directly to the aluminum T-slots using compatible hardware.
Important Information
- Fishing seat is not included. The kit includes the swivel mounting platform only. A compatible seat must be purchased separately.
- Assembly is required.
- Depending on the boat's interior dimensions and configuration, modifications may be necessary.
- Optional tie-down straps and additional fishing accessories are sold separately.
- Secure the frame and seat properly before use. Do not use an unsecured swivel seat as a support while standing or operating the boat at speed.
Create your own removable swivel fishing seat platform without drilling permanent mounting holes in your inflatable boat.
