DIY Boat Dock Platform

Floating Dock for Kayaks, Canoes, KaBoats, and Small Boats

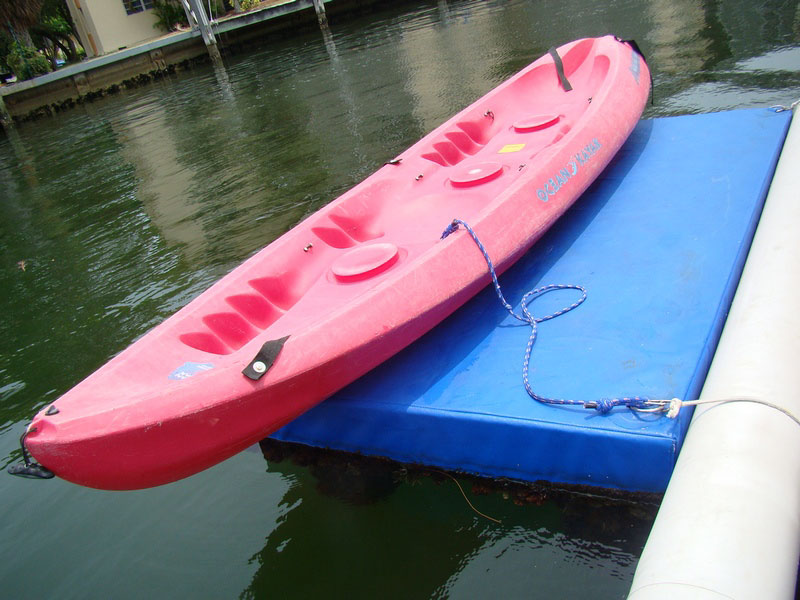

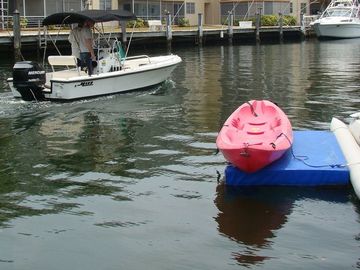

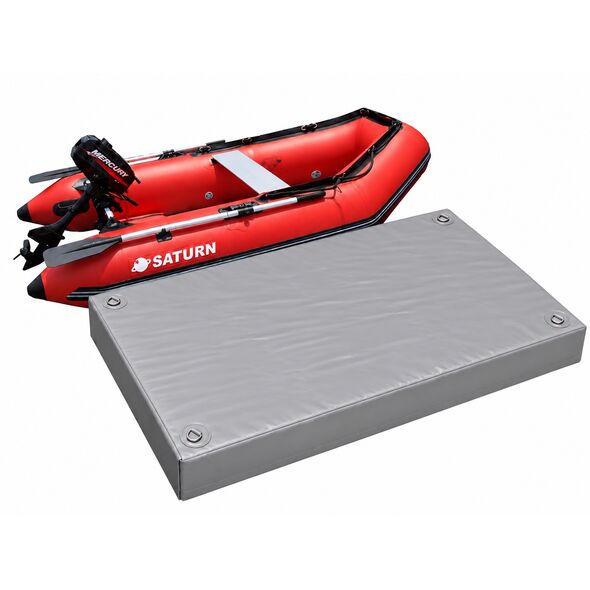

Affordable, practical, and easy to use, this floating dock is designed for kayaks, canoes, KaBoats, dinghies, and other small, lightweight watercraft. It also works great as a compact floating work platform.

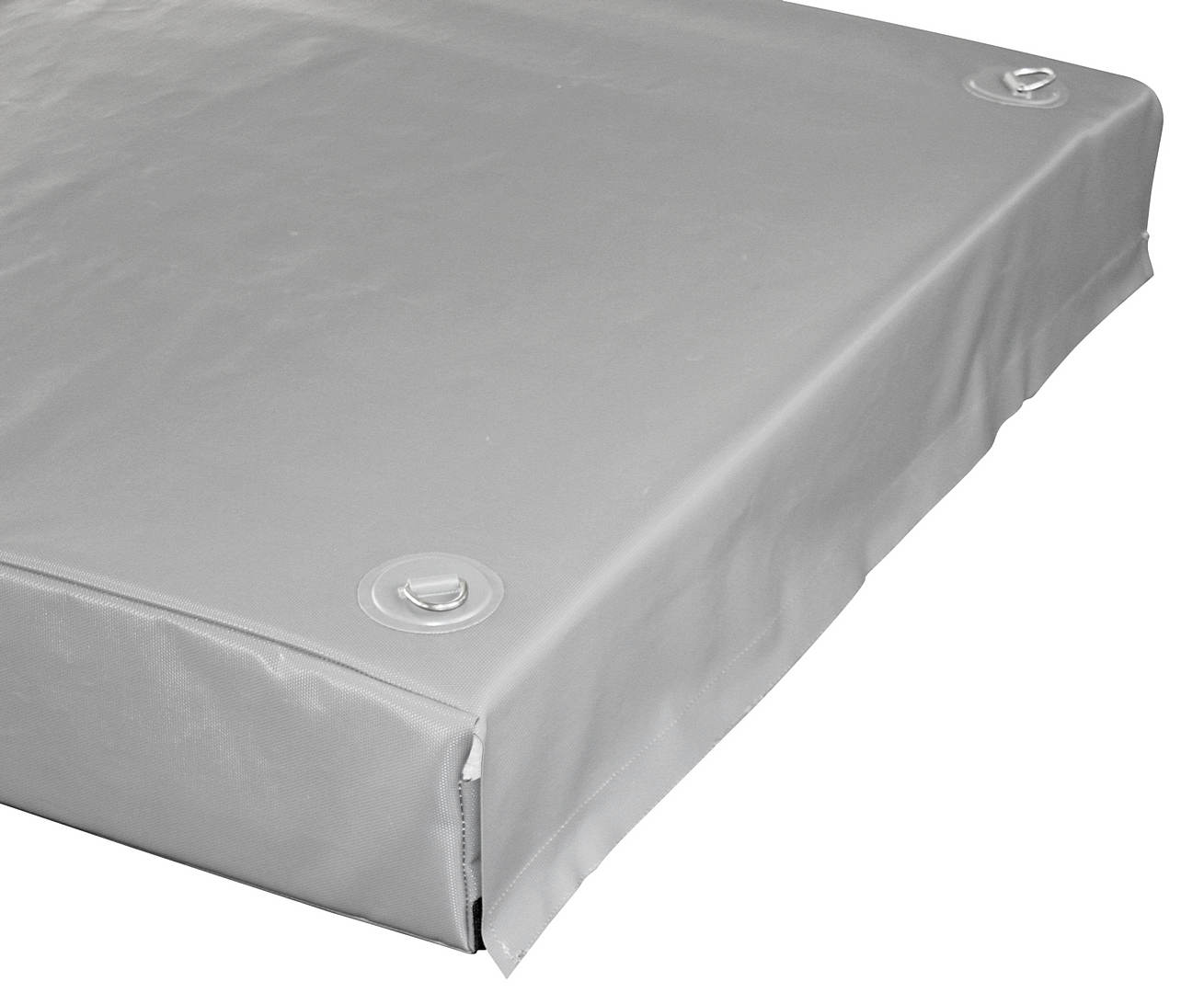

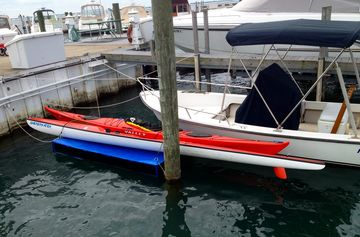

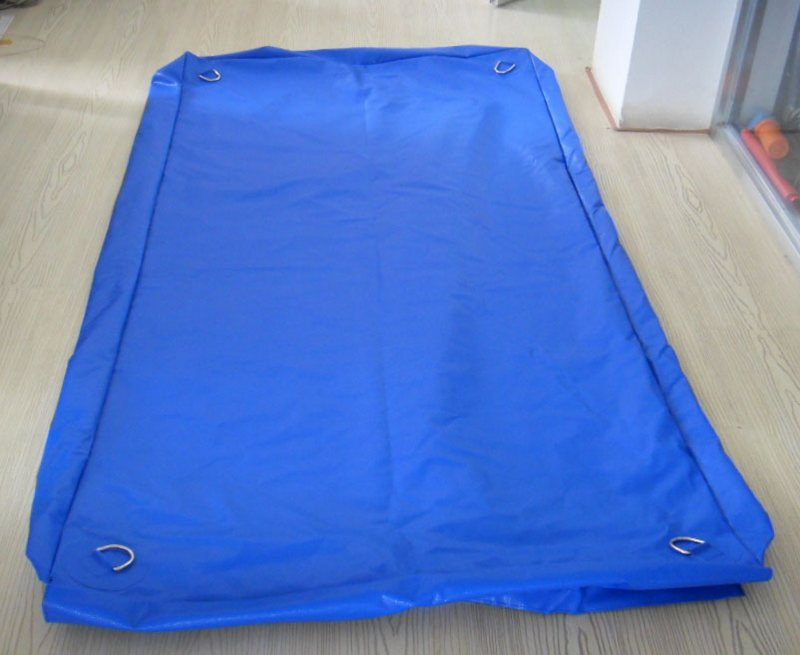

New V2.0 is now made from heavy-duty dark gray 1.5 mm PVC, a major upgrade over the old blue version that used only 0.5 mm PVC. The thicker material provides improved durability, better strength, and longer service life, while the non-skid surface helps provide safer footing.

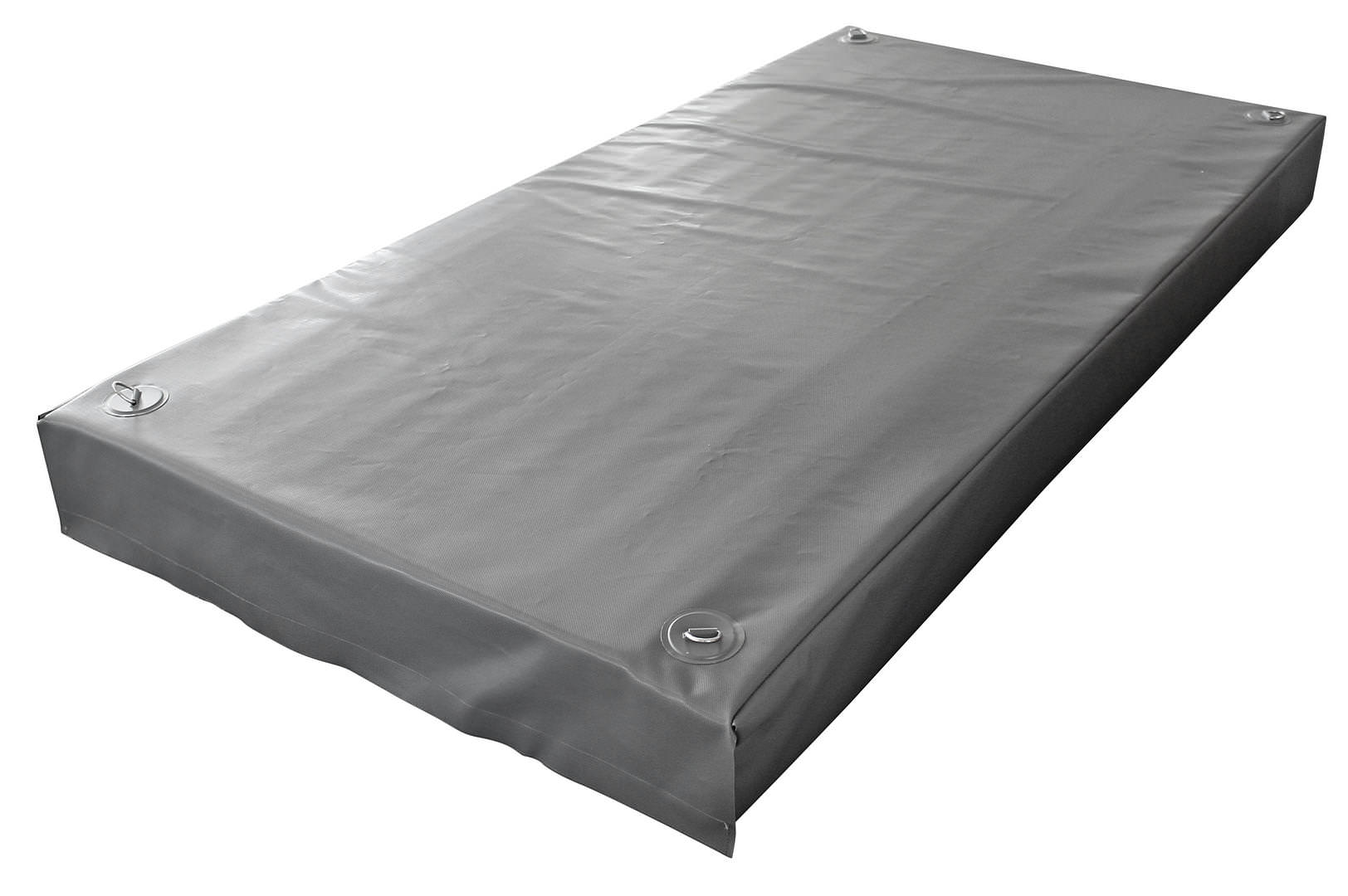

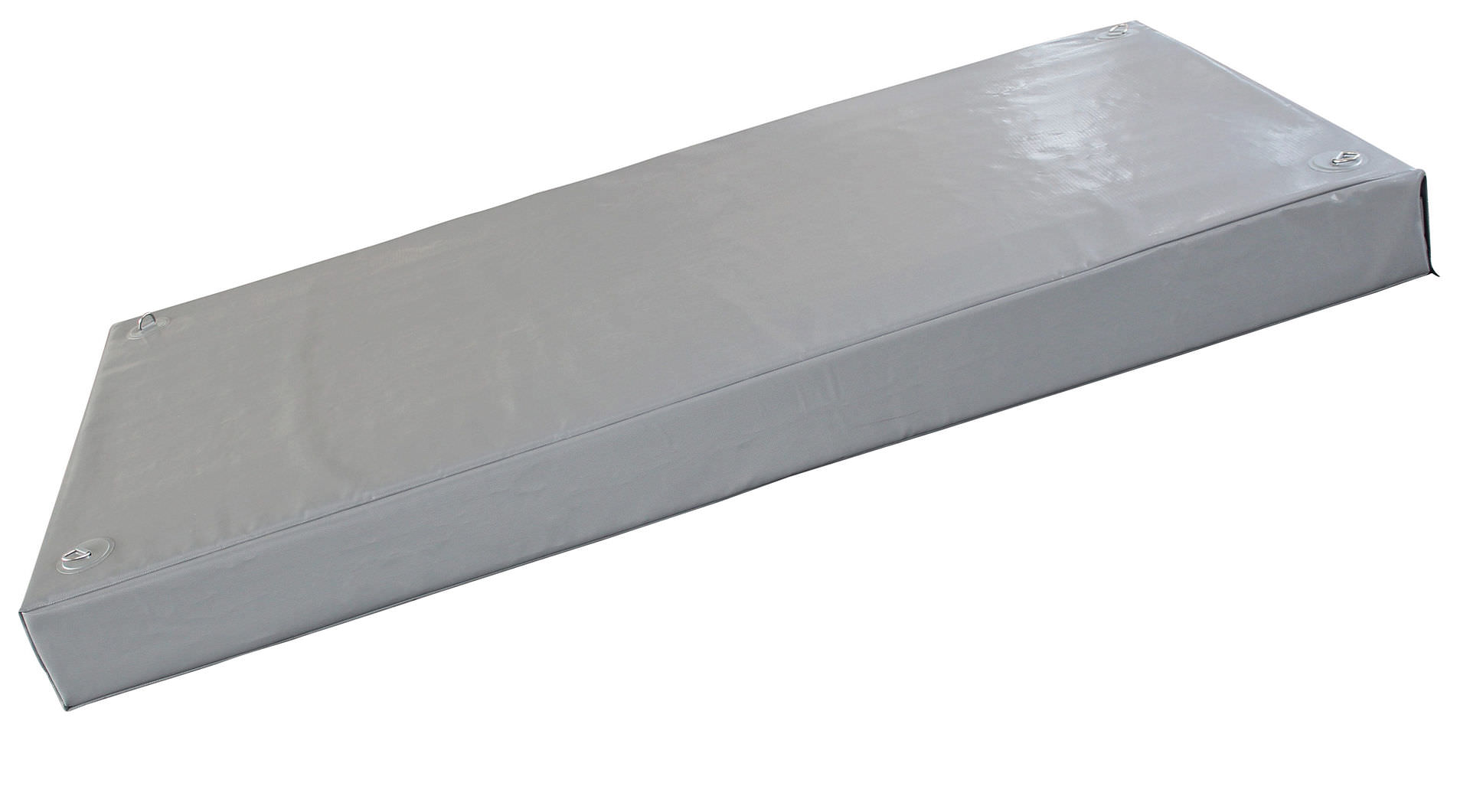

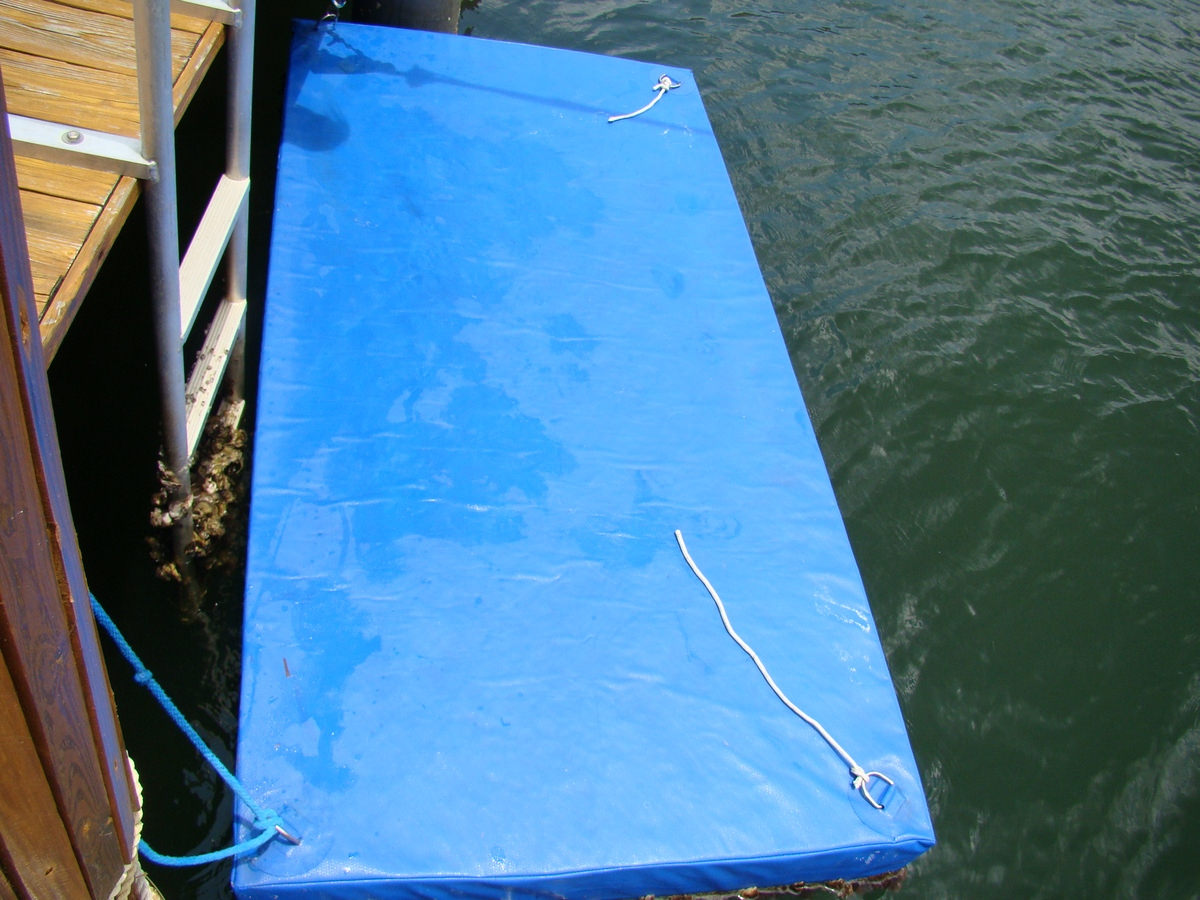

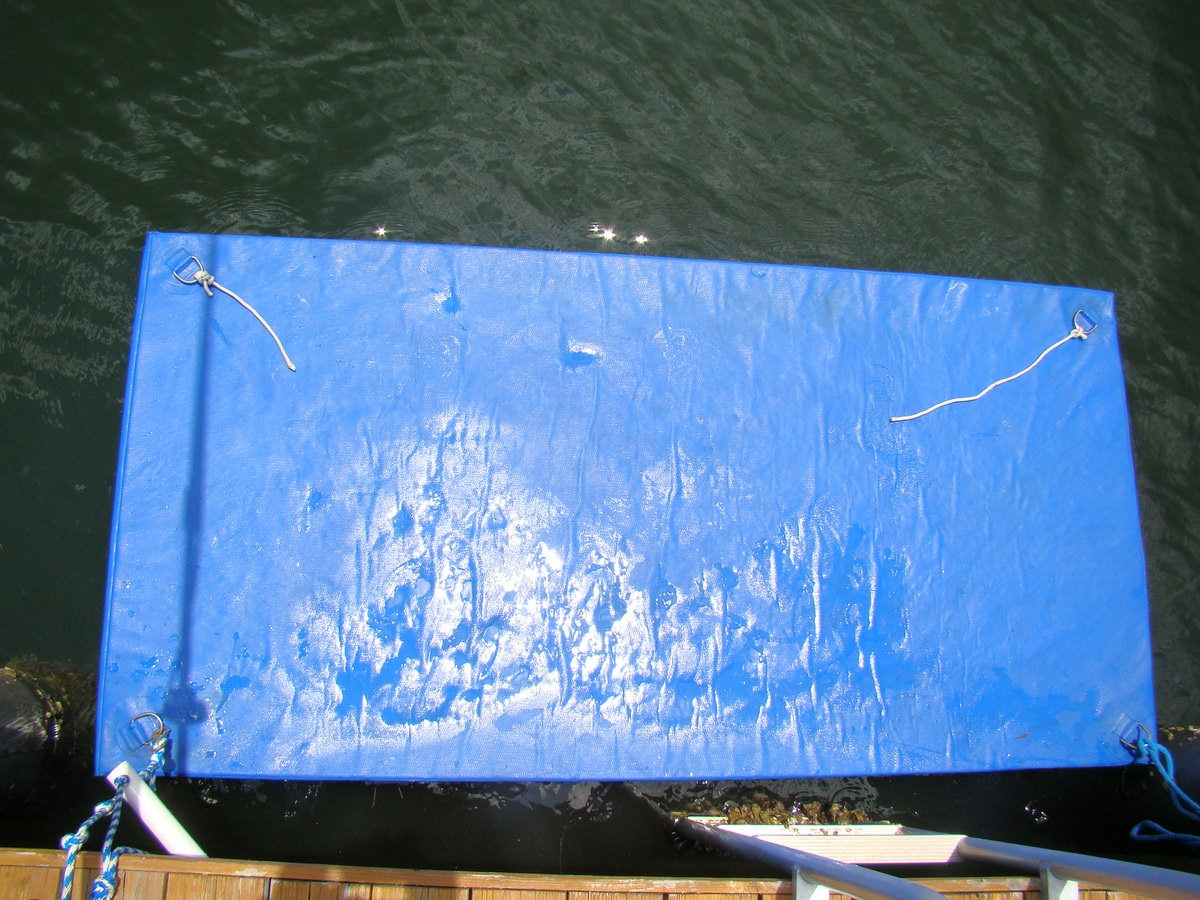

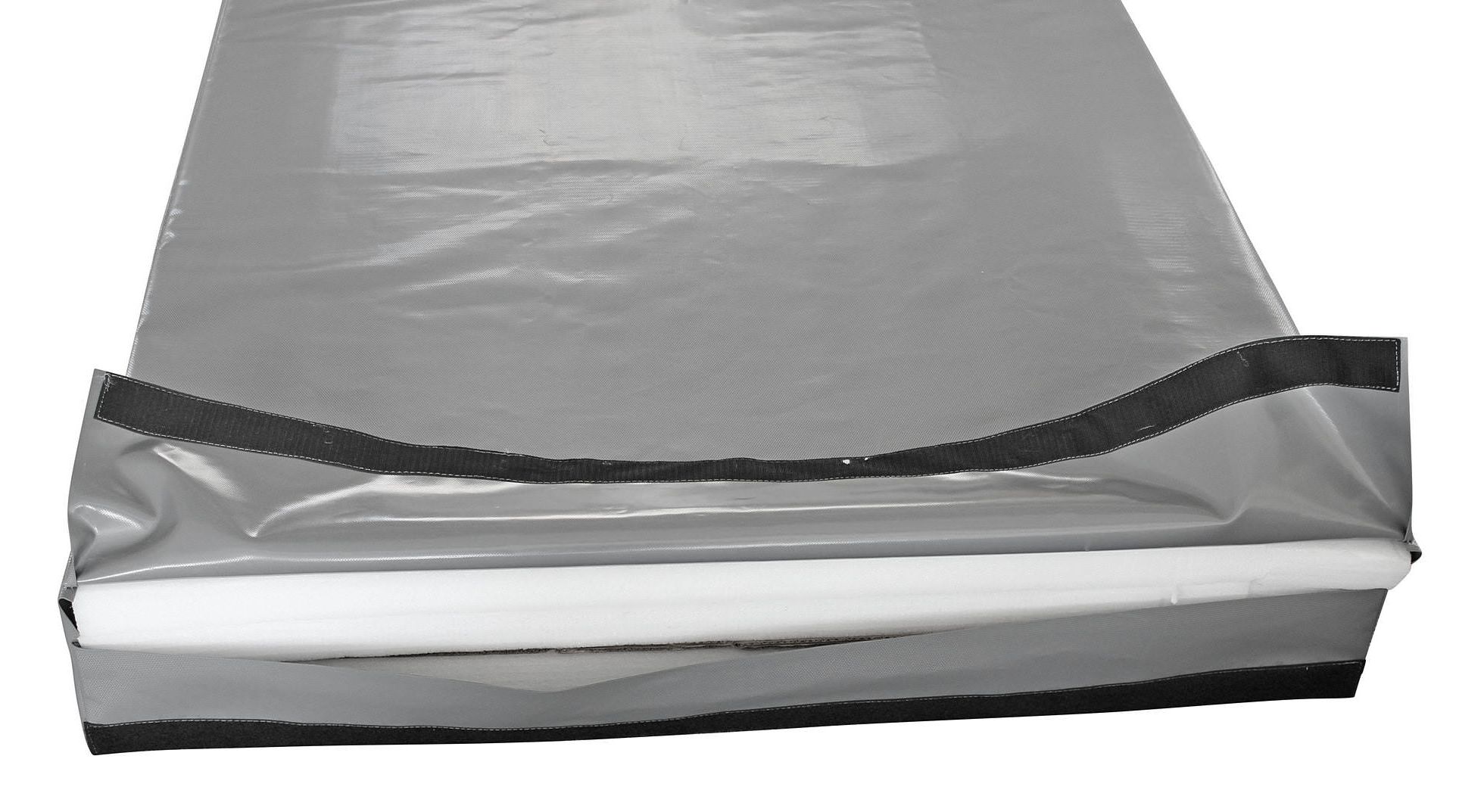

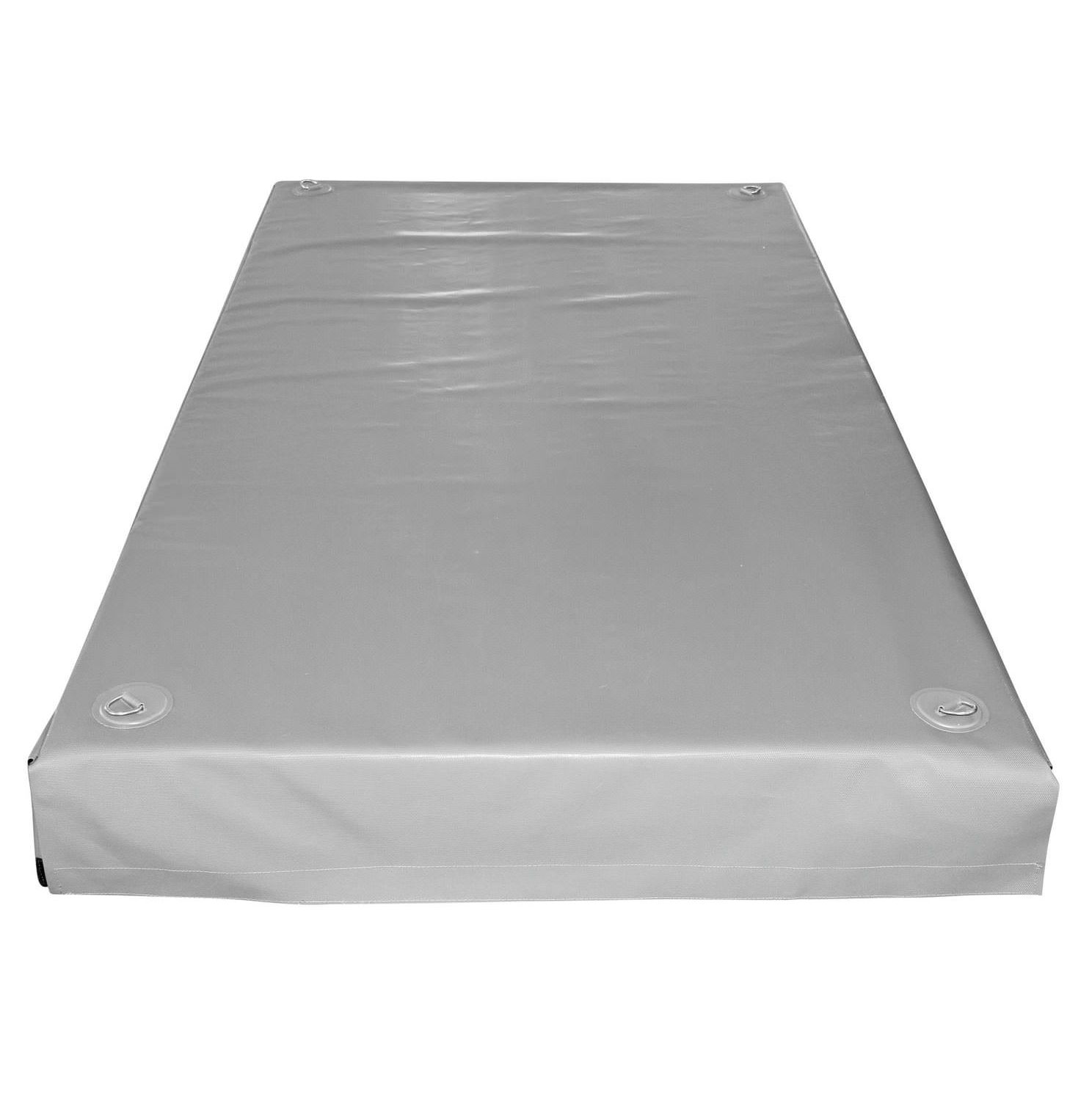

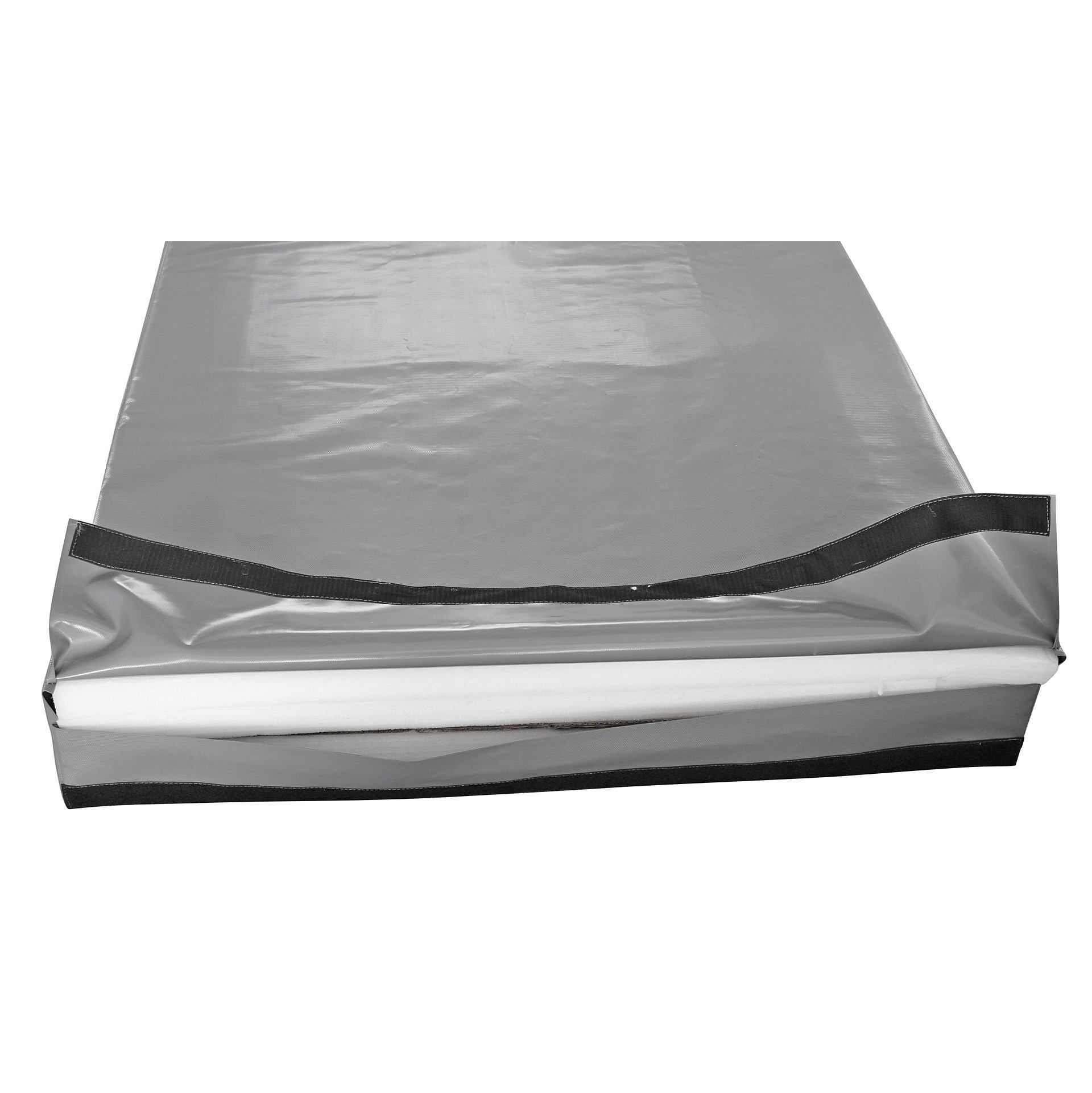

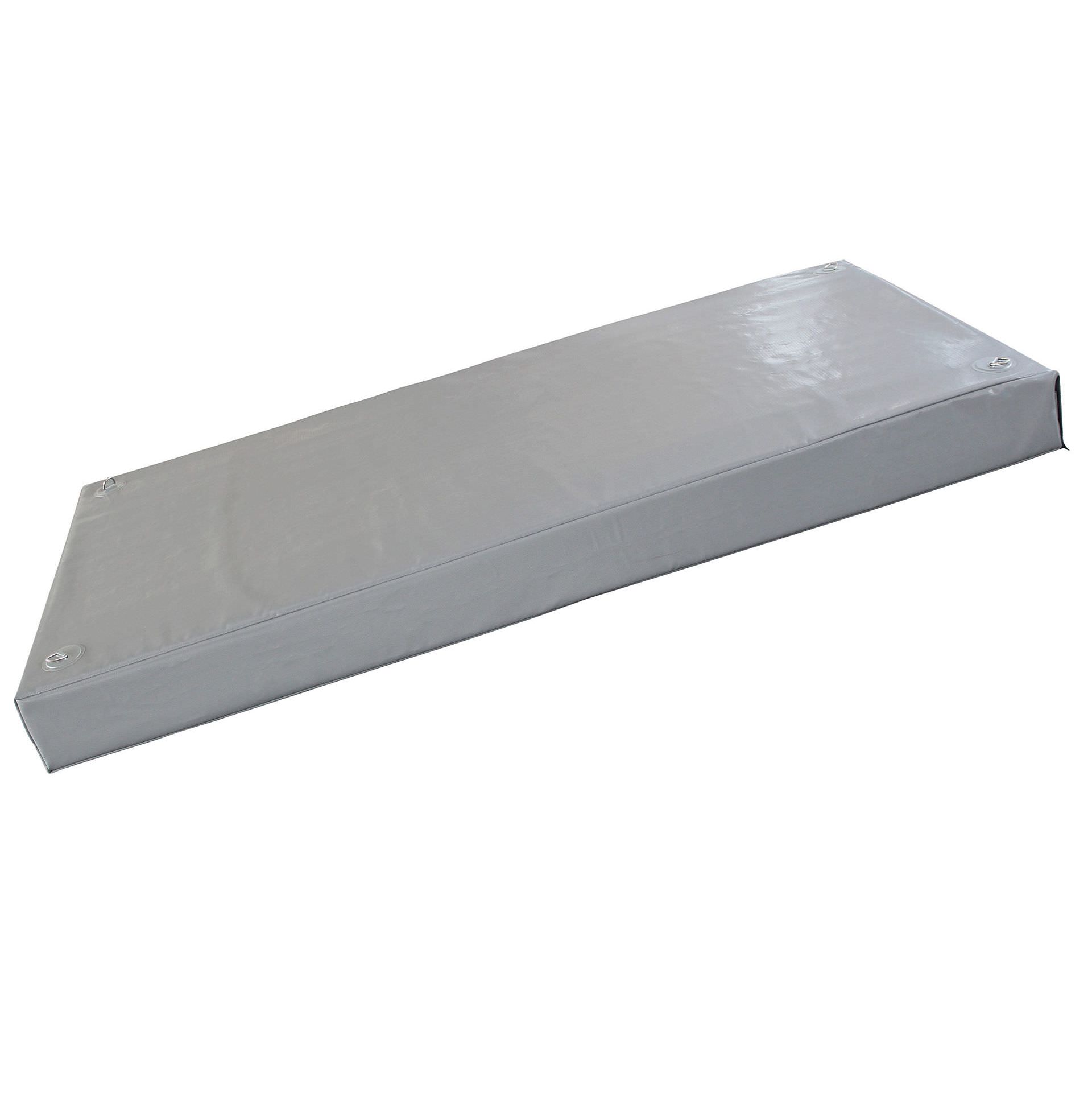

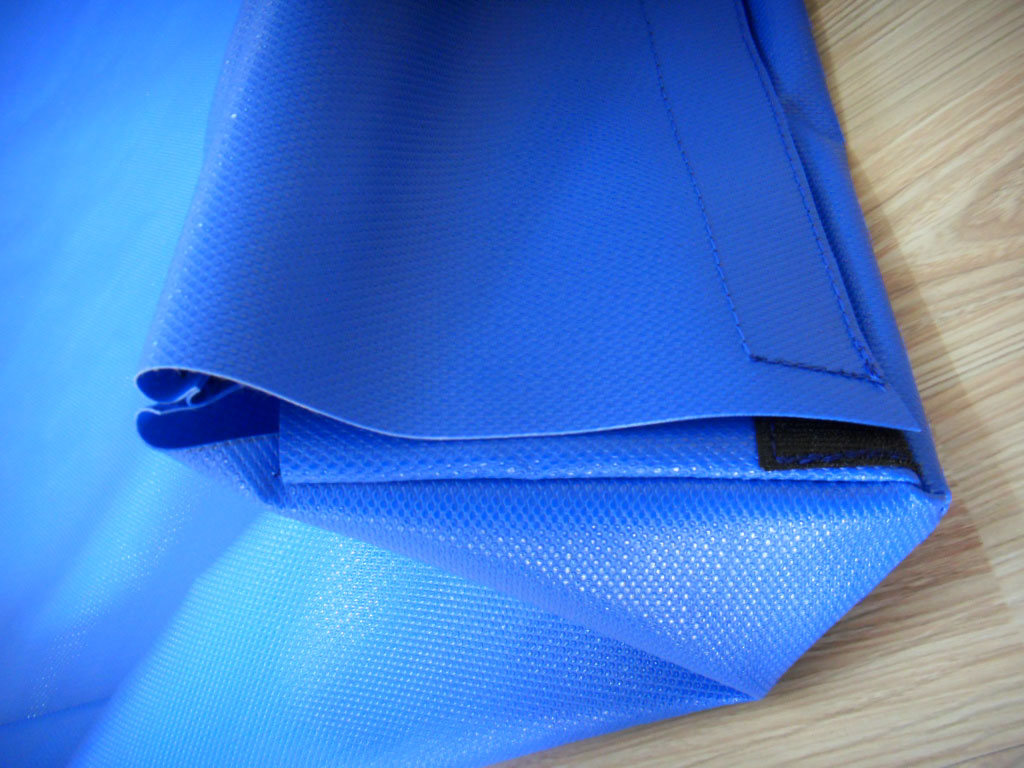

The dock consists of a rugged 8' x 4' x 8" outer shell made from durable tarpaulin PVC fabric. To create a stable floating platform, simply fill the shell with four 8' x 4' x 2" foam insulation panels, available at many hardware stores such as Home Depot or Lowe’s. The shell features a long, narrow opening that allows the foam panels to be inserted one at a time, then securely closed with Velcro.

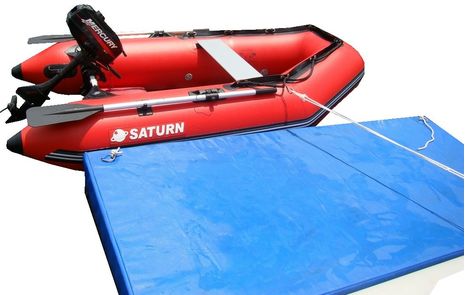

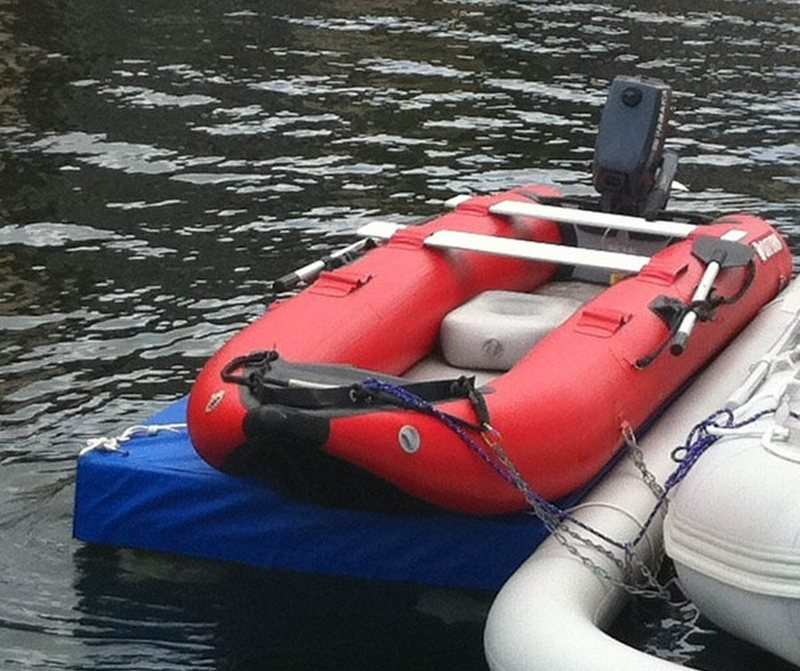

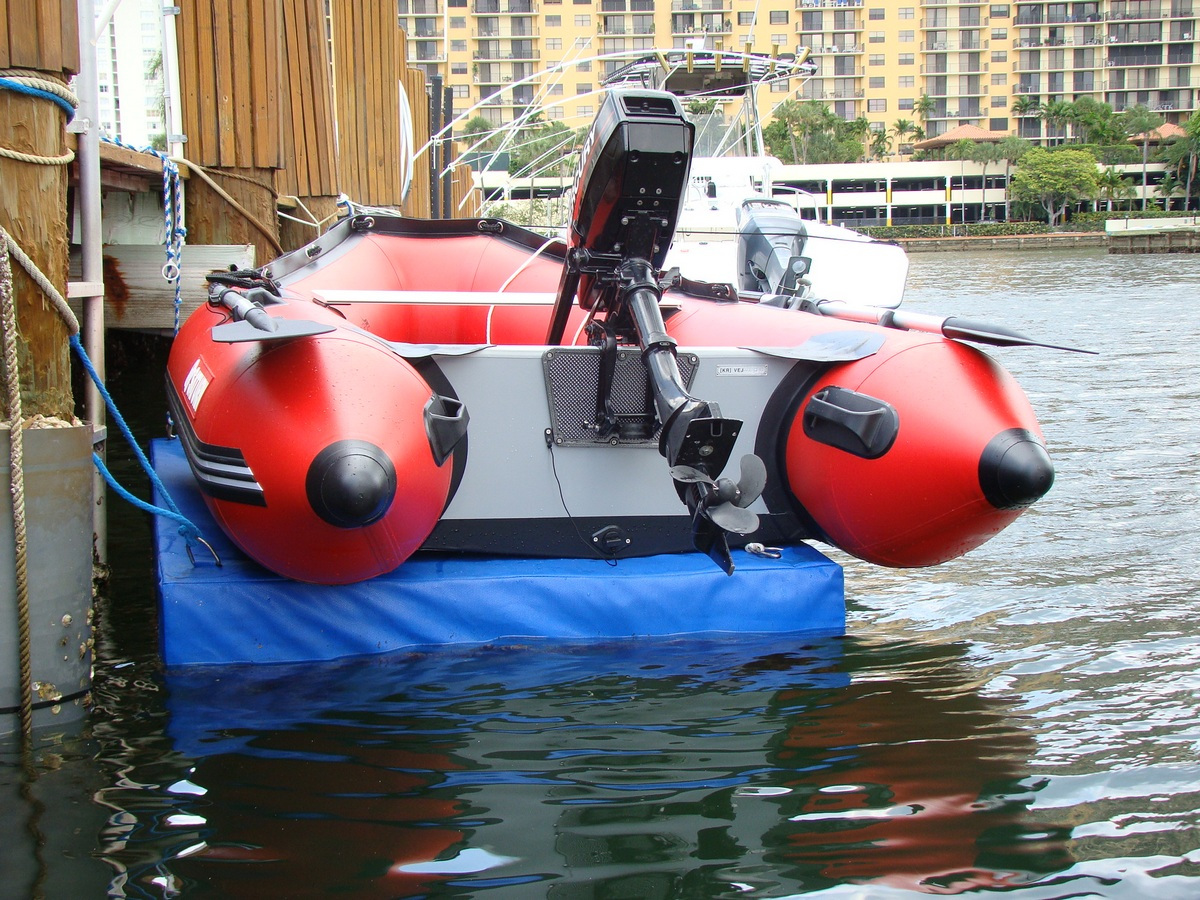

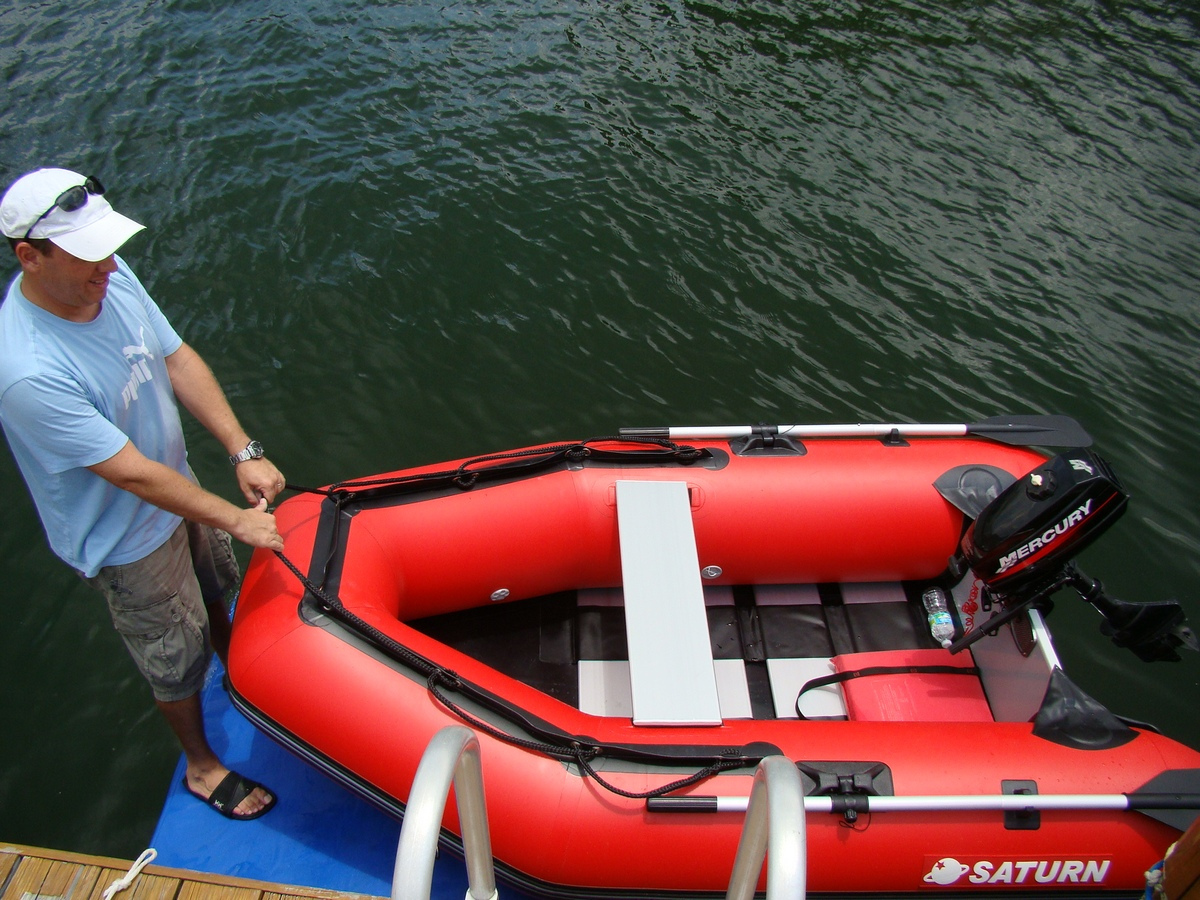

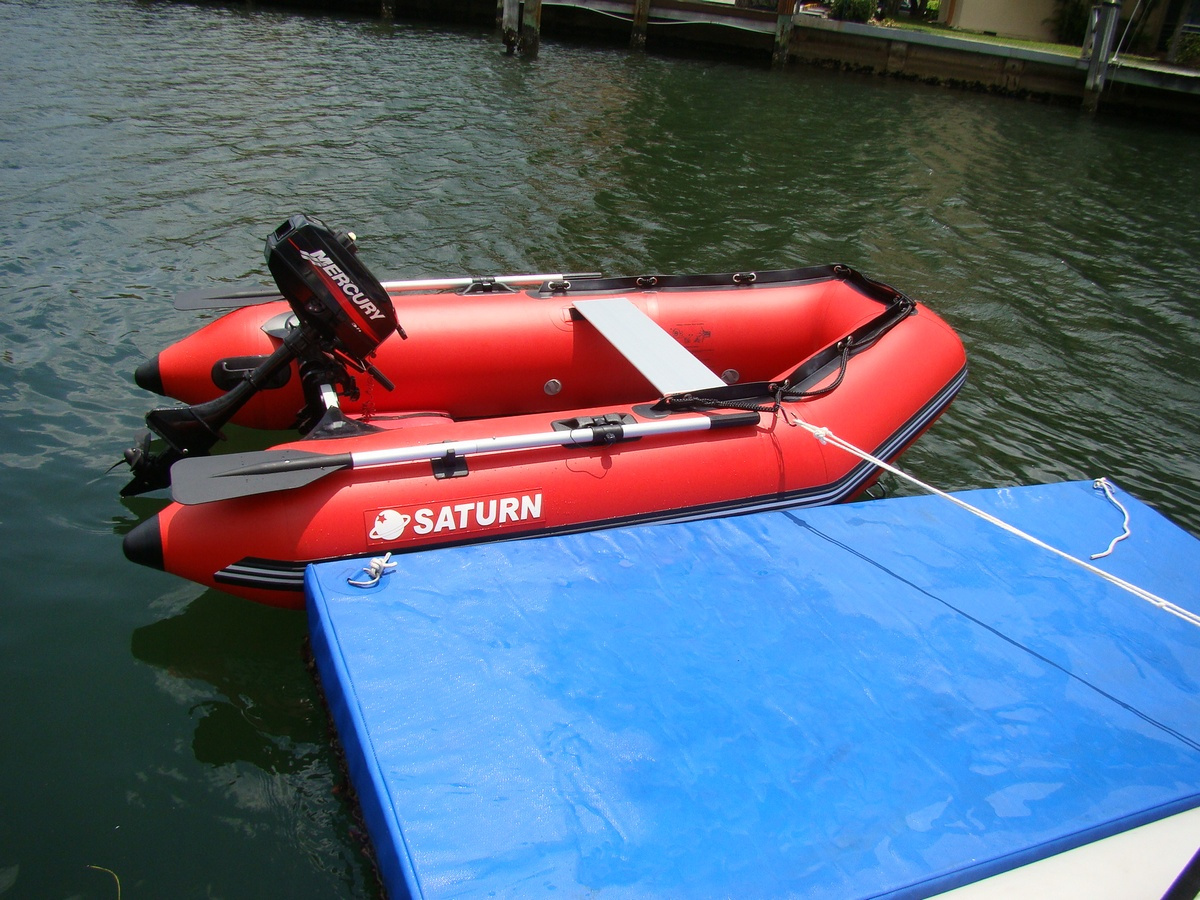

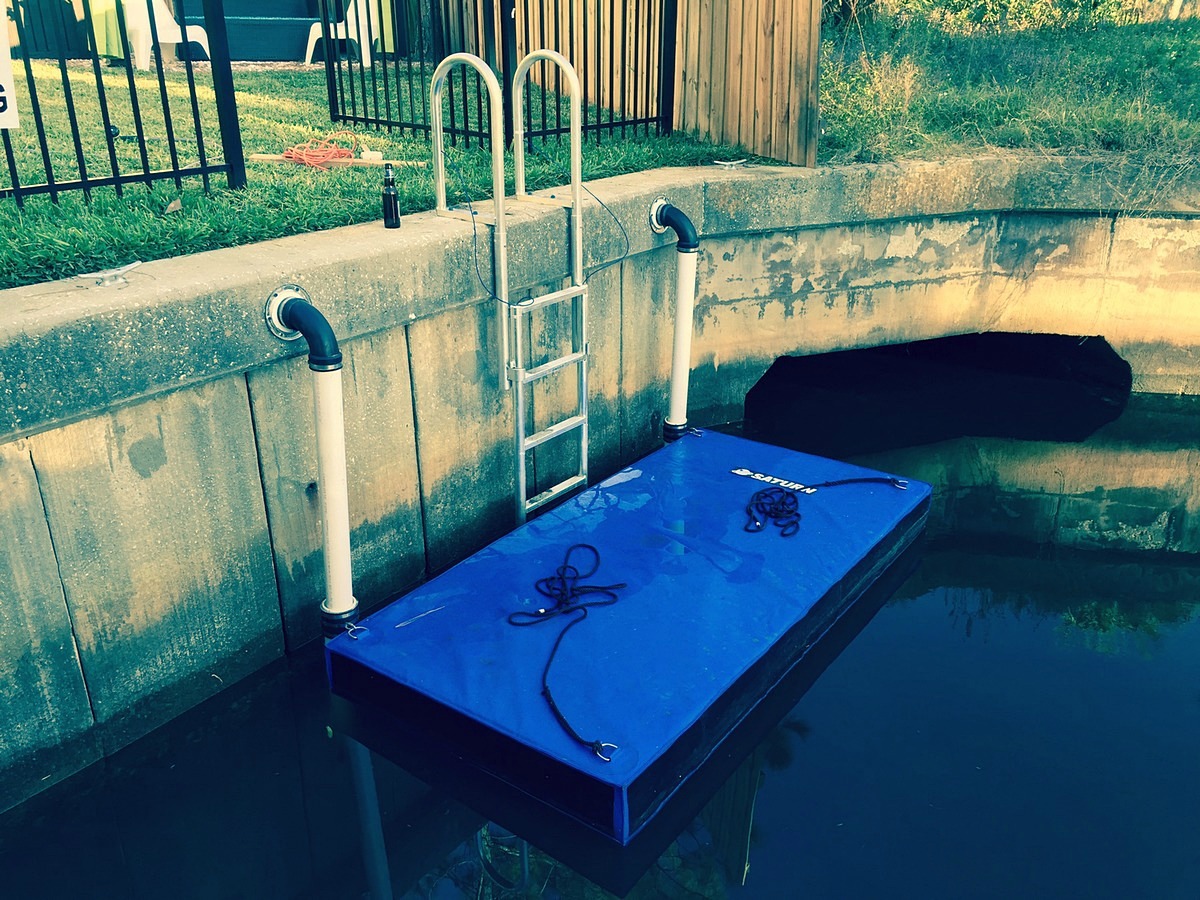

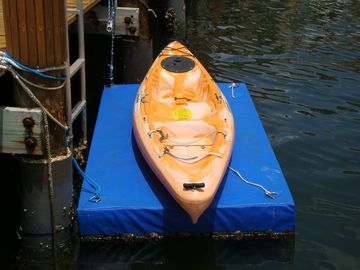

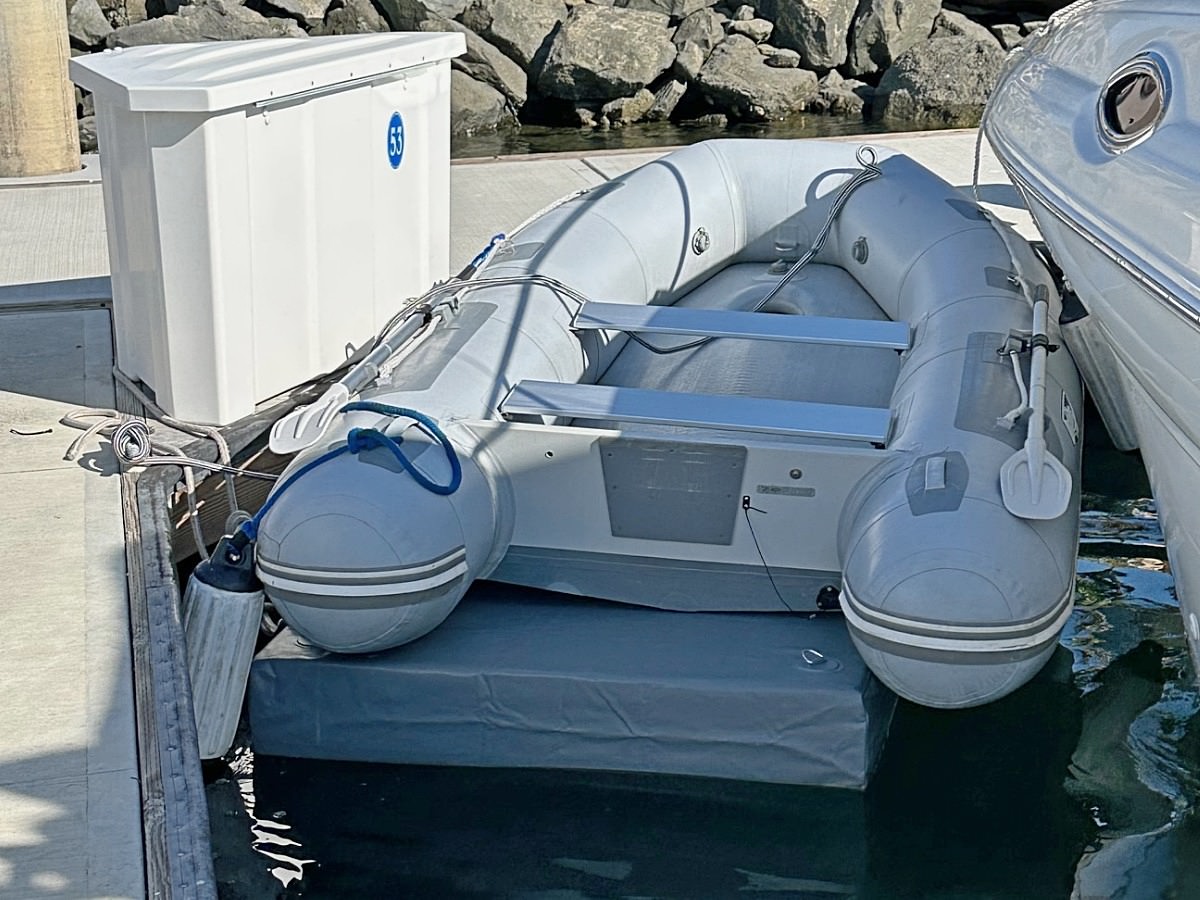

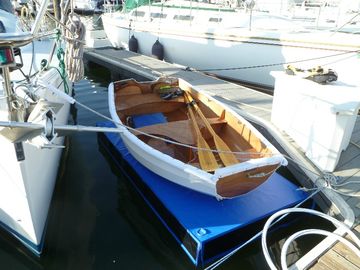

This simple and economical design gives you an easy way to park your kayak, canoe, dinghy, or small inflatable boat on the water without the cost of a traditional dock.

Important: Styrofoam or foam insulation panels are not included.

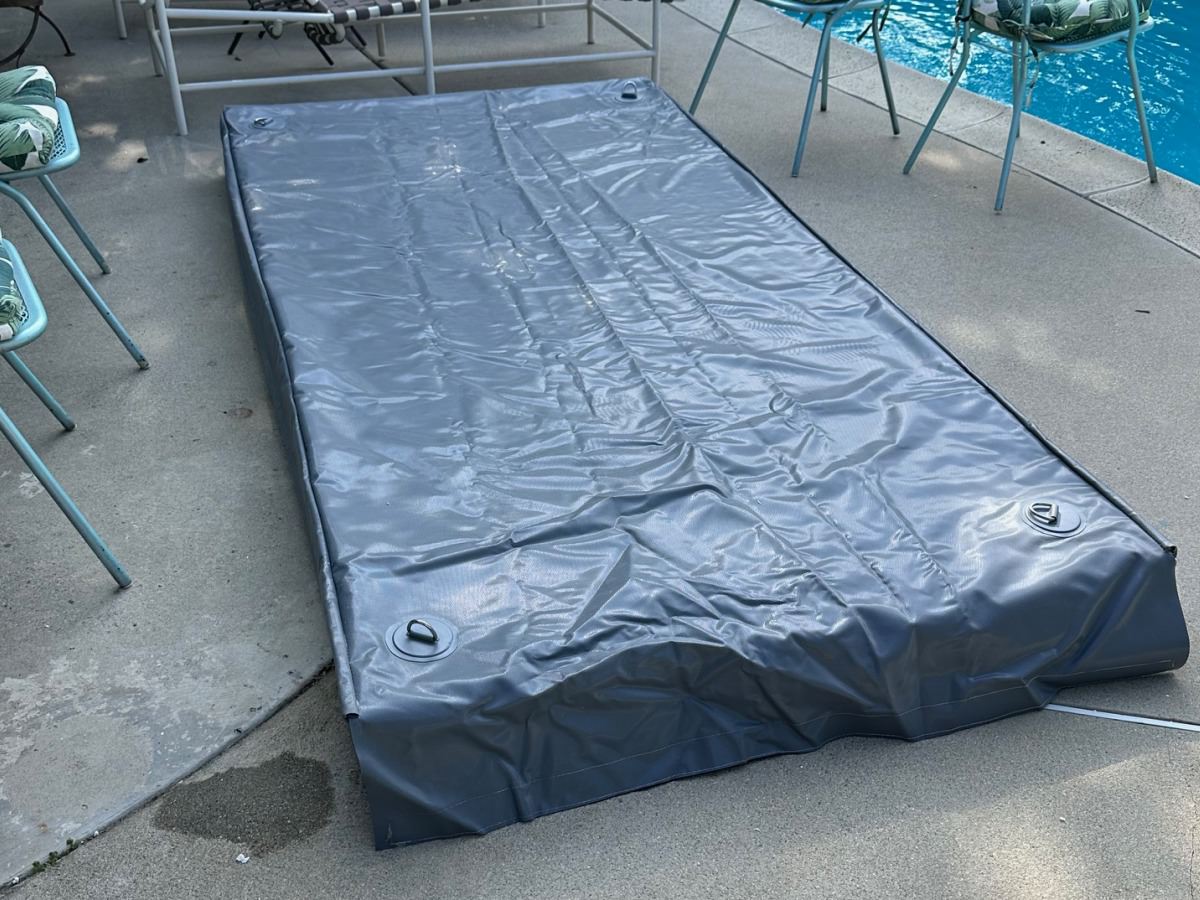

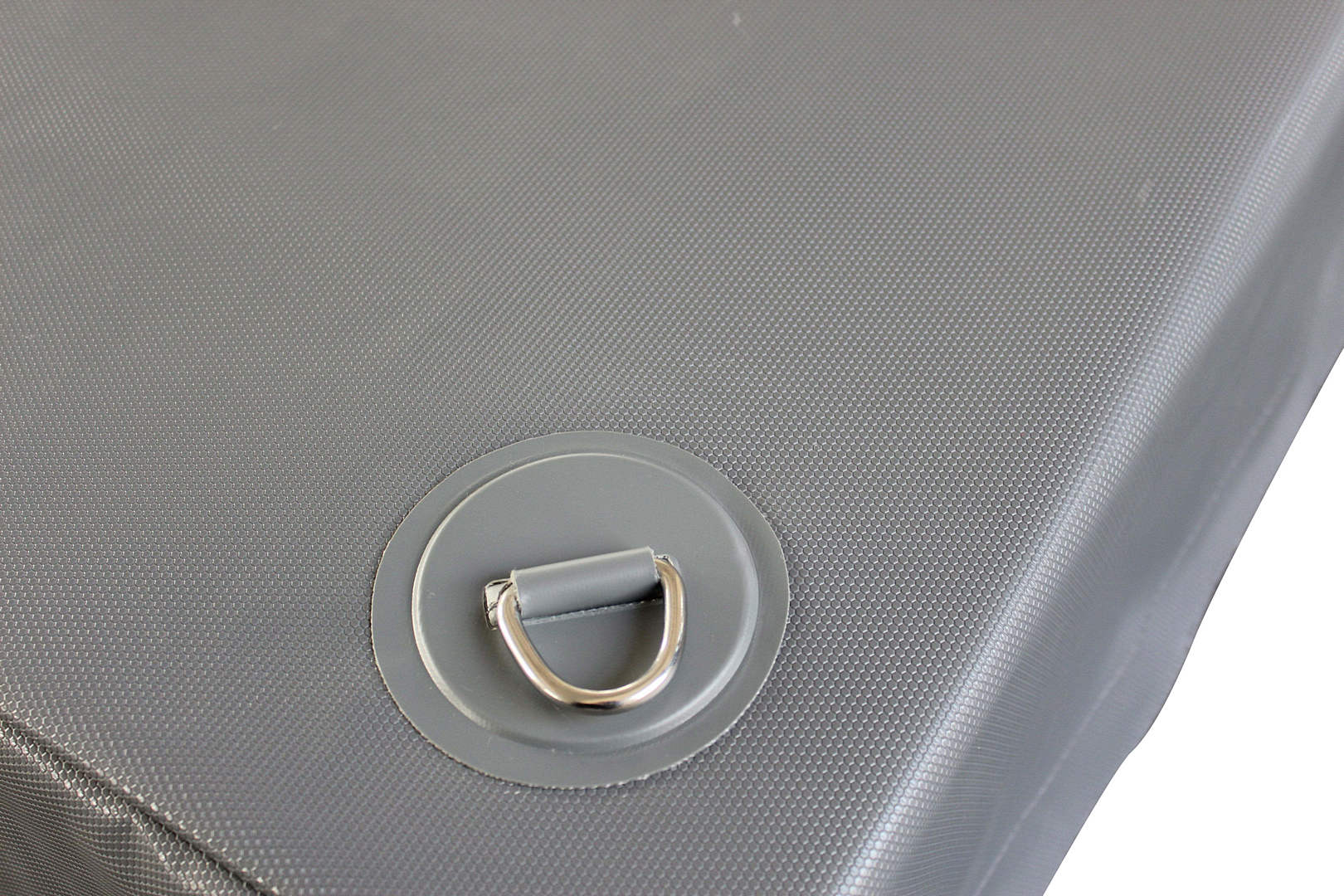

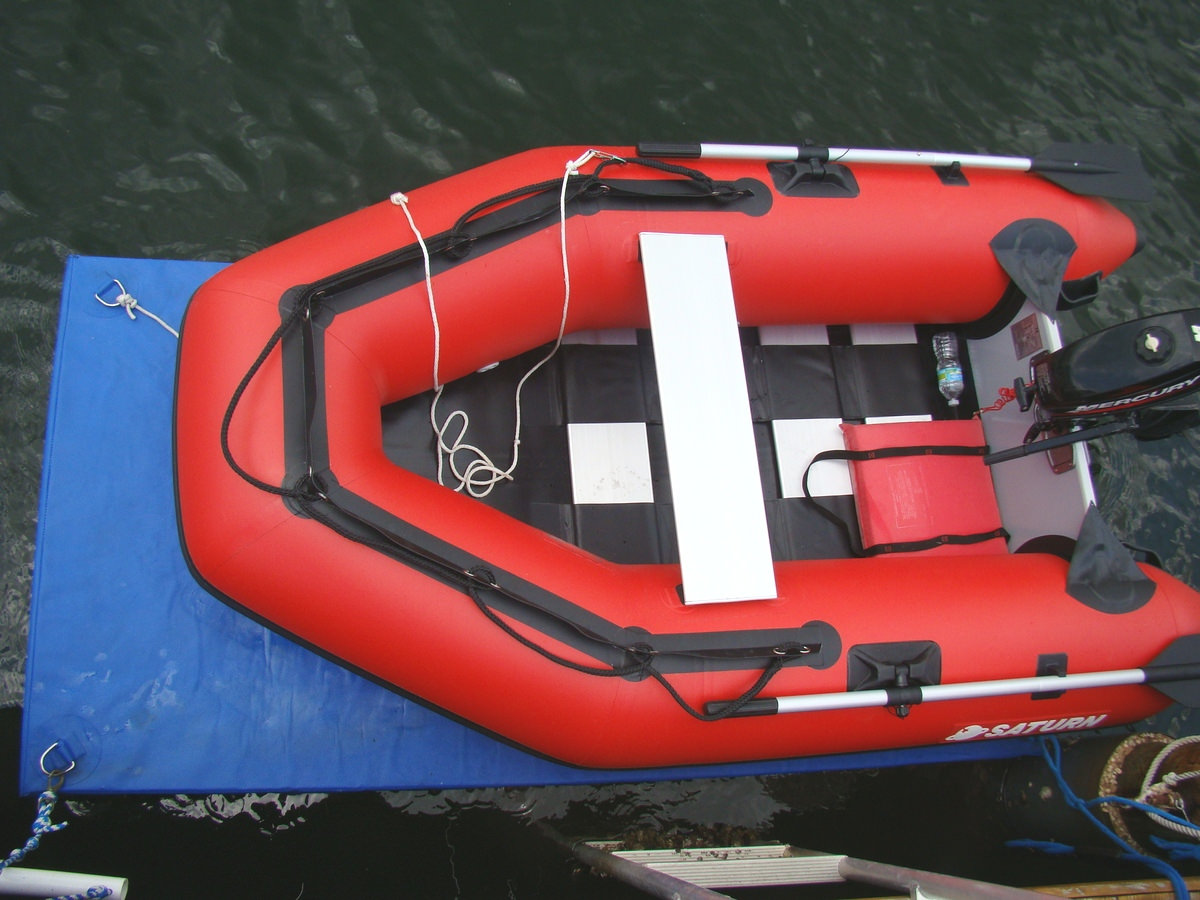

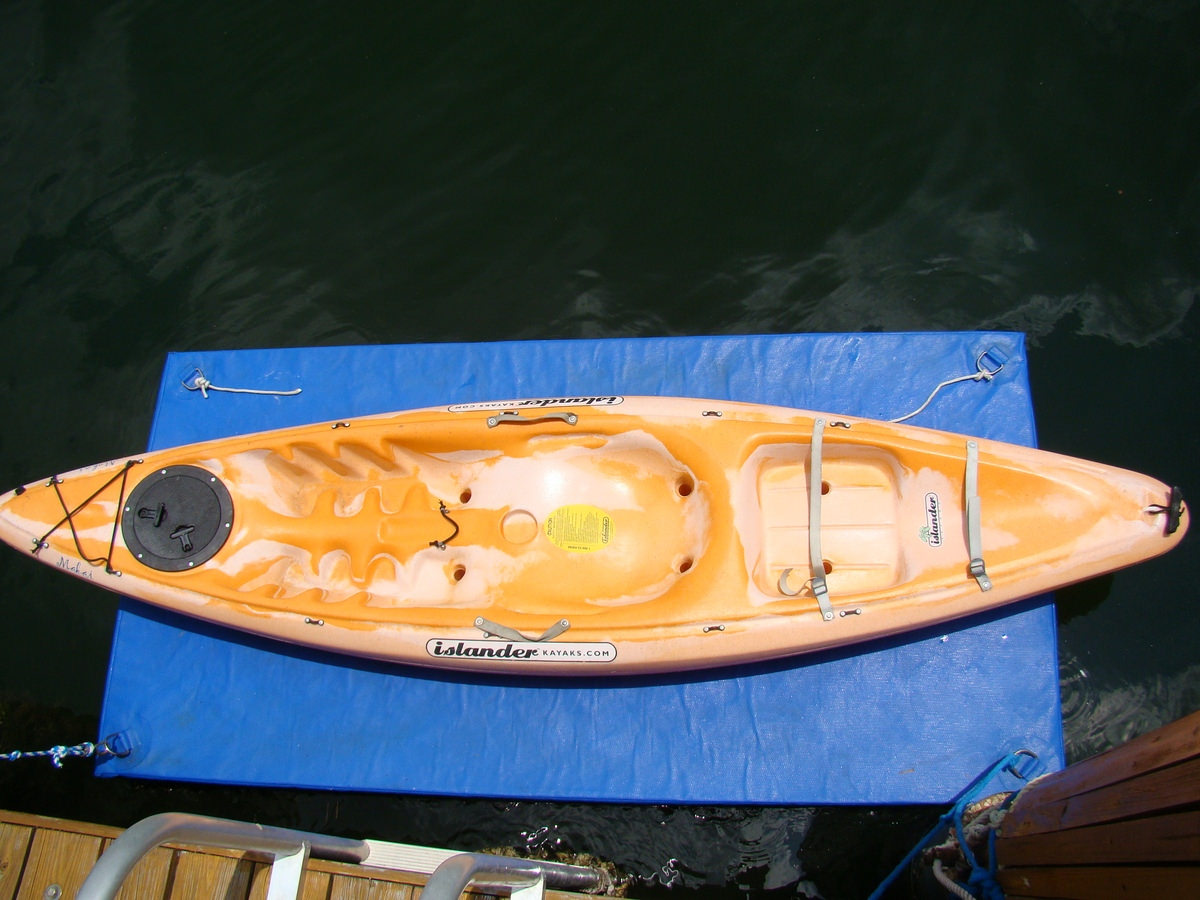

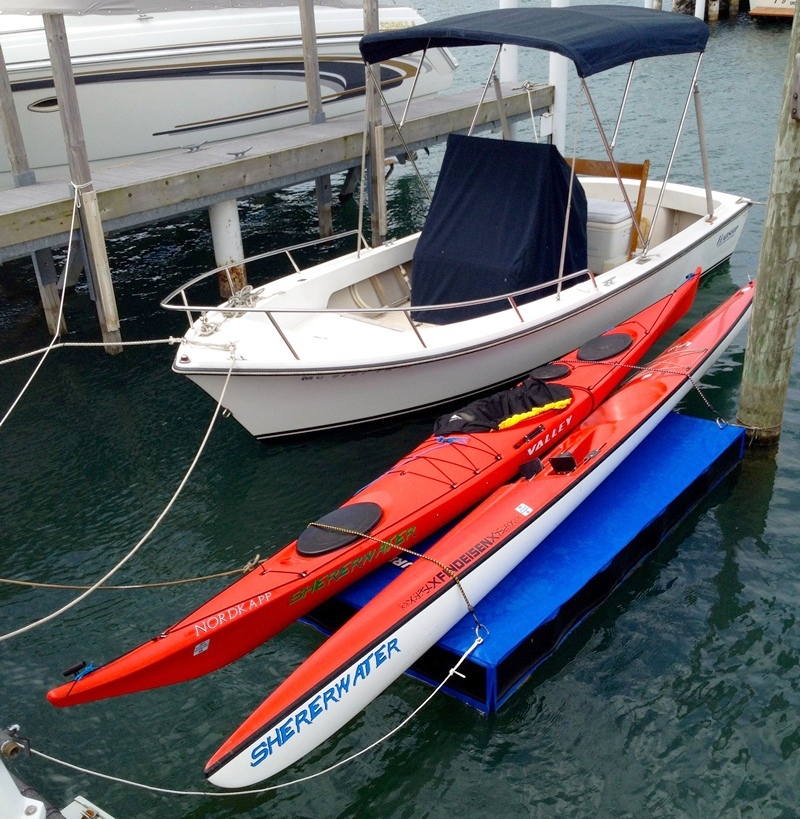

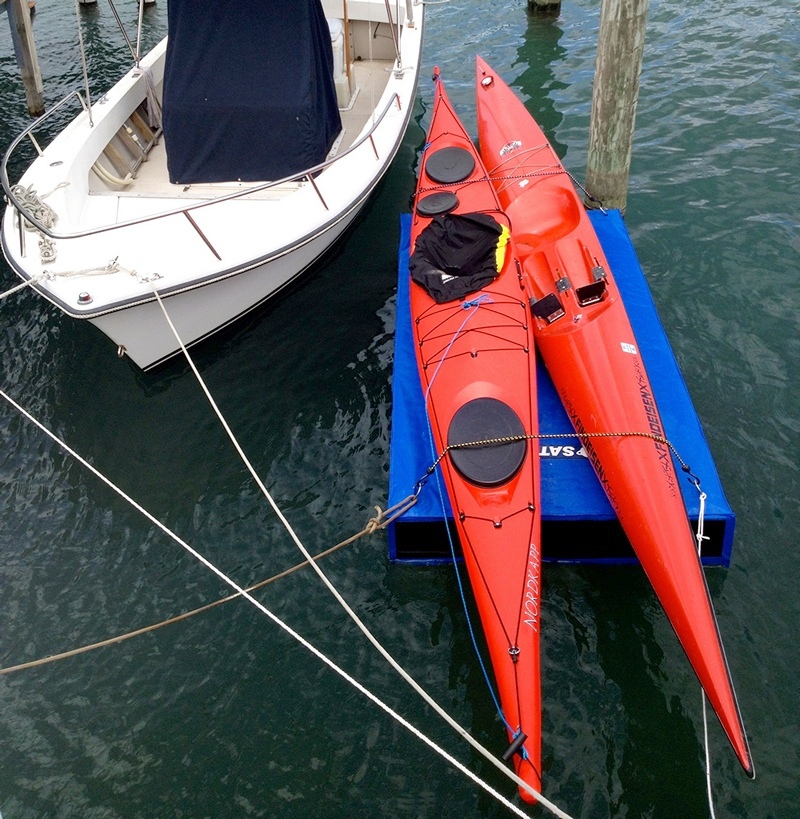

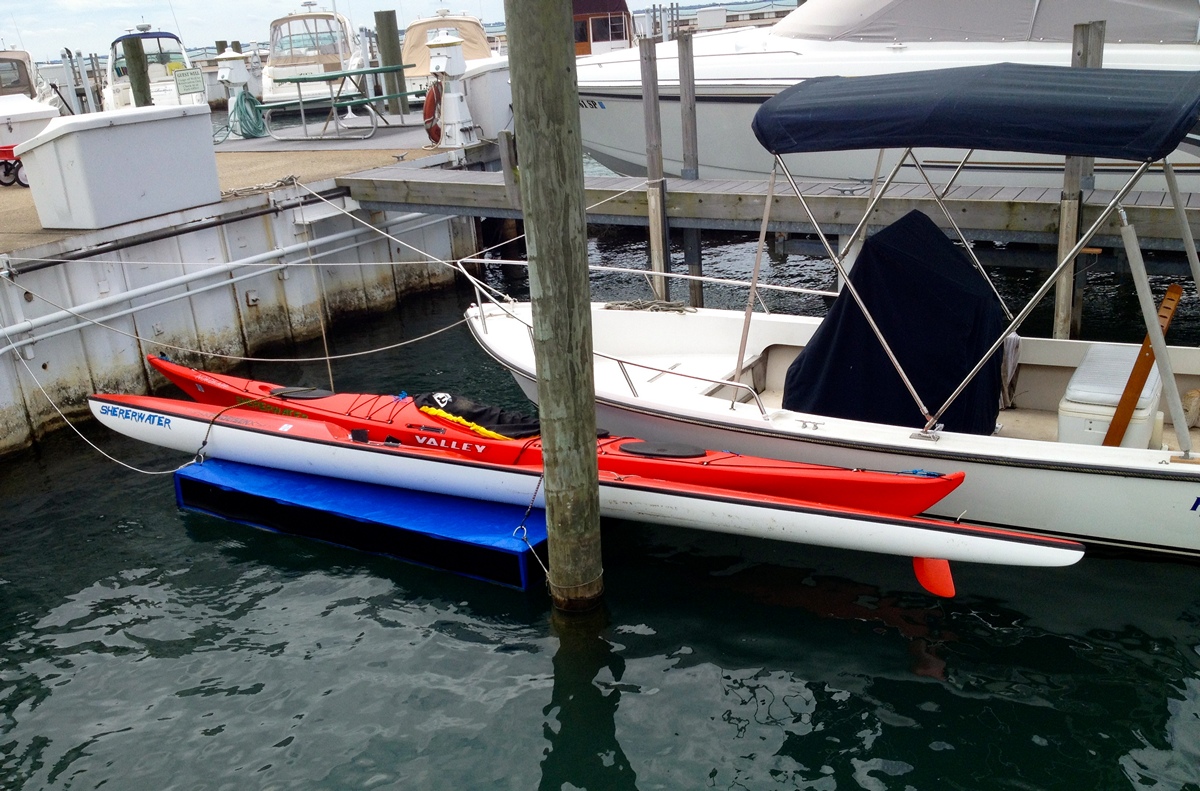

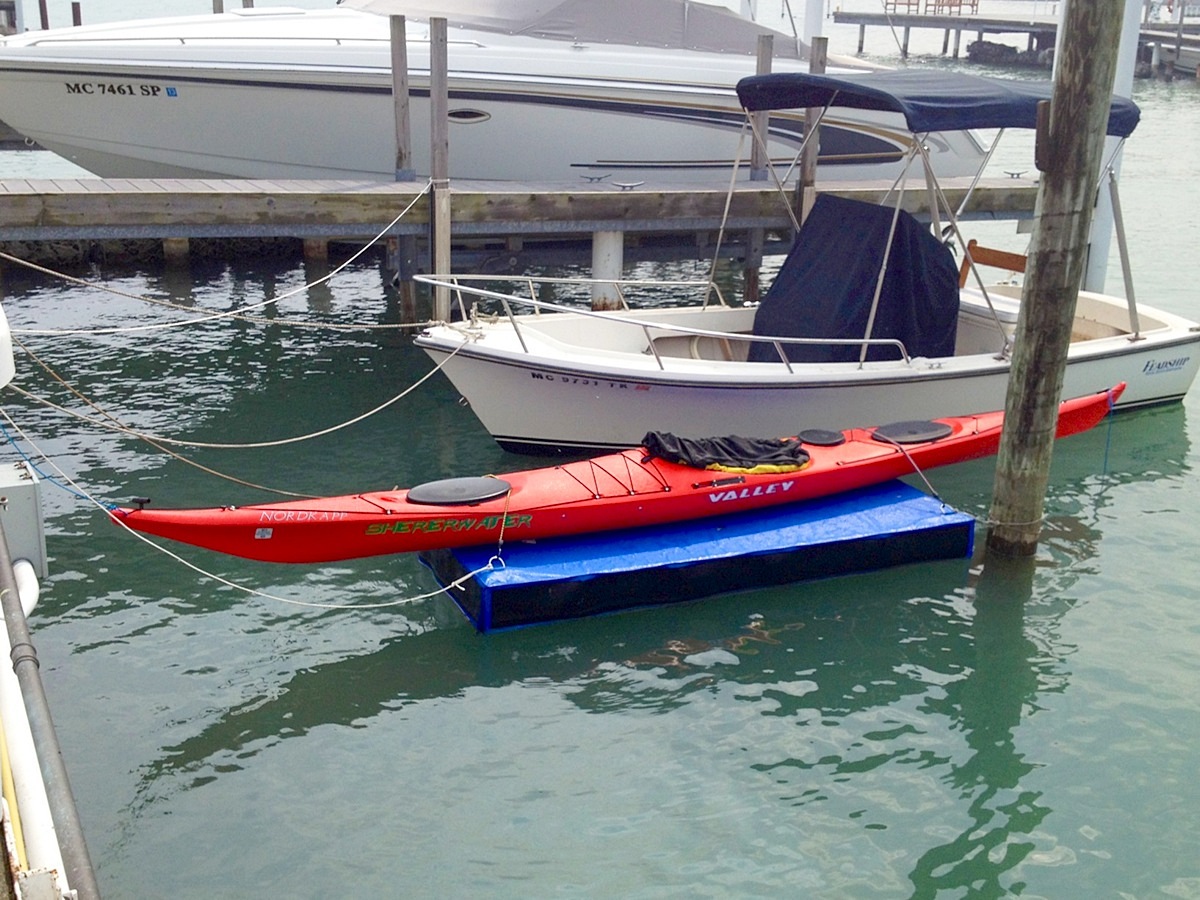

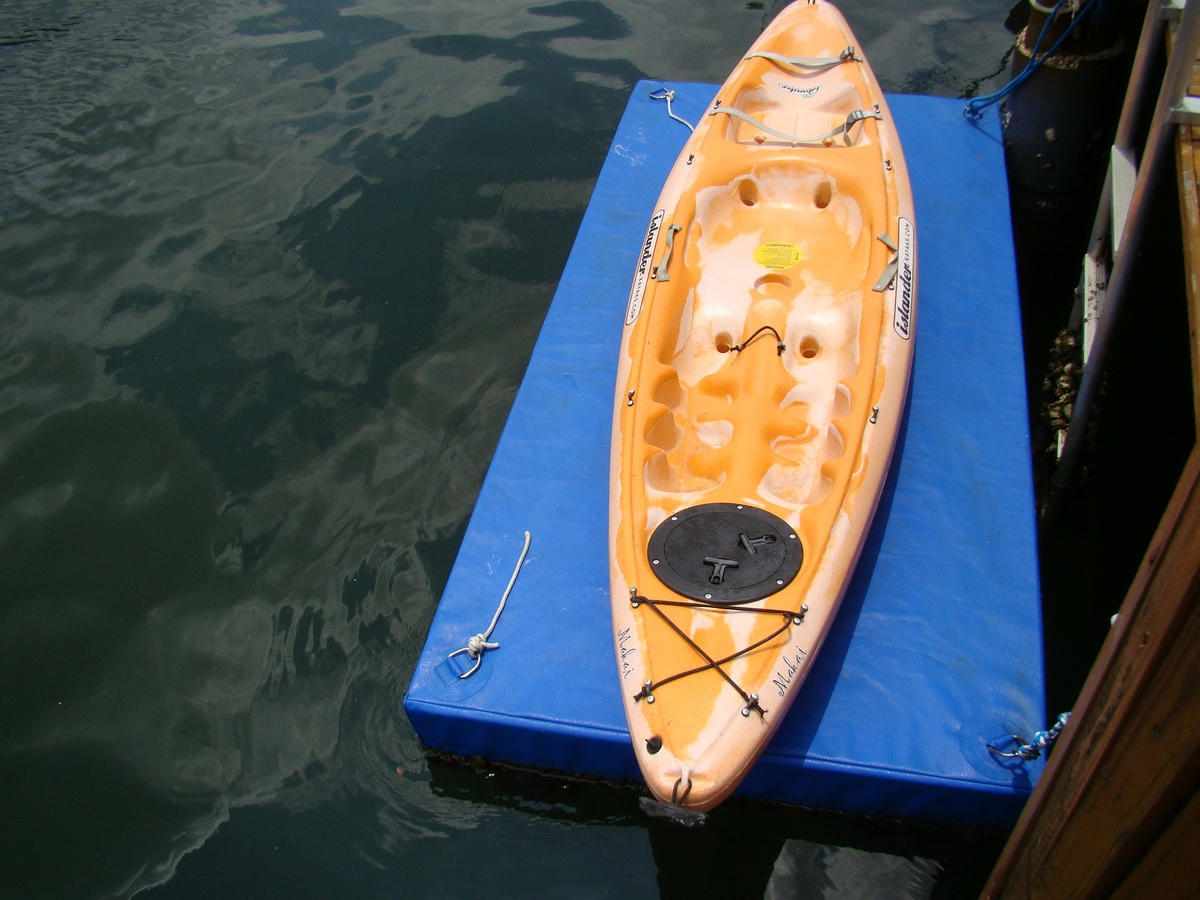

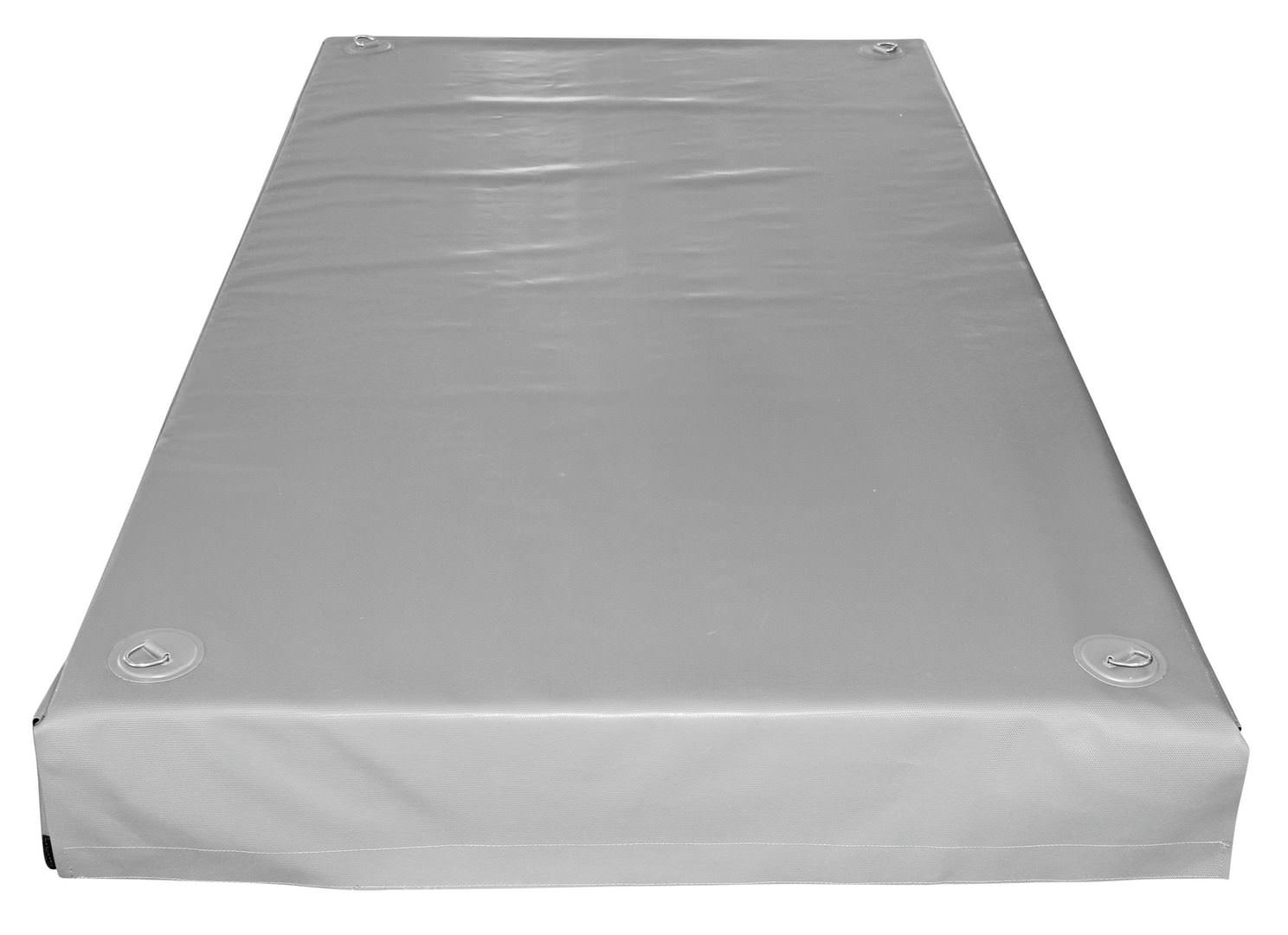

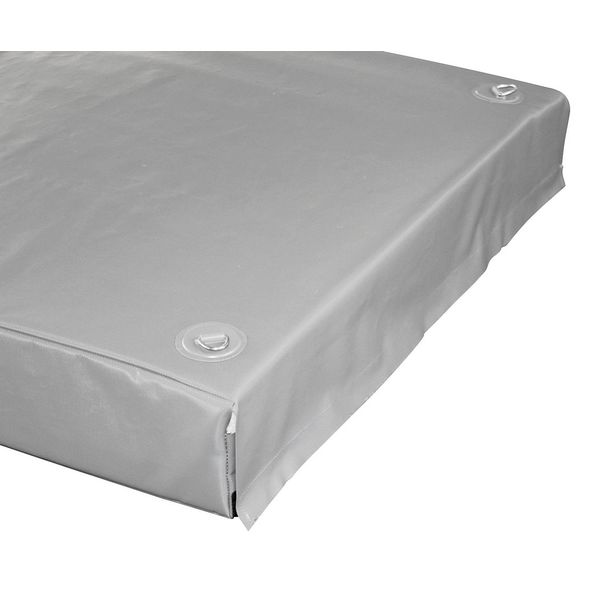

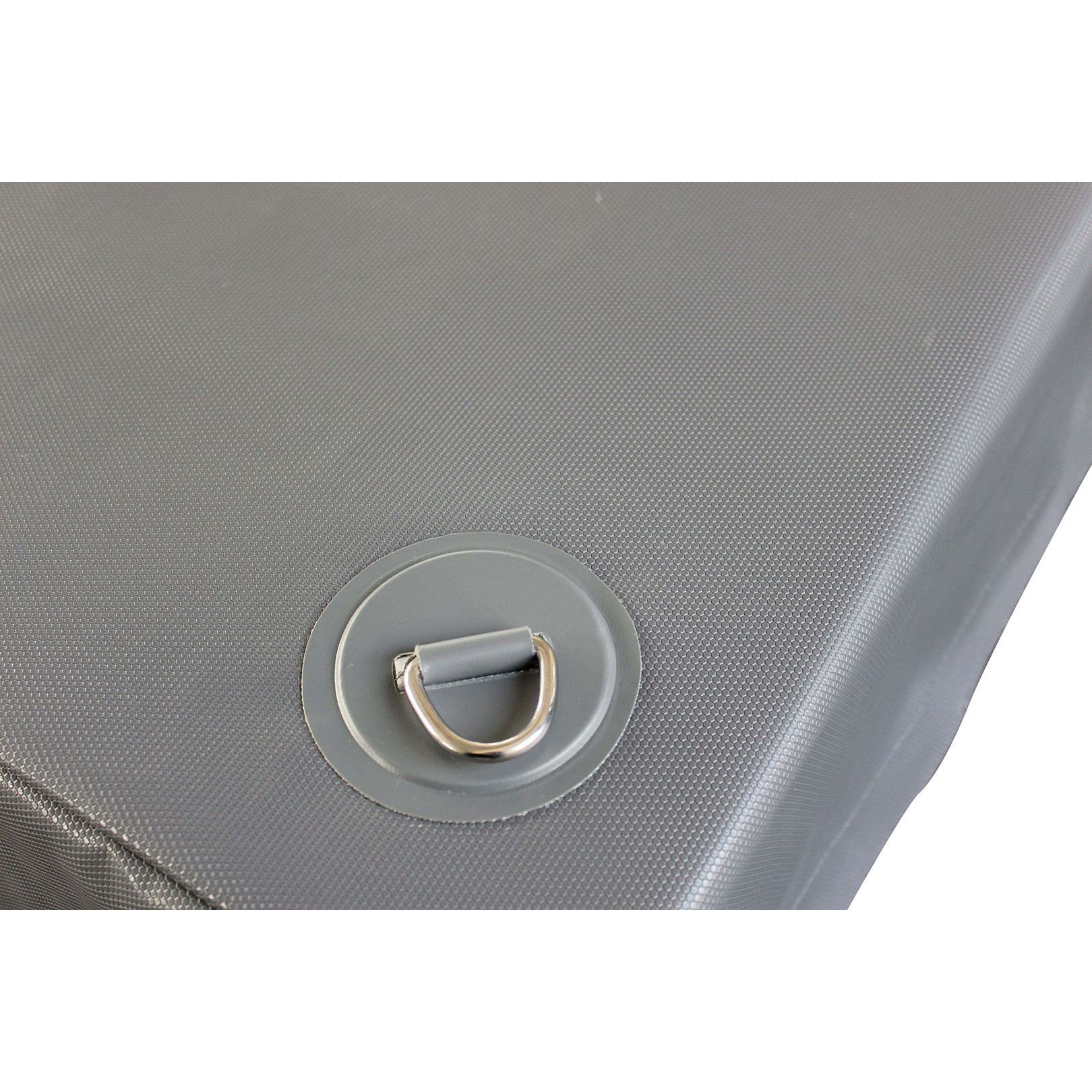

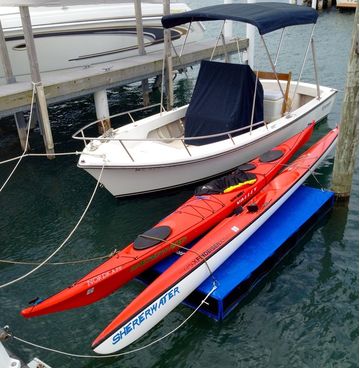

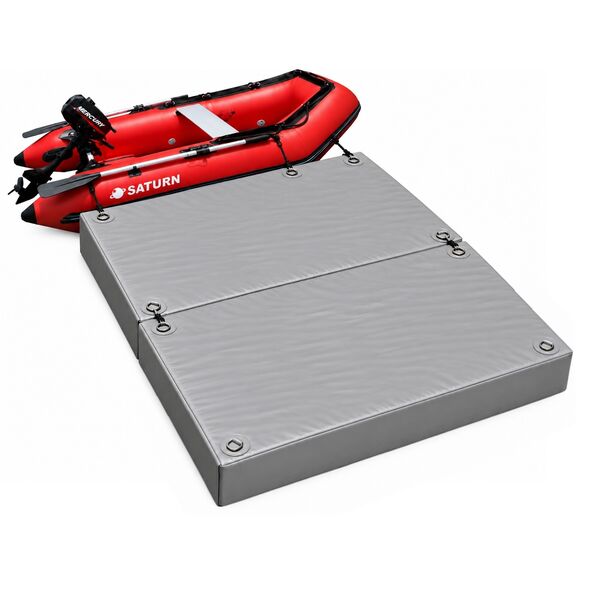

Each dock comes with 4 D-rings installed at its edges, that can be used to secure watercraft to the dock, secure dock to anchor or stationary object, or to join several docking platforms together to form larger size docks. For example, 1 dock will provide enough support for 1-person kayak or canoe or up to 9' long inflatable boat or 15' KaBoat. For longer boats and larger kayaks, customers might use 2 docks joined together via D-rings and rope. You can add as many dock platforms as you need.

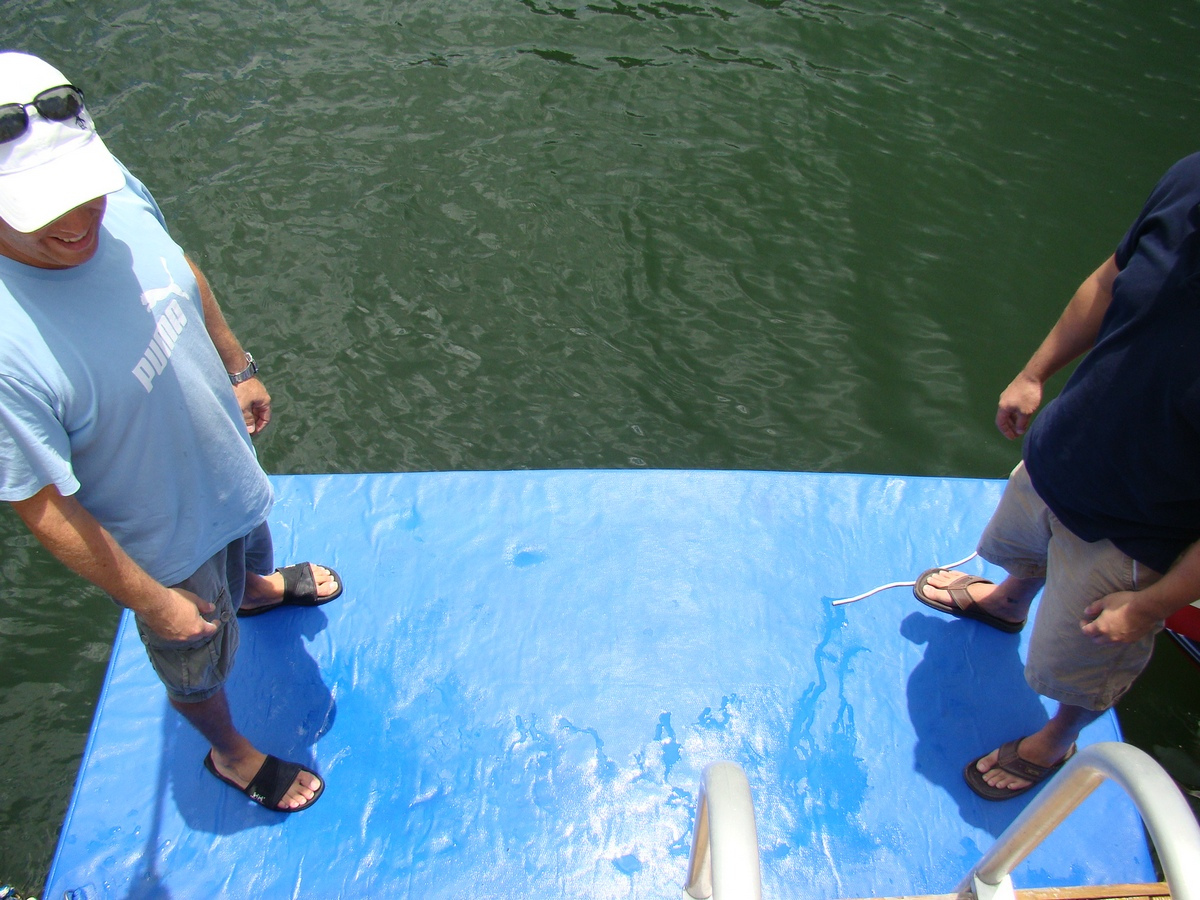

Docking platform with 4 Styrofoam sheet inside is rigid enough for small watercrafts. Additional plywood layer can be bolted through foam layers to make this dock suitable for heavier Jet Ski. Rollers, caster wheels and even trailer winch can be bolted on top of heavy-duty plywood to make pulling easier.

Heavy-Duty Floating Dock – Built to Last!

Originally designed as an inexpensive seasonal dock, this platform exceeded our expectations. After almost two years of continuous testing in saltwater under the intense Florida sun, it proved durable enough for several years of use.

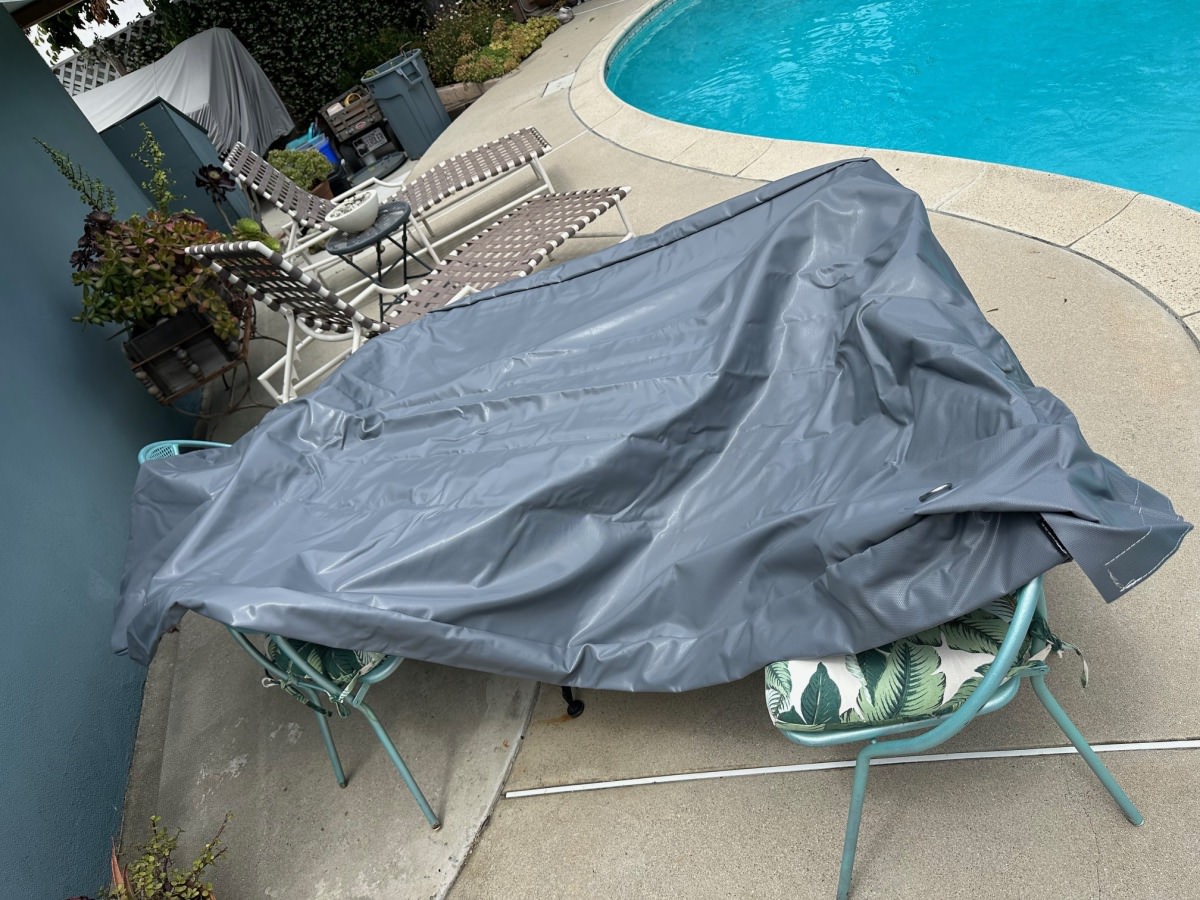

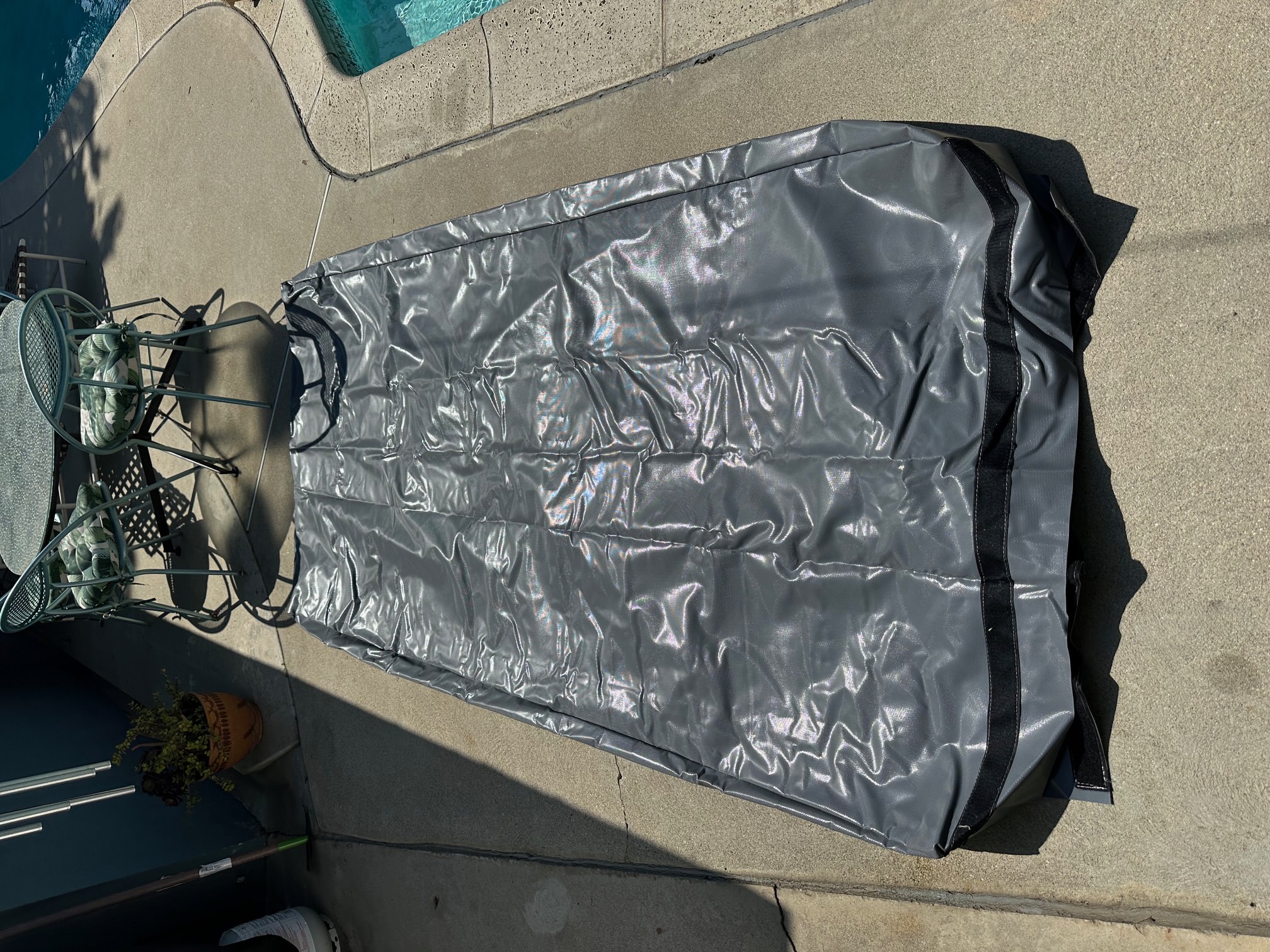

The dock features a heavy-duty dark gray 1.5 mm PVC outer shell that holds four inexpensive Styrofoam insulation panels. At the end of the season, simply remove the foam and fold the shell for compact storage, or leave the dock assembled for continued use.

Specifications

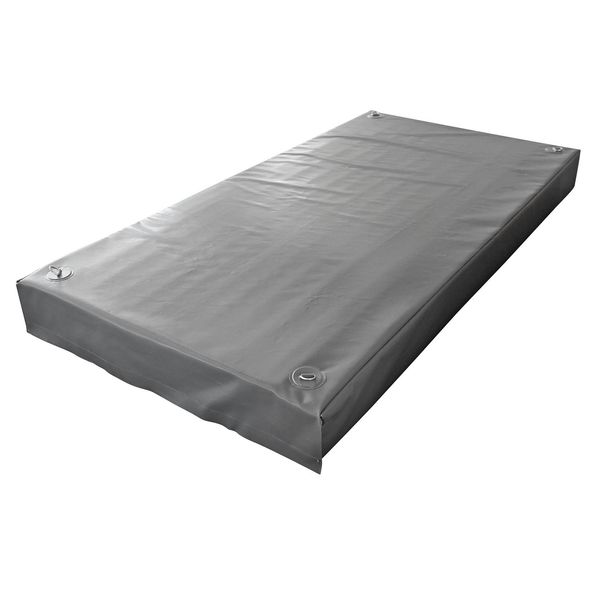

• Dock size: 8' × 4' × 8"
• Material: Heavy-duty dark gray 1.5 mm PVC with textured, non-smooth surface
• Weight: 23 lbs without foam

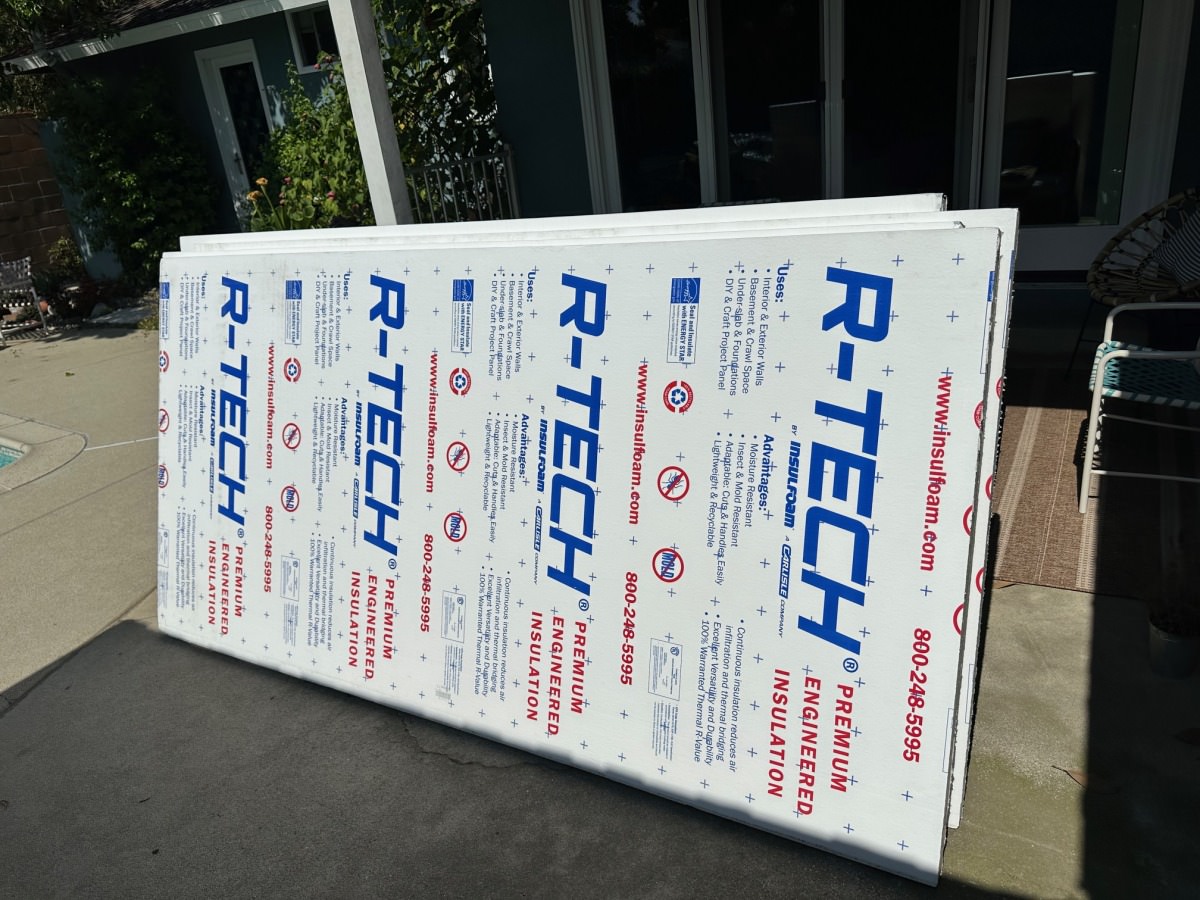

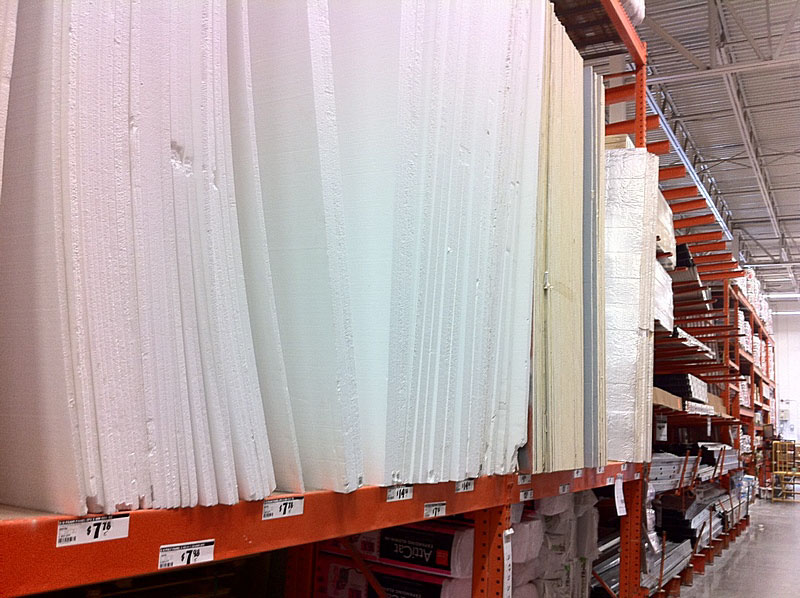

• Foam required: Four 8' × 4' × 2" panels, available at Home Depot, Lowe's, and other hardware stores
• Foam cost: Approximately $15–$30 per panel
• Loading capacity: Approximately 360–400 lbs, depending on foam type and weight distribution
• Optional: Plywood board can be installed on top for additional rigidity and durability
• Shipping box: 20" × 20" × 6"
• Included: PVC floating dock outer shell only. Styrofoam panels not included.

An affordable and practical docking solution for kayaks, canoes, KaBoats, small inflatable boats, and lightweight watercraft. Also suitable as a floating work platform.

Note: Heavier loads will cause the dock to sit lower in the water. Actual buoyancy depends on the foam used, and the stated capacity is not a certified safe working load.

Quick Tip: Installing Styrofoam Panels

The PVC dock cover is designed to fit tightly around the foam panels. To make insertion easier, spray the foam with water or a mixture of water and a little soap or dishwashing detergent. If necessary, slightly trim the edges of the Styrofoam panels for a better fit. Never force the panels into the dock, as excessive pressure may damage or tear the seams. Damage caused by forcing foam panels into the dock is not covered under warranty.

Important Pricing Notice

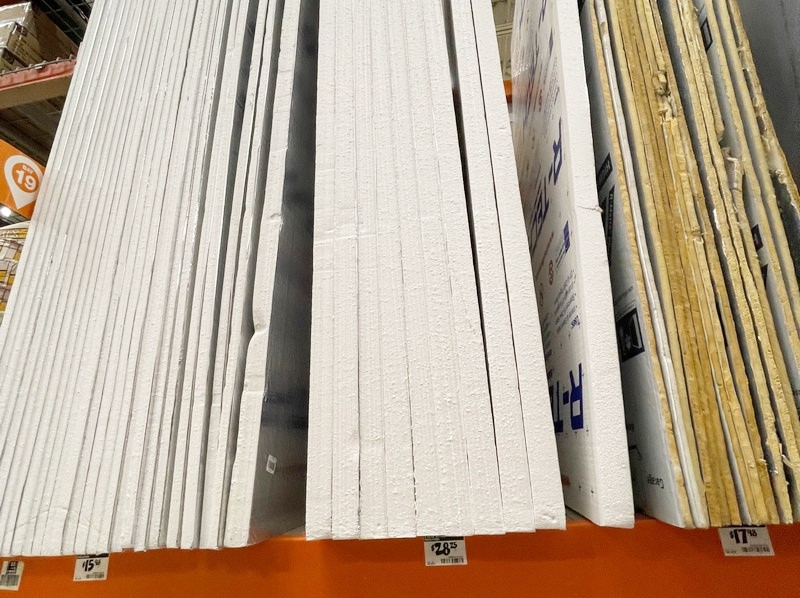

Styrofoam prices shown in product photos may be outdated. These photos were taken when the dock was originally developed, and current foam prices may vary due to market fluctuations beyond our control.
