4-Bow Bimini Top

$169.00
Short description:
MSRP: $338.00
BIMINI4
$49.00
Available for preorder

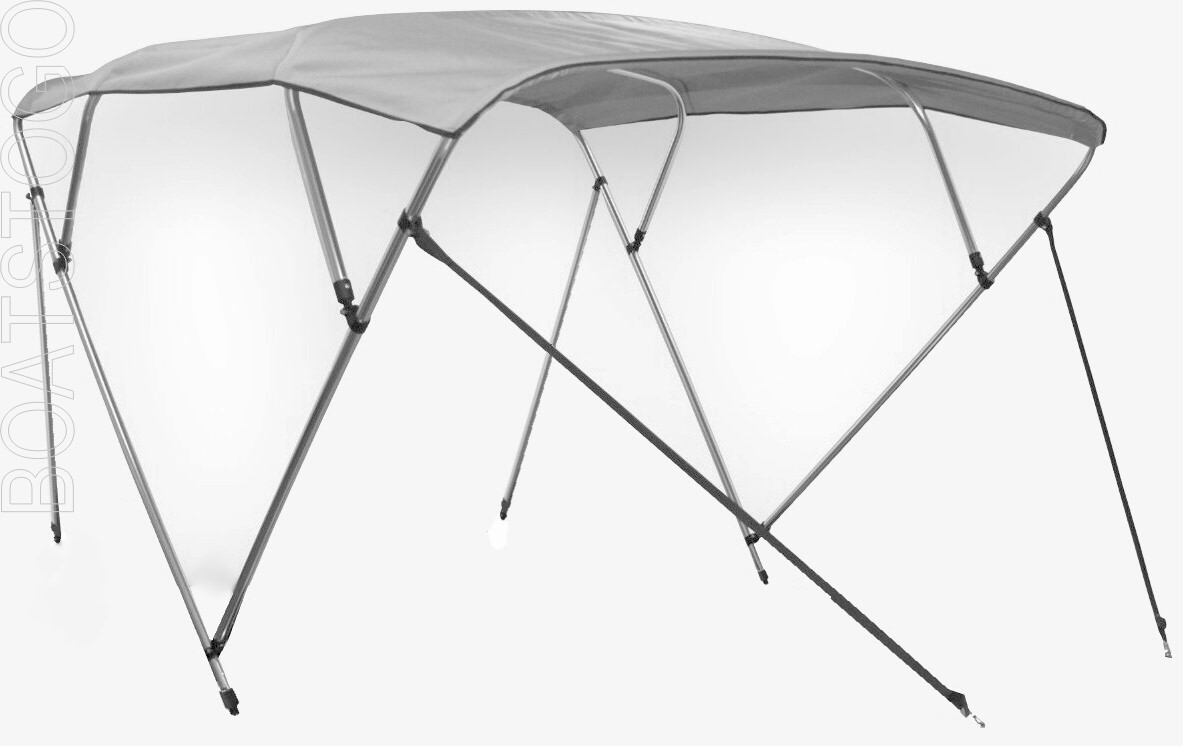

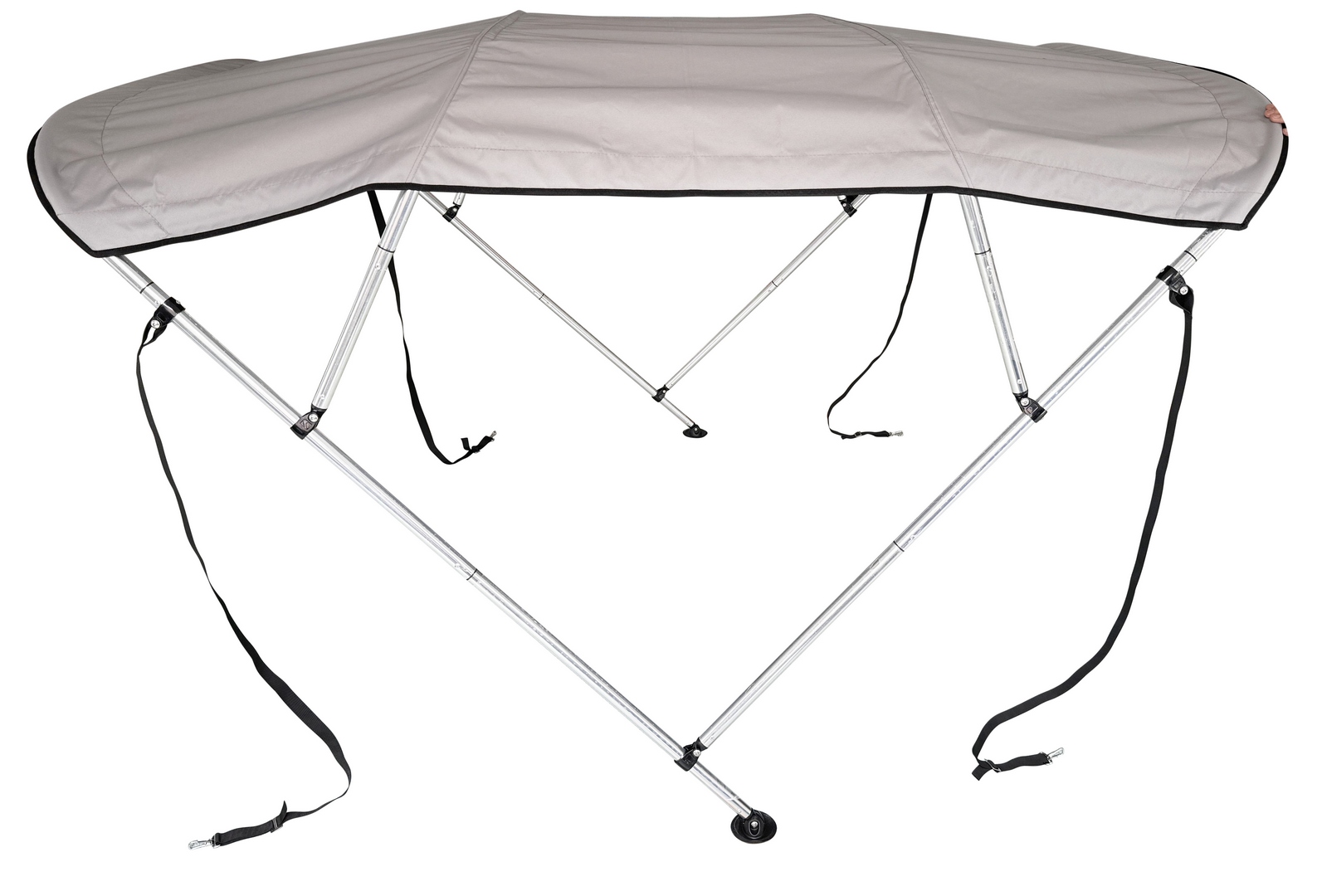

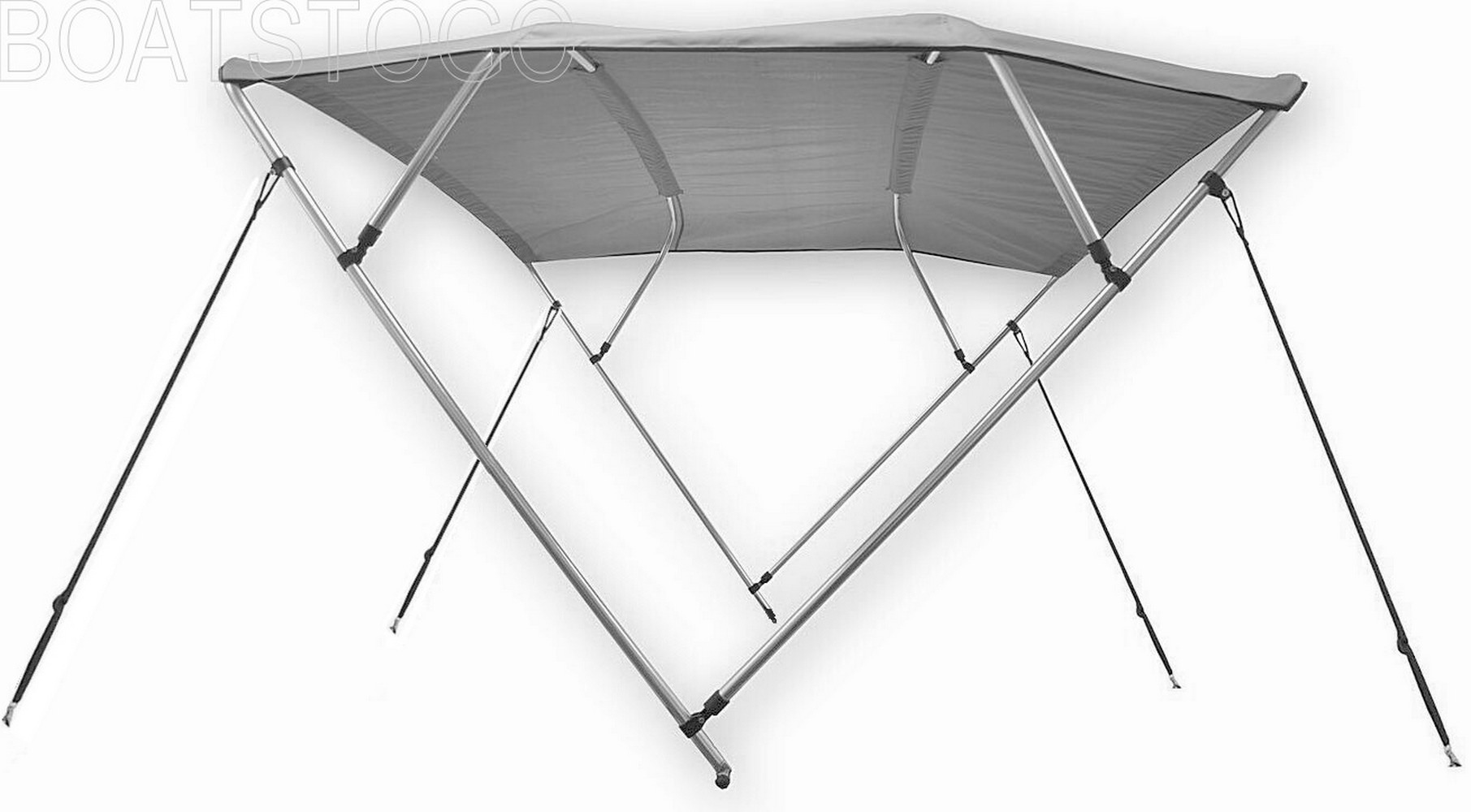

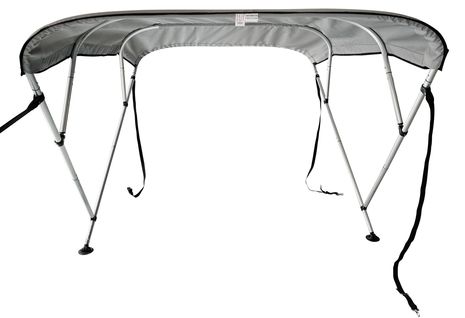

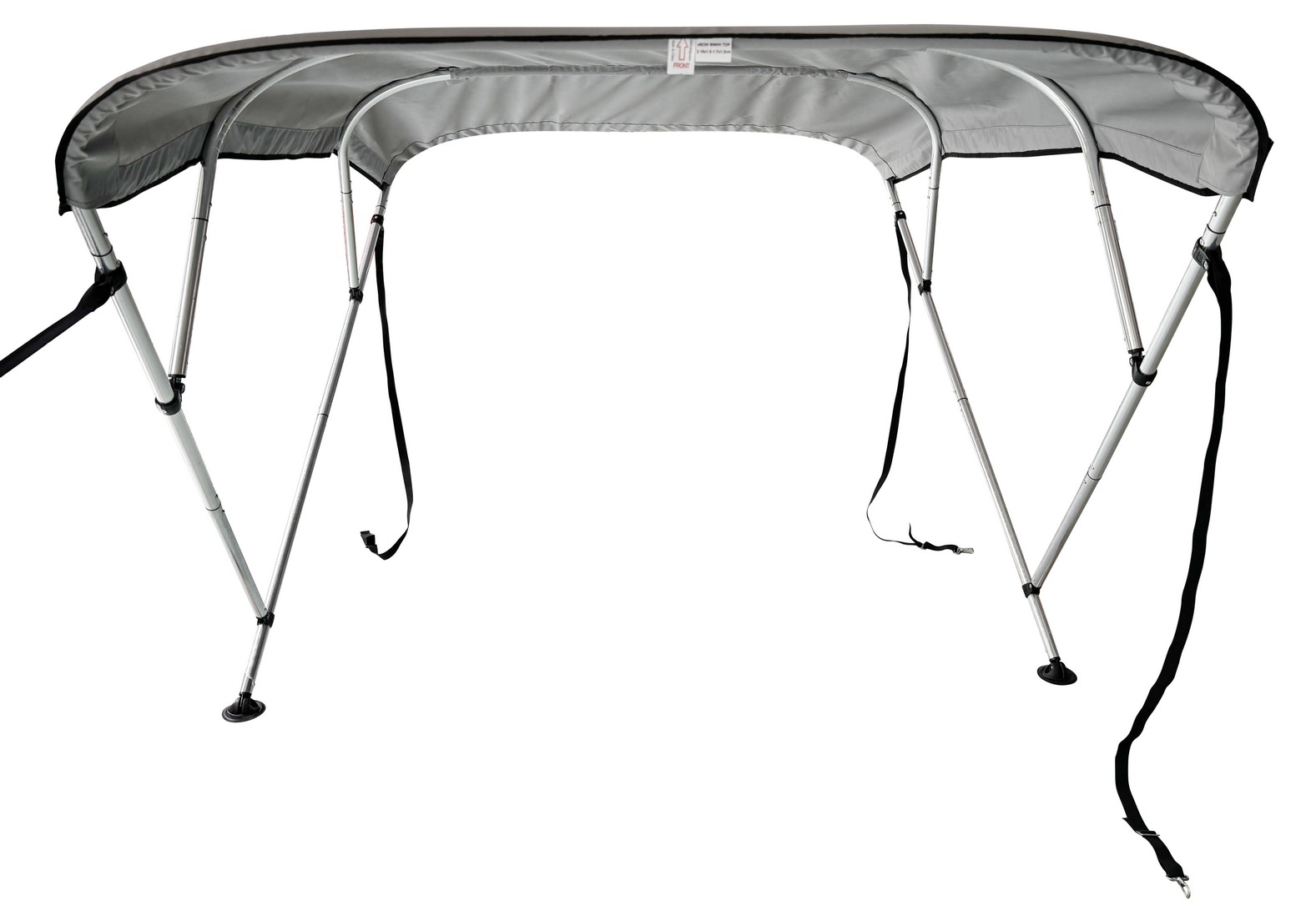

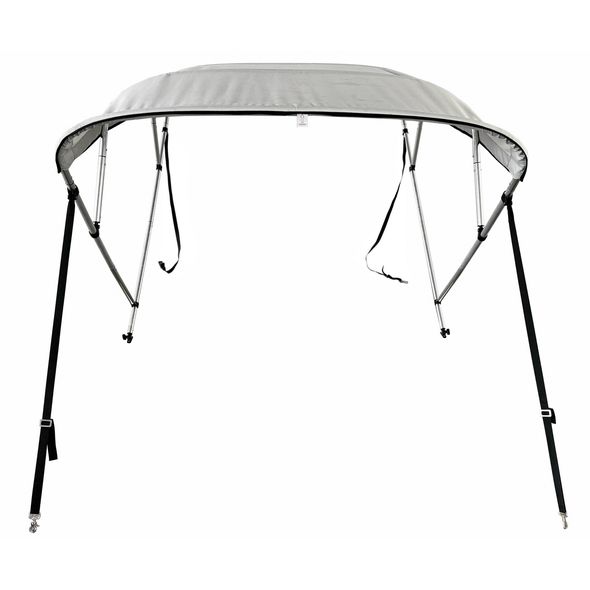

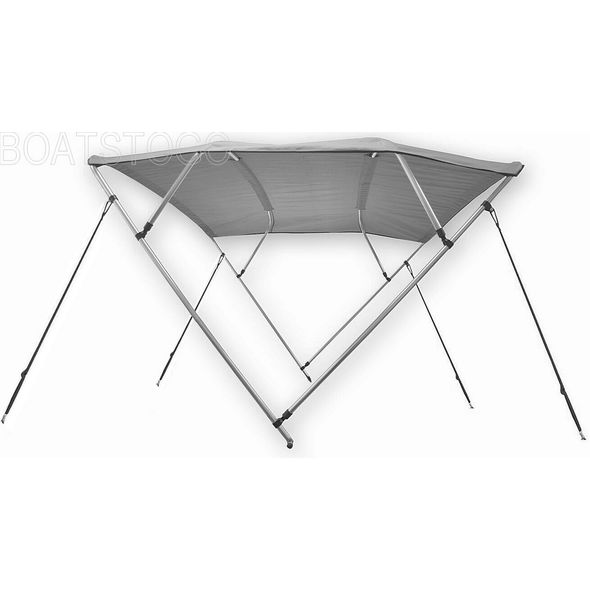

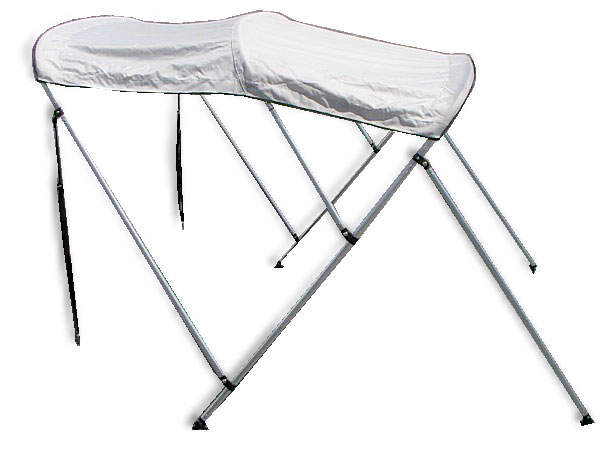

4-Bow Sun Canopy Bimini Top for Inflatable Boats

Please measure the distance between installation points before ordering to ensure proper fit.

Enjoy extra comfort and protection on the water with our Deluxe 4-Bow Bimini Canopy. Designed for full-size inflatable boats, this extra-large sunshade offers reliable shelter from the scorching summer sun and sudden rain showers.

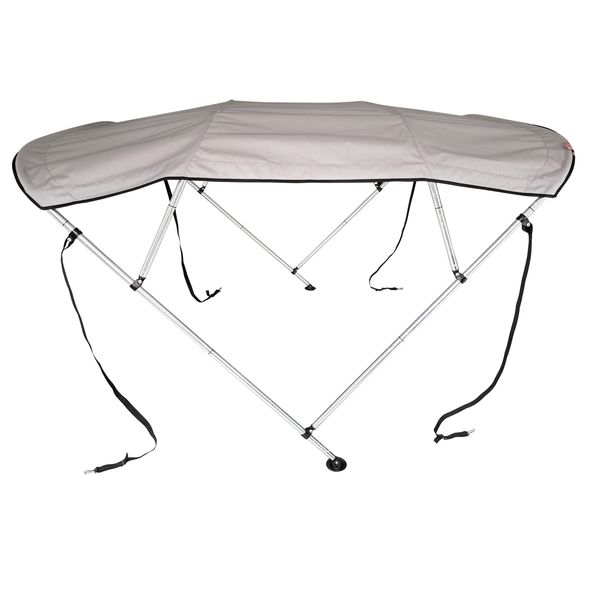

The updated V2 version now features quick-assembly pushpins, making setup and takedown faster and easier than ever—perfect for convenient storage and portability.

Key Features:

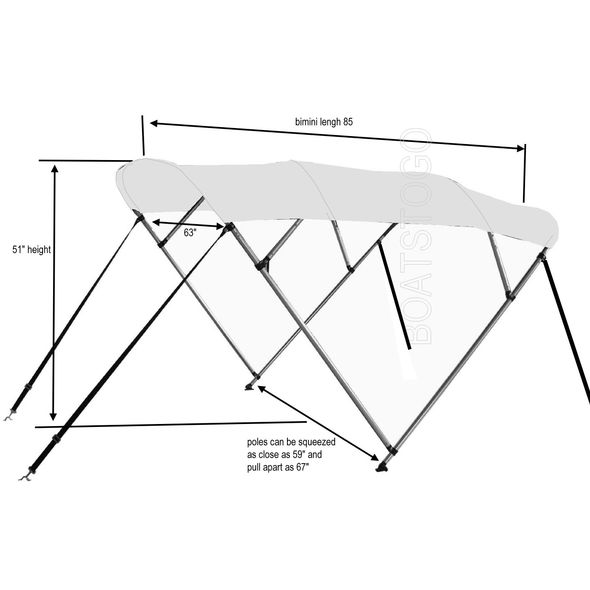

  • Size: 85" long x 63" wide x 51" high
  • Adjustable mounting width: fits boats with 59" to 67" between mounting points
  • Durable 600D PVC-coated polyester fabric in light gray
  • Lightweight, rust-free folding aluminum frame

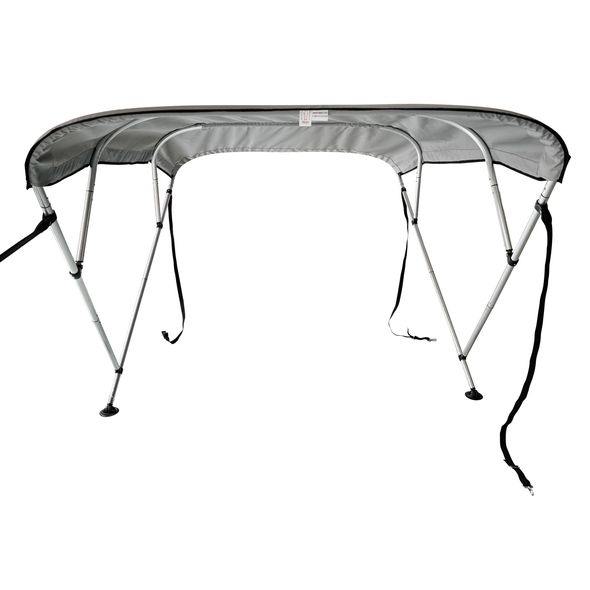

  • Compact folding design with upgraded rear nylon straps (V2)

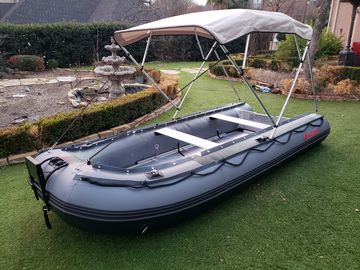

Compatibility Notes: This canopy is not compatible with KaBoats, kayaks, narrow boats, or budget models such as CB/FCB290 to CB365, FB300, or FB365.

Designed to adapt to a wide range of inflatable boats, the adjustable support poles can be moved inward or outward between 59" and 67", allowing flexibility across different brands and models.

Easy Installation Options: Mounting hardware and straps can be attached using splash guard grommets or rope holders with standard plastic zip ties. If splash guard attachments are unavailable, the frame can be mounted onto oarlocks (minor modification to plastic ends may be required).

Whether you're spending the day fishing, cruising, or relaxing, this 4-bow canopy adds shade, comfort, and protection to every outing.

Frequently Asked Question: What is the difference between this 4-Bow Bimini Shade and the 2-Bow version?

Answer: The 4-Bow Bimini Shade is larger and offers more overhead coverage compared to the 2-Bow version. It’s supported by four bows instead of two, making it more stable and better suited for larger boats such as the SD365 and up. Additionally, the bottom supports of the 4-Bow model can be adjusted to fit installation points as close as 59" apart, providing more flexibility in mounting.

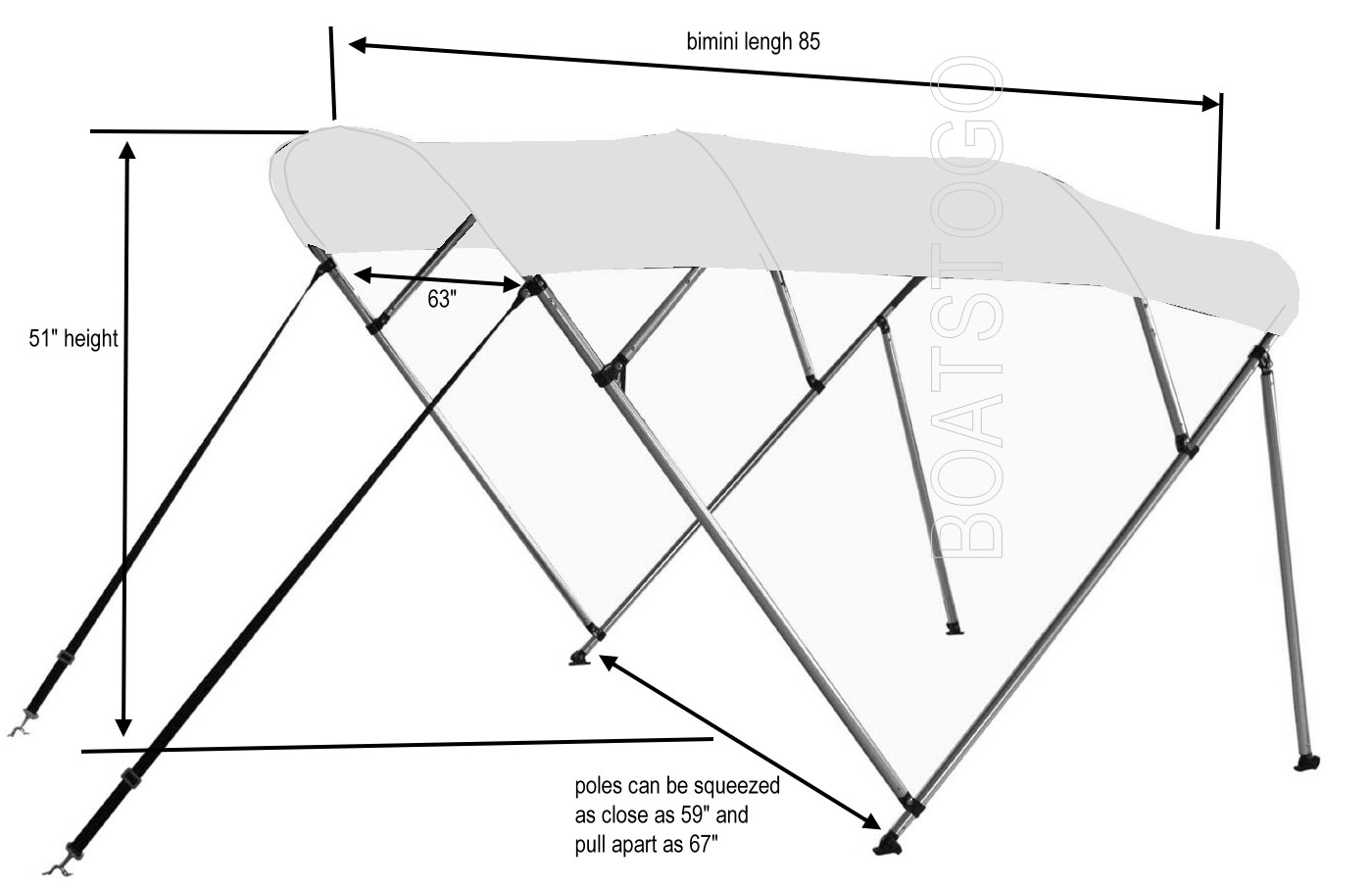

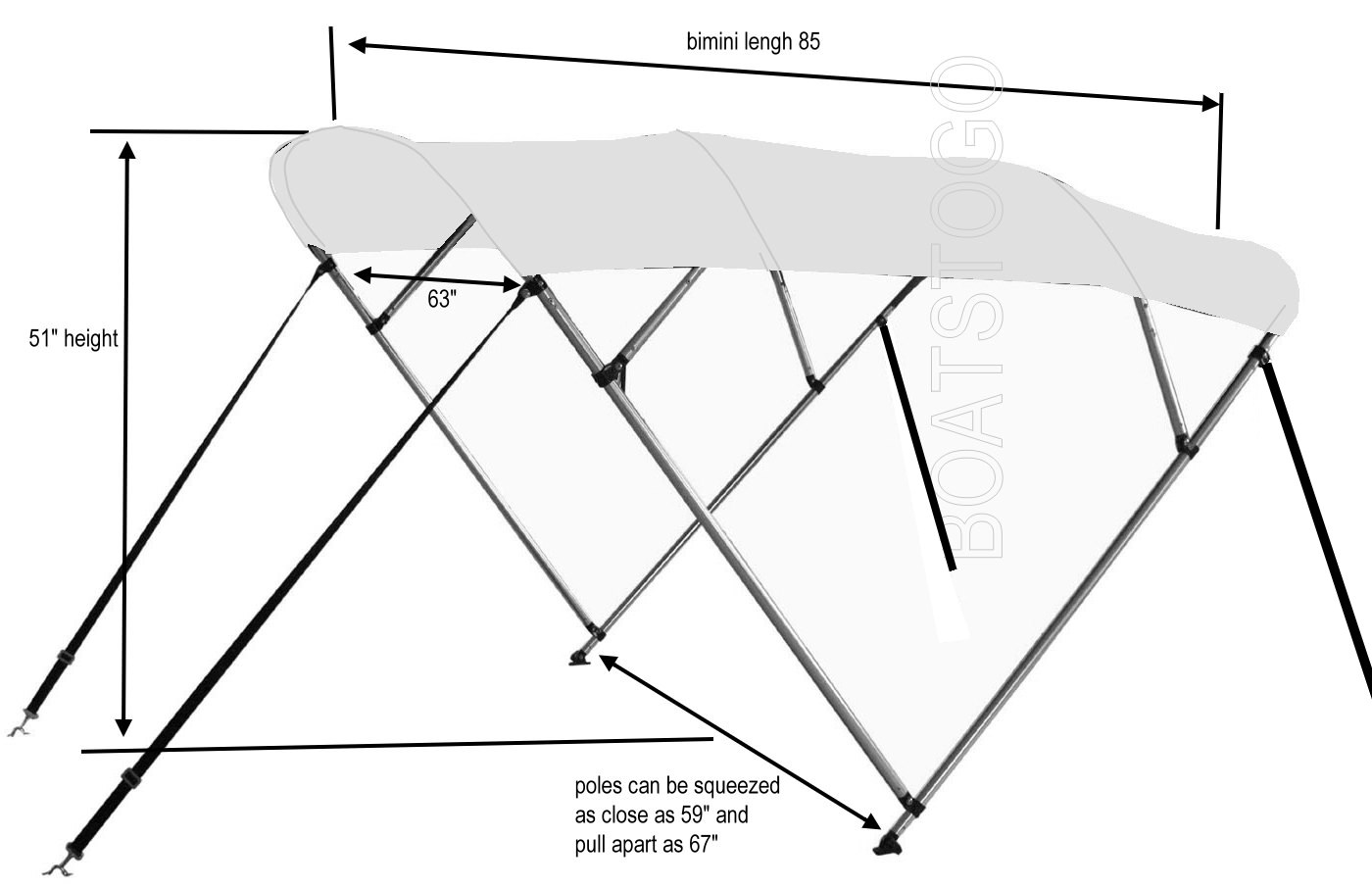

4-Bow Sun Shade Bimini Top – Specifications:

  • Adjustable width: fits mounting points from 59" to 67" apart
  • Height: 51" | Length: 85" – ideal for larger inflatable boats
  • Provides protection from UV rays, heat, and unexpected rain
  • Heavy-duty canopy made from waterproof, 600D PVC-coated polyester

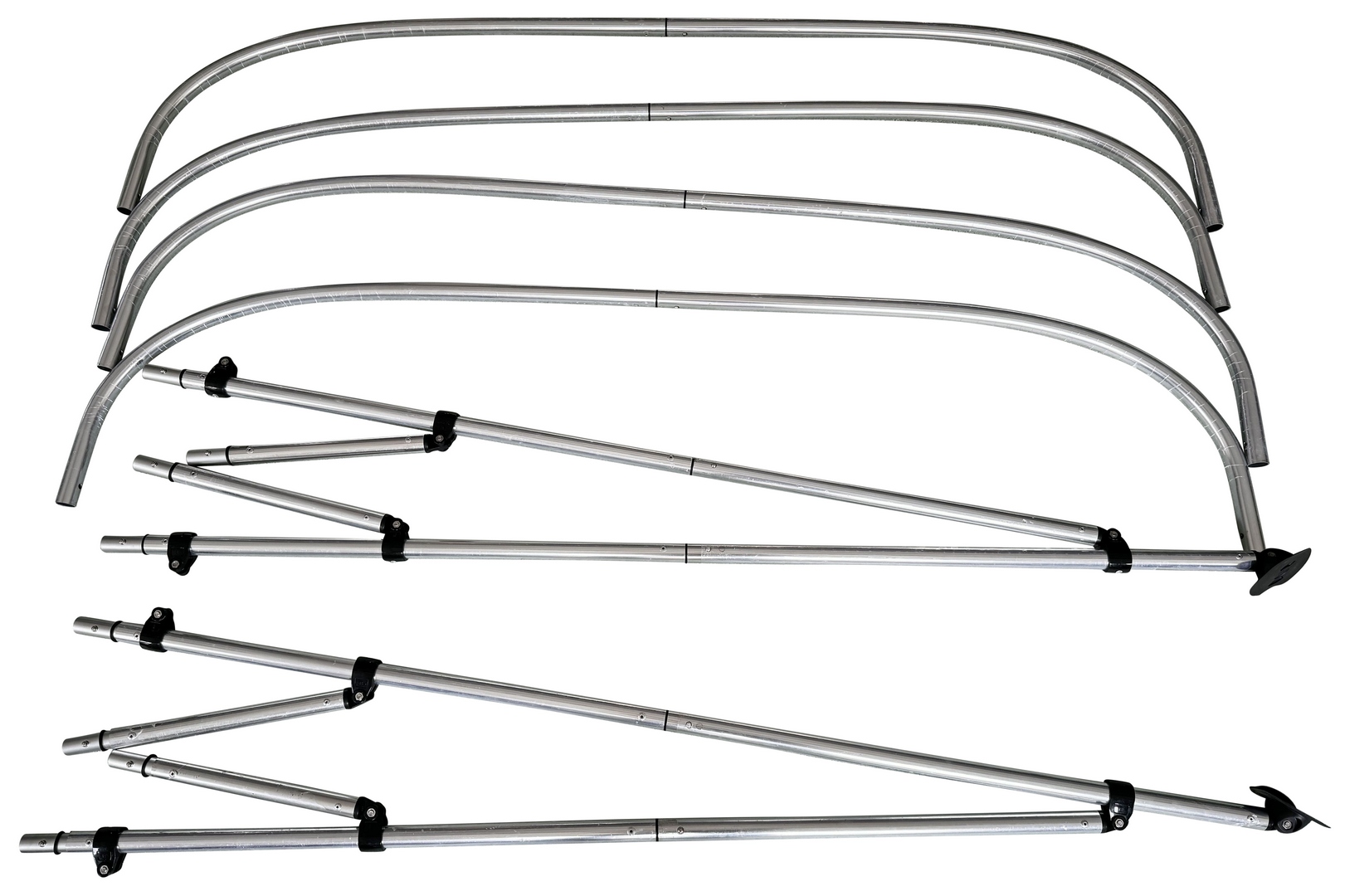

  • Strong and lightweight 1" anodized aluminum frame with stainless steel hardware
  • Sporty look enhances the appearance of your boat
  • Designed for use even while the boat is in motion

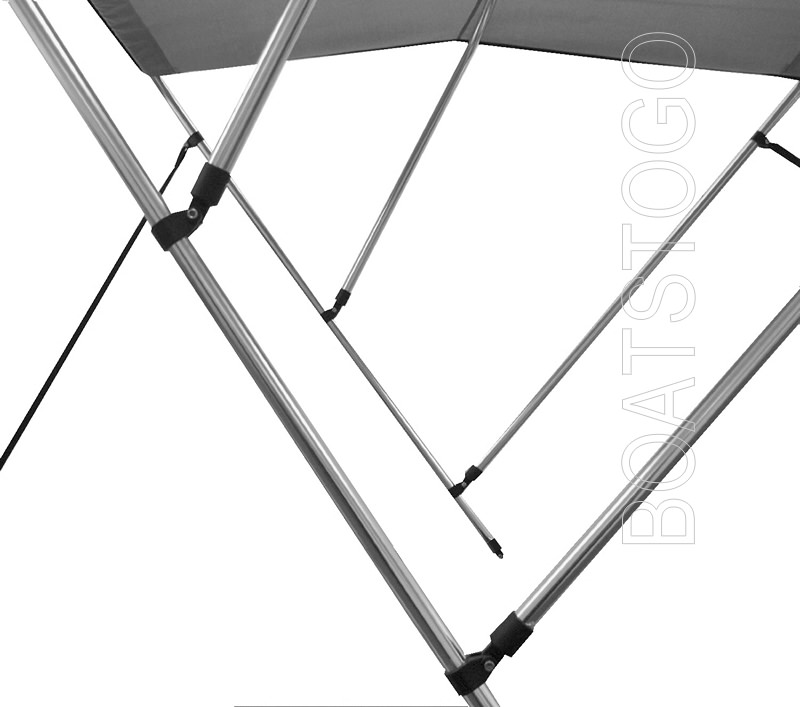

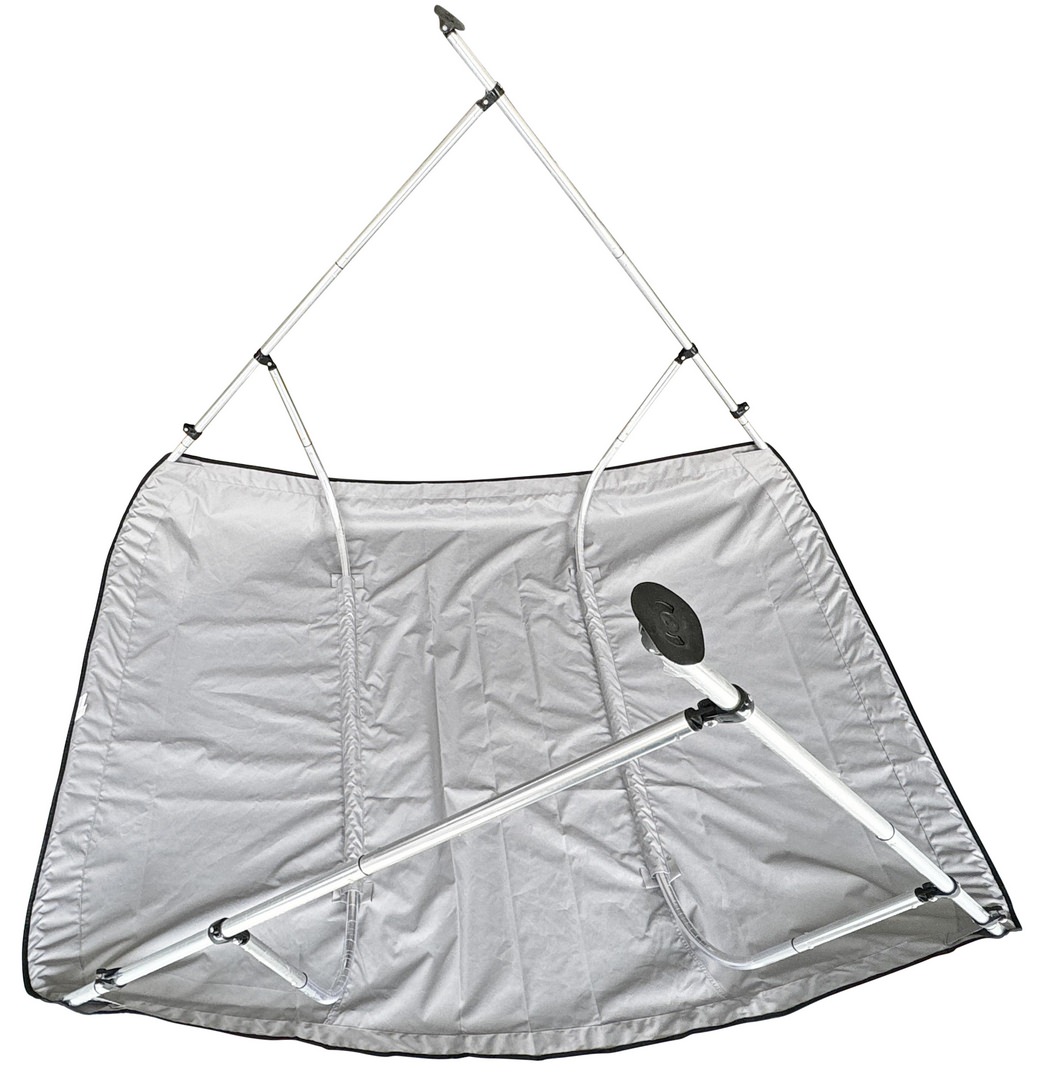

  • Quick and easy assembly with pushpin connections
  • Total shipping weight: approximately 20 lbs

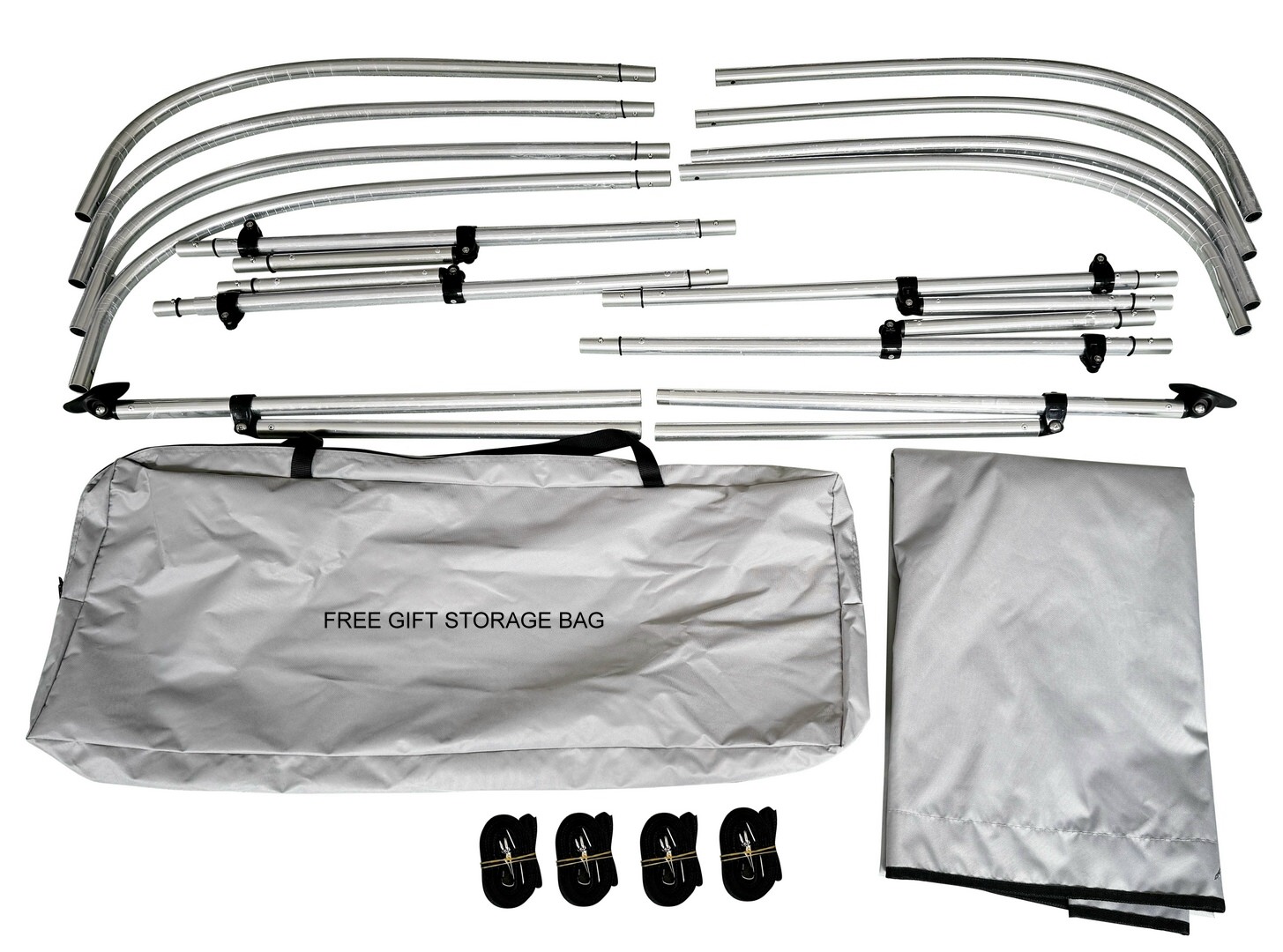

  • Comes complete with all required mounting hardware
  • Installation instructions available for download in Attachment section.

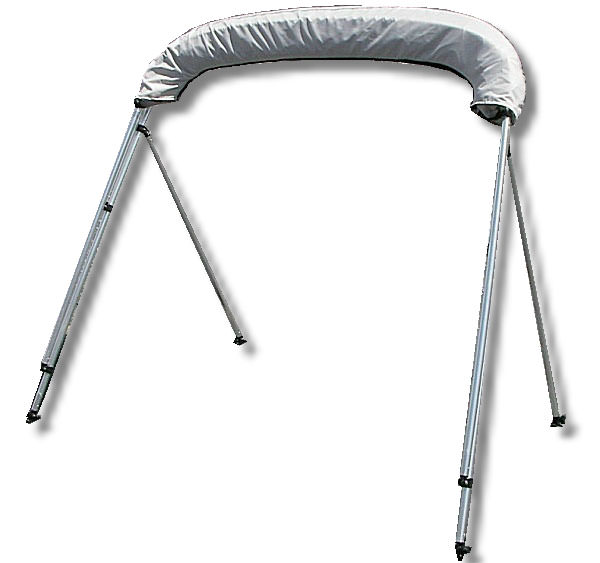

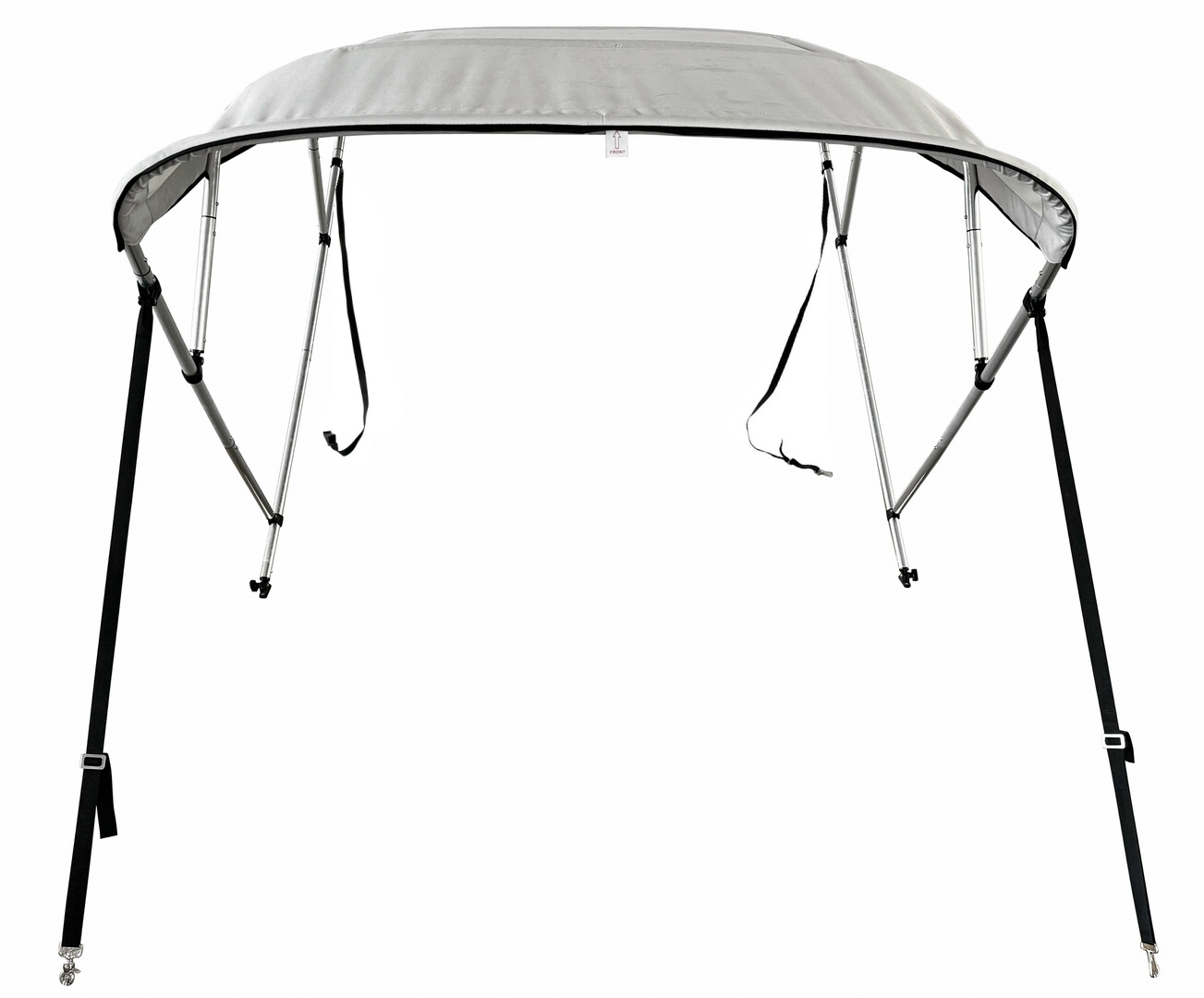

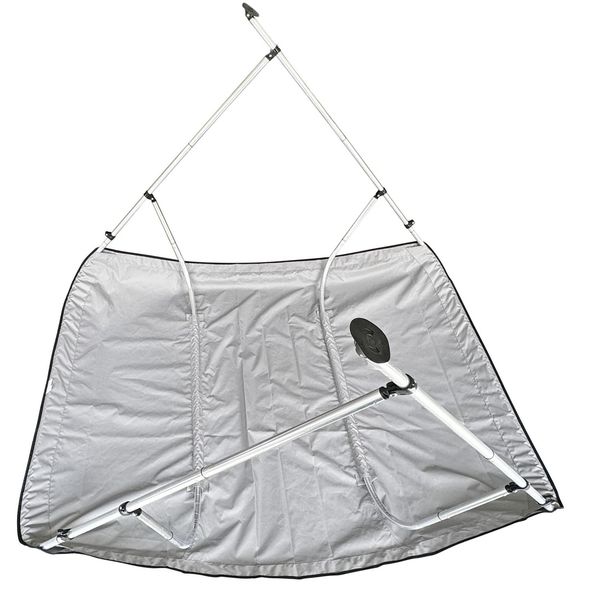

  • Please note - V2 does NOT include rear aluminum support poles. These were replaced with straps for portable storage.

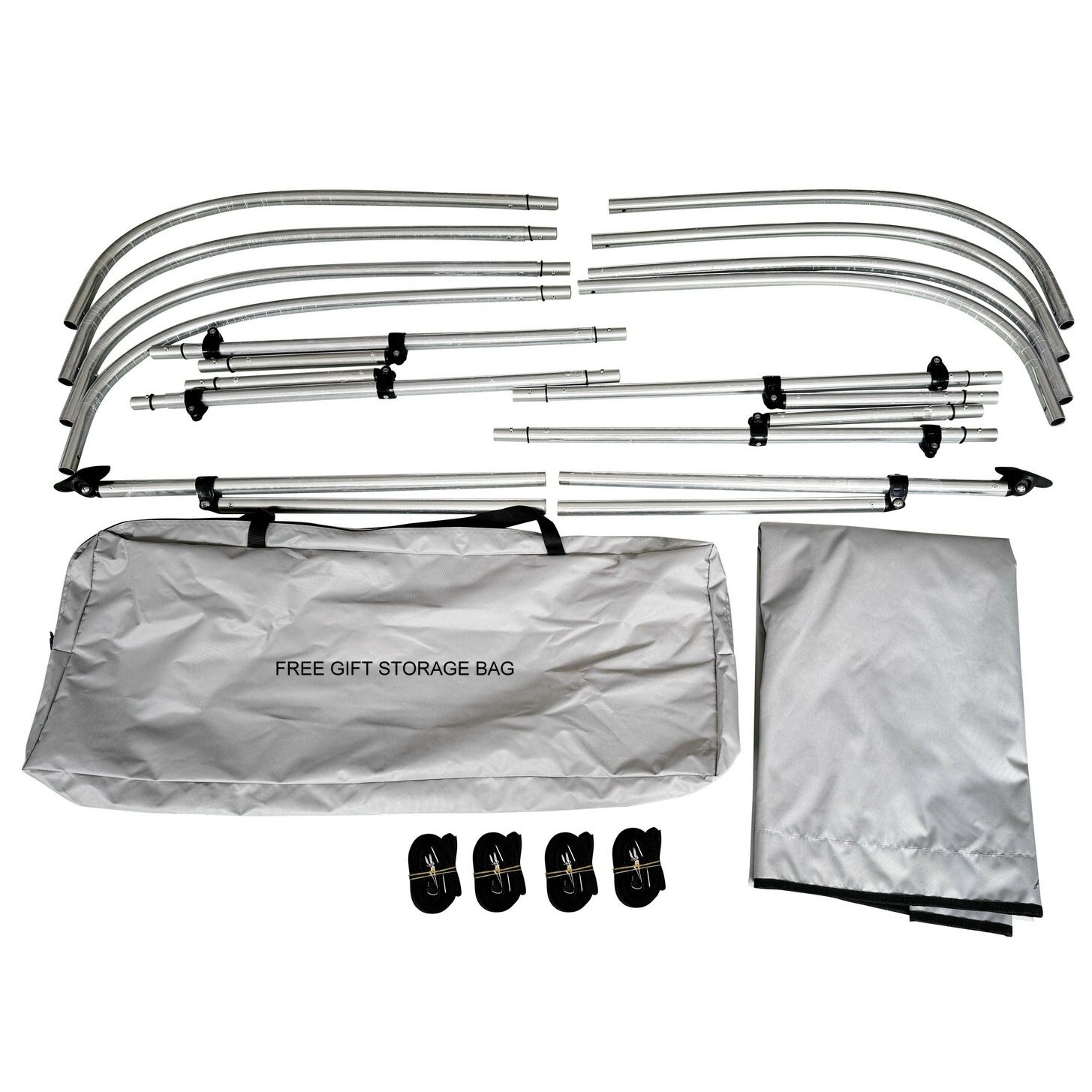

  • FREE BONUS GIFT - zippered storage bag for compact storage when not in use.

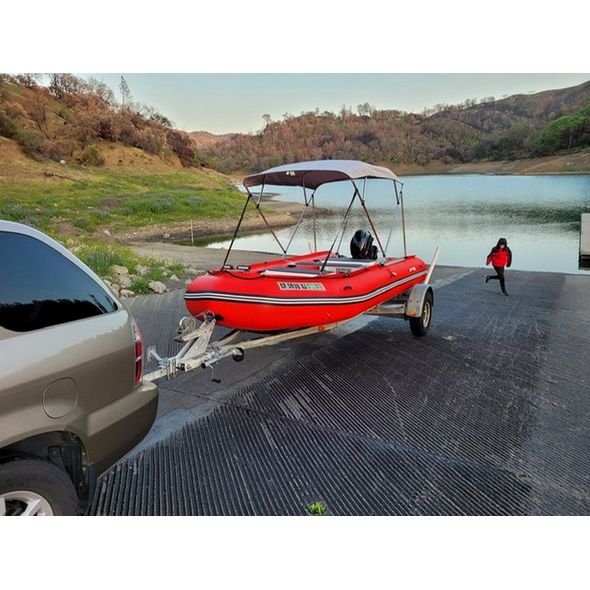

This Bimini top combines durability, function, and style—perfect for boaters who want reliable shade and an upgraded look on the water. The 4-Bow Bimini Top is compatible with nearly all of our inflatable boat models, from the compact SD330 up to the full-size 18' SD518. The adjustable support poles can be positioned as close as 59" apart to fit narrower boats, or extended up to 67" wide to accommodate larger models. This flexibility makes it a versatile and practical shade solution across most of our lineup.

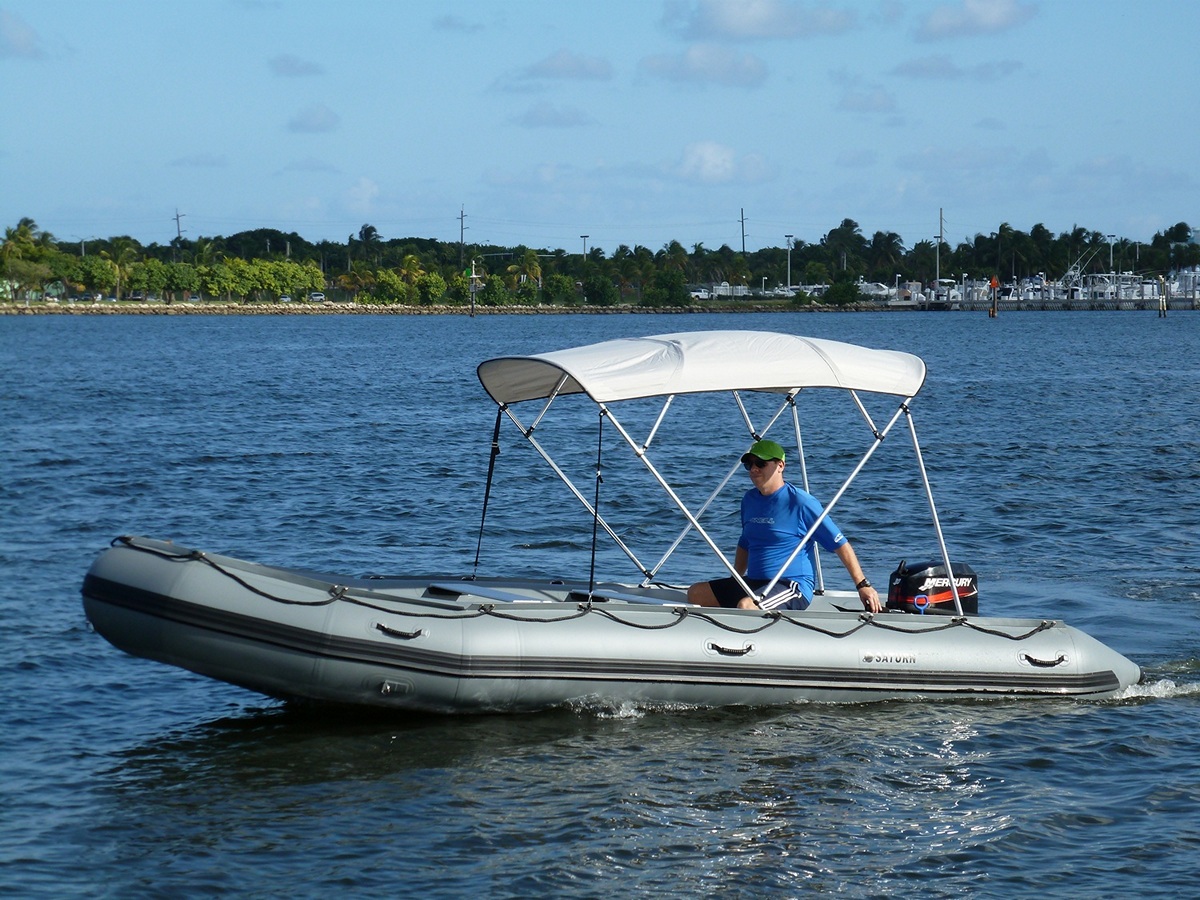

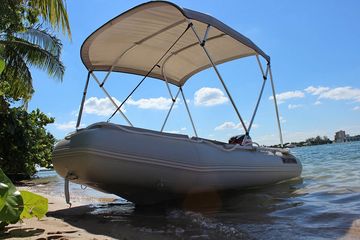

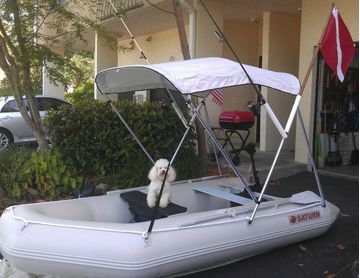

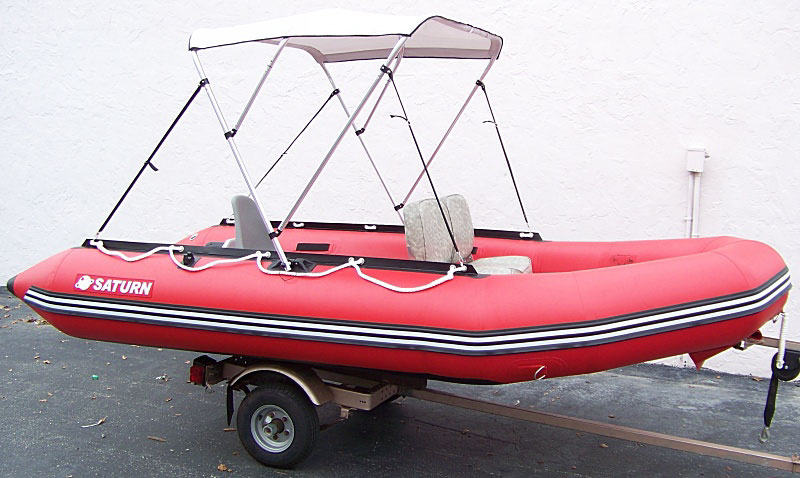

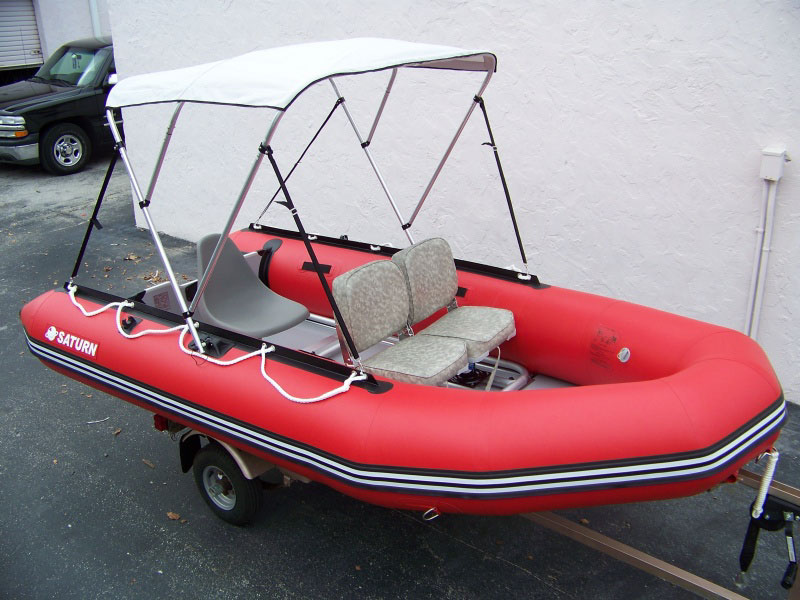

Videos of Saturn Inflatable Boats With 4-Bow Canopy V1 Installed on SD330 size boat.



Frequently Asked Question: I just opened the box, and the Bimini top looks wider than my boat. Is it too wide?

Answer: Not necessarily. Once the Bimini top is fully assembled with the support poles in place, you’ll notice that the frame has some built-in flex. The ends of the support poles are designed to be pushed together or pulled apart to fit a range of mounting widths—typically between 59" and 67", as noted in the product description above.

In most cases, the support poles can be secured directly to the splash guard grommets or side D-rings on Saturn boats using bolts or standard zip ties. If your boat doesn’t have splash guards, you can also use the included glue-on mounting pads to attach the poles to the top of the tubes.

If the poles appear too wide at first:

  • Attach one side of the Bimini to the boat.
  • Gently push the opposite support pole inward until it reaches the mounting point, then secure it with zip ties or a bolt.
  • As an alternative, you can temporarily tie both ends of the support poles together with a rope to pull them closer. Once both sides are attached to the boat, simply cut and remove the rope.

Don't worry—slight outward tension on the splash guards during installation won’t cause any damage.

4-Bow Canopy Installation Tips:

The canopy includes standard mounting hardware designed for fiberglass or aluminum boats. When installing on inflatable boats, some of this hardware may not be necessary and can be set aside.

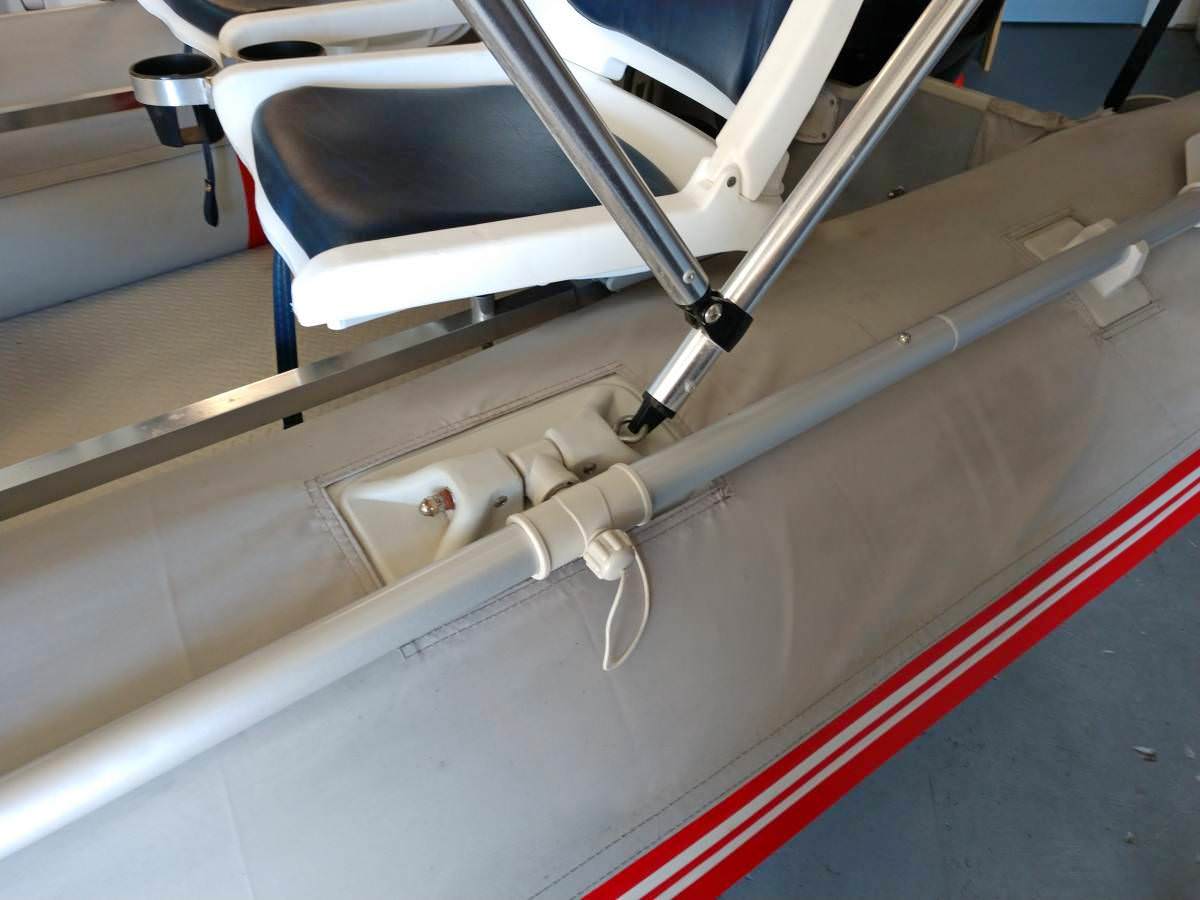

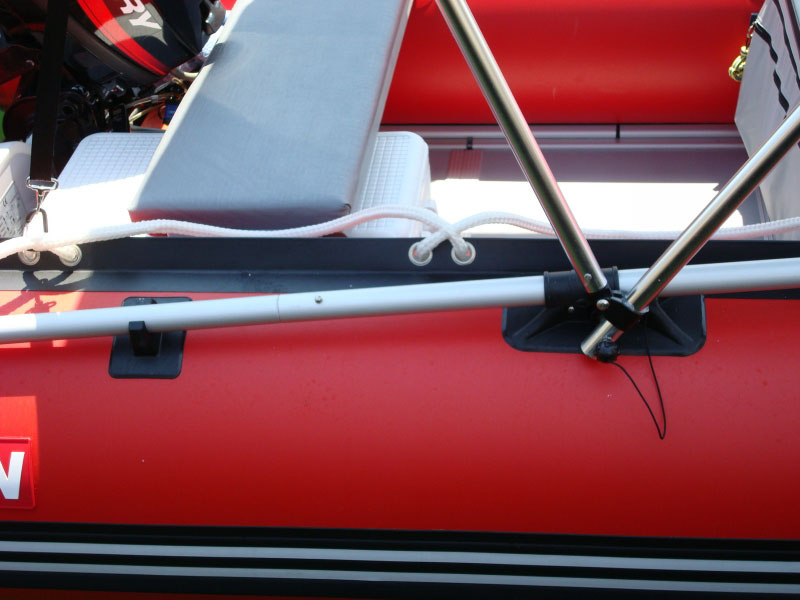

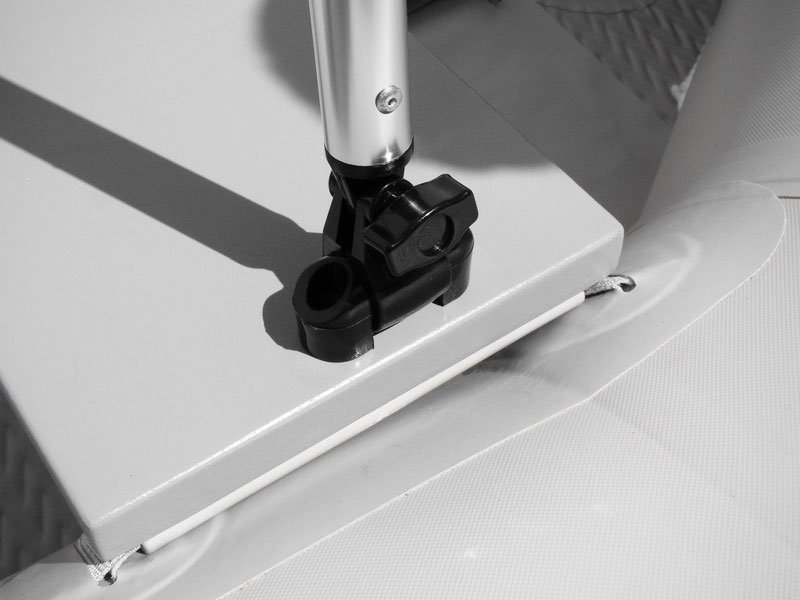

For inflatable boats, the support poles can be mounted directly onto the oarlocks. To fit securely over the oarlock pins, you may need to enlarge the holes on the plastic mounting jaws or drill new holes directly into the aluminum frame.

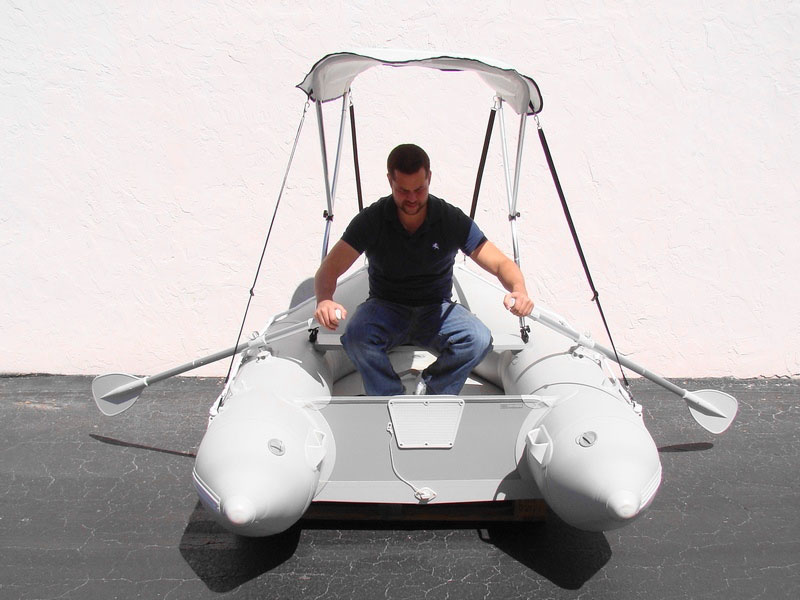

If you use rowing oars, they can rest on top of the oarlocks and be secured with a rubber cord. When it’s time to row, simply fold the canopy forward toward the bow, unscrew the pushpins, and remove the support poles from the oarlocks. Then, slide the folded canopy a few inches forward and reinstall your oars onto the oarlock pins for easy rowing without removing the entire canopy.

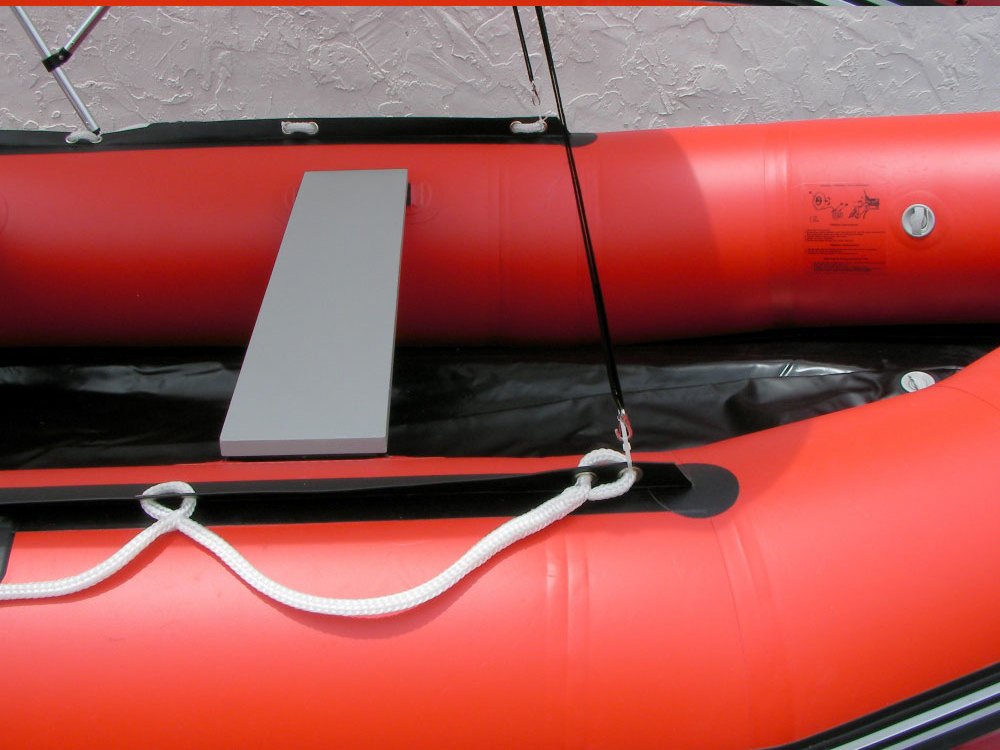

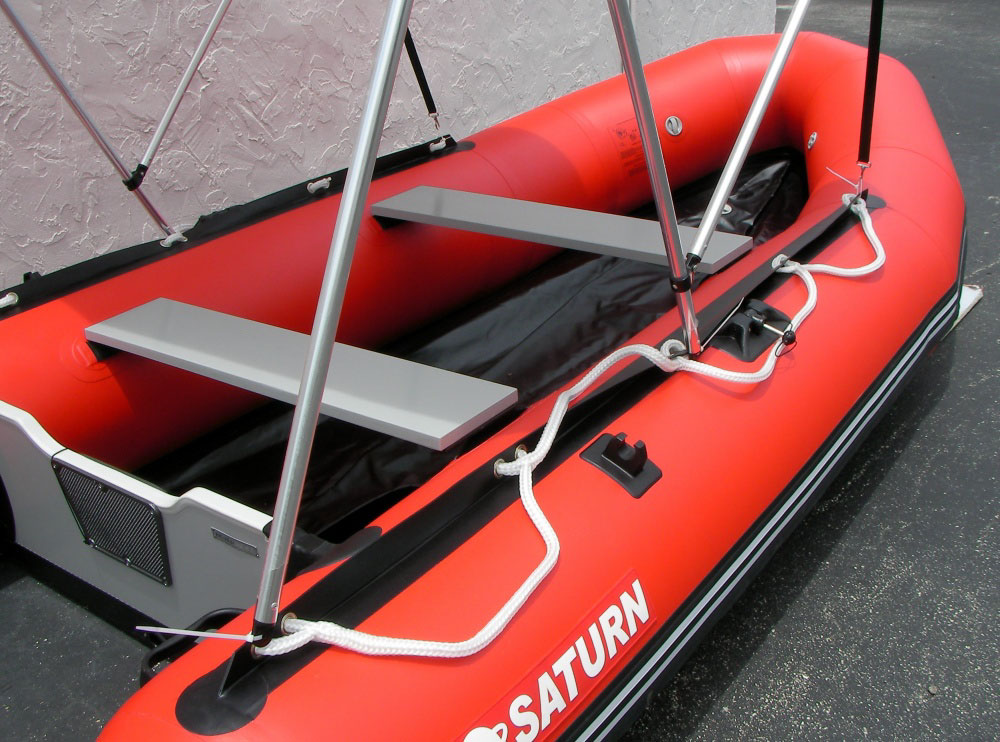

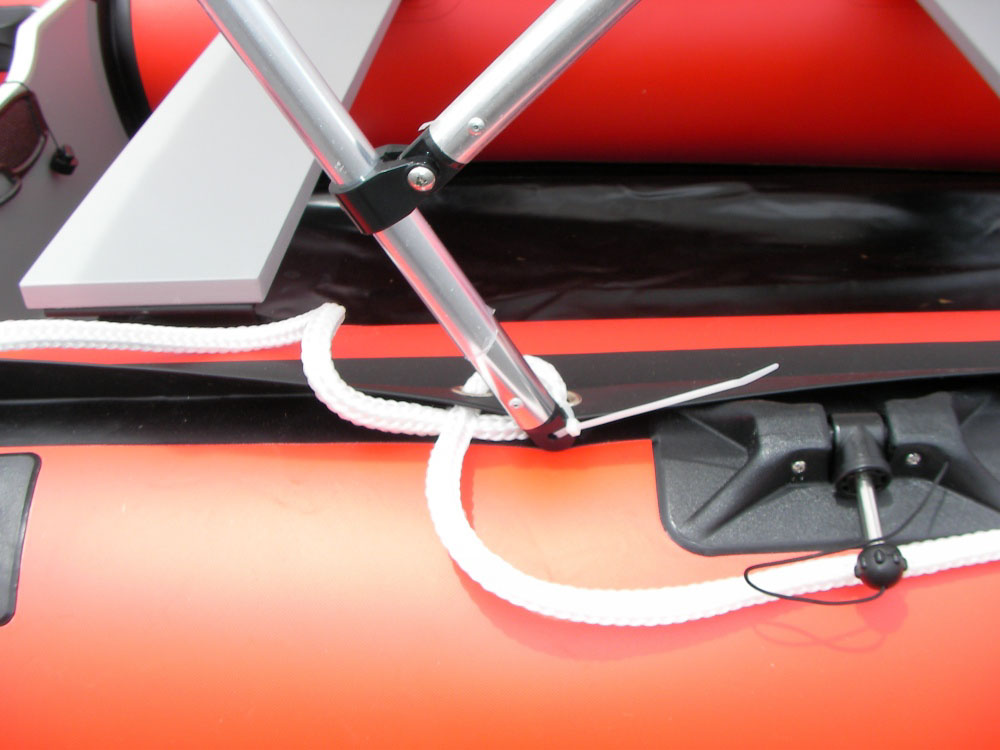

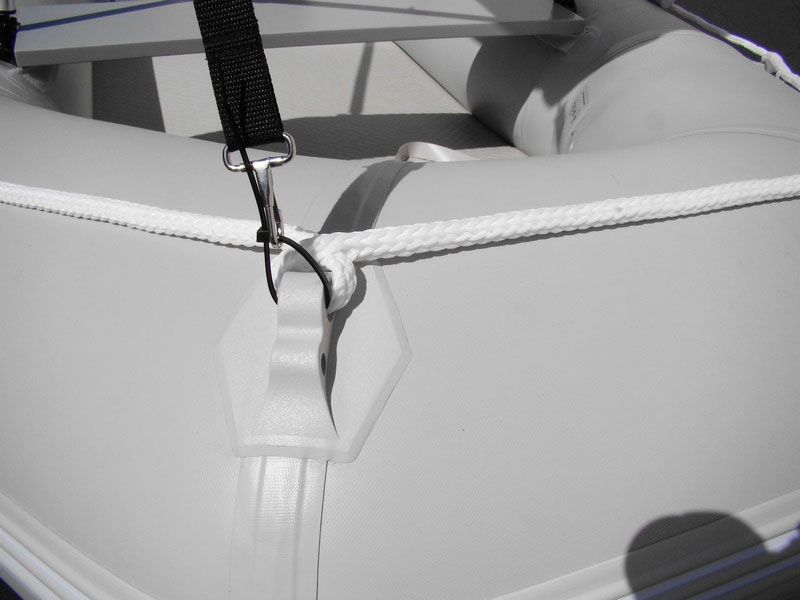

If pinned oarlocks are not available, as in SD430 or SD470 for example, then aluminium support poles of 4-bow canopies may be attached directly to the splashguard protectors on top of the boat tubes. Plastic ties can be run through the support pole holes and rope holes in the splashguard. Properly adjusted lines will hold the canopy in place.

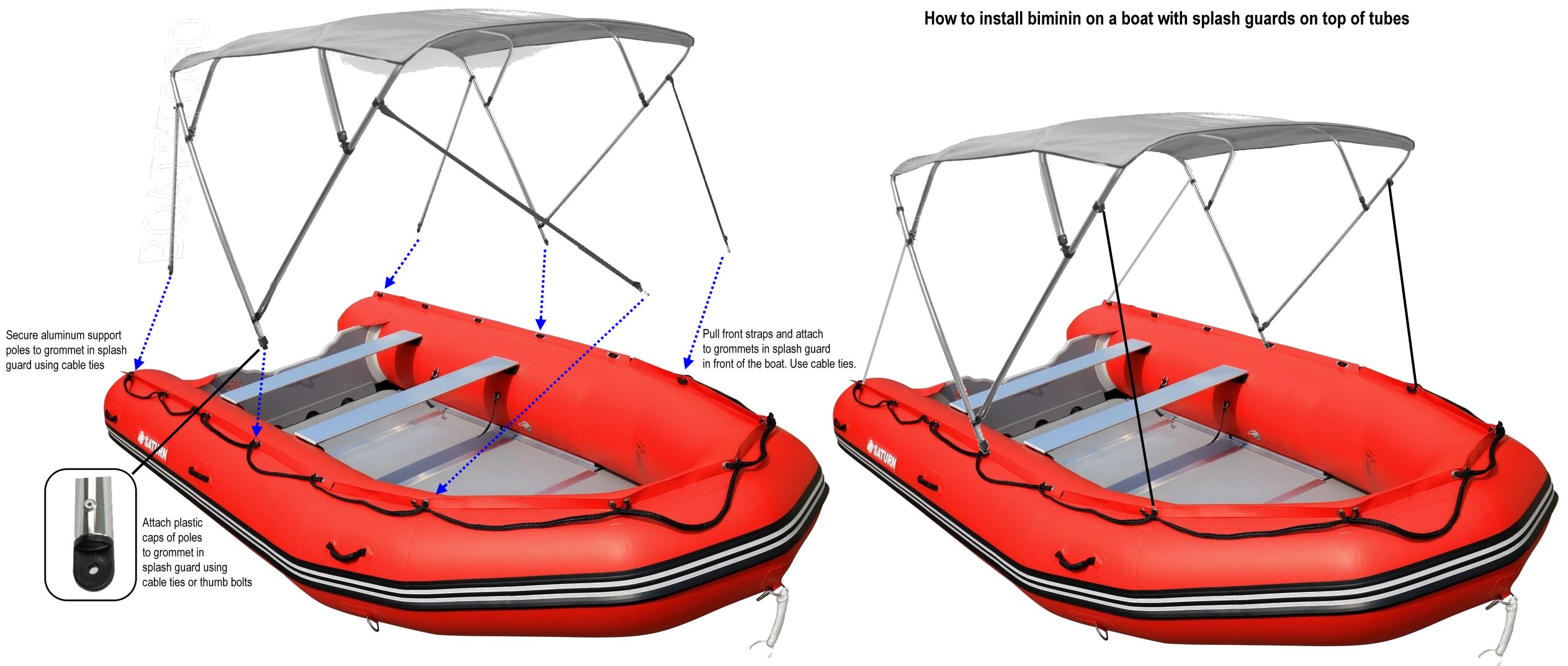

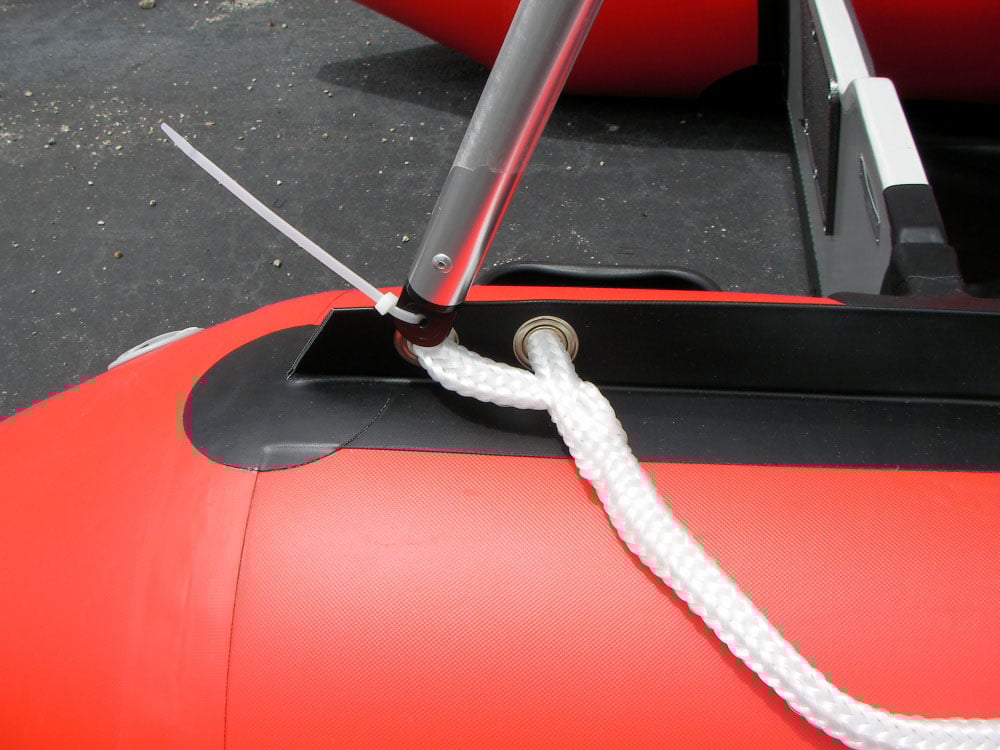

How to attach bimini to boat with splash guards on top of tubes

Installation suggestions

Bimini attachment suggestion. Click to zoom in.

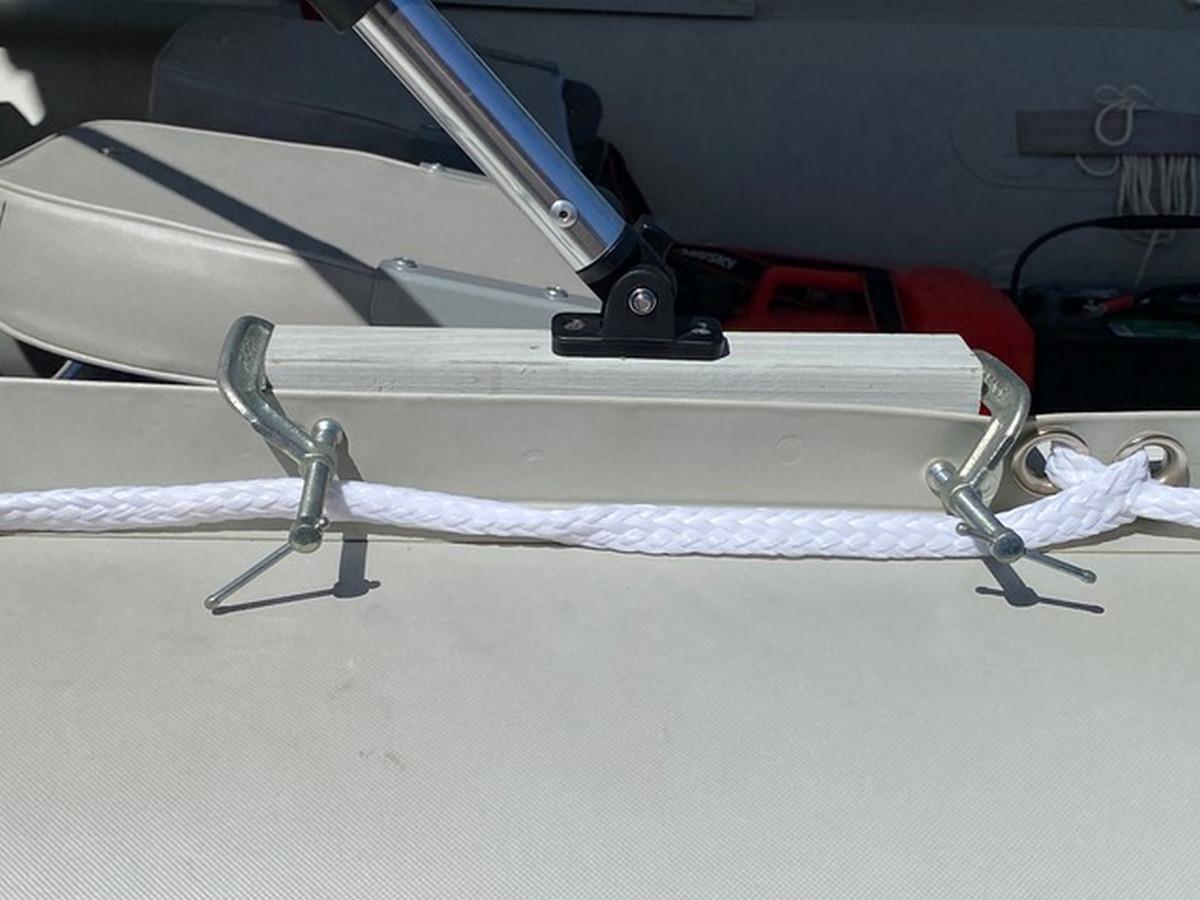

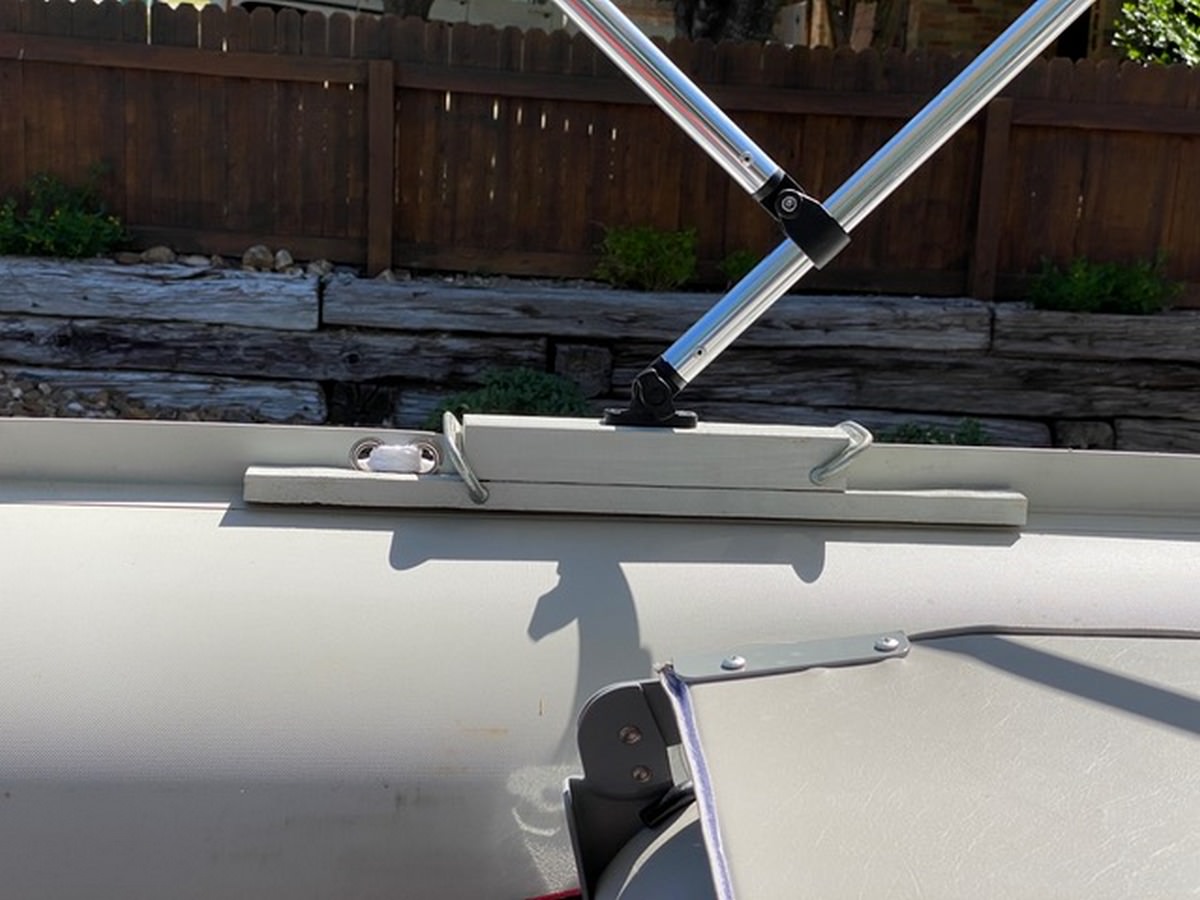

If no points to attach support poles to top of tubes inflatable boat are available, then use provided glue on mounting brackets.

Condition:
NEW
Length:
85"
Width:
59–67"
Height:
51"
Frame Diameter:
1"
Frame Material:
Aluminium
Shipping Size:
69 x 14 x 4"
Shipping Weight:
20 lbs
Material:
600 denier PVC coated polyester fabric

Good quality fabric and sturdy poles. Mine came with the pads to glue it to the inflatable, certainly makes for a cleaner look than zip ties. I imagine that is how they are all shipped now, it also has screws and anchors for a more typical install.

Why anyone goes to open ocean without one of these is a mystery to me, I have very fair skin and dont like turning into a tomato so this was a must. I wish they had more colors but I mainly want is the protection it offers.
Write a review

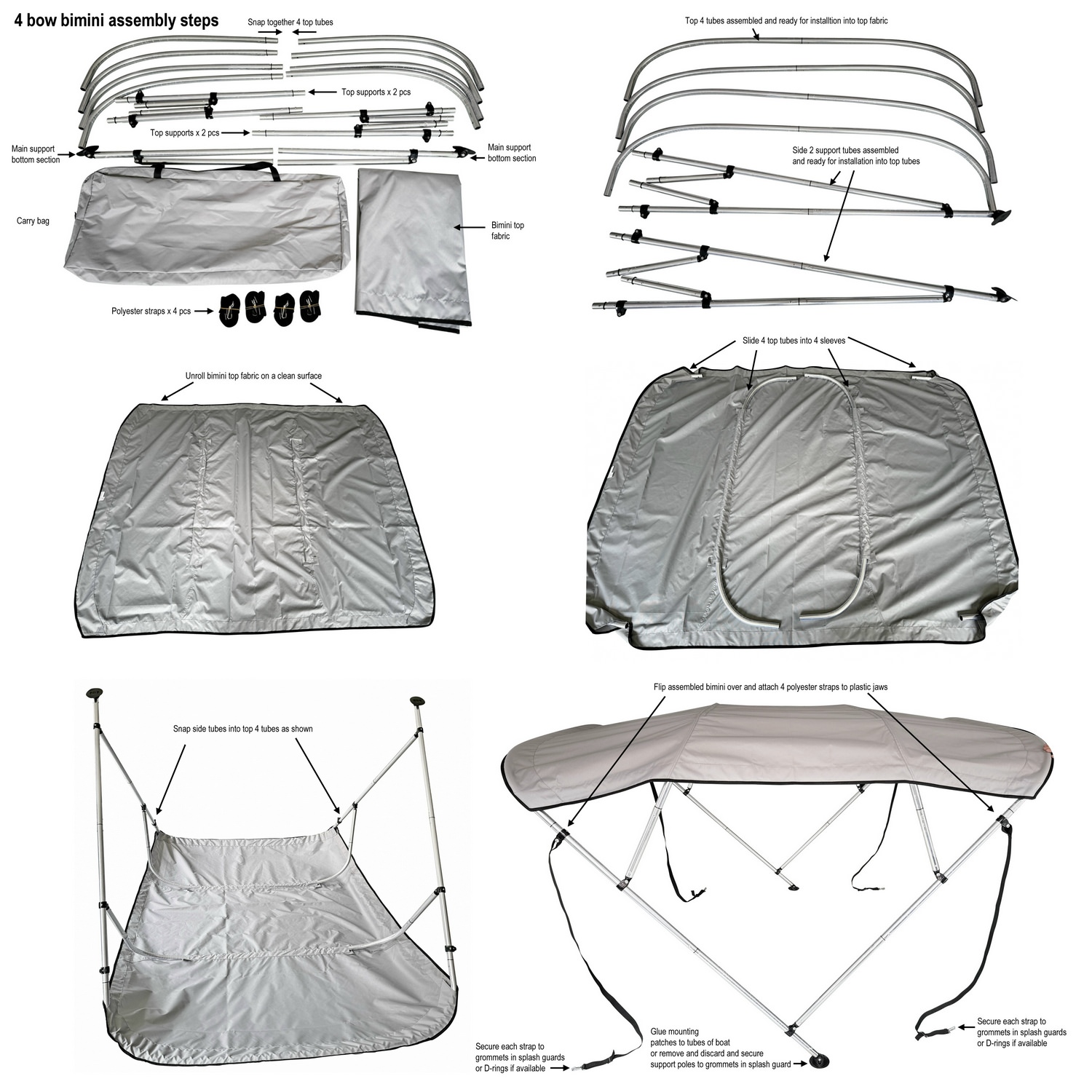

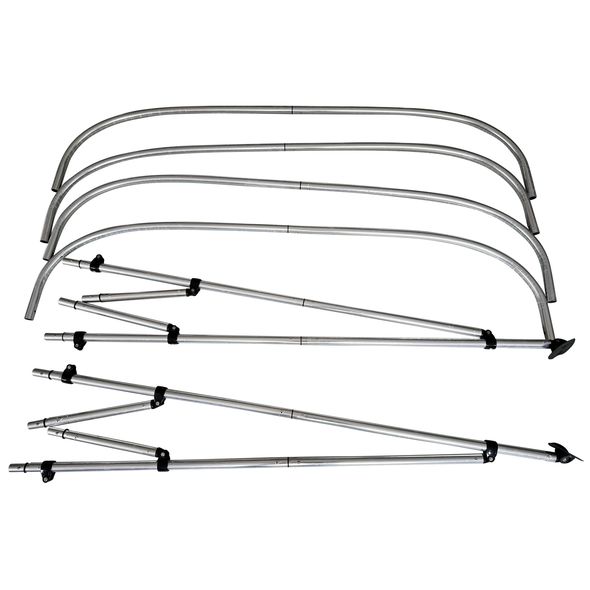

Assembly Instructions (4-bow-bimini-assembly-steps.jpg, 418 Kb) [Download]
