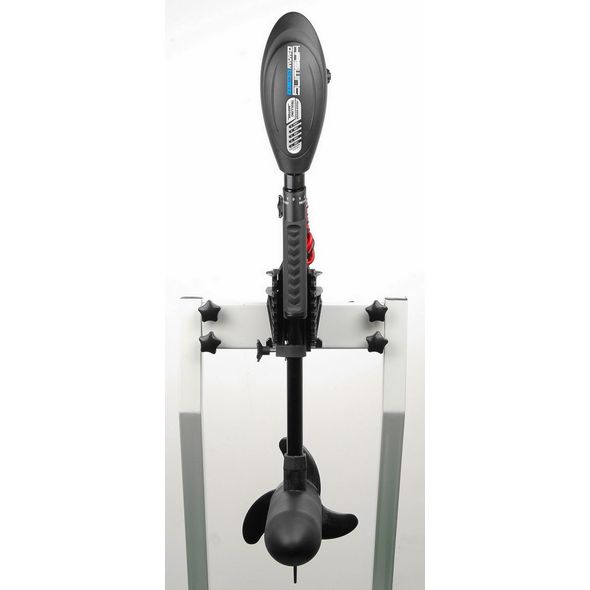

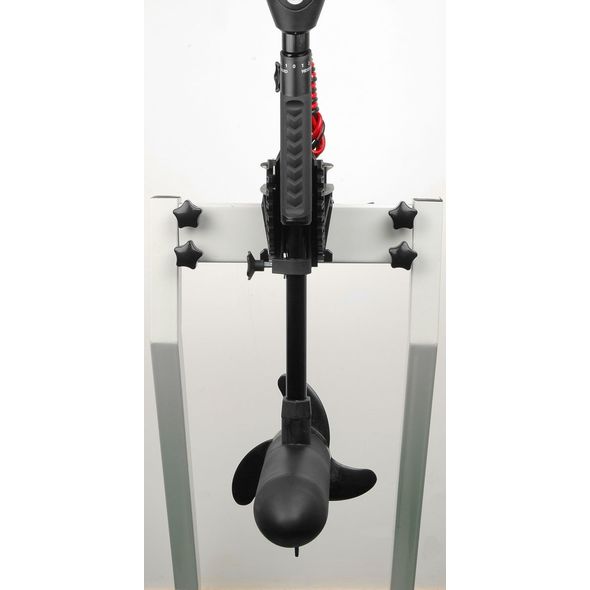

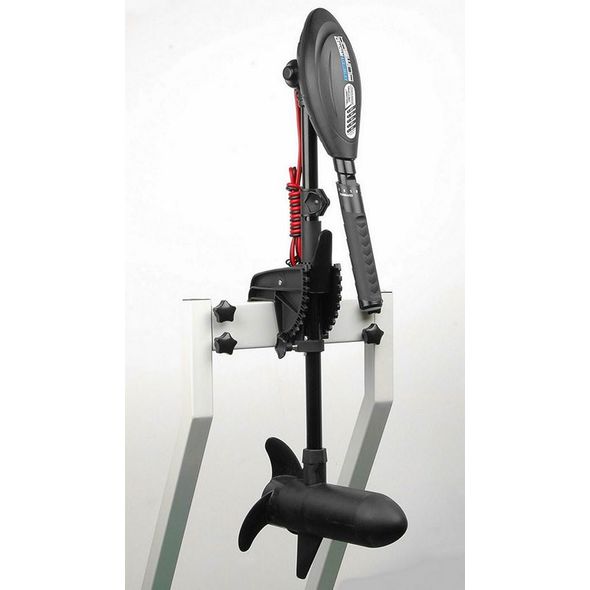

55 lbs Electric Tolling Motor for Inflatable Boats, KaBoats, Kayaks and Canoes.

Trolling motors with electric power offer silent movement, clear environment and low prices. To make boating more affordable and save environment, we are now offering HS WING 55lbs Trolling Motors that are popular in Europe and Australia.

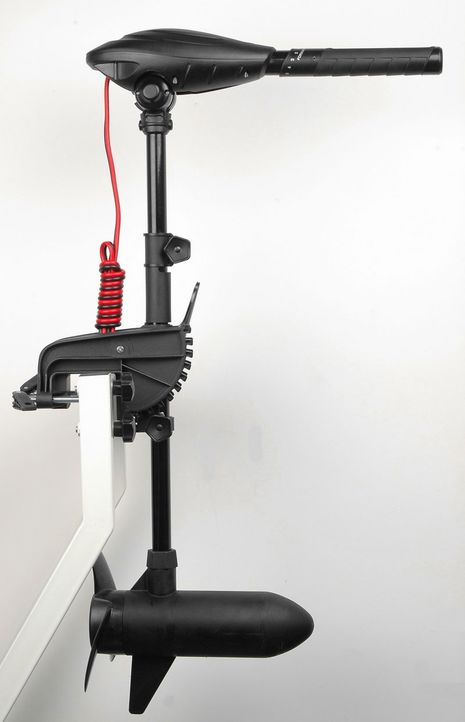

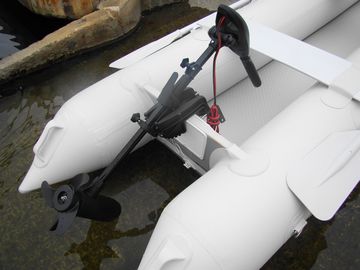

What makes this particular trolling motor extremely unique is a 26" custom-cut short shaft to better fit transoms of inflatable boats, rafts. KaBoats, kayaks or canoes. You would not find 55lbs Electric Trolling Motor with a short shaft anywhere else. This is the only place where you can get it! See nstructions below how to build kayak motor mount under $50 bucks!

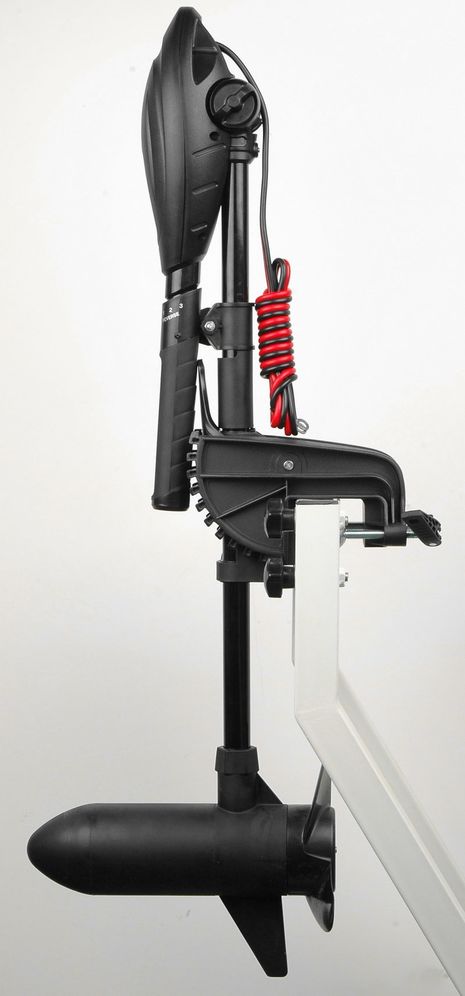

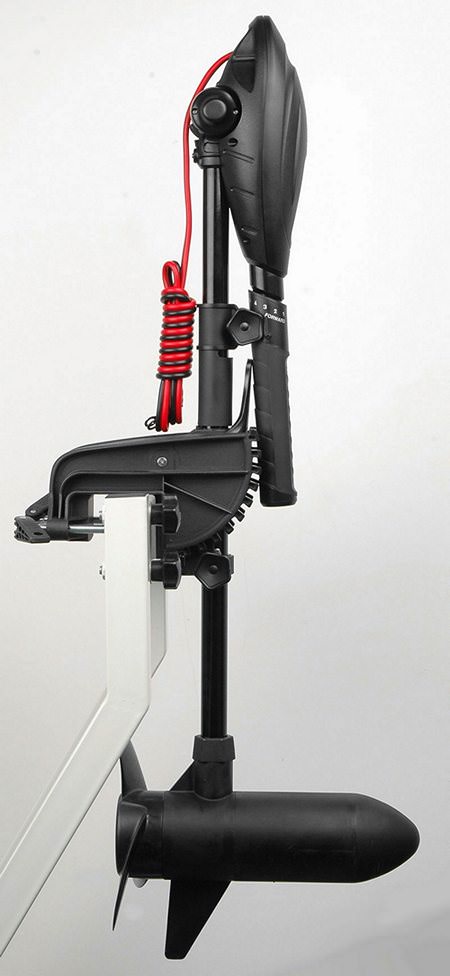

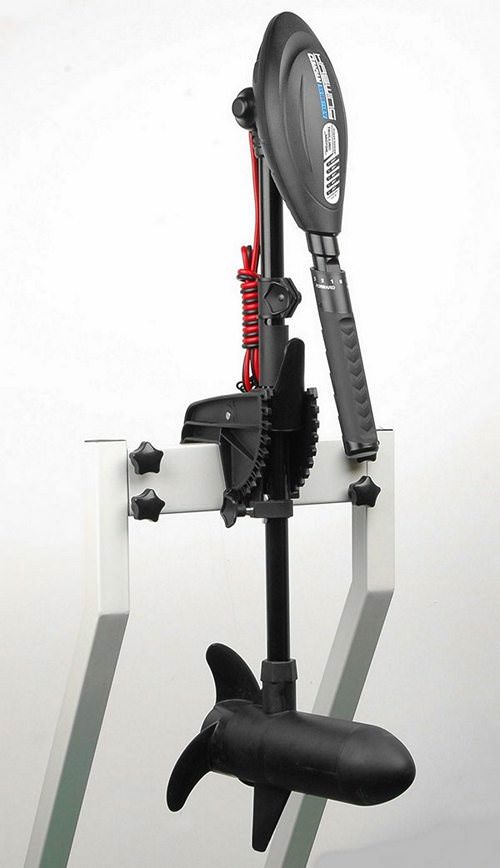

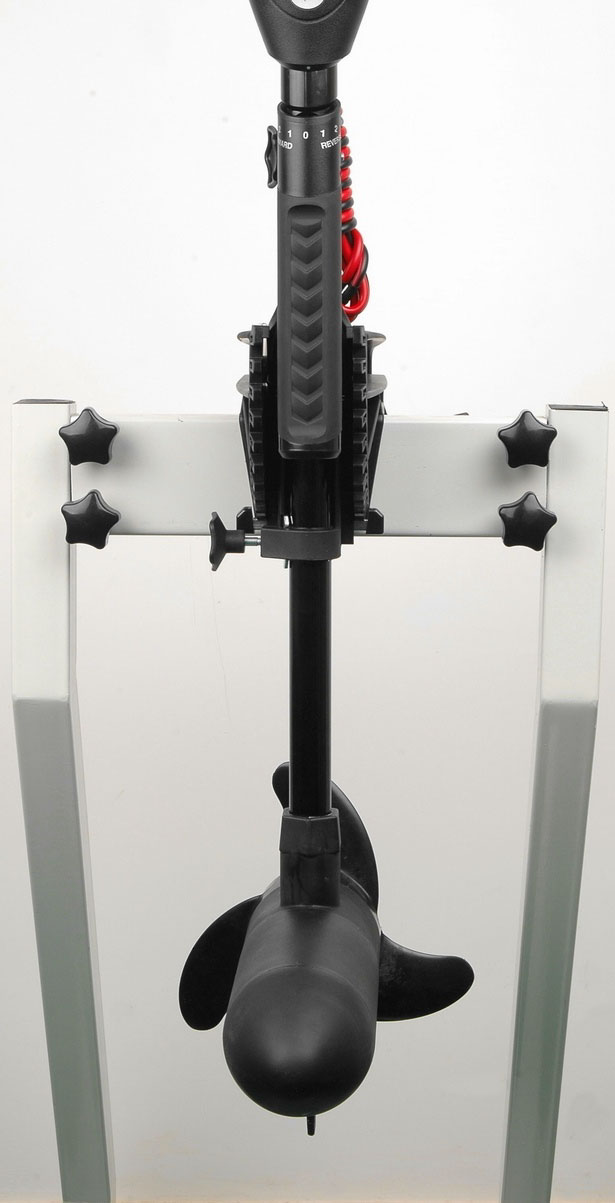

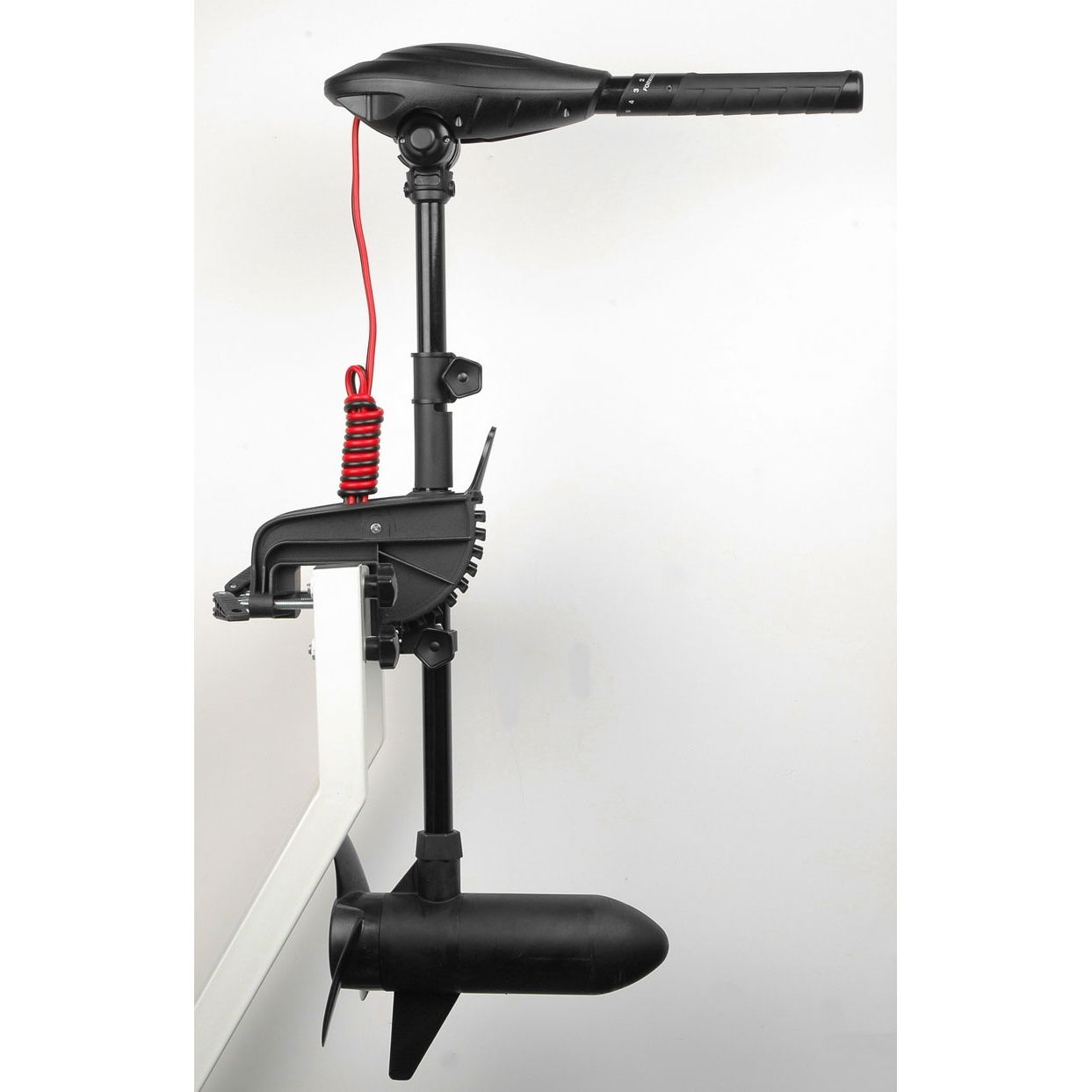

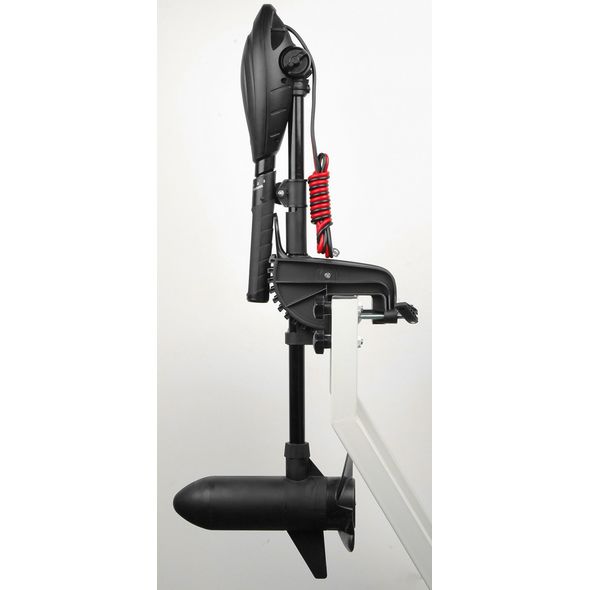

Another very unique feature of this trolling motor is a tilting throttle handle with 10 adjustable positions. Adjustable handle allows it to be lifted almost 45 degree up, or all the way down, parallel to the motor shaft. This makes trolling motor more portable, compact and allow much easier transportation and storage than other brands trolling motors with fixed perpendicularly trolling handle. Adjustable angle throttle handle also makes motor operation more comfortable, because you can raise it up or tilt down.

Our 55lbs model uses 12V, with 50 Amp Max Draw. Battery Level reader built into controller housing displays accurate available battery power, and shows when battery need a recharging.

Special composite shaft is more flexible and stronger than other metal or aluminum shafts. This electric trolling motor is salt water ready, and can be used in an ocean, but we highly recommend washing it out with fresh water after each salt water use to extend motor's lifespan.

To operate this Trolling motor you will need 12V Deep Cycle battery that sold in any hardware or auto store. You can get Deep Cycle battery in Wall-Mart or Costco for about $55. High-end Deep Cycle battery will run about $140. To charge battery you will also need Battery Charger, that will run about $30 to $60 depending on a brand.

Features:

• Motor Weight - 17 lbs.
• Shipping Dimensions - 43"x15"x7".
• Shipping Weight - 23 lbs.
• 55 lbs power thrust, 12V, 50 Amp Max Draw.
• Adjustable Depth Collar - for changing the motor depth.
• Adjustable Handle - Adjust to your desired angle by folding up or down.
• Special Composite Shaft - More flexible and stronger than other shafts.
• Extendable Handle - Can be extended to 13.8", for much better control.
• Speed Control - 5 speed levels for forward 3 levels for reverse.
• Battery Reader - Displays accurate battery level.
• Warranty - 1 Year from date of purchase.

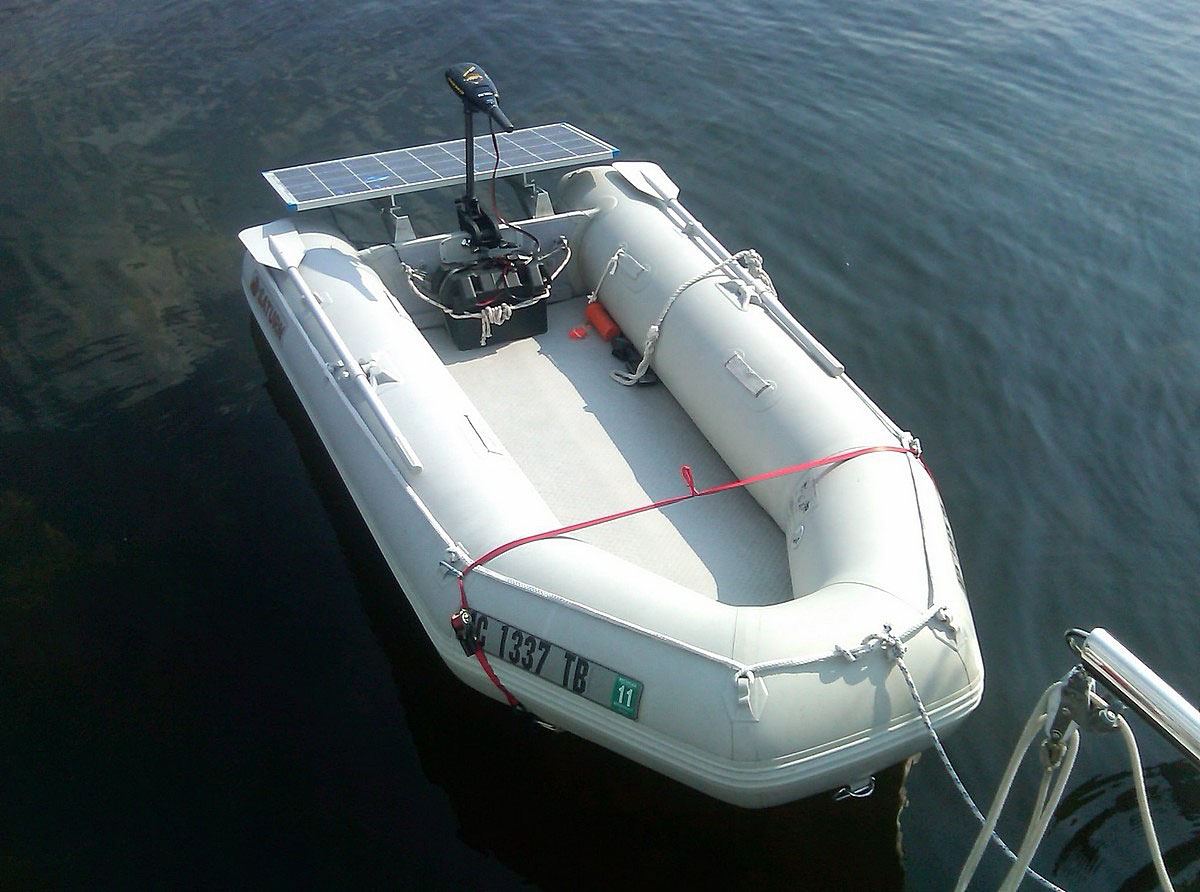

If you keep your boat on a water, and want battery to be always charged, add Solar panel, as was done by one of our customer:

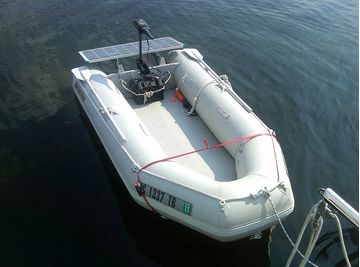

"We've had our Saturn for about 3 years now. I bought a used solar panel (75w) and had aluminum brackets custom made to mount it to the back of the dinghy. Added a 92 Amp/hour AGM battery with a solar controller, a 55 lb/thrust trolling motor. We hang the Saturn from the davits on our 32' cruising catamaran and never have to charge the battery. See attached photo." Cheers, Bryan.

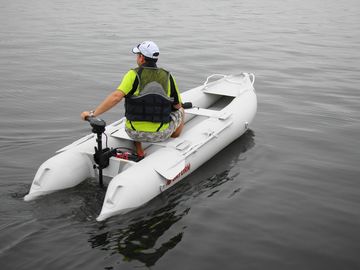

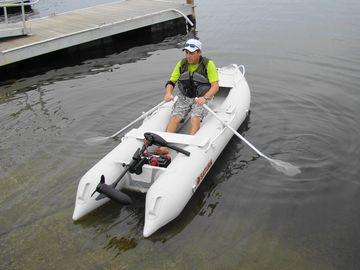

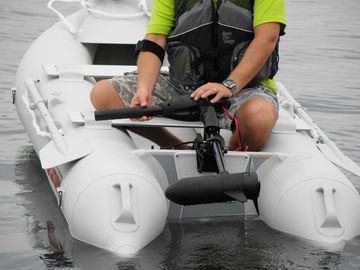

HD video of 55lbs Trolling Motor with 12' KaBoat SK396. Click on Play.

HD video of 55lbs Trolling Motor mounted on Kayak. Click on Play.

It is very easy to build kayak motor mount for electric trolling motor using materials sold in local hardware stores. Since most sit-on-top kayaks has drain holes, all you need to do is to get sturdy piece of plywood, about 40" long x 12" wide, that will act as a base. Then screw two 1" diameter galvanized pipe nipples on sets of flanges that sold in a plumbing section of Home Depot.

Pipe nipples mounted vertical on a bottom of plywood base will be inserted into matching drain holes of your kayak, to hold it from sliding. Short piece of 2x4 wood screwed to left or right side of plywood will act as a motor mount plate. Igloo cooler with battery inside will be placed on opposite side of motor mount plate, to counterweight trolling motor weight and torque.

You can secure cooler to plywood base with couple of cabin door hooks or bungee cord. You will need to move cooler on plywood base to find optimum position to provide best balance, and then run cables from electric trolling motor to deep cycle battery inside that cooler. You can also mount fish rod holders and storage basked directly to the top of plywood base, between motor and cooler.

For portable storage, you will simply remove motor and cooler with battery from motor mount, remove motor mount from kayak, and unscrew pipe nipples until next fishing trip. Please note that these motor mount instructions may vary from kayak to kayak and may not work with all kayaks in existence. You may need to improvise to mount trolling motor to your particular type of kayak.

Do-It-Yourself motor mount on top of sit-on-top kayak.

Additional instructions for building DIY kayak motor mounts and adapting of electric motor for hard-hull kayaks provided by one of our customers.

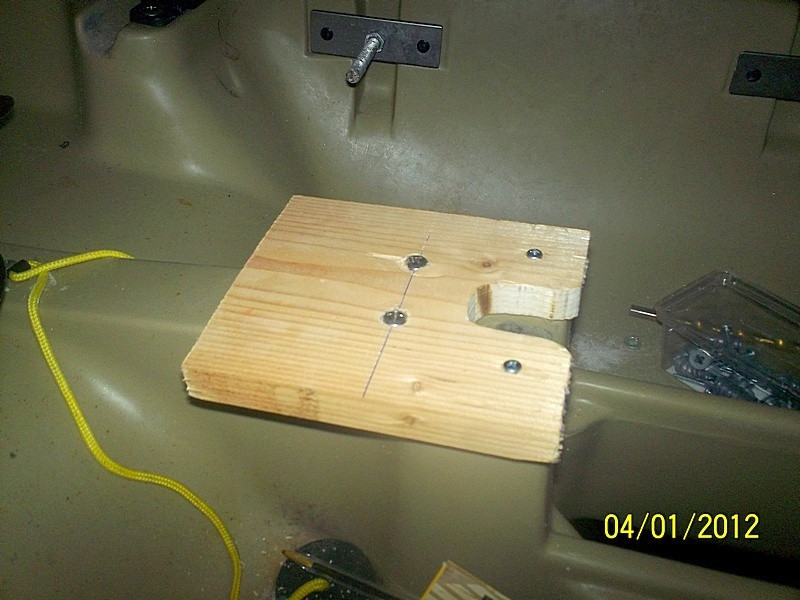

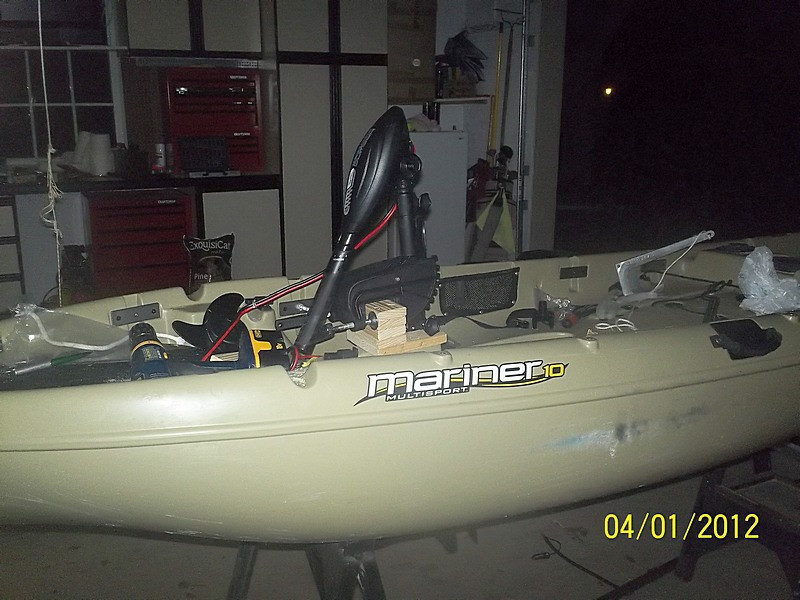

Mounting a 55lbs OS55 trolling motor to a NATIVE 10 kayak:
1)cut a pcs from a 1x6 6” long
2)cut the notch for the motor shaft
3)use 2 ¼ x20x1 ½ long bolts to attach
4)cut 4 pcs 5 3/4” long from a 1x3
5)attach to the 6x6 with 1 5/8 long deck screws
6)Remove the screw at the top of the shaft and rotate the motor 180 degrees then replace bolt
7) The prop has to be installed when you launch it is worth the trouble. It’s a great ride and I can’t wait for my first tarpon or king fish. Take an extra shaft nut and shear pin just in case.
Mounting a 55lbs OS55 trolling motor to a 13’ Ocean kayak:
1)cut a pcs from a 1x6 32” long
2)cut two pcs from a 1x3 32” long and fasten to the 1x6 using lag bolts
3)drill 2 holes ¾ “ for bolts.
4)Use two 12” long 5/8/ dia treaded rod from home depot already cut. You’ll need 4 nuts and 4 washers.

Electric Trolling Motors FAQ.

Trolling motor is the perfect add-on for your inflatable boat. When going out on the water for a day of fishing, there’s no greater tool to have at your disposal than an electric trolling motor. But there are many things about these simple motors that people do not understand, such as how long they can run on a single battery charge, or how powerful of a motor they need for their particular boat. But with just a little bit of research, you can find answers to these two all-important questions. Then you can select your trolling motor, attach it to your inflatable boat, and be out enjoying a day of fishing in no time.

How Long Can My Trolling Motor Run on a Battery Charge?

This is probably the most common question about these motors. And before spending your hard-earned money on one, you should first make sure you know all the facts. You probably want your motor to last as long as possible on a single charge, so you will need to look at the two important specs. These are the battery’s “amperage hour rating” and the motor’s “amps drawn.”

The amperage hour rating is a measure of how long the battery will supply consistent amperage to the motor. The higher the rating, the longer a battery will be able to power a motor. So what does this actually mean? It means that, for example, a 100 amperage hour battery would be able to supply 25 amps of power for 4 hours before running out. Or if your trolling motor was drawing less amps, let’s say 10, the battery could power the motor for 10 hours. It’s just that simple.

The other important piece of information to factor in when trying to figure out how long your trolling motor will power your boat on a single charge is the motor’s amps drawn. This is the “amps” part of the equation above. So, for example, if you have an 80 amp battery that’s powering a trolling motor that draws 40 amps per hour at top speed, then your motor will be able to propel your boat at top speed for 2 hours.

How Powerful of a Motor Do I Need?

This is the second most common question people ask when shopping for a new trolling motor for their boat. And it is a very important question, since the size of the motor you choose will not only affect your boat’s speed, but also the length of time you can travel on a single battery charge. When trying to figure out how big a motor you need, remember that a motor’s power is rated by pounds of “thrust,” which tend to range from 30 pounds on the low end to 100 pounds on the high end.

When choosing the size of your motor, the number one thing to take into account is the weight of your boat. Most manufacturers say that you need 2 pounds of thrust for every 100 pounds of boat weight, which is a good guide point when purchasing your trolling motor. But don’t forget to add in the weight of the people and equipment that the boat will be carrying when you do your calculations! You also may want to factor in the types of weather conditions and currents that you will be operating in, as these can make a huge difference in the amount of power you need from your trolling motor. That’s why it’s always smart to overestimate a little when deciding how big of a motor you need to purchase.
