How to Choose the Right Bimini

How to Choose the Right Bimini Top for Your Inflatable Boat

A Bimini top is one of the best accessories you can add to an inflatable boat. It gives you shade, helps protect you from the sun, and can make a long day on the water much more comfortable.

However, choosing the right Bimini for an inflatable boat is not always as simple as matching it to the boat model. Inflatable boats vary in tube size, splash guard layout, oarlock position, rope holders, D-rings, and available mounting points. Because of that, each Bimini installation should be treated as a small DIY project.

For best results, we generally recommend ordering your Bimini after you already have the boat in your possession. That way, you can measure your actual boat and decide exactly where and how you want the Bimini attached.

Why Measuring First Is Important

The most important measurement is the distance between the attachment points on the boat.

These attachment points may be existing splash guard grommets, side D-rings, oarlocks, rope holders, or glue-on mounting pads. On some boats, the attachment points are already in a convenient location. On others, you may need to use zip ties, straps, bolts, or glue-on D-rings to create the best setup.

Because there are several possible ways to install a Bimini, we cannot guarantee fit based only on the boat name or model. Measuring your boat first is the best way to choose the right option.

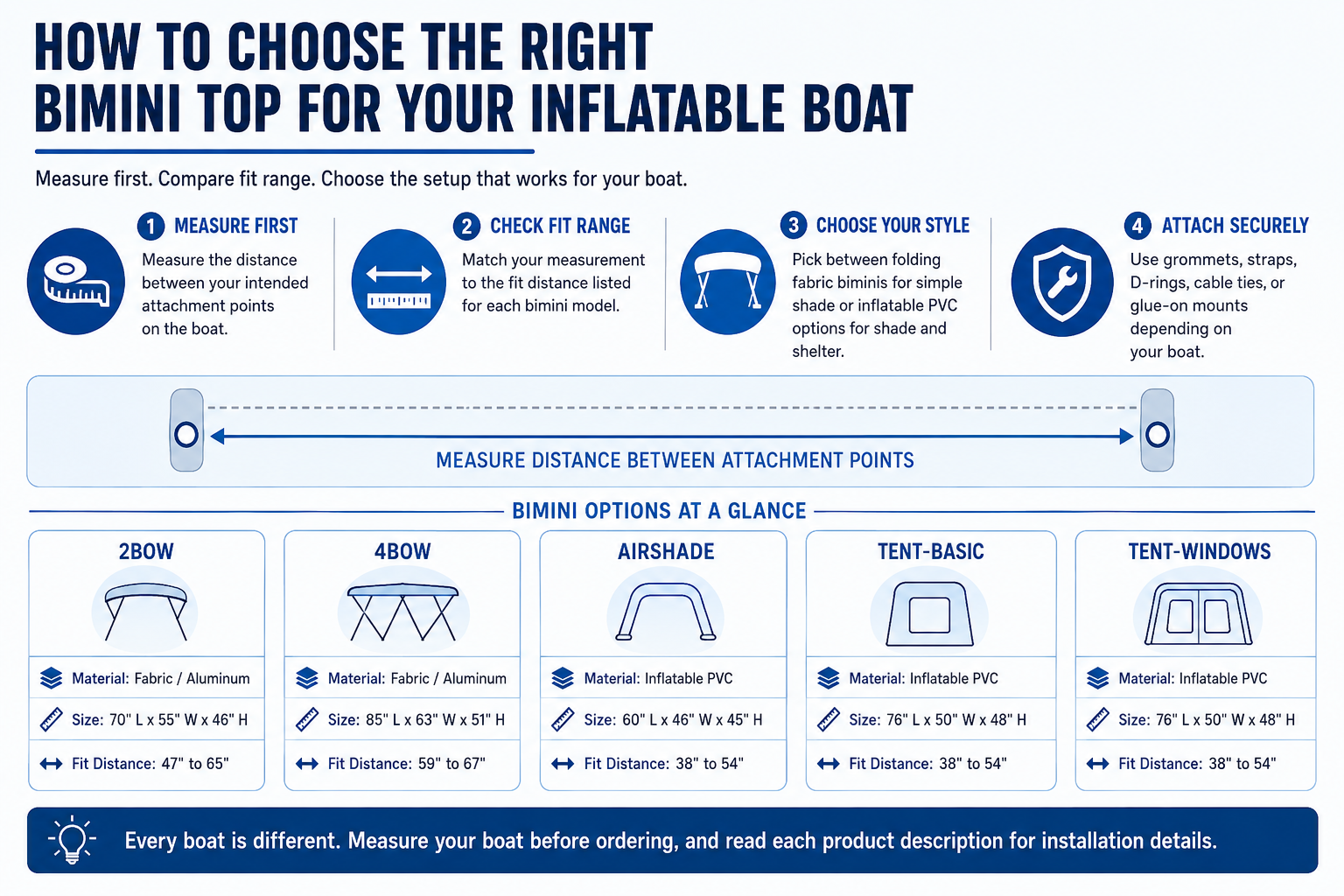

Bimini Size and Fit Comparison

Use these measurements as a starting point, then compare them to your boat’s actual attachment locations.

Choosing Between the Different Styles

2-Bow Folding Bimini

The 2-Bow Bimini is a compact fabric-and-aluminum shade option. It is a good choice for many inflatable boats, KaBoats, and even some narrow boats with minor DIY adjustments. It is also convenient if you inflate and deflate your boat for each trip because it can be disassembled and stored in a carry bag.

This is usually the best choice when you want a simple, portable sun shade and your attachment points are roughly 47" to 65" apart.

4-Bow Bimini

The 4-Bow Bimini is larger and provides more overhead coverage. It is better suited for larger inflatable boats where the attachment points are farther apart. It has a larger frame, more coverage, and a more substantial feel than the 2-Bow version.

This option is generally not recommended for narrow boats, KaBoats, kayaks, or smaller budget-style boats. It is best for larger inflatable boats with mounting points around 59" to 67" apart.

Inflatable Air Shade

The AIRSHADE is an inflatable drop-stitch Bimini. Instead of an aluminum frame, it inflates into a rigid shade structure. This makes it easier to transport and a good option for boaters who pack their boat away after each use.

It attaches with adjustable straps and D-rings and can also use optional Velcro strips on the tubes. It is a good choice when you want a lightweight, compact, inflatable shade without a metal frame.

Inflatable Air Tent: Basic and Windows

The inflatable Air Tent is more than a shade top. It creates a cabin-style covered space for shade, privacy, light rain protection, relaxing, or overnight-style camping use.

The Basic version has solid walls and no windows. The Windows version includes transparent roll-up windows for better visibility, ventilation, and a more open feel.

Both versions use inflatable drop-stitch construction and fit a similar attachment width range as the AIRSHADE.

Common Ways to Attach a Bimini to an Inflatable Boat

Depending on your boat, the Bimini may be attached in several ways:

• Directly to splash guard grommets on top of the tubes
• With plastic zip ties through support pole holes and grommets
• With optional bolts or wing-nut bolts for easier removal
• With straps secured to grommets, D-rings, or rope holders
• To oarlocks, when the layout allows it
• To glue-on mounting patches or D-rings if no existing attachment points are available

Proper strap tension is important. The Bimini should be held upright and steady, but not forced into a position that creates unnecessary stress on the boat or hardware.

What If the Bimini Looks Too Wide?

It is common for a Bimini to look wider than the boat when first assembled. That does not always mean it is the wrong size.

Many support poles have some flex and can be pushed inward or outward slightly to reach the attachment points. On narrower installations, it may help to attach one side first, then gently push the opposite side inward until it reaches the mounting point. Another method is to temporarily tie the support poles closer together with rope during installation, secure the Bimini, and then remove the rope.

For some installations, especially with the 2-Bow model, additional DIY modification may be possible. Always read the product page and installation instructions before making modifications.

Final Recommendation

If you are not sure which Bimini to choose, start by measuring your boat.

Look at where you would realistically attach the Bimini, then compare that distance to the fit range listed for each model. Also consider how much shade you want, whether you prefer a folding aluminum frame or inflatable construction, and whether you need a simple sun shade or a cabin-style tent.

Most importantly, please read the full description and installation notes on the product page before ordering. Inflatable boats come in many layouts, and the best Bimini setup depends on your specific boat, your preferred attachment method, and your willingness to do a small DIY installation.

A little measuring before ordering will help you choose the Bimini that gives you the best fit, best shade, and best experience on the water.
