River Raft Rowing Frames for 2 People. IMPERFECT. LIKE NEW.
Customer return. One of the oarlock arms was installed slightly off-angle — about 3–4 degrees. As a result, when the optional oarlock is inserted, it’s not perfectly straight up and down, under slight angle. This has no effect on the rowing frame performance or functionality. If so desired, it can be easily corrected by rotating the tube holding the oarlock arm about 3–4 degrees and drilling two new holes for the included pins.

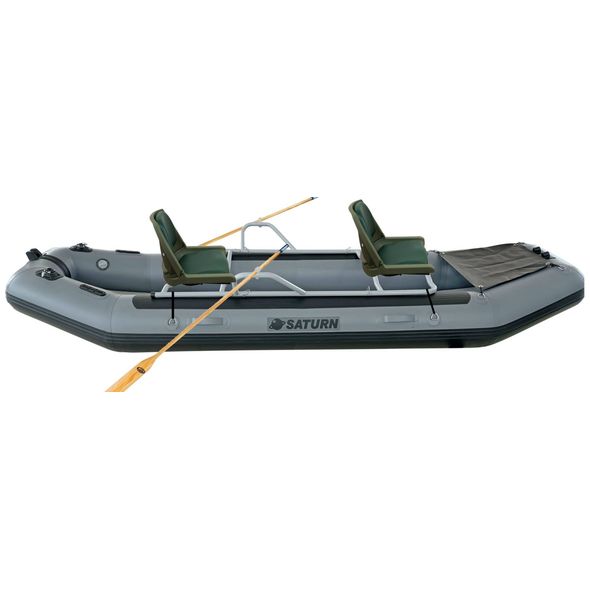

Size REGULAR - Frame is 33" wide x 70" long, and WILL fit on Saturn narrow RD365, FR380 river rafts and SK385/470/487XL KaBoats. Frame will NOT fit on RD290, RD365X, RD385 or AMR385 rafts.
Please check the width of your watercraft across the top of the inflatable tubes before ordering to make sure the frame will fit. The distance between the tops of the side tubes should be about 33 inches, give or take 2 inches, for the Regular frame, or about 49 inches, give or take 2 inches, for the Large frame. The flat area on top of the tubes, where the frame sits, should be at least 70 inches long. If your raft has a shorter flat area, you’ll need to either trim the frame to fit, place 2x4 boards under the frame tubes for support, or let the frame rest on four raised points, such as riser tubes.

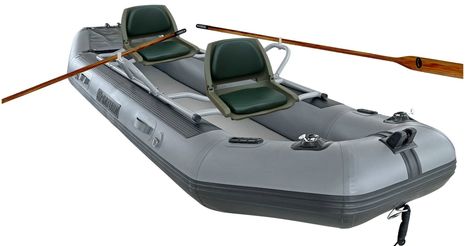

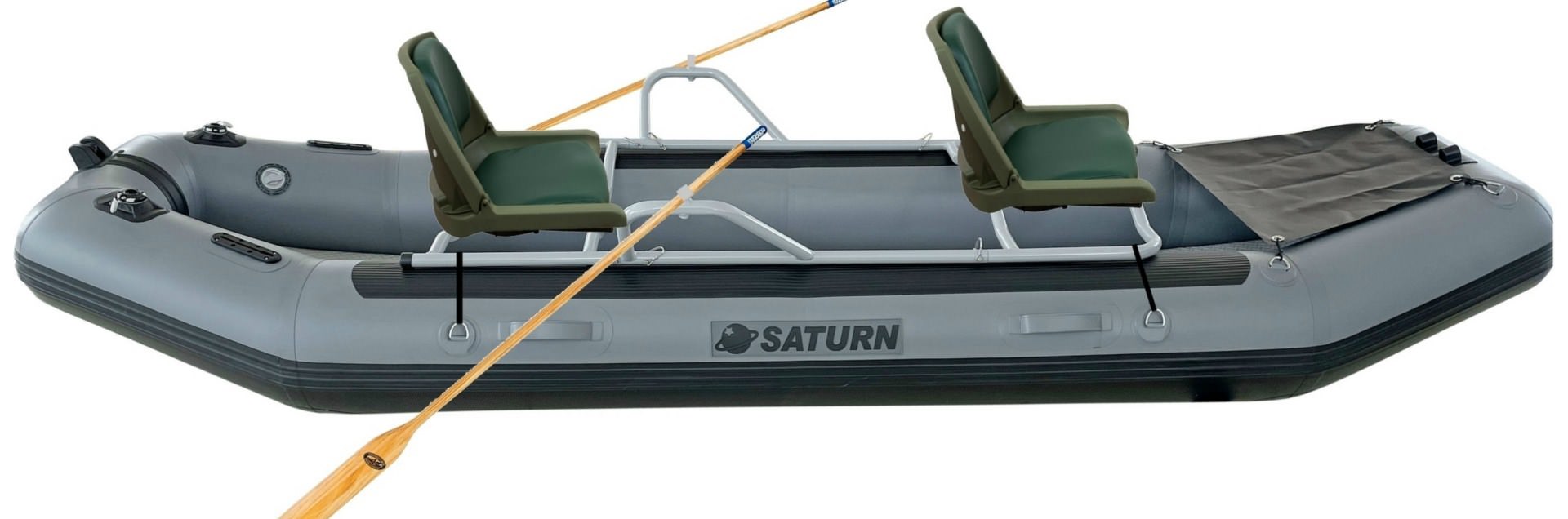

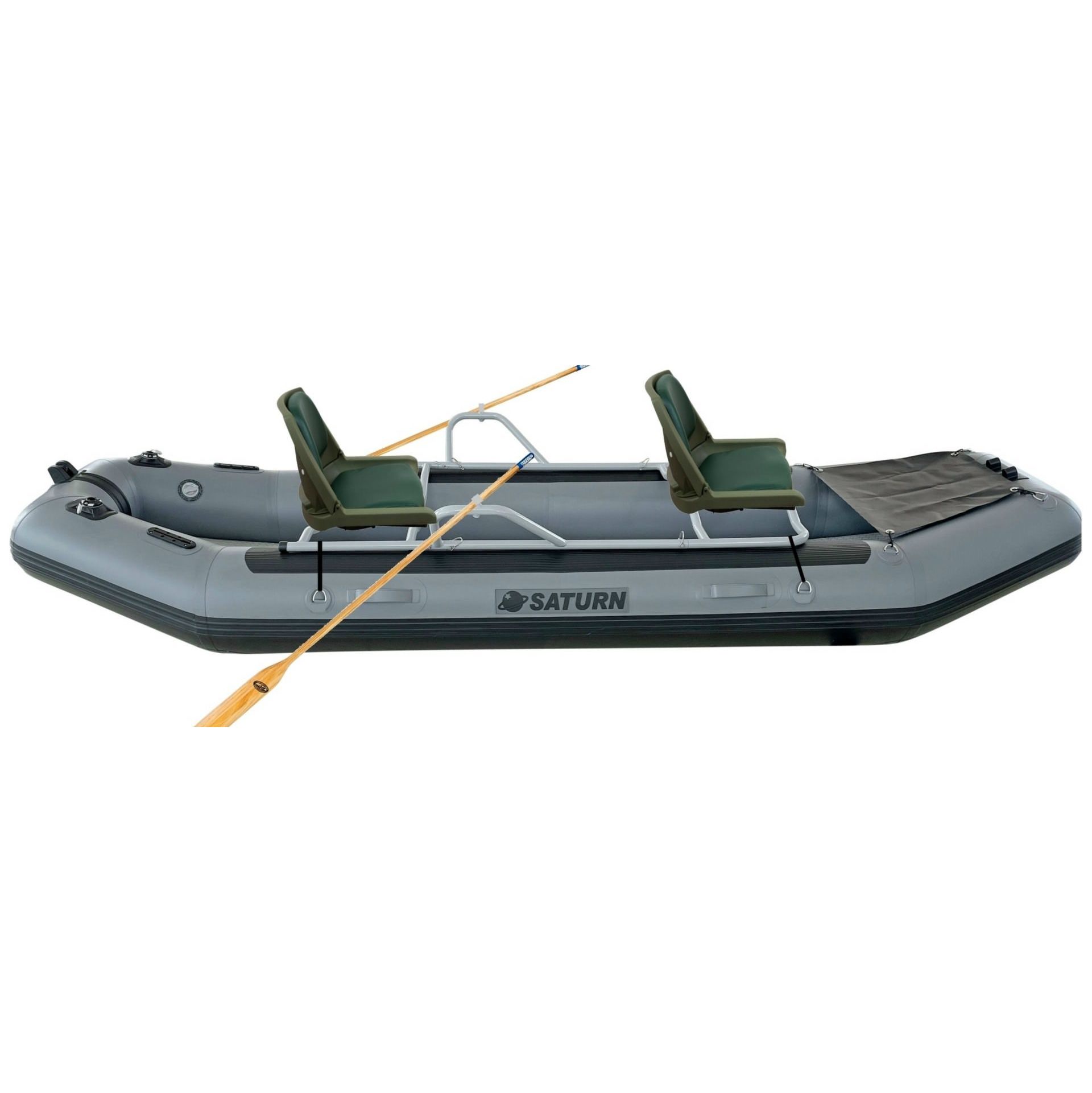

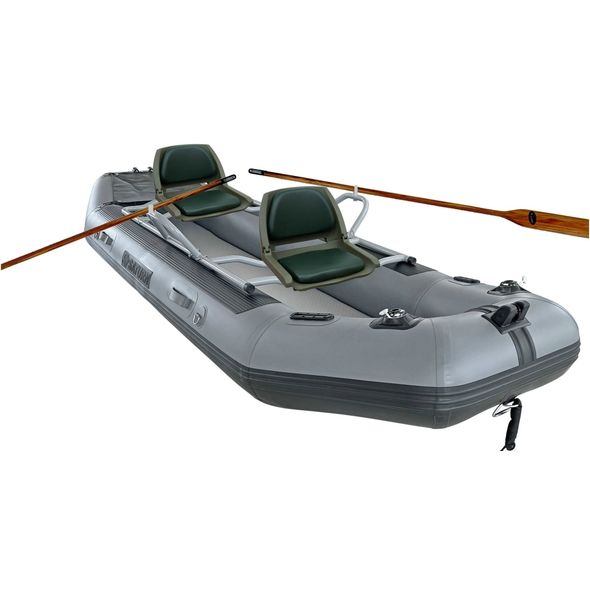

Easy to assemble and disassemble, 2 persons rowing frame for fly fishing. Ends of frame are left open, for customers to built DIY frame extensions, such as gear storage basket or motor mount or anchor extension.

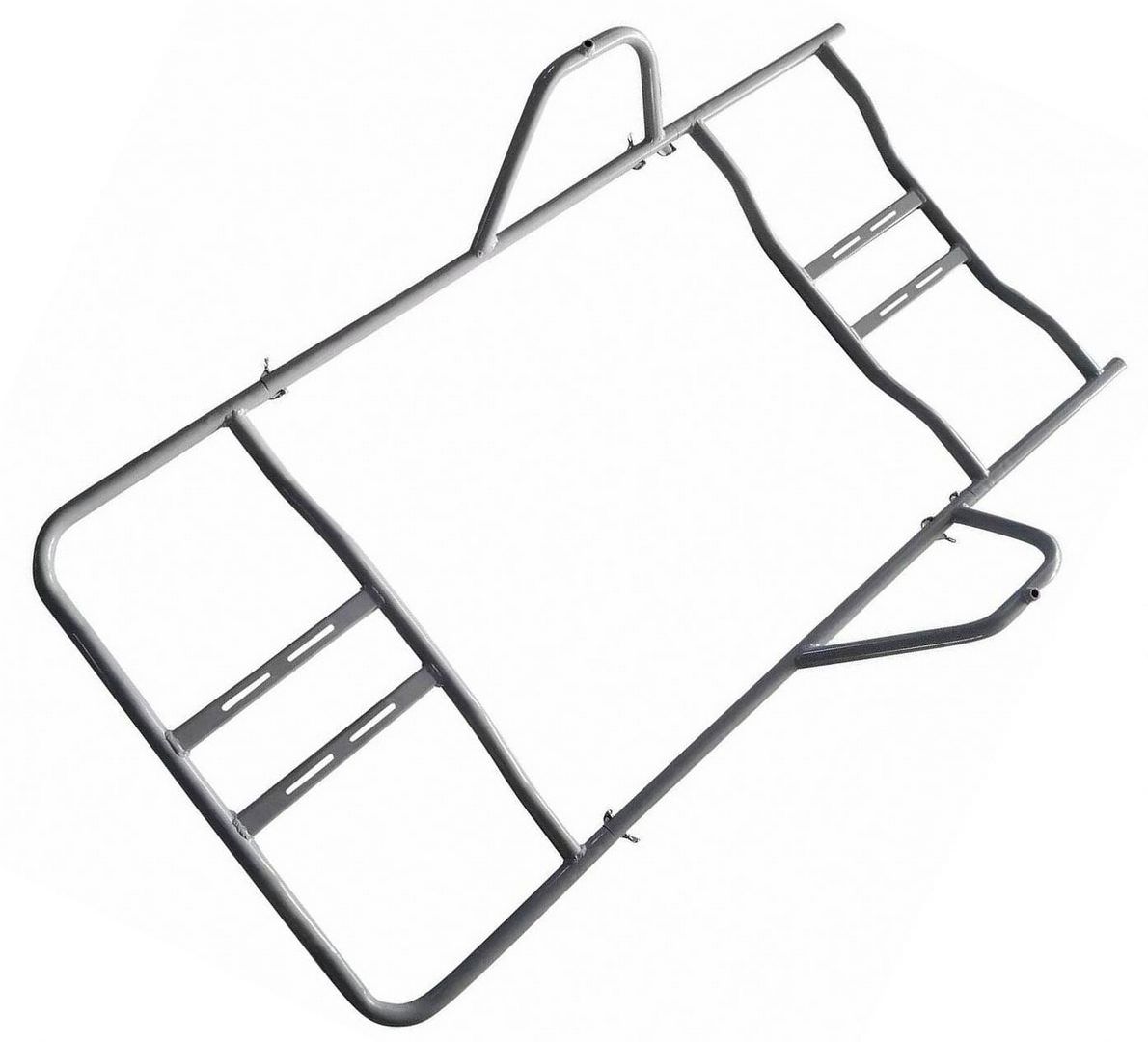

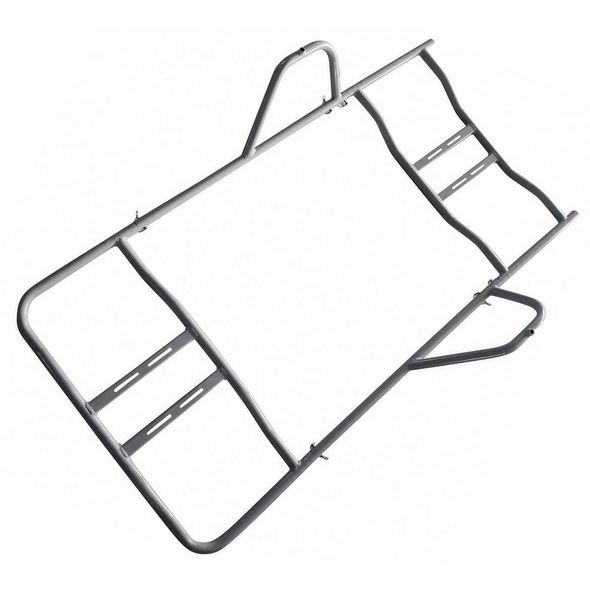

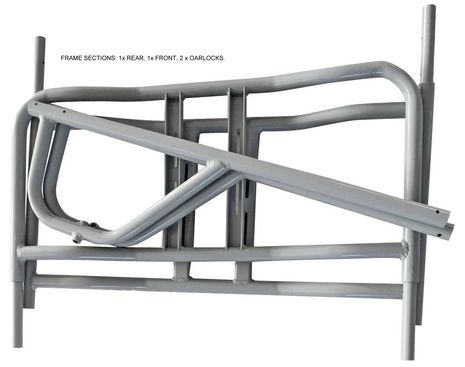

Folding frame made of heavy duty, rust resistant anodized aluminum. Can be disassembled for easy storage and portable transportation. To use this frame you will need following optional accessories (not sold by BoatsToGo.com): seat of adjustable straps to secure frame to at least 4 attachment points, rowing oars, oarlocks, swivel base and fishing chair.
If boat or rafts does not have attachment points, such as D-rings on sides or splash guards with grommets on top of tubes, then optional glue-on D-ring patches need to be glued on both sides of raft or boat you are planning to use this frame on.
- REGULAR frame Length: 70" and Width: 33"
- Thickness：3mm aluminum,
- Outer diameter：32mm
- D security pins: 6/each
- Round plastic end caps: 2/each,
- Painted color: Dark Gray

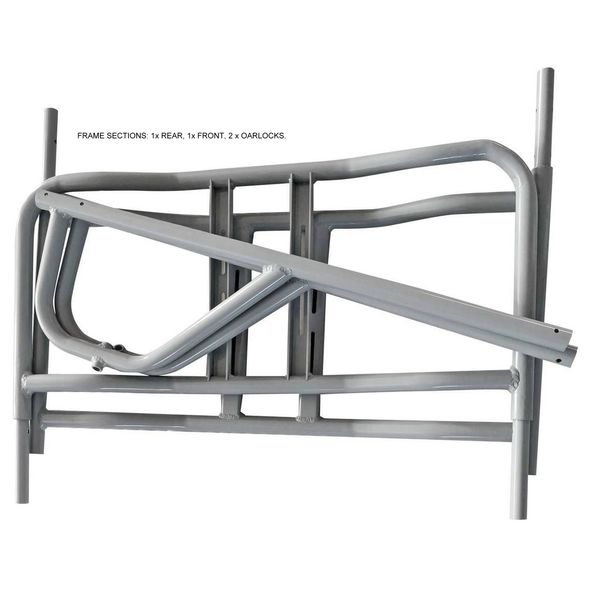

- Shipping Size: 36x25x7" for REGULAR frame.

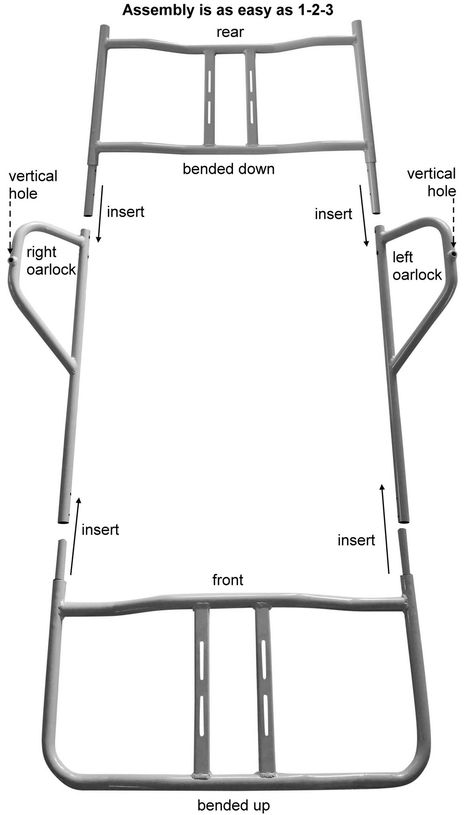

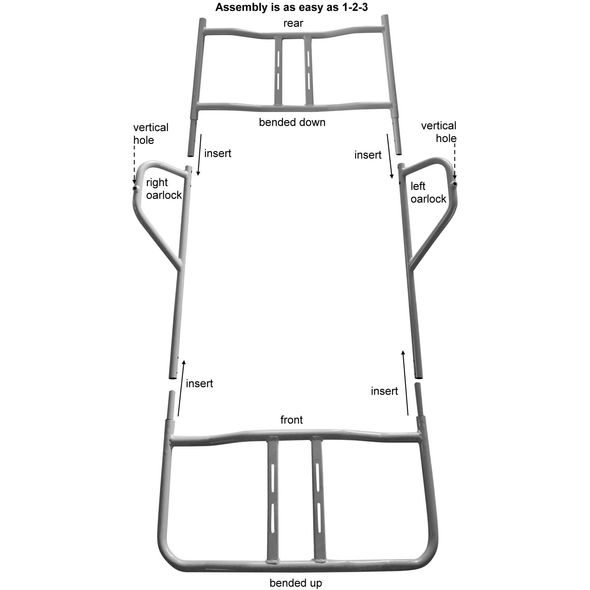

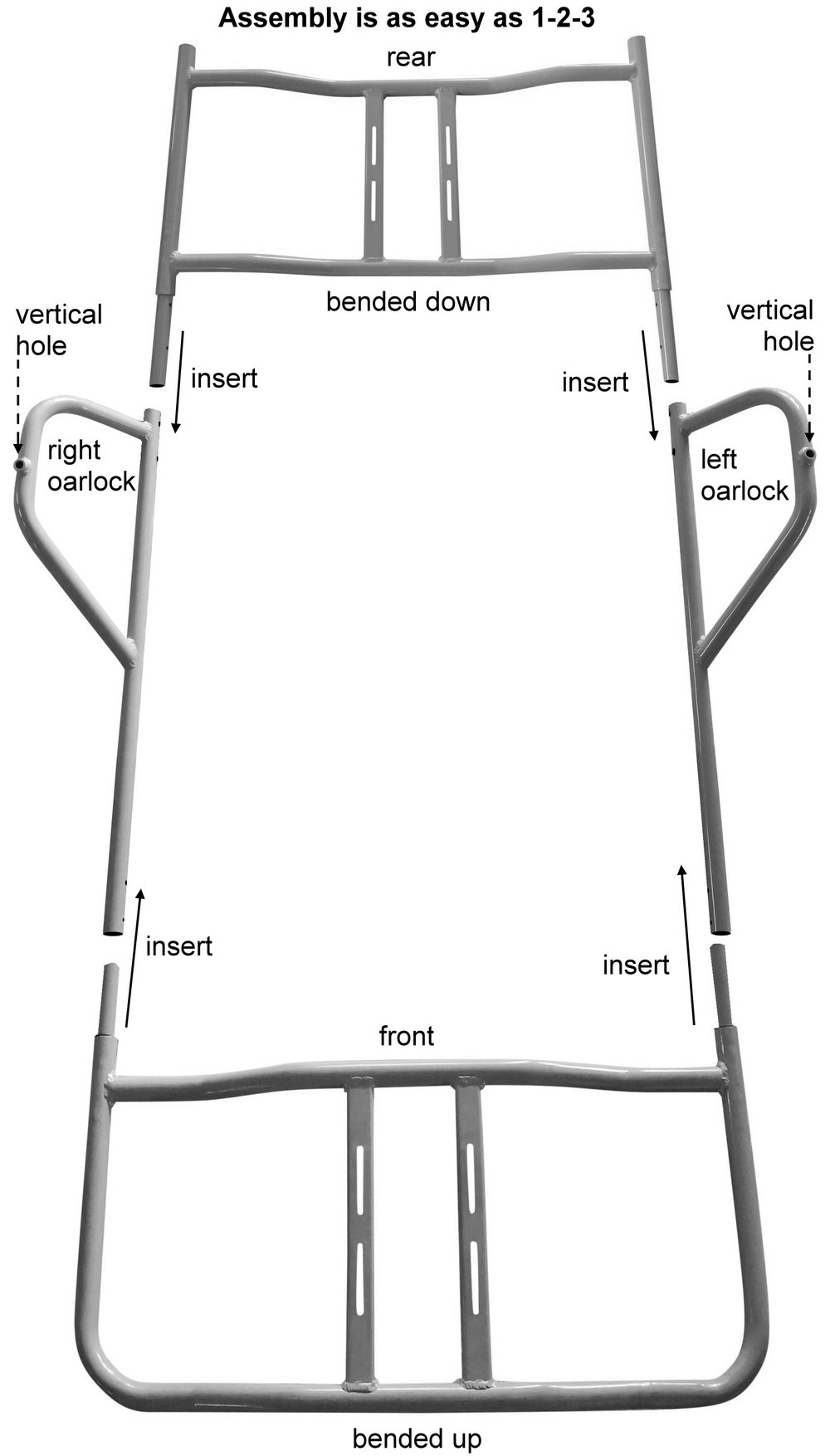

PLEASE NOTE: Swivel, chair, straps, oars and oarlocks are NOT included, but can be purchased separately at many retail stores at very affordable prices. Assembly instructions are not included, as it is new, customized product available in a small batch production run. However, assembly pretty much strait forward, as shown on pictures posted in this web page.
Quick Tips:
- We recommend using WD40 to make assembly/disassembly easier.
- When inserting or removing side frame into or from main frame, try to hold both hands at both insertion points at the same time, and then move side frame inside or outside at equal distances/steps in order to avoid side frame getting stuck under the angle inside main frame. If it happen, step on side frame, spray with WD40 and pull main frame slowly, or use rubber mallet.
- Fishing seats can be purchased on Amazon, just search for folding fishing seat. Holes on bottom of seat will match holes on metal plate that comes with frame.
- Swivel can be mounted between seat and plate. Just search Amazon for seat swivel.
- Also, quick disconnect can be added to easily remove fishing seat from frame. Just search Amazon for boat seat quick disconnect.
- *For the RD290 raft, one frame section may be removed, or the aluminum side tubes can be cut to match the available tube length. New mounting holes can then be drilled to accommodate the clip positions. Alternatively, 2x4 wooden boards can be placed beneath the frame tubes to provide additional structural support when carrying heavier loads.

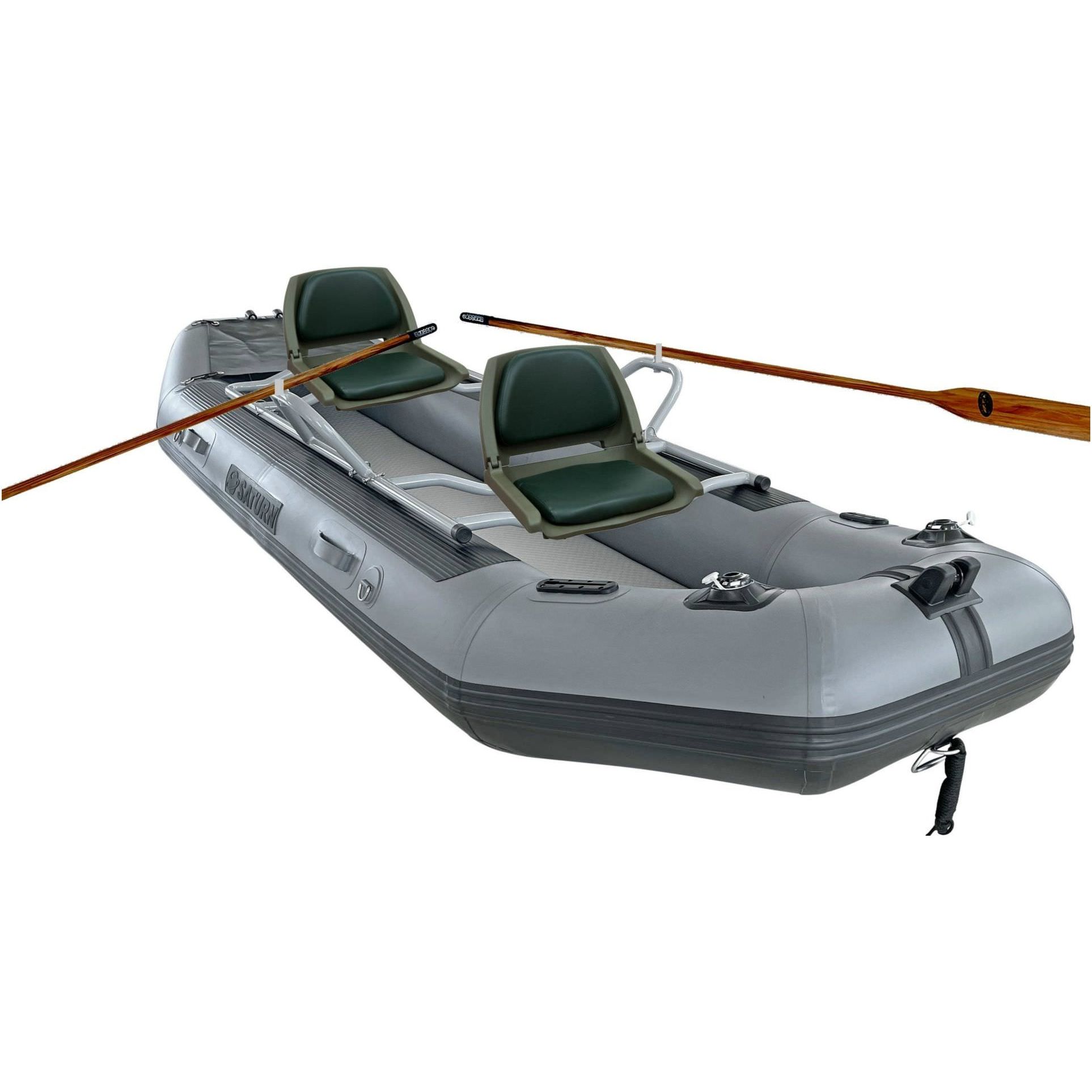

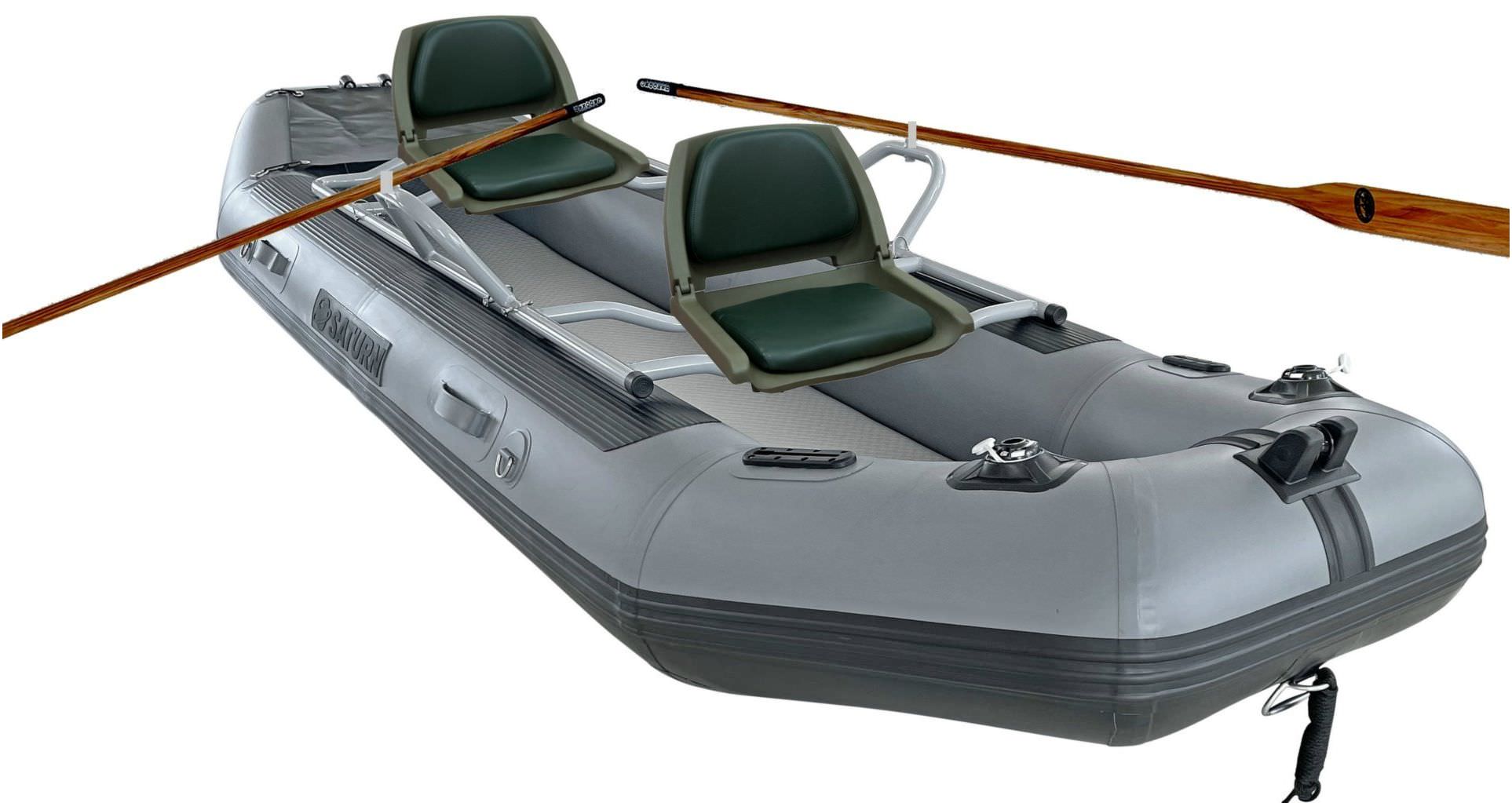

Customer's review of FR380 V1 raft with Regular Rowing Frame.
