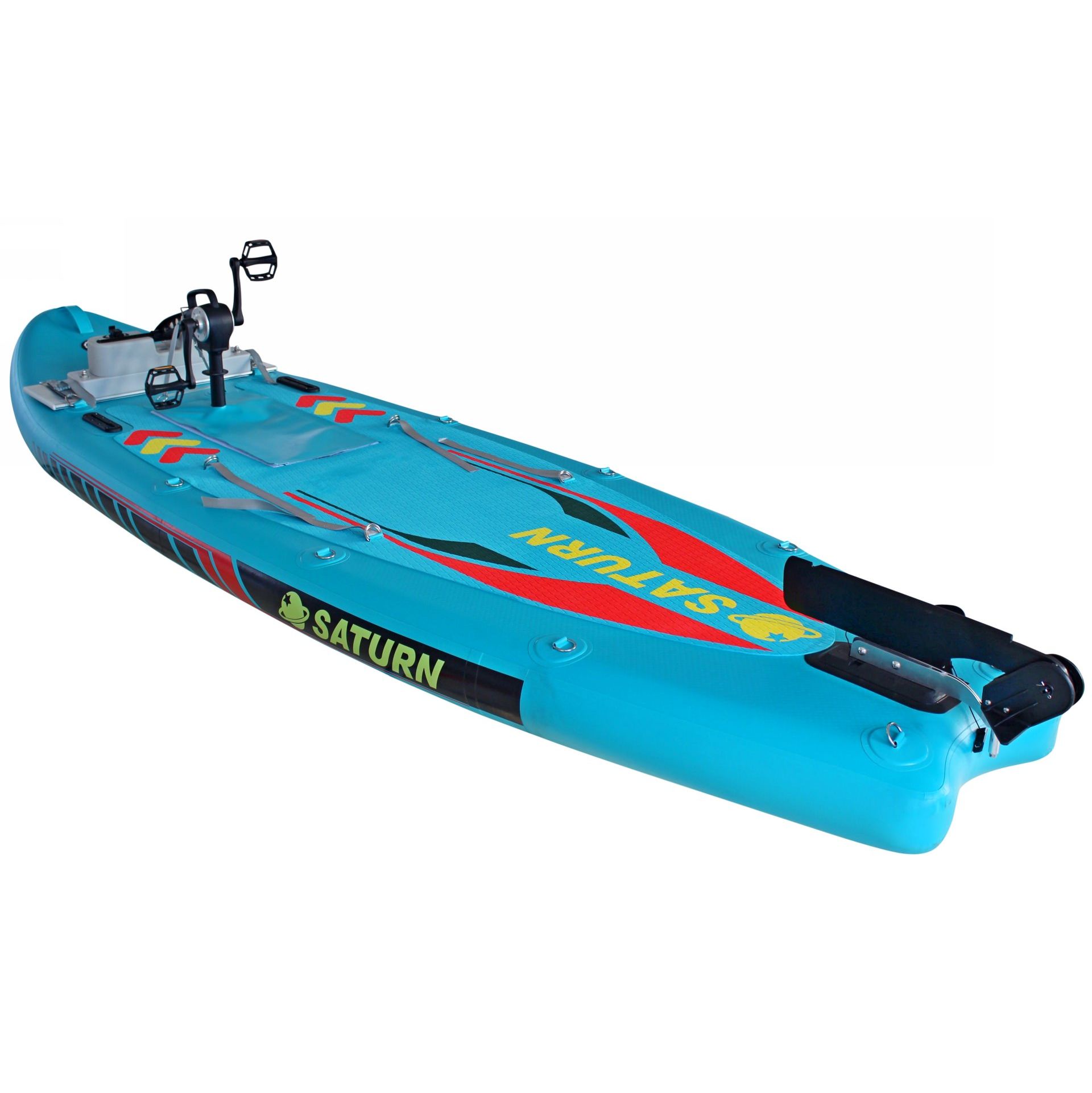

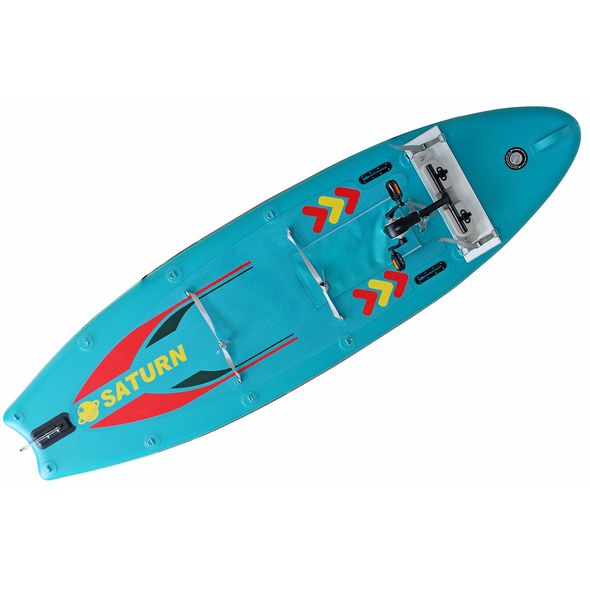

10.6' Saturn Pedal SUP Board Kayak PSUP325

10.6' Saturn Pedal Board SUP Kayak.

Powered by your feet! Fun and joy to ride!

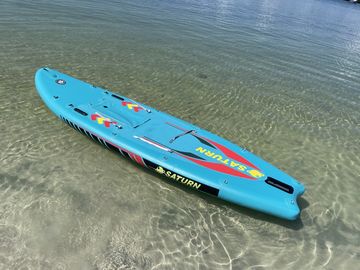

New Saturn PSUP325 inflatable board with a pedal drive offers plenty of excitement on a water at affordable, budget price. Pedal drive included! Most types of beach chairs can be attached on top, and secured with simple system of 4 double D-rings. Easy to install, easy to remove. Simple and affordable sand beach chair sold in retail shops as Walmart or Target is perfect combination for this board. Or, check our advanced aluminum fishing chair in Accessories section.

Pedalboard can also be used without drive, with regular kayak paddles as a sit-on-top kayak. Or, as stand up paddle board with optional SUP paddle.

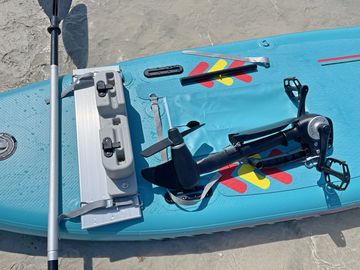

Pedalboard PSUP325 comes with aluminum bench and rotomolded mount to hold pedal drive on that bench. Also comes with high quality aluminum pedal drive, compare to $899. Pedal drive V2.0 is new, lighter model that can be folded for portable storage and transportation. Rotomolded mount on a bench secured to surface of board with 2 lashing tie downs.

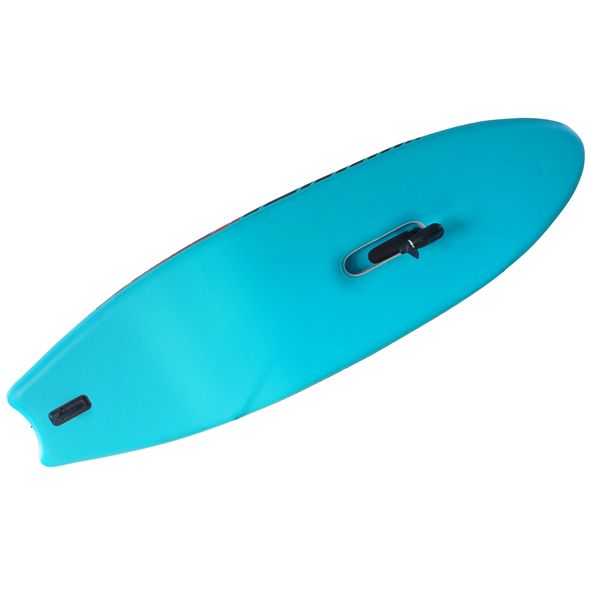

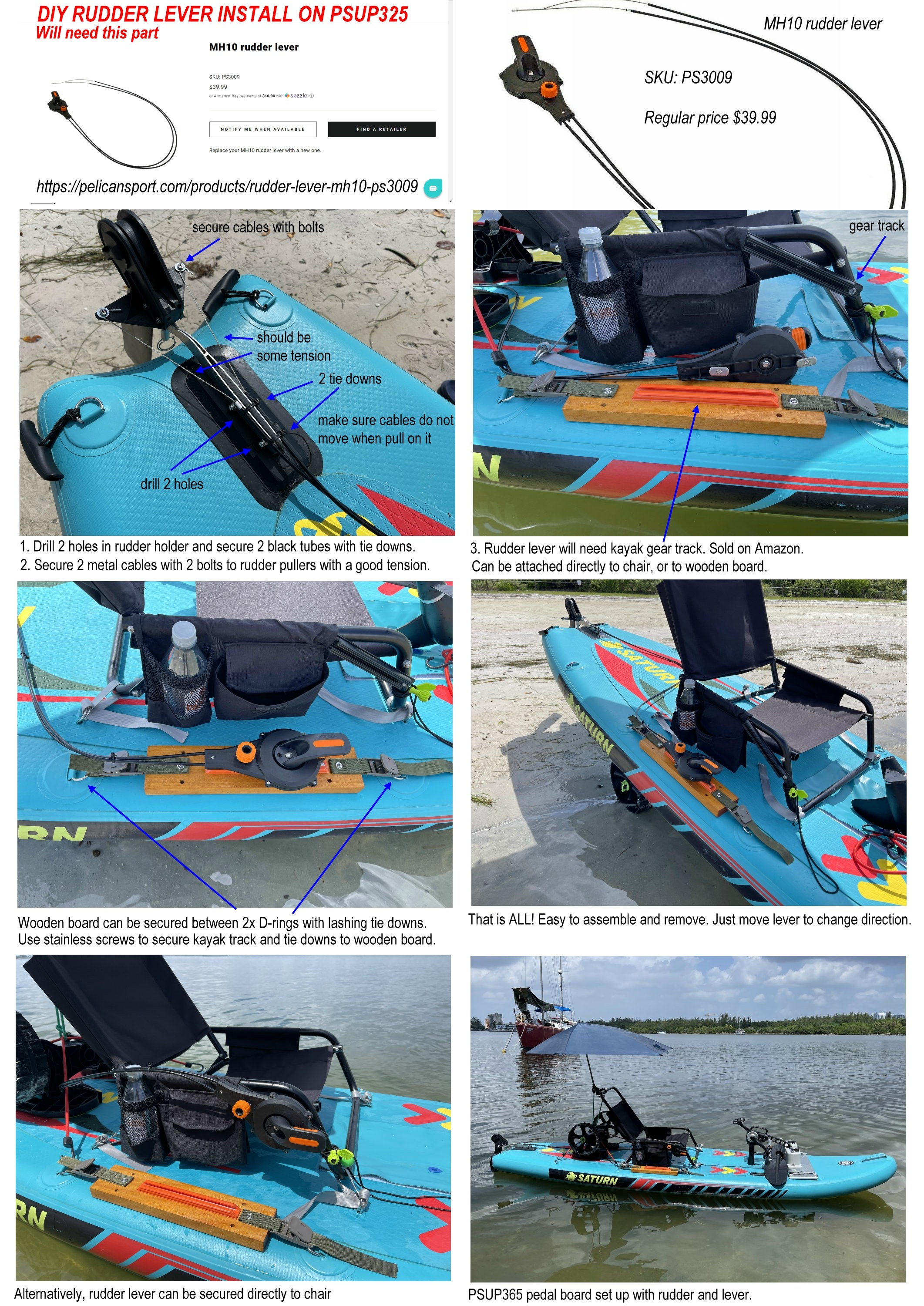

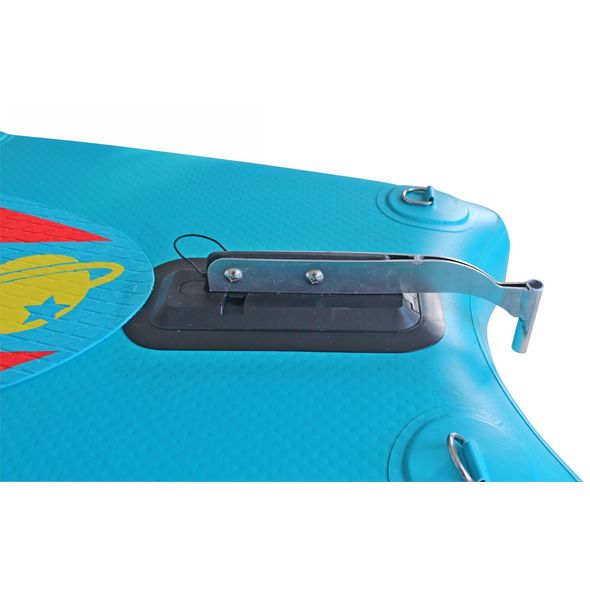

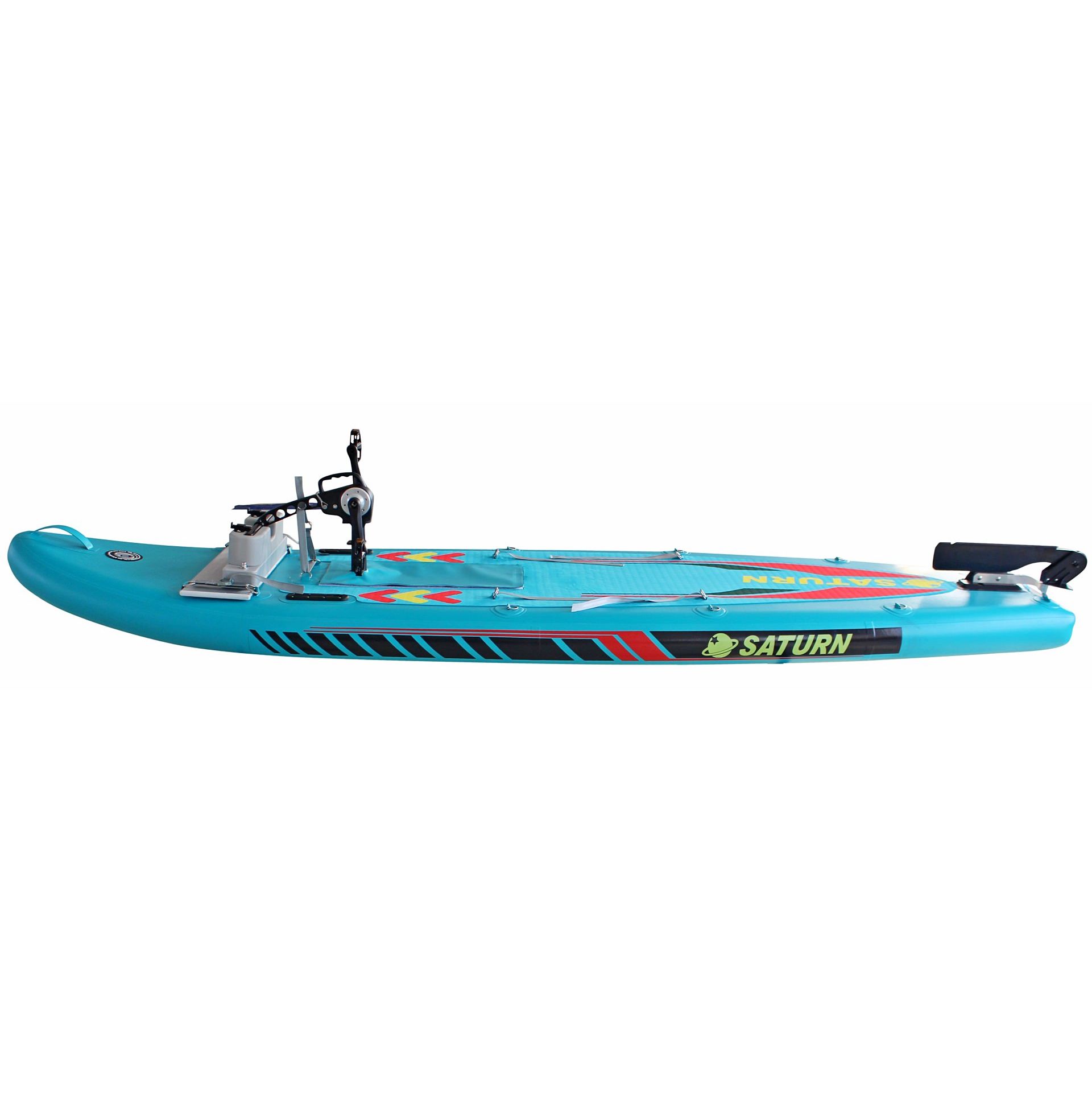

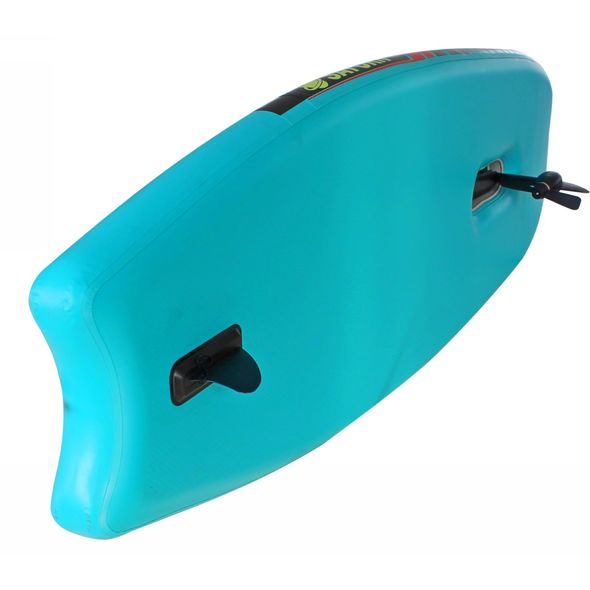

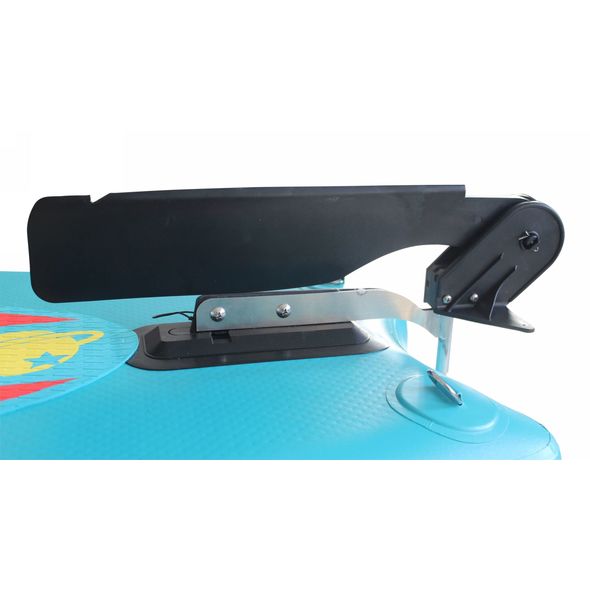

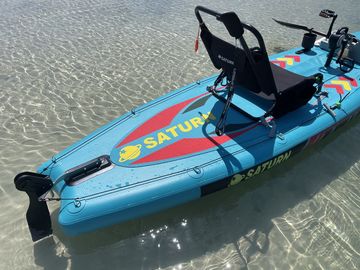

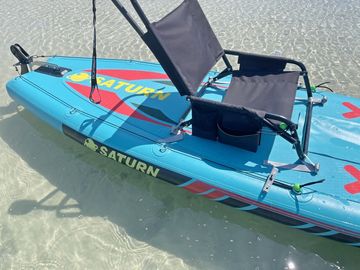

PSUP325 inflatable pedalboard comes with small removable fin on a bottom, and can be easily steered with included kayak paddle. For more advanced operations, optional kayak rudder attachment included. DIY rudder steering system can be easily added. Can be as simple, as 2 strings run trough D-rings on both sides of board, that pull rudder to steer kayak in a direction it need to go. See pictures for example. More advanced optional Pelican MH10 rudder lever can also be installed with some simple DIY modifications.

For use as stand up paddle board, larger optional SUP fin is recommended.

Specifications:

• Fully assembled weight with pedal drive about 60 lbs.
• Weight without pedal drive installed, about 20lbs.
• 2 Accessory tracks for optional fishing rod holders, cup holders, fish finders, etc.
• Improved, easy install motor mount plate attachment with 2 tie downs.
• New, lighter, compact folding bike drive with improved pedals.
• Pedal Drive weight - 14 lbs.

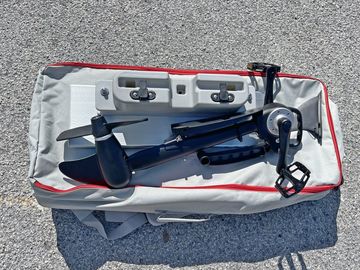

• Pedal drive folded dimensions: 30 x 10 x 5".
• Pedal drive is saltwater ready. Flashing with fresh water after use is recommended.
• Recommended air pressure for sitting at least 40kpa. Max is is 60kpa.
• Average speed between 3 and 4mph, depending on operator fitness.

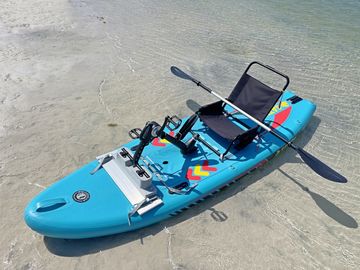

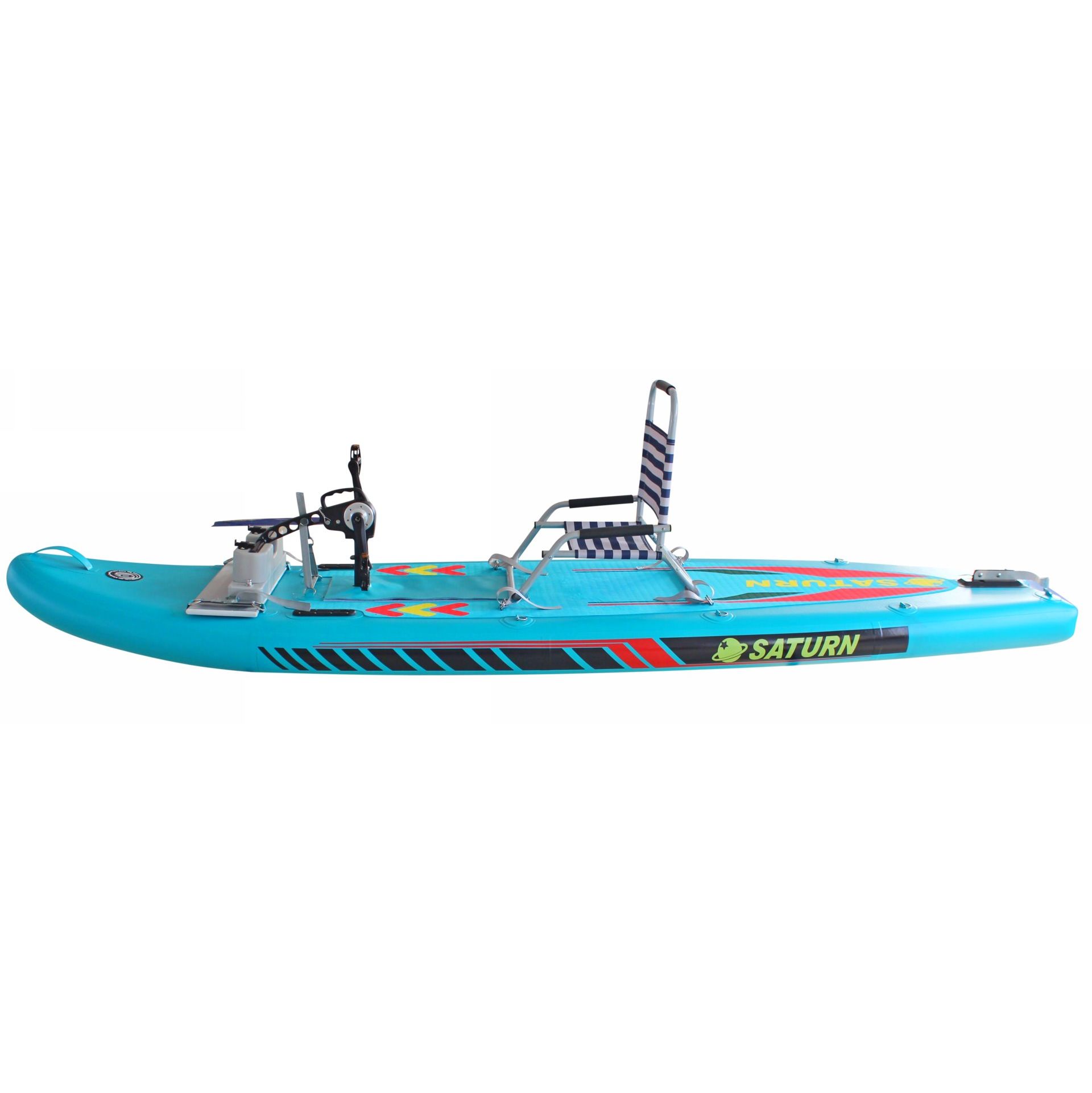

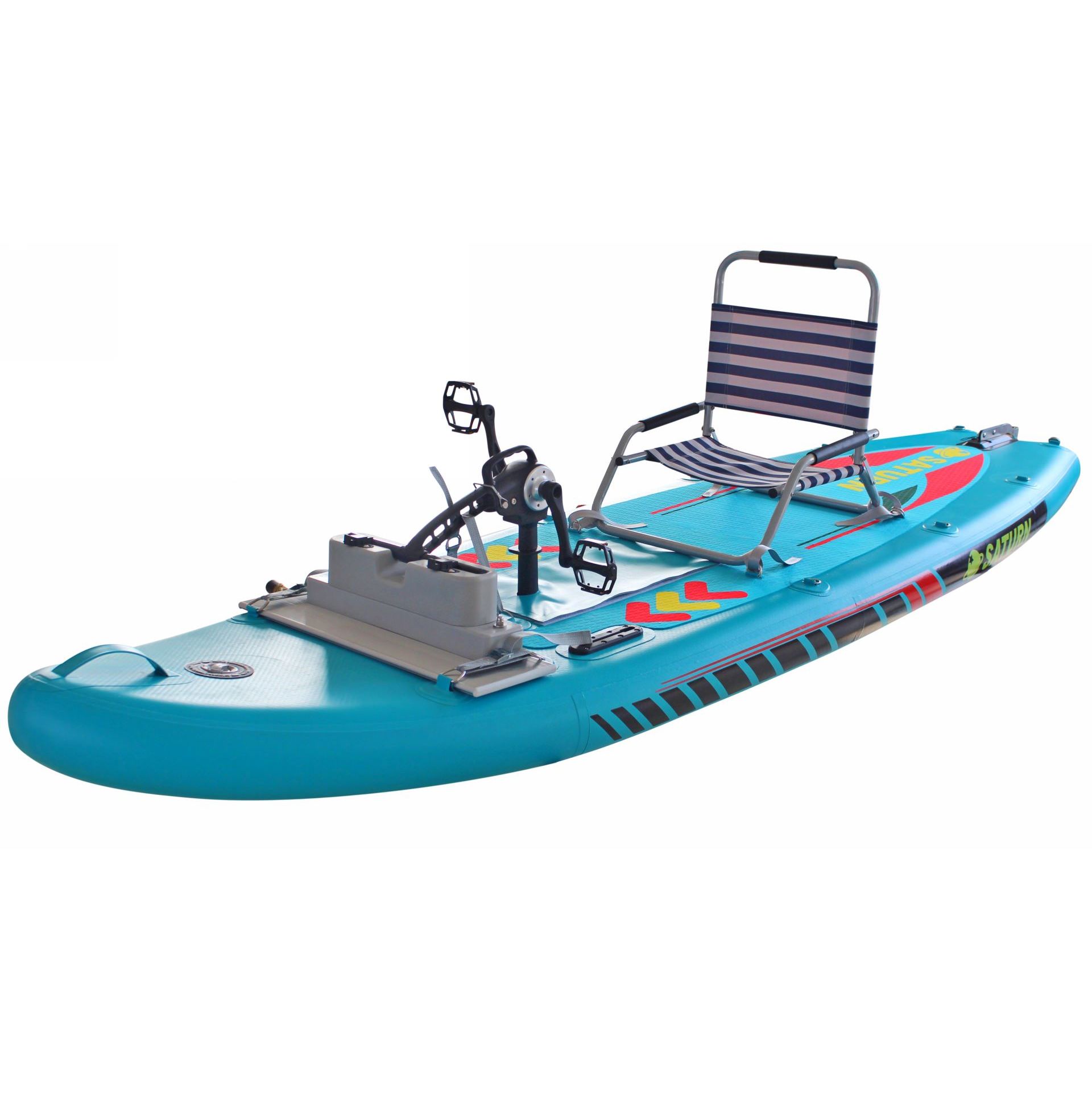

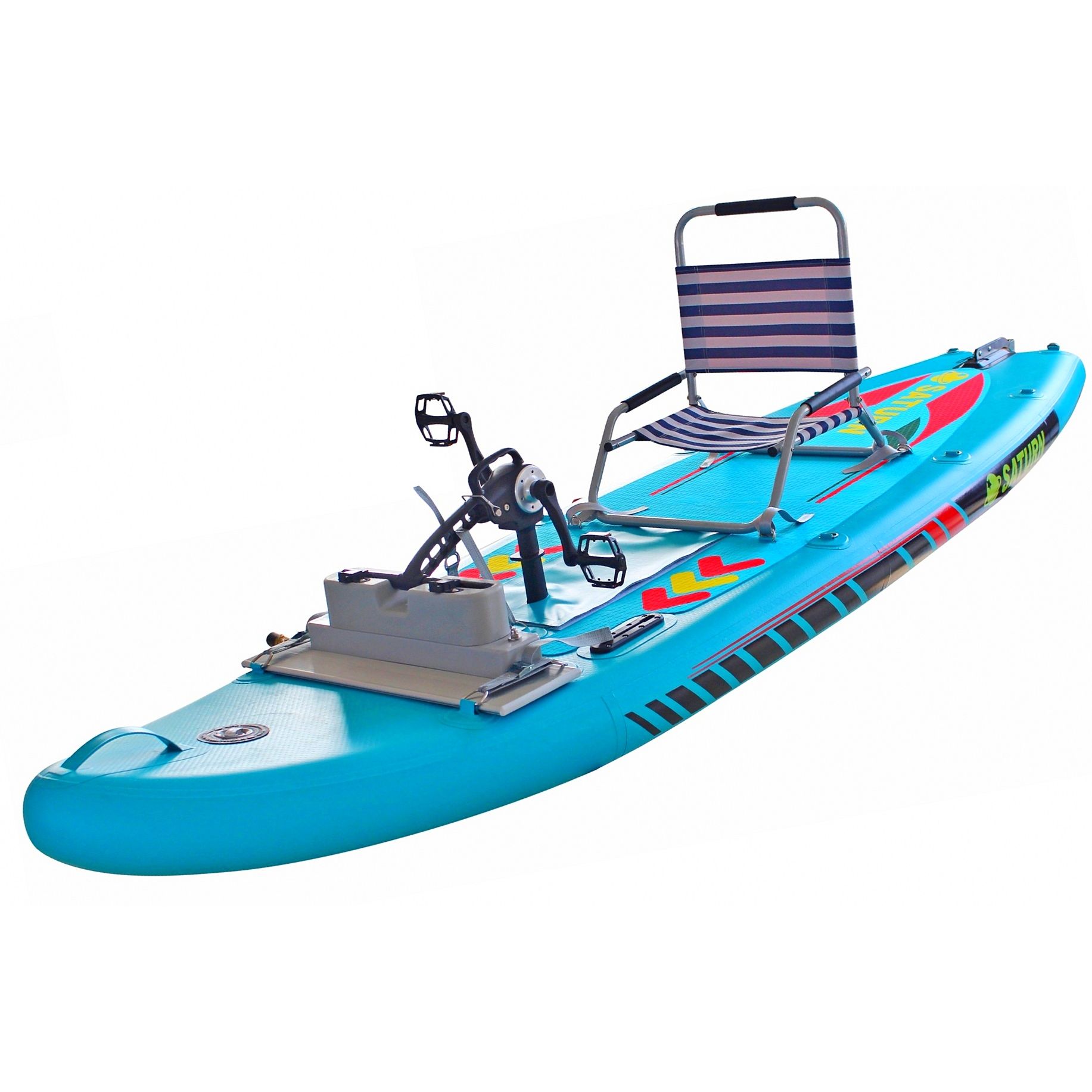

• Any type of beach chair, sand chair, lawn chair, etc (not included) can be mounted on top of this kayak.
• Included: pedal drive, pedal drive mount on a bench, hand pump, removable fin.
• FREE BONUS: Optional kayak rudder included.
• Not included: beach chair, rod holders, kayak rudder lever or strings to pull on a rudder.
• WARNING! Please read below for important notices.

Video of Saturn Pedal Board PSUP325 Assembly and Overview.

Video of Saturn Pedal Board Kayak PSUP325.

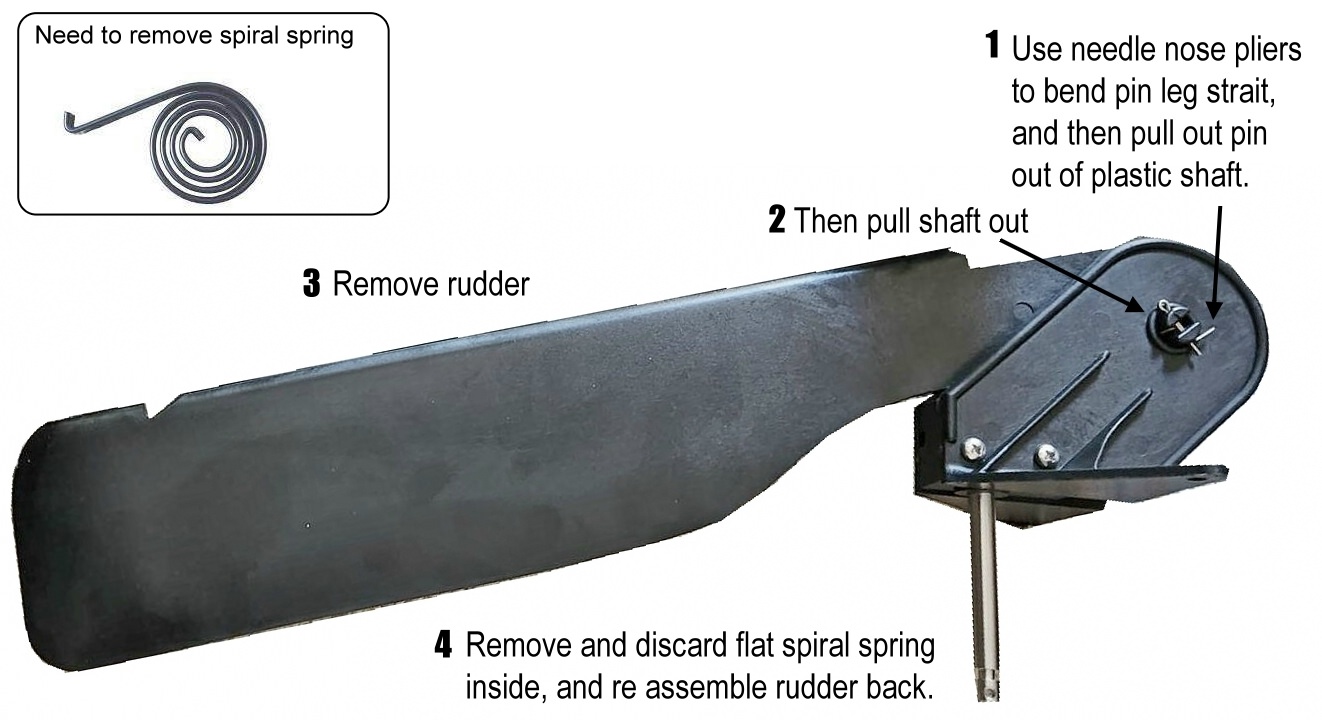

Video of Saturn Pedal Board with Rudder install.

Video of Saturn Pedal Board with Rudder Lever install.

FAQ:

Question: Can this pedalboard be used for fishing, how do I add rod holders?

Answer: PSUP325 pedal board comes with rail tracks for accessories that works with any type of kayak accessories designed for tracks. Can mount for example RAILBLAZA rod holders, adapters, etc. All these accessories are available on Amazon.com

Question: Why pedalboard does not have rudder system pre installed?

Answer: In order to keep price affordable, we decided to opt out of kayak rudder being pre installed. Kayak comes with fin that offer strait tracking. Kayak paddle can be used to adjust direction as needed. Optional, included, rudder can be easily added to this kayak if it required. Please see suggested method of installation in Attachments tab.

Quick instructions:

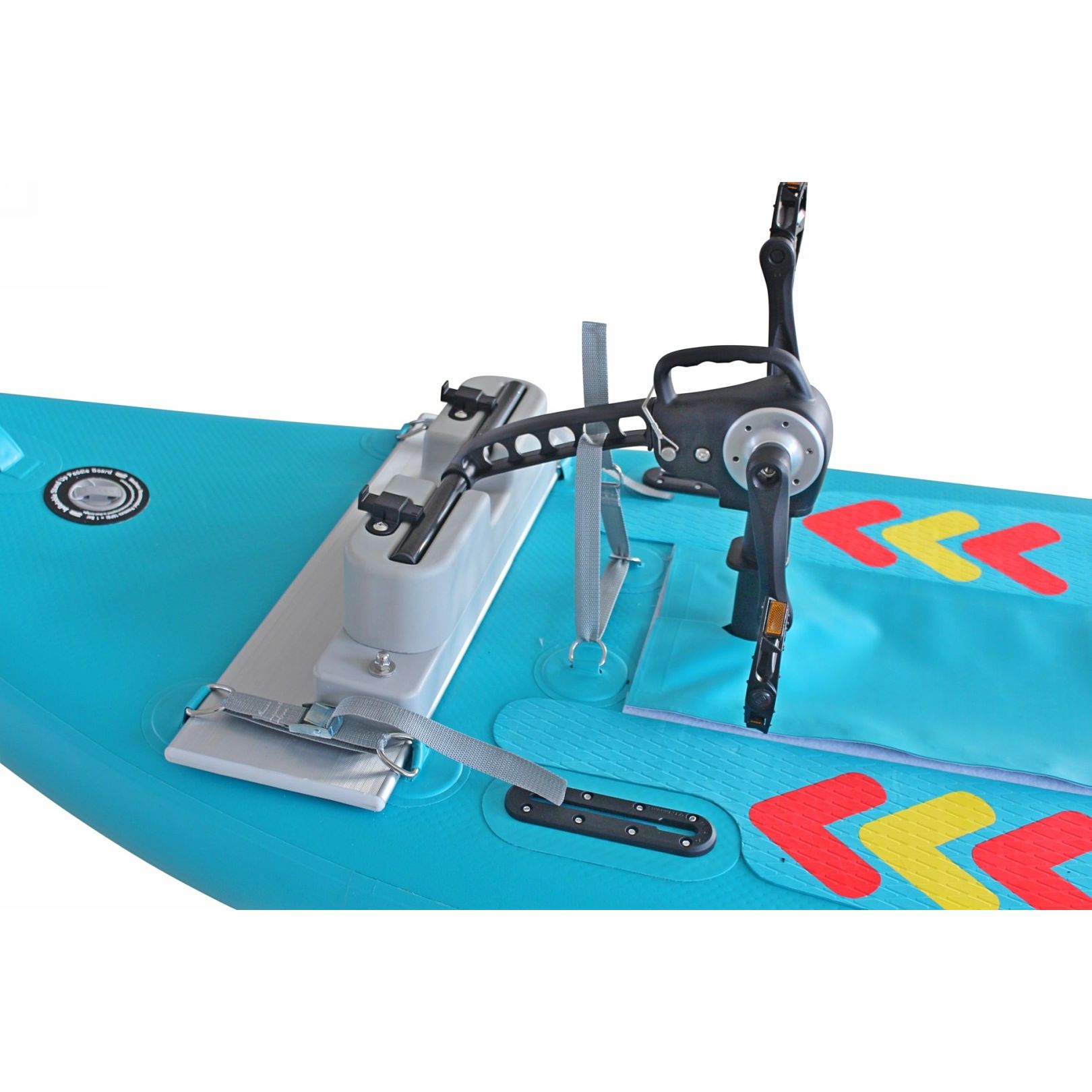

• If not already done so, rotomolded pedal drive mount need to be bolted to aluminum bench with 2 provided stainless steel bolts.
• 2 plastic sliding locks need to be attached on top of rotomolded mount with 2 screws each. Locks are needed to hold pedal drive rod inside mount.
• If locks are difficult to lock over pedal drive mounting tube installed into mount, then remove locks and place washers under these, to raise both locks slightly higher.
• Place aluminum bench between 2 D-rings on each side of board bow area. Use provided 2 straps to secure bench, so that it does not move. Provided straps can be replaced with lashing tie downs sold on Amazon if needed. Just cut them shorter and fry cut ends with open flame.
• Position bench in such way, that mount is in center of board, aligned with elongated cut out in kayak floor. Pedal drive shaft must be perpendicular to the floor and centered inside cut out. Move bench left or right to center pedal drive against cut out.

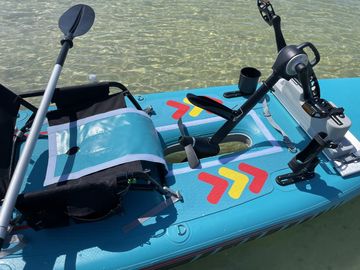

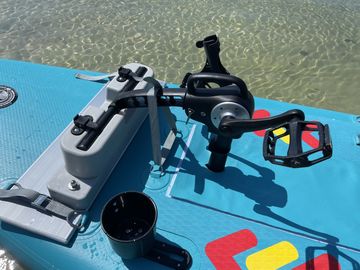

• Remove front section of Velcro cover, and lower pedal drive into opening. Secure with provided strap with double D-rings between 2 x D-rings in front of opening, so that motor does not move upward when pedaling. Strap can be replaced with optional lashing tie down. If you need to raise pedal drive, simply unlock strap from double D-rings, and pull motor out of opening by rotating it over rod secured inside rotomolded mount. You can also close cover and place pedal drive skeg right on top of that cover.
• Do NOT try to turn pedals when prop resting on surface of board, as that might loosen bolt holding prop and prop can be lost while in use.

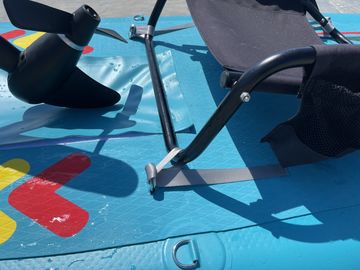

• Use straps with double D-rings to secure beach chair to kayak floor. Experiment to find best possible position. Lower chair is better. Optional 4 lashing tie can be used as alternative for double D-ring system.
• Generally, kayak paddle can be used to easily adjust kayak directions, with just few strokes.

Important Notes on assembly:

• To familiarize yourself with product, fully assemble kayak and pedal drive at your home first, before going for actual water run.
• Make sure all components fit properly. Please check all nuts and bolts not to be loose before first use.
• When pedal drive lowered, it's shaft should rest against cut out front section.
• Pedal drive shaft must be perpendicular to kayak floor.
• If pedal drive not perpendicular to the floor, it might be necessary to re-drill new holes on aluminum bench to adjust position of pedal drive little bit forward or backward. Because inflatable kayaks assembled manually, one by one, slight variations are possible during production. If that is the case, and shaft not under 90 degree angle to the floor, then all you need to do, is to remove bolts from motor mount, position it on top of aluminum bench in a such way that shaft of pedal drive is perpendicular to the floor, mark edge of motor mount on bench, and drill 2 new holes to secure motor mount to bench. Another option would be to remove plastic pedal drive mount, rotate it 180 degree, and then bolt it back to aluminum bench. Because distance from tube to edge of mount different that might move pedal drive shaft to correct position without need for drilling.
• Pedal drive rebuild video can be found here. Oiling and maintenance videos here.
• Spare parts available. Please contact us for spare parts.
• Pedal Drive Manual (Pedal-Drive-Manual.pdf, 1,844 Kb) [Download]
• Pedal Drive Installation (pedal-drive-mount-details.jpg, 137 Kb) [Download]

Important Warnings:

• DO NOT USE HAMMER DURING ASSEMBLY OF PEDAL DRIVE. THAT WILL DAMAGE GEAR INSIDE PEDAL DRIVE AND WILL VOID WARRANTY.
• NOTE, THAT OUT OF 2 BOLTS SECURING PEDAL CRANKS TO DRIVE, ONE IS CLOCKWHISE BOLT AND ANOTHER IS COUNTERCLOCKWISE.
• INSPECT ALL BOLTS ARE TIGHT AND NOT LOOSE. APPLY OPTIONAL LIQUID LOCKNUT IF NEEDED.
• INSPECT BOLT HOLDING PROP IN PLACE TO MAKE SURE IT IS NOT LOOSE, TO AVOID LOOSING PROP IN A WATER. APPLY LOCKNUT LIQUID.
• APLY OPTIONAL LIQUID LOCKNUT TO BOLTS, TO PREVENT BOLTS BEEING LOOSE DURING OPERATION.
• WEAR PERSONAL FLOTATION DEVICE OR HAVE IT AVAILABLE.
• DO NOT LOAD HEAVY WEIGHT ON A KAYAK WHEN FIN IS ON A GROUND.
• DO NOT DRAG KAYAK OVER PAVEMENT.
• CLICK ON ATTACHMENT TAB TO DOWNLOAD PEDAL DRIVE MANUAL.
• MAKE SURE TO LUBRICATE PEDAL DRIVE FROM TIME TO TIME.
• KAYAK WARRANTY 2 YEARS, PEDAL DRIVE 1 YEAR.
