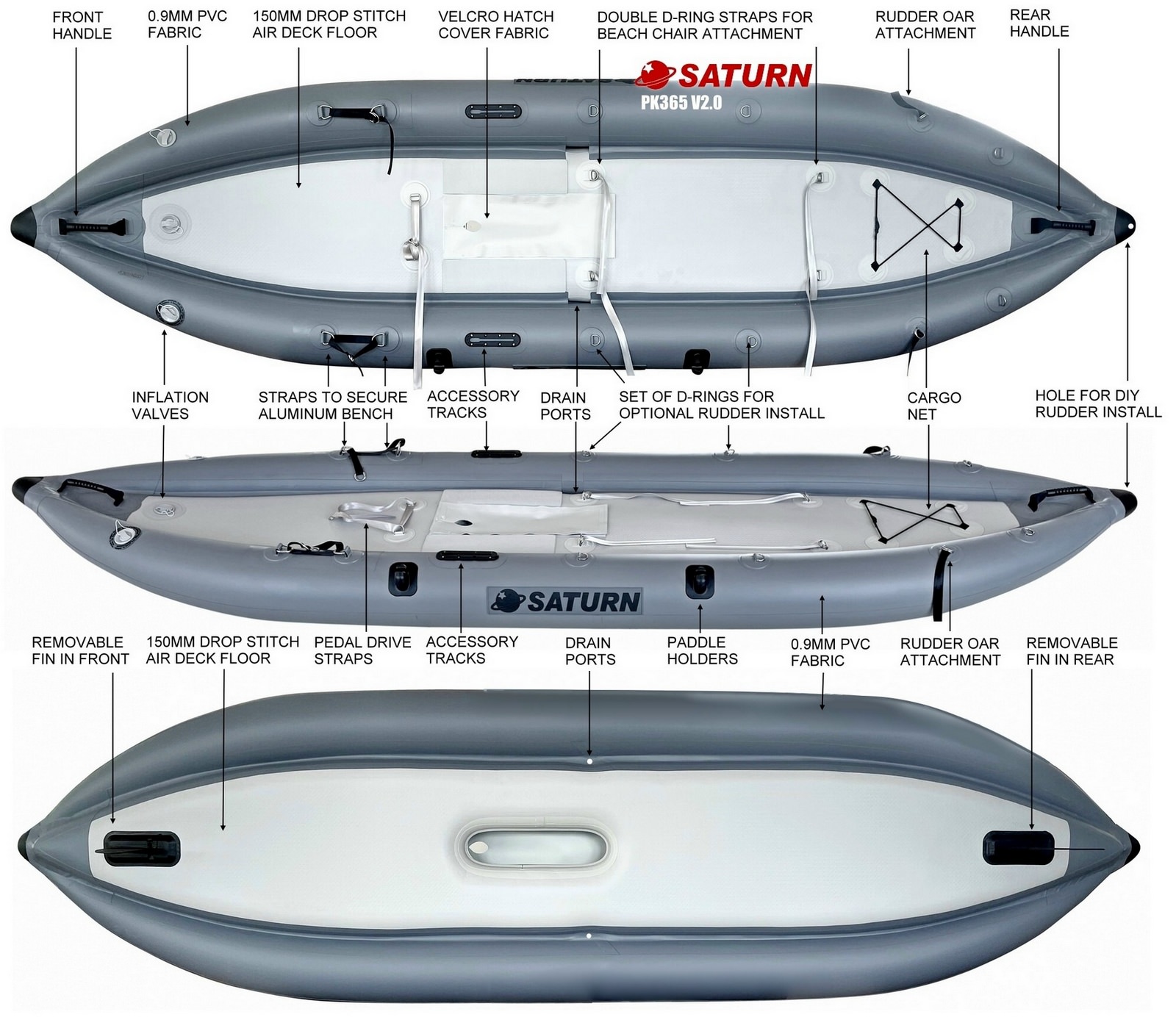

2 Accessory tracks for optional fishing rod holders, cup holders, fish finders, etc.
Improved, easy install motor mount plate attachment with 2 tie downs.
New, lighter, compact folding bike drive with improved pedals.
Set of D-rings for easy install of included optional DIY kayak rudder.
Self bailing drain ports on both sides, for dry ride.
Snap-in holders for kayak paddles on left side.
New V2.0 model of inflatable kayaks with pedal drive, for human powered propulsion on a water, for fishing, pleasure and exercise. Any type of low or high beach chair can be mounted on top of that kayak using double D-rings with straps.
Kayak comes with aluminum bench and rotomolded mount to hold pedal drive on that bench. Also comes with high quality aluminum pedal drive, compare to $899. Pedal drive V2.0 is new, lighter model that can be folded for portable storage and transportation.
Kayak has elongated cut out to drop in pedal drive. Cut out can be closed with a Velcro cover. Motor can be lifted up and out of way for easy beaching. Pedal kayak can also be used without drive, with regular kayak paddles.
There are 3 steering options for PK365 inflatable pedal kayak. Easiest and simplest, is just to use kayak paddle to change direction of movement. Fins on a bottom of kayak helps it with strait directional movement. Just few stroke of kayak paddle can easily adjust direction as needed. 2nd option, is to attach kayak paddle or SUP paddle (not included) to one of double D-rings in rear of tubes, drop blade in a water, and use that paddle blade as a rudder. New V2.0 now also comes with 3rd option - DIY rudder kit that can be installed into special hole in a rear end cone of the kayak hull. Please see Attachment tab for suggested install options.
Length - 12'
Tube diameter - 8"
Floor thickness - 6"
Inside width - 22"
Max weight - 300 lbs
Kayak weight - 33 lbs
Pedal Drive weight - 14 lbs
Shipping/Packing Size - 33 x 24 x 12".
Shipping Weight - 67 lbs
Pedal drive folded dimensions: 30 x 10 x 5"
Pedal drive is saltwater ready. Flashing with fresh water after use is recommended.
Recommended air pressure for tubes 25kpa and floor is 60kpa.
Any type of beach chair, sand chair, lawn chair, etc (not included) can be mounted on top of this kayak.
Included: carry bag, hand pump, 2 removable fins, alum bench, pedal drive and rotomolded mount for it.
Optional kayak rudder for DIY install included as a bonus, free gift. Please see Attachment tab for install suggestions.
NOT INCLUDED: kayak paddle, beach chair, fishing rod holders.
WARNING! Please read below for important notices.
Inflatable Pedal Kayak PK365 V1.0. (shown with non folding pedal drive)
Customer's review of pedal kayak V1.0
Inflatable Pedal Kayak first prototype.
Example of DIY rudder system.
Question: Can this kayak be used for fishing, how do I add rod holders?
Answer: There is sturdy aluminum board attached across kayak hull. Fishing rod holders, fish finders, and other equipment can be bolted right to that aluminum board. Optional Scotty glue on fishing rod holders can be glued to top of tubes or floor. Milk crate with fishing rod holders can be placed on floor and secured with bungee cords or lashing tie downs. Possibilities are endless for customers with imagination and good hands. New V 2.0 now comes with rail tracks for accessories that works with any type of kayak accessories designed for tracks. Can mount for example RAILBLAZA rod holders, adapters, etc.
Question: Why kayaks does not have rudder in a rear pre installed?
Answer: In order to keep price affordable, we decided to opt out of kayak rudder being pre installed. Kayak comes with 2 fins that offer strait tracking. Kayak paddle can be used to adjust direction as needed. Optional, included, rudder can be easily added to this kayak if it required. Please see suggested method of installation in Attachments tab.
If not already done so, rotomolded pedal drive mount need to be bolted to aluminum bench with 2 provided stainless steel bolts.
2 plastic sliding locks need to be attached on top of rotomolded mount with 2 screws each. Locks are needed to hold pedal drive rod inside mount.
Place aluminum bench between 2 D-rings on each side of tube, in front of cut out. Use provided 2 straps to secure bench, so that it does not move. Provided basic double D-ring straps can be replaced with much stronger lashing tie downs sold on Amazon if needed. Just cut them shorter and fry cut ends with open flame.
Position bench in such way, that mount is in center of kayak, aligned with elongated cut out in kayak floor. Pedal drive shaft must be perpendicular to the floor and centered inside cut out.
Remove Velcro cover, and lower pedal drive into opening. Secure with Velcro strap between 2 x D-rings in front of opening, so that motor does not move upward when pedaling. If you need to raise pedal drive, simply disconnect Velcro straps and pull motor out of opening by rotating it over rod secured inside rotomolded mount. You can also close cover and place motor prop right on top of that cover.
Do NOT try to turn pedals when prop resting on surface of kayak, as that might loosen bolt holding prop and prop can be lost while in use.
Use straps with double D-rings to secure beach chair to kayak floor. Experiment to find best possible position. Lower chair is better.
Generally, kayak paddle can be used to easily adjust kayak directions, with just few strokes.
Important Notes on assembly:
Assemble kayak and pedal drive at your home first, before going for actual water run.
Make sure all components fit properly. Please check all nuts and bolts not to be loose before first use.
When pedal drive lowered, it's shaft should rest against cut out front section.
Pedal drive shaft must be perpendicular to kayak floor.
If pedal drive not perpendicular to the floor, it might be necessary to re-drill new holes on aluminum bench to adjust position of pedal drive little bit forward or backward. Because inflatable kayaks assembled manually, one by one, slight variations are possible during production. If that is the case, and shaft not under 90 degree angle to the floor, then all you need to do, is to remove bolts from motor mount, position it on top of aluminum bench in a such way that shaft of pedal drive is perpendicular to the floor, mark edge of motor mount on bench, and drill 2 new holes to secure motor mount to bench. Another option would be to remove plastic pedal drive mount, rotate it 180 degree, and then bolt it back to aluminum bench. Because distance from tube to edge of mount different that might move pedal drive shaft to correct position without need for drilling.
Pedal drive rebuild video can be found here. Oiling and maintenance videos here.
Spare parts available. Please contact us for spare parts.
DO NOT USE HAMMER DURING ASSEMBLY OF PEDAL DRIVE. THAT WILL DAMAGE GEAR INSIDE PEDAL DRIVE AND WILL VOID WARRANTY.
NOTE, THAT OUT OF 2 BOLTS SECURING PEDAL CRANKS TO DRIVE, ONE IS CLOCKWHISE BOLT AND ANOTHER IS COUNTERCLOCKWISE.
INSPECT ALL BOLTS ARE TIGHT AND NOT LOOSE. APPLY OPTIONAL LIQUID LOCKNUT IF NEEDED.
INSPECT BOLT HOLDING PROP IN PLACE TO MAKE SURE IT IS NOT LOOSE, TO AVOID LOOSING PROP IN A WATER. APPLY LOCKNUT LIQUID.
APLY OPTIONAL LIQUID LOCKNUT TO BOLTS, AS AN ADDITIONAL OPTION, TO PREVENT BOLTS BEEING LOOSEN DURING OPERATION.
WEAR PERSONAL FLOTATION DEVICE OR HAVE IT AVAILABLE.
INFLATE MAIN FLOOR TO MAX OF 70KPA(10PSI) INFLATE SIDE TUBES TO MAX OF 25KPA(3.5PSI)
DO NOT LOAD HEAVY WEIGHT ON A KAYAK WHEN FINS ARE ON A GROUND.
DO NOT DRAG KAYAK OVER PAVEMENT.
CLICK ON ATTACHMENT TAB TO DOWNLOAD PEDAL DRIVE MANUAL.
MAKE SURE TO LUBRICATE PEDAL DRIVE FROM TIME TO TIME.
DIY Idea to add electric motor (DIY-instructions-add-motor-to-pedal-kayak.jpg, 223 Kb) [Download]
DIY Kayak Rudder Idea #1 (DIY-Rudder-Pelical-MH10-part.jpg, 1,154 Kb) [Download]
DIY Kayak Rudder Idea #2 (DIY-Inflatable-Kayak-Rudder-Easy.jpg, 675 Kb) [Download]
DIY Kayak Rudder Idea #3 (DIY-Kayak-Rudder-Attachment.jpg, 664 Kb) [Download]
Rudder Spring Removal (Rudder-Spring-Fix.jpg, 173 Kb) [Download]
Frequently Asked Questions:
Question: Can this kayak be used for fishing, how do I add rod holders?
Answer: There is sturdy aluminum board attached across kayak hull. Fishing rod holders, fish finders, and other equipment can be bolted right to that aluminum board. Optional Scotty glue on fishing rod holders can be glued to top of tubes or floor. Milk crate with fishing rod holders can be placed on floor and secured with bungee cords or lashing tie downs. Possibilities are endless for customers with imagination and good hands.
Question: Why kayaks does not have rudder in a rear?
Answer: In order to keep price affordable, we decided to opt out of kayak rudder. Kayak comes with 2 fins that offer strait tracking. Kayak paddle can be used to adjust direction as needed. Optional rudder can be easily added to this kayak if it required. Please see suggested method of installation in Attachments tab.
