Set of 2 Inflatable SUPs to make motorized catamaran.
3-in-1: Inflatable Stand Up Paddle Boards, Sit-On-Top Kayaks, Motorized Catamaran for 2 people!

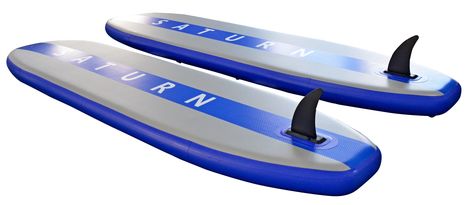

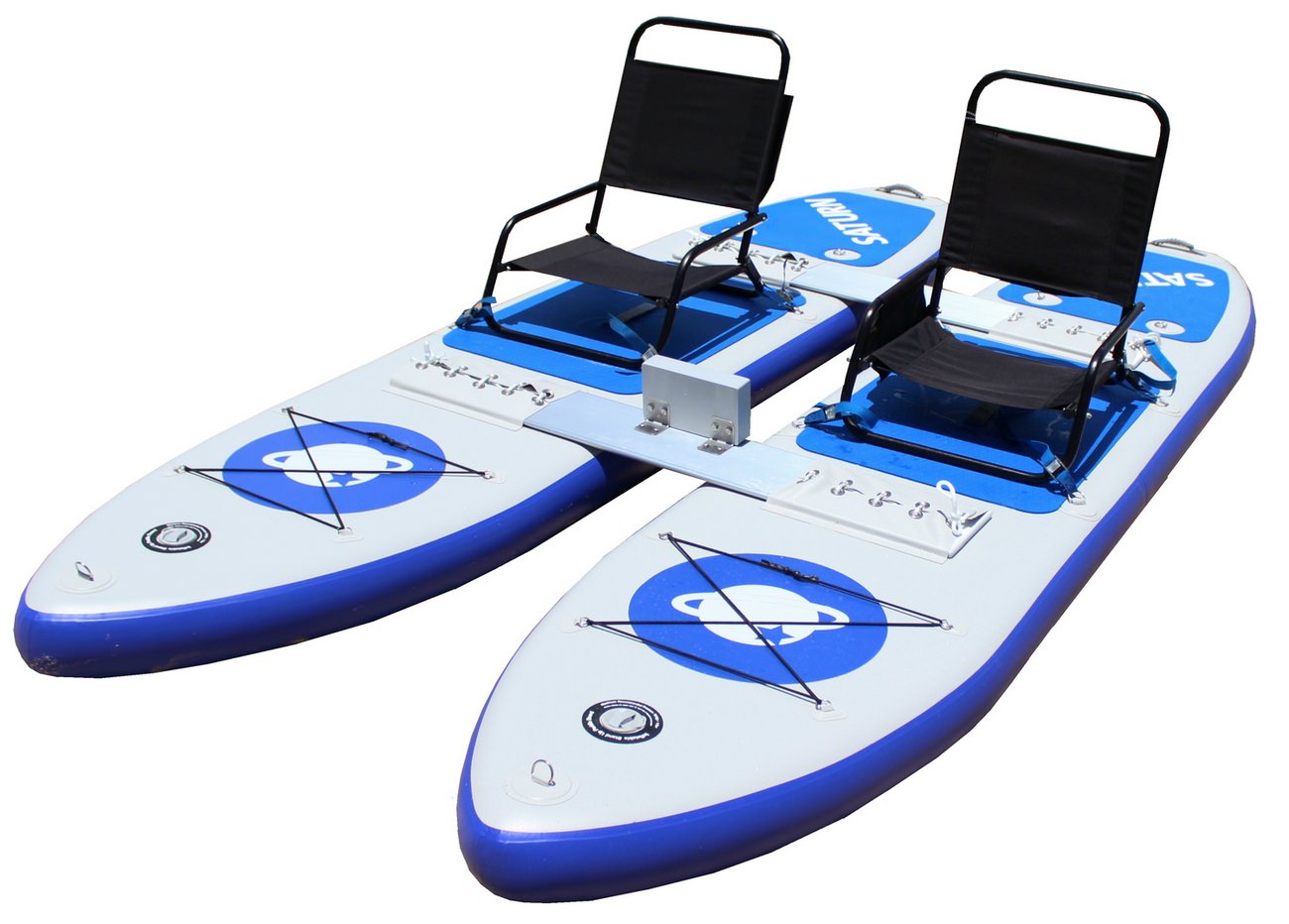

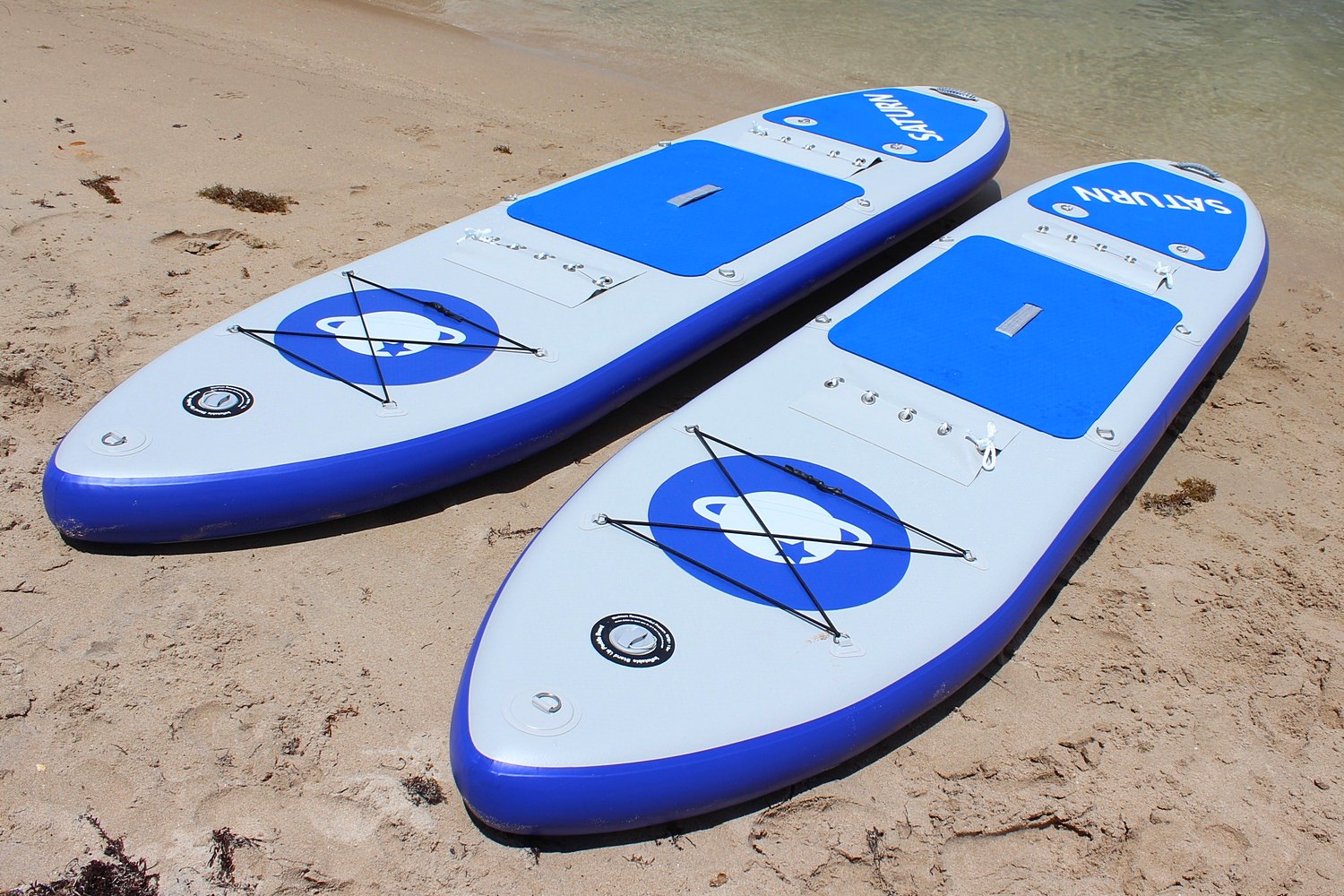

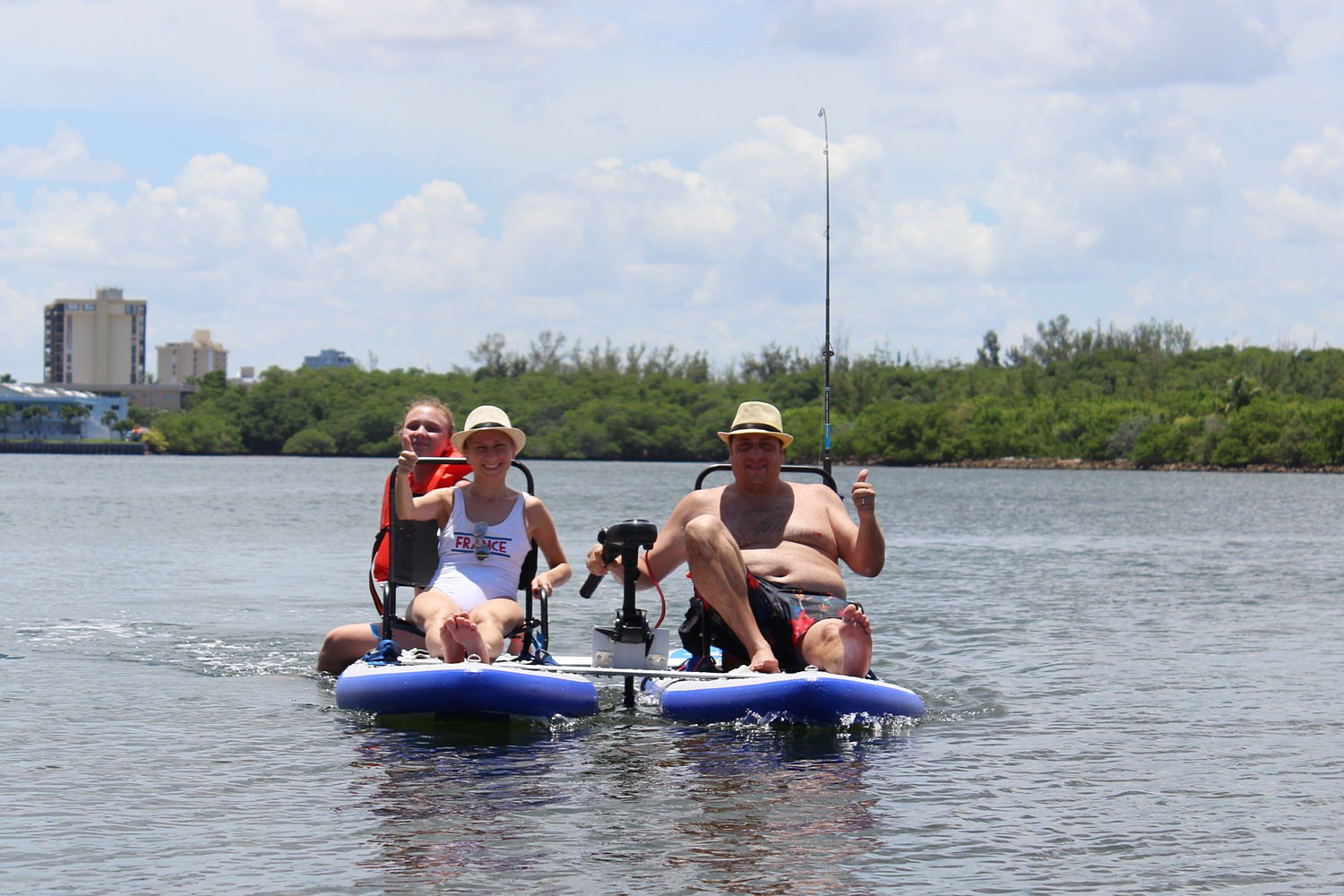

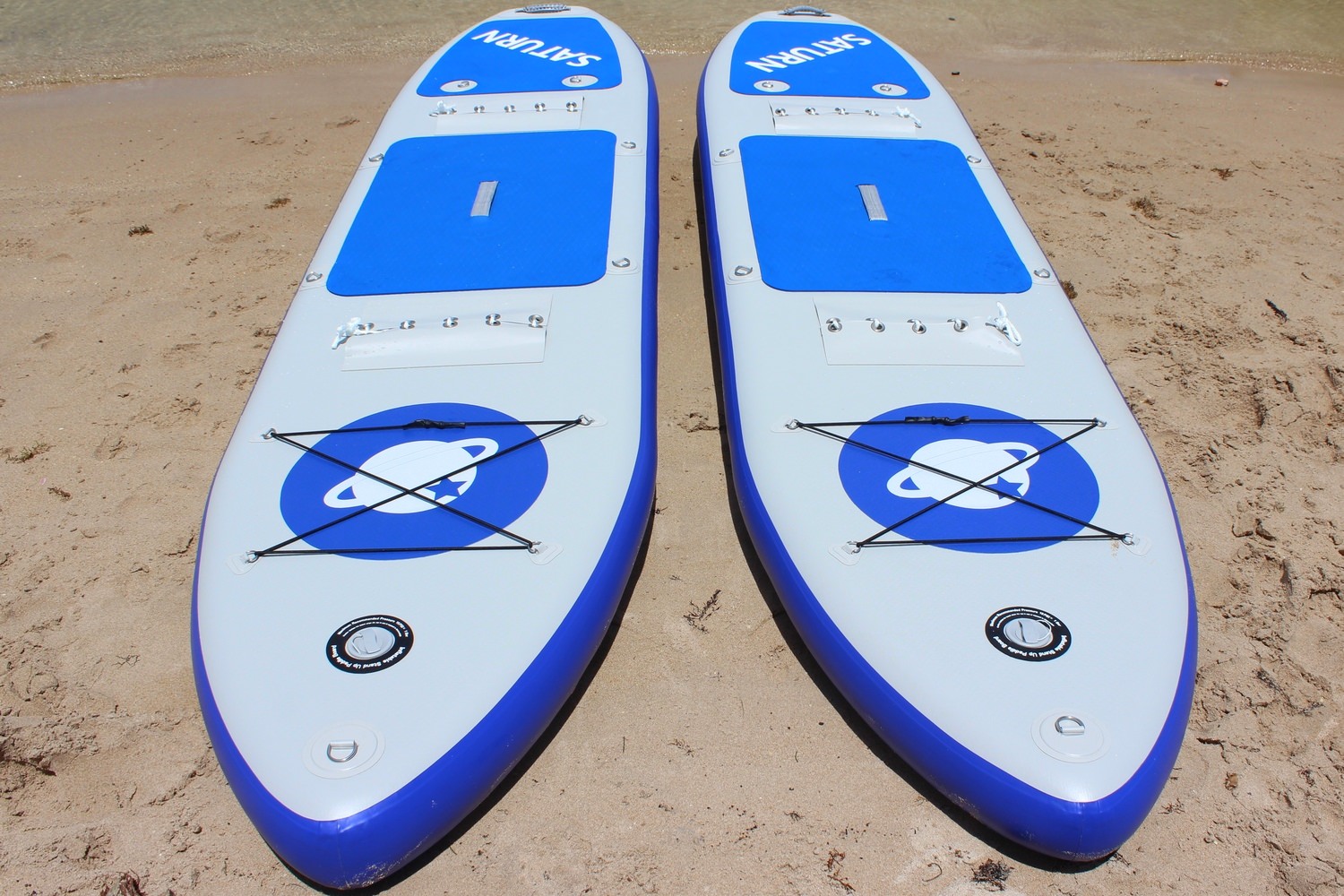

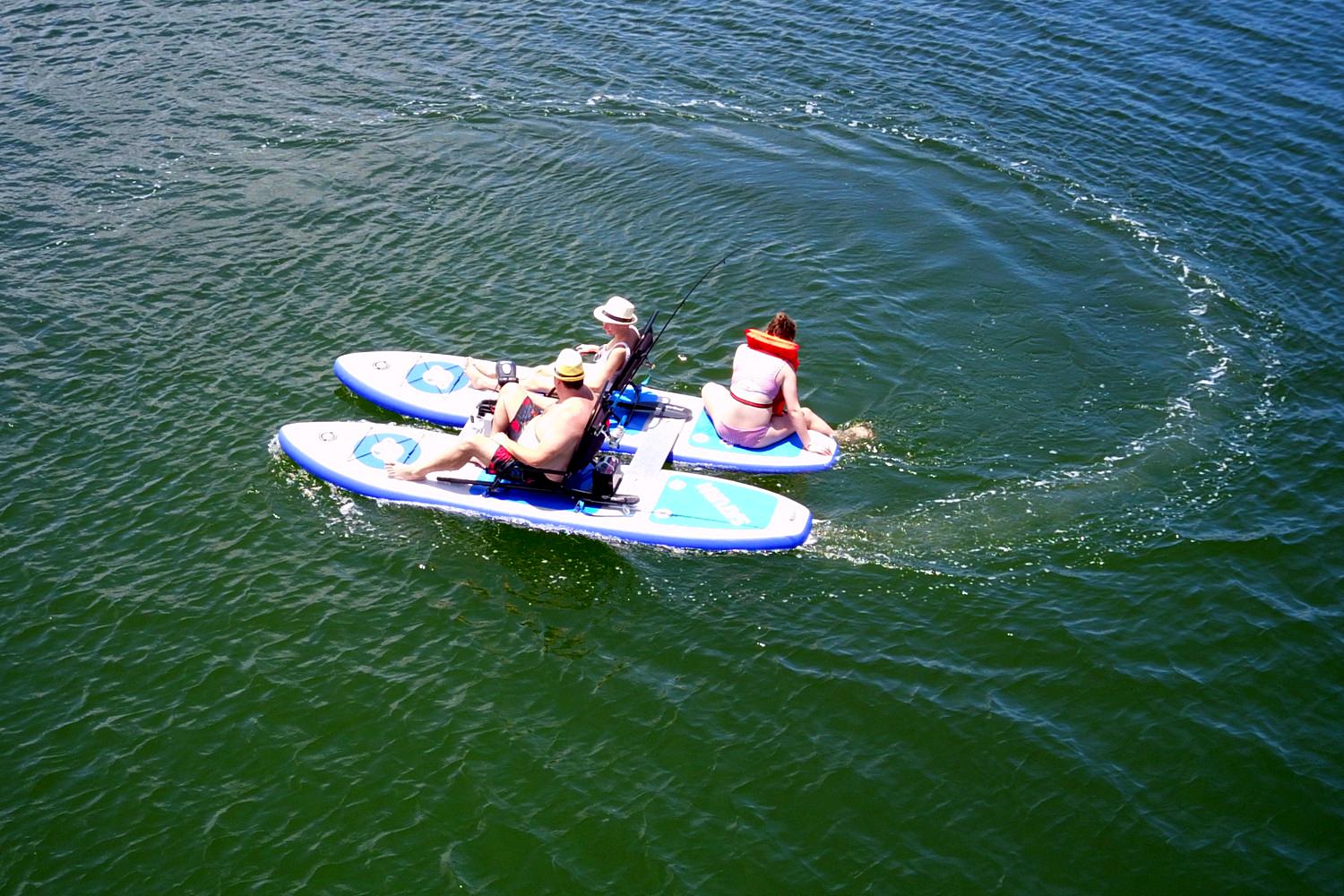

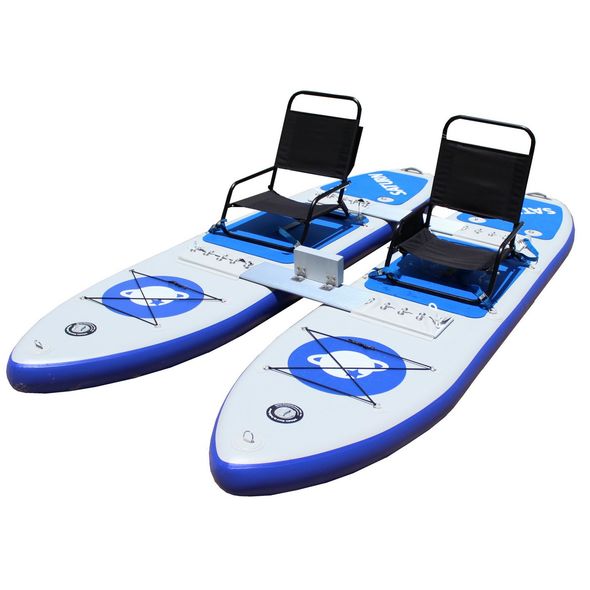

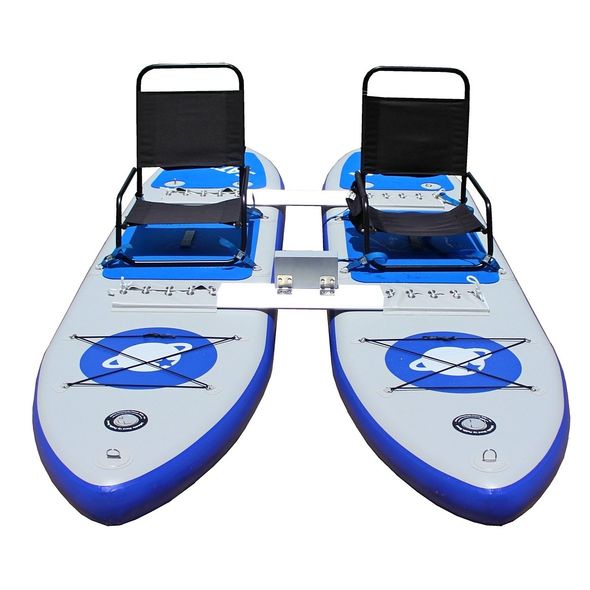

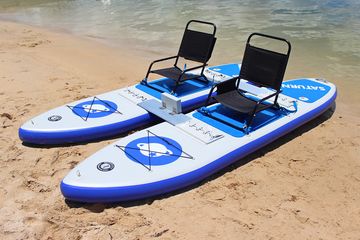

Unique product, designed to convert 2 inflatable stand up paddle boards into motorized catamaran. Separately, both high pressure inflatable boards can be use for stand up paddling for 2 people. Boards comes with D-rings on top, so that kayak seat or beach chair can be attached with tie downs, to use boards as a sit-n-top kayaks. Or, join both boards together using provided aluminum boards, and you have a catamaran for 2 people. Electric trolling motor can be installed on a transom that is mounted on one of benches. Place 2 beach chairs on top, and that makes perfect set for pleasure cruising or fishing.
Having 2 paddle boards joined together, it also possible to convert this set up into sail catamaran, as a DIY project. Just mount sail on a front aluminum board, with keel in between, and rudder attached to rear board. See below video for example of conversion.
SATURN Inflatable CatSUP Specifications:
Explore lake shores, rivers, and bays.
Can be used as a sit-on-top inflatable kayak, SUP or motorized catamaran.
Saturn boards are great for family fun and fitness.

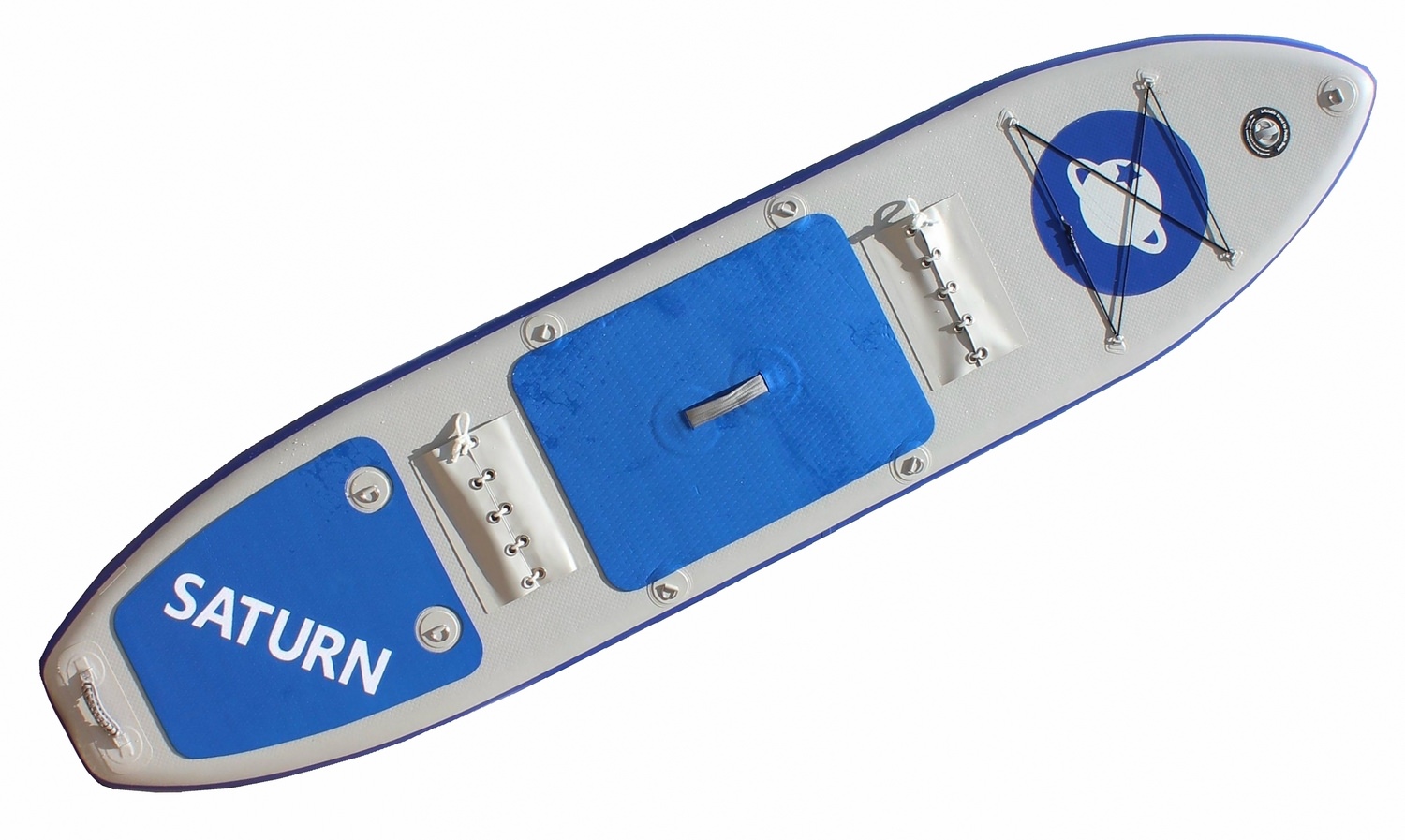

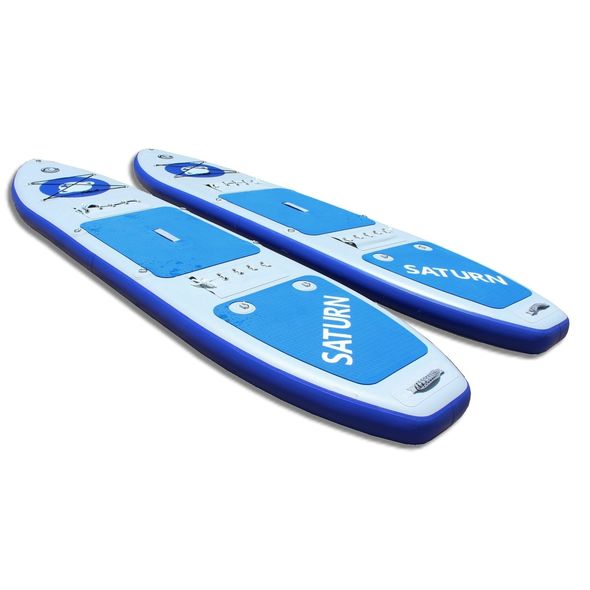

Set of 4 D-rings along board side for kayak seat attachment.
Raised rocker tip prevents curling and helps improve performance.

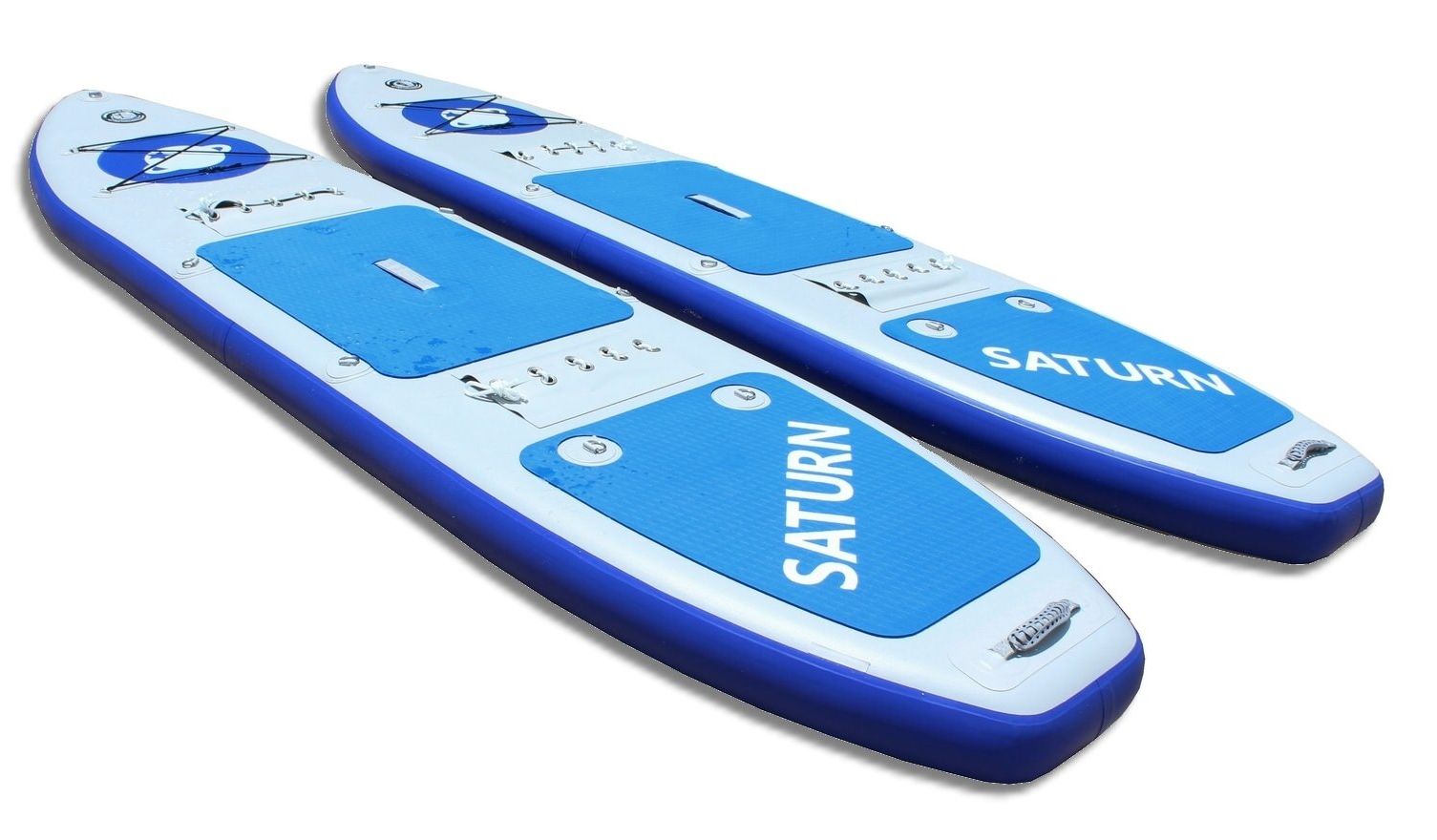

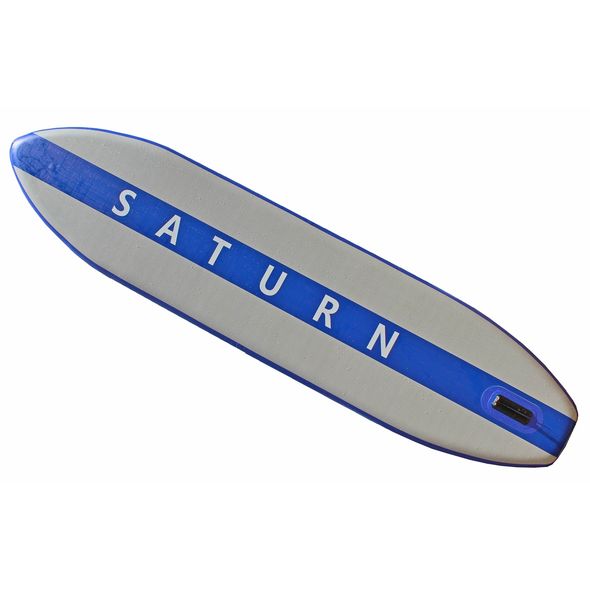

Both SUPs constructed of 150mm (6") heavy-duty PVC drop-stitch fabric.

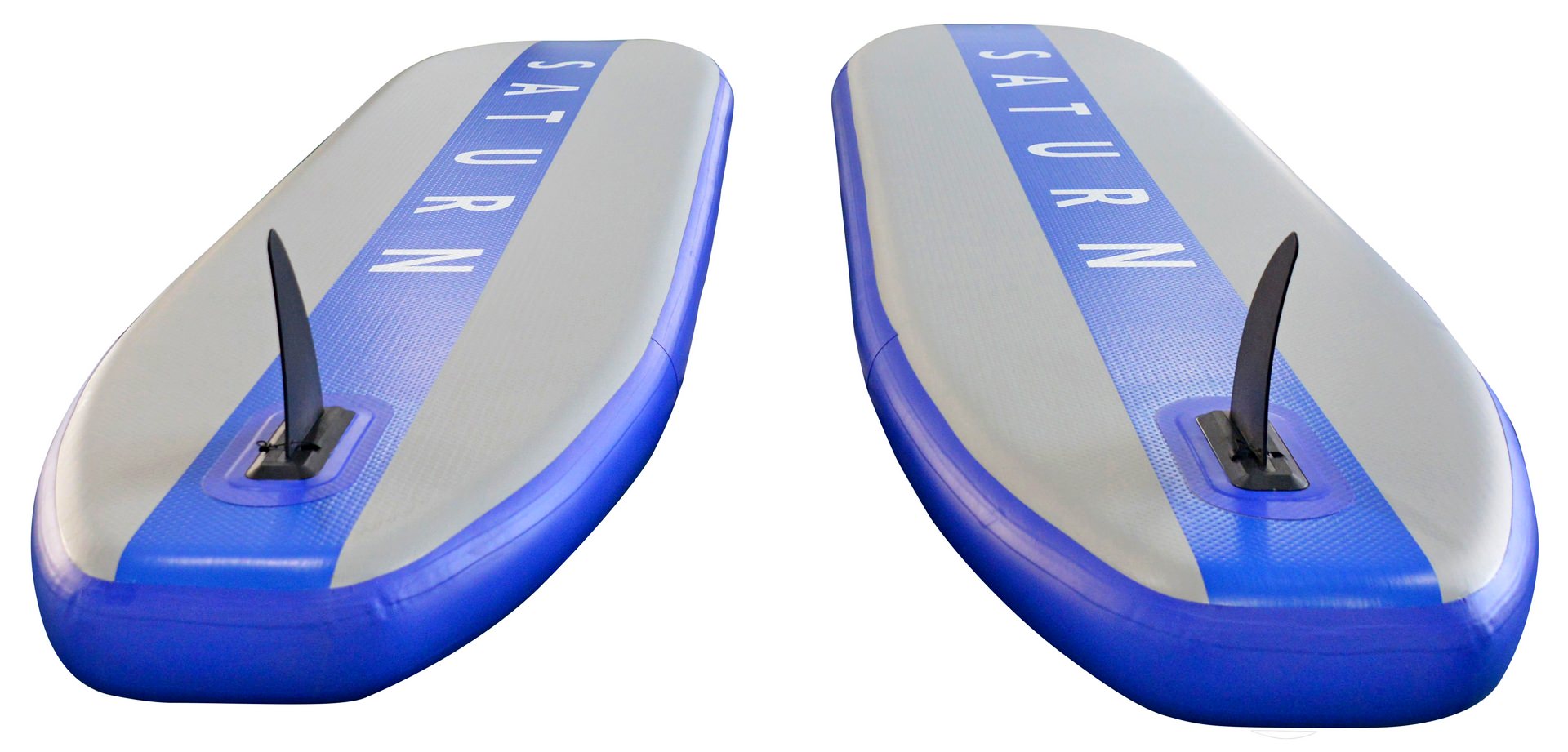

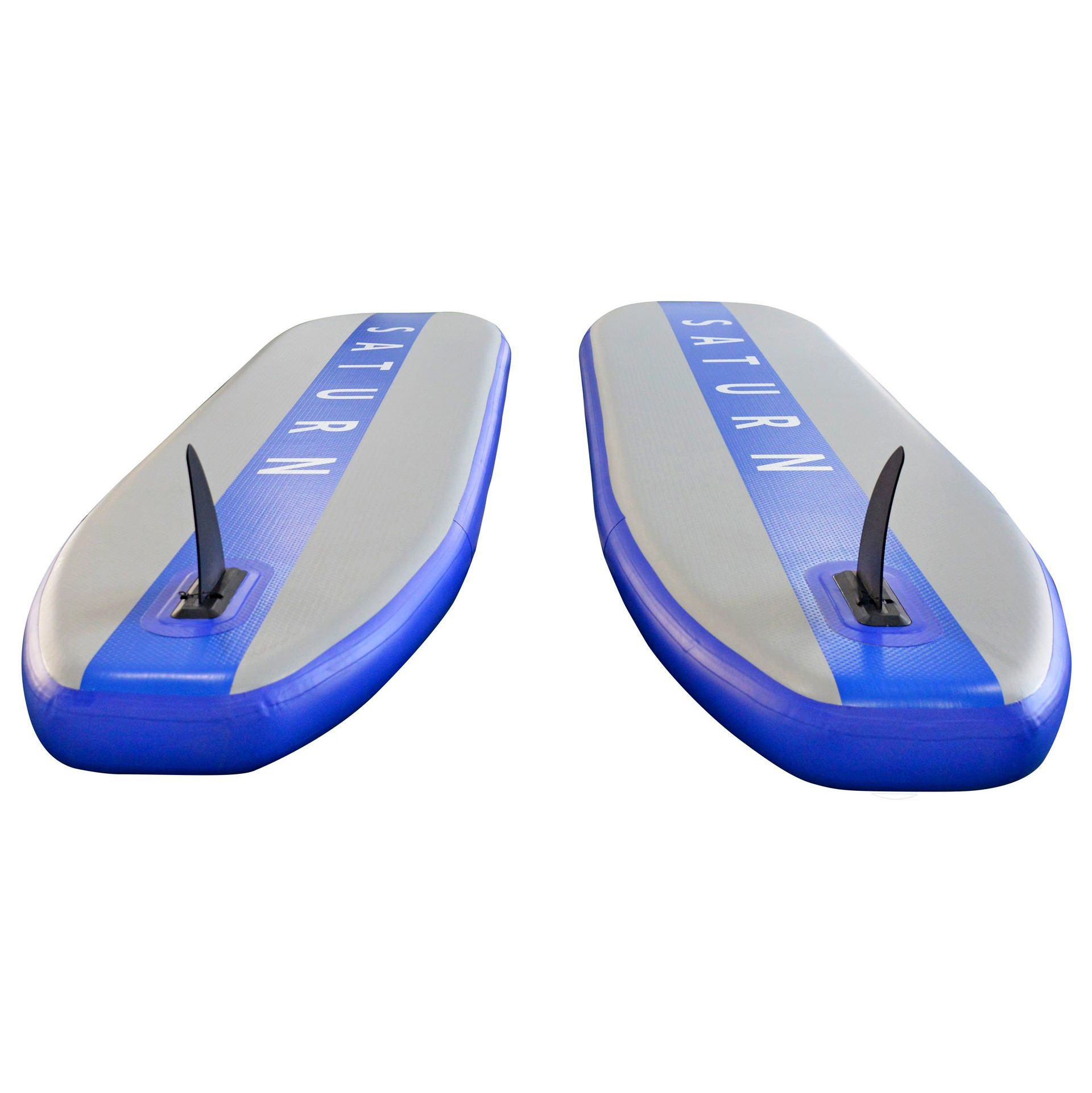

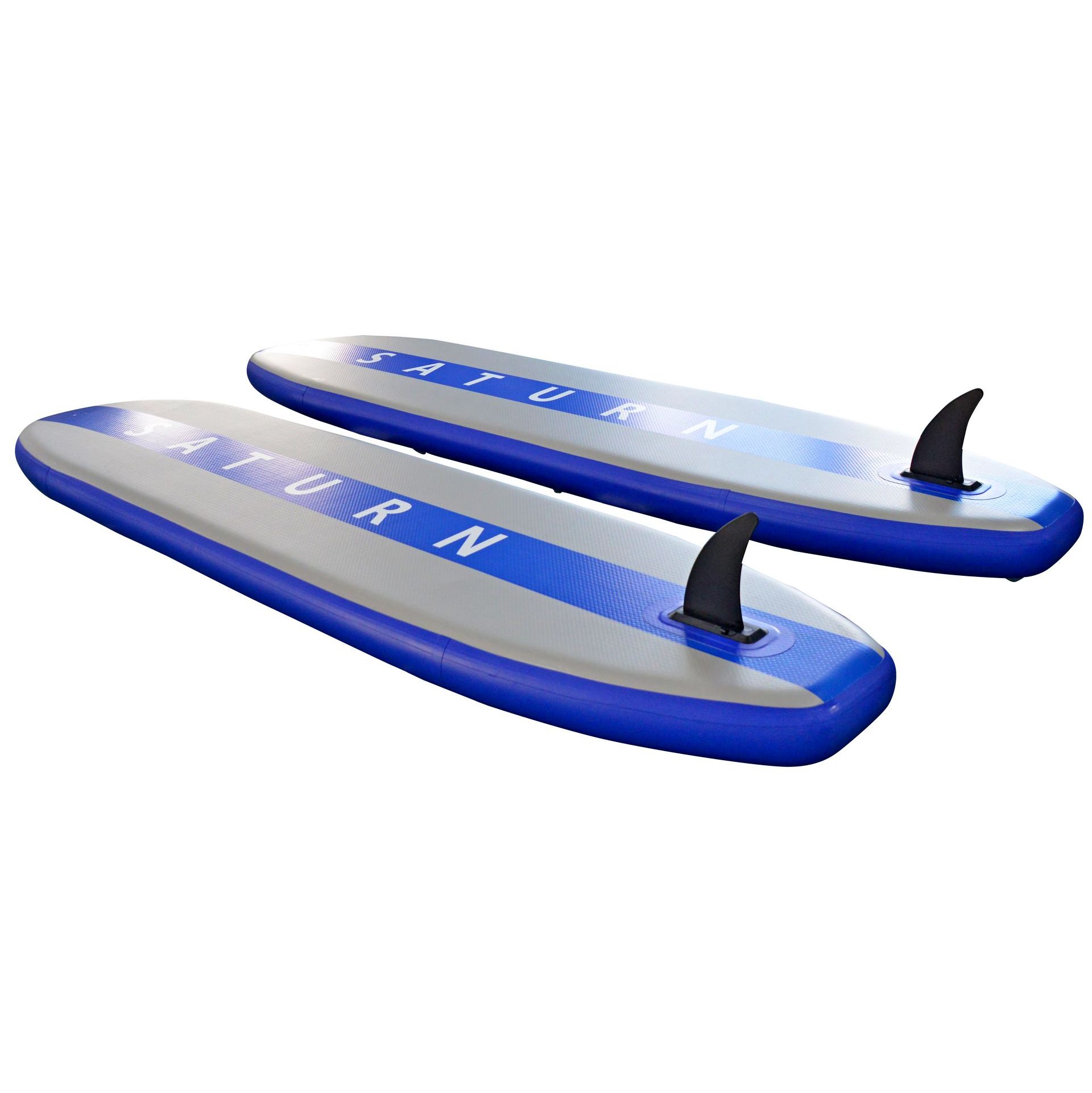

Easily removable large fins with no need for extra hardware.
Saturn paddle boards can be inflated between 10 and 15 psi of air pressure.
High-pressure hand pump, carry bag and repair kit are included!
Extra strips of PVC fabric overlapping critical seams, to allow inflation for up to 15psi.

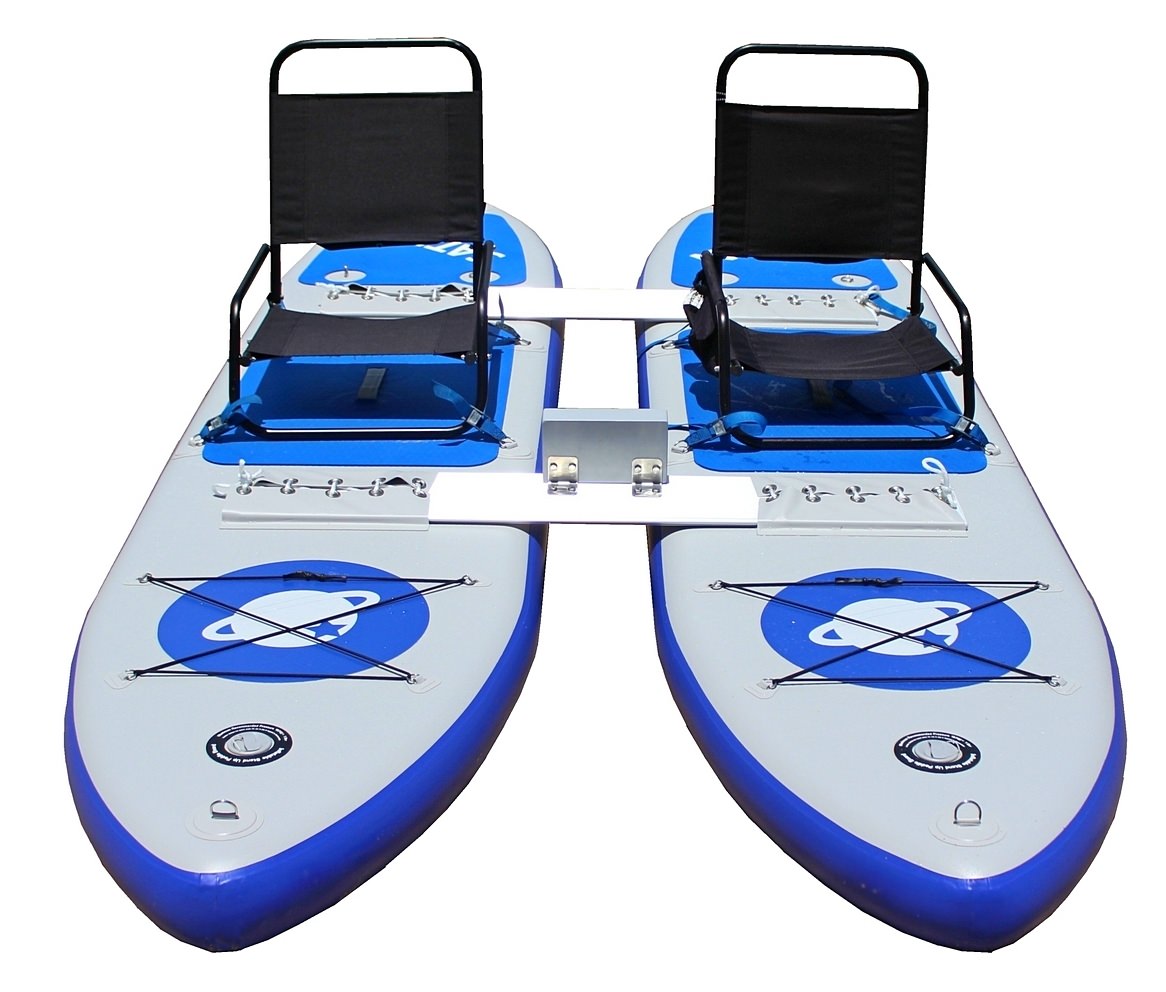

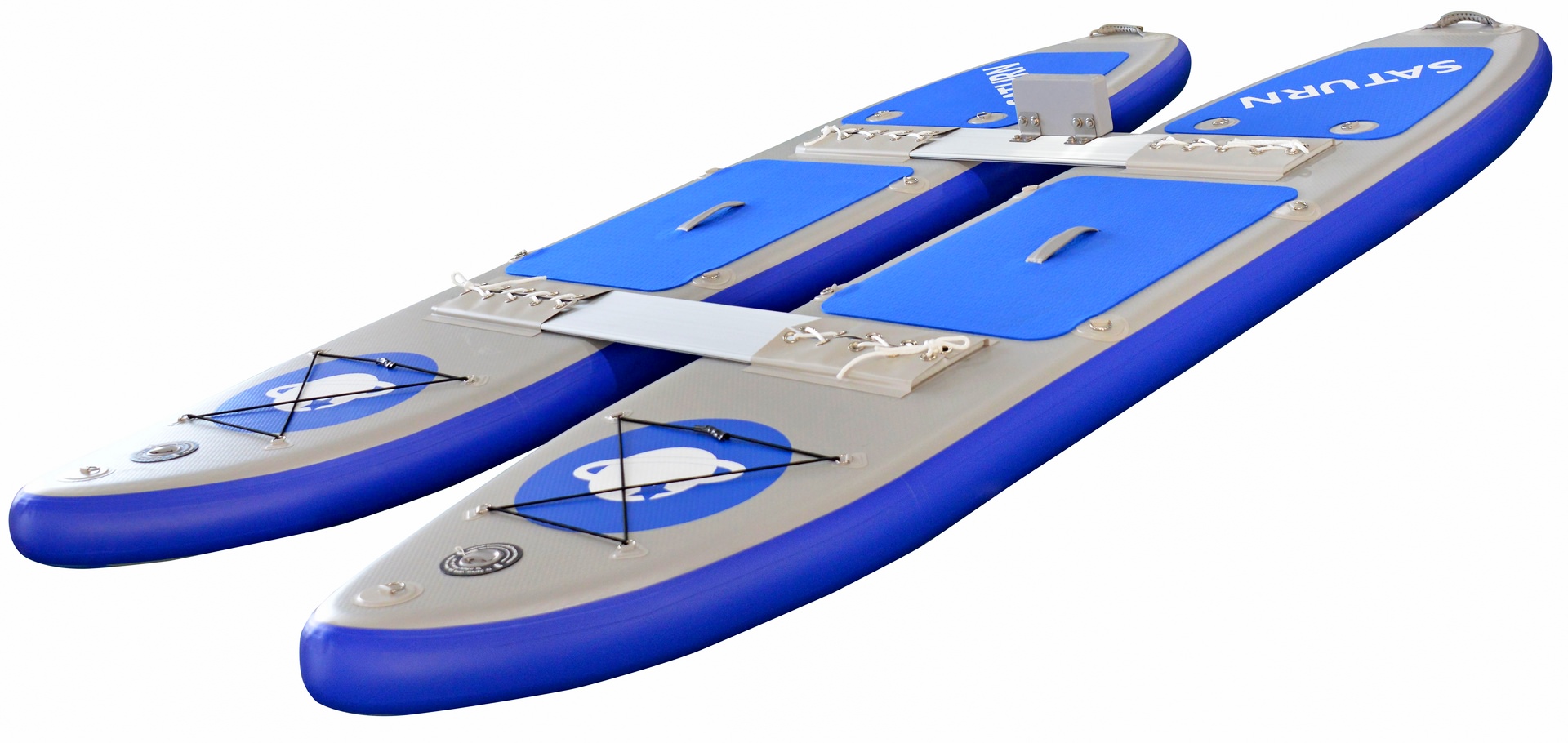

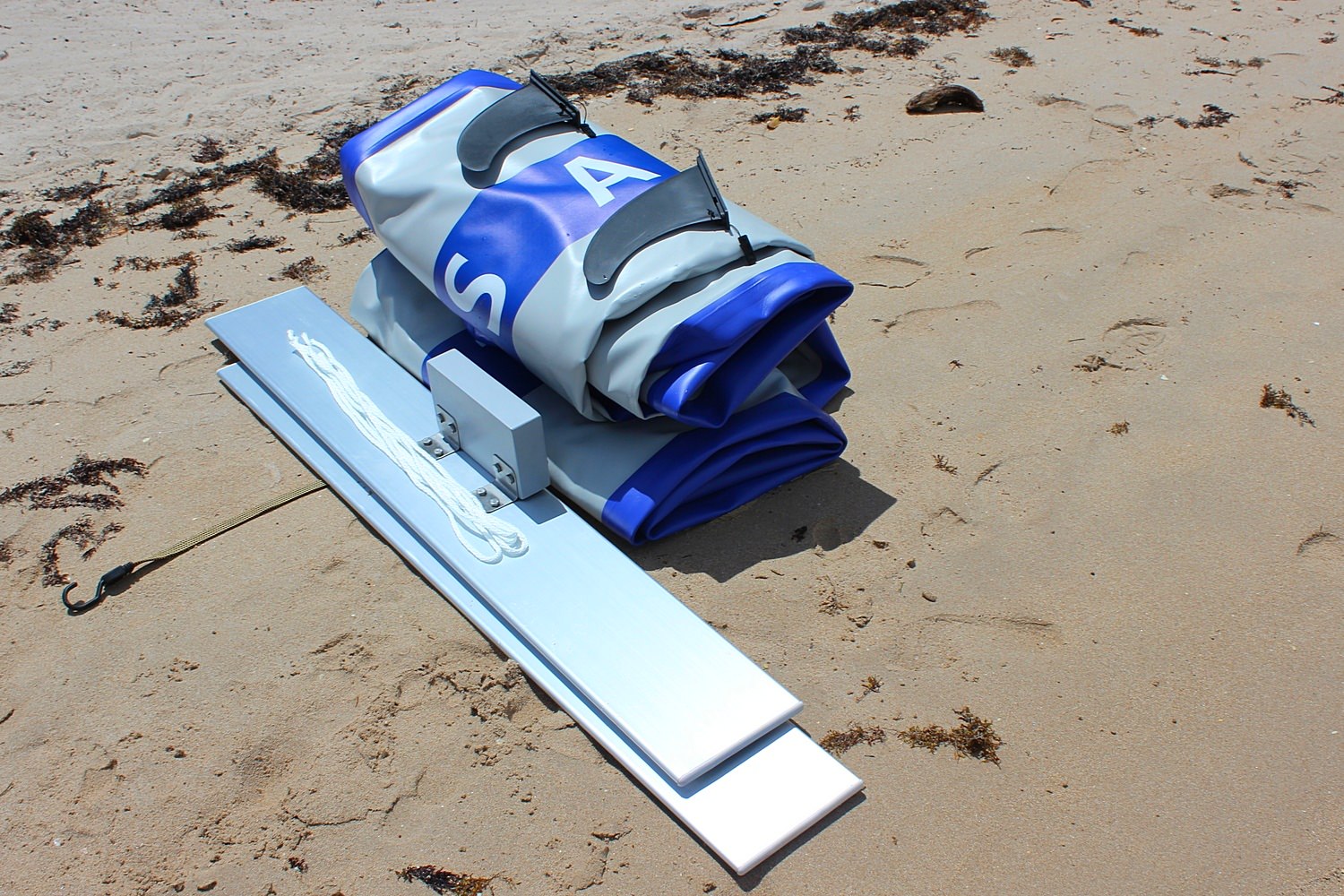

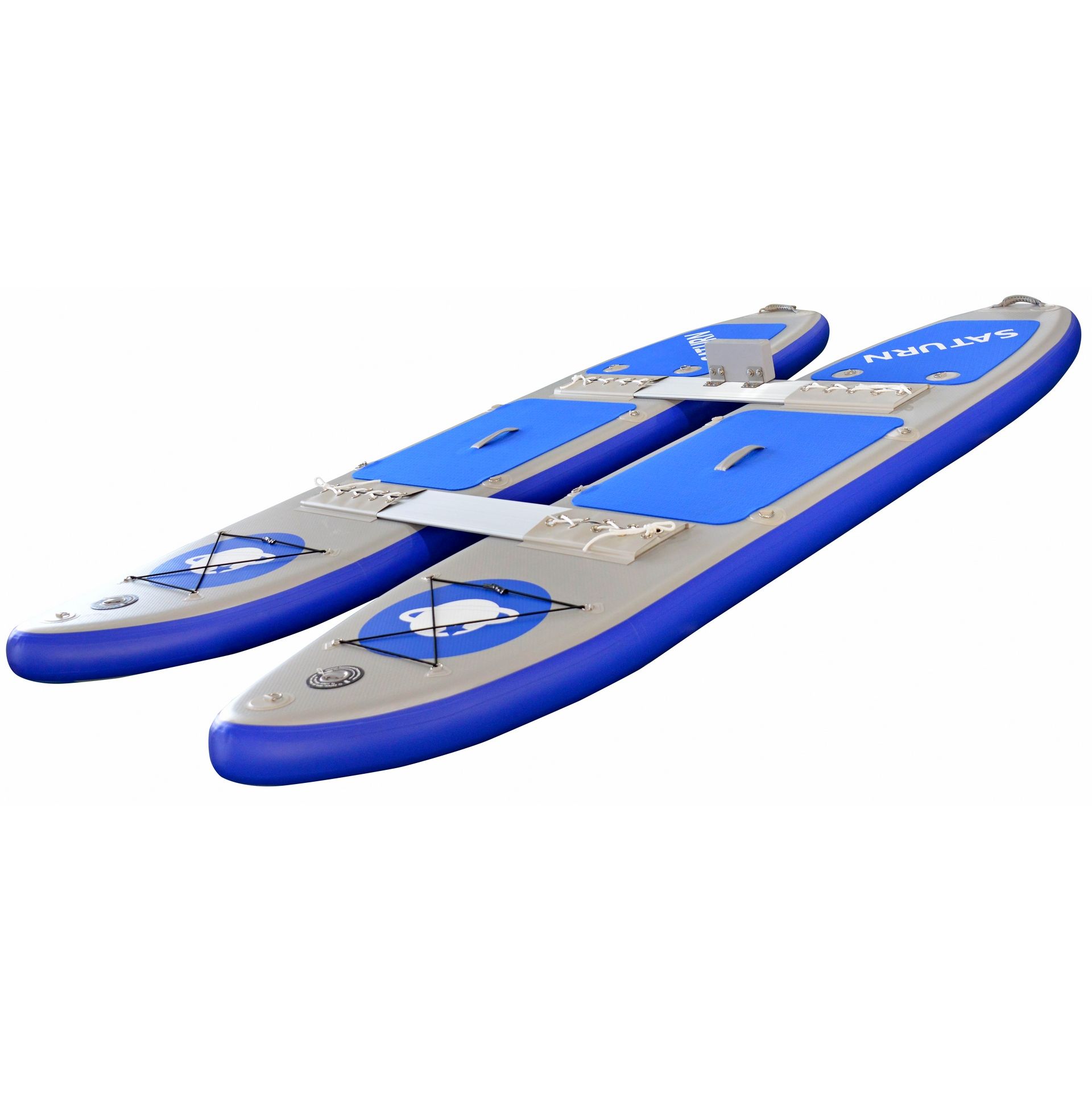

2 aluminum boards with motor mount, to join both SUPs into catamaran.
Patent pending lacing system to rigidly hold boards together.
Capacity: 1 person for SUP, up to 250lbs, or 2 persons for catamaran, up to 500lbs.
Length 11', width 30", distance between boards 8".
Overall catamaran width: 68".
Max outboard motor - 55lbs electric trolling motor.
Shipping Size: 51x27x10"
Shipping Weight: 77 lbs
Each paddle board weight: 20 lbs.
Inflatable SUP Catamaran From Saturn:
Older model of SUP Catamaran with DIY Sail

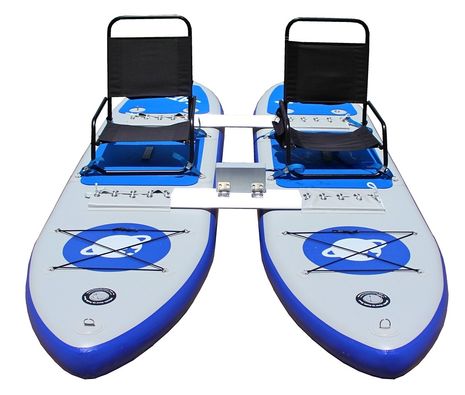

To attach beach chairs to top of paddle boards, use 4 x D-rings and secure chair with optional tie downs or Velcro straps to these D-rings.

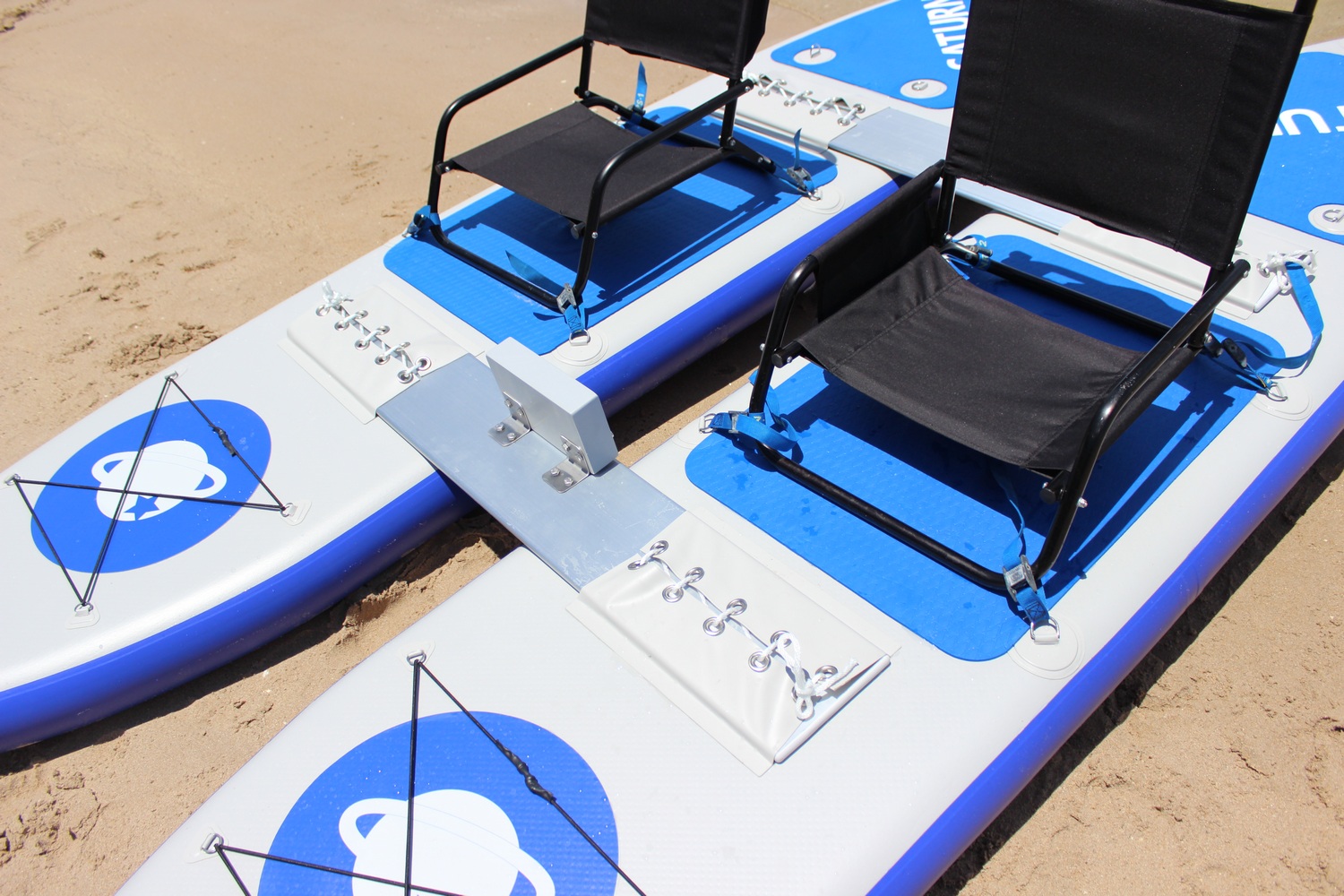

Aluminum board with transom can be installed in rear or front of catamaran. Regular trolling motor can be used in rear, or in front if run in reverse. For best experience, rotate control box on top of electric motor 180 degree, by removing screw that holds controls to shaft, rotating it, and re-installing screw back.
For better rigidity of assembled catamaran, inflate it to 80%, install and tightly lace all 4 bench holders, then finish inflation to 10psi.

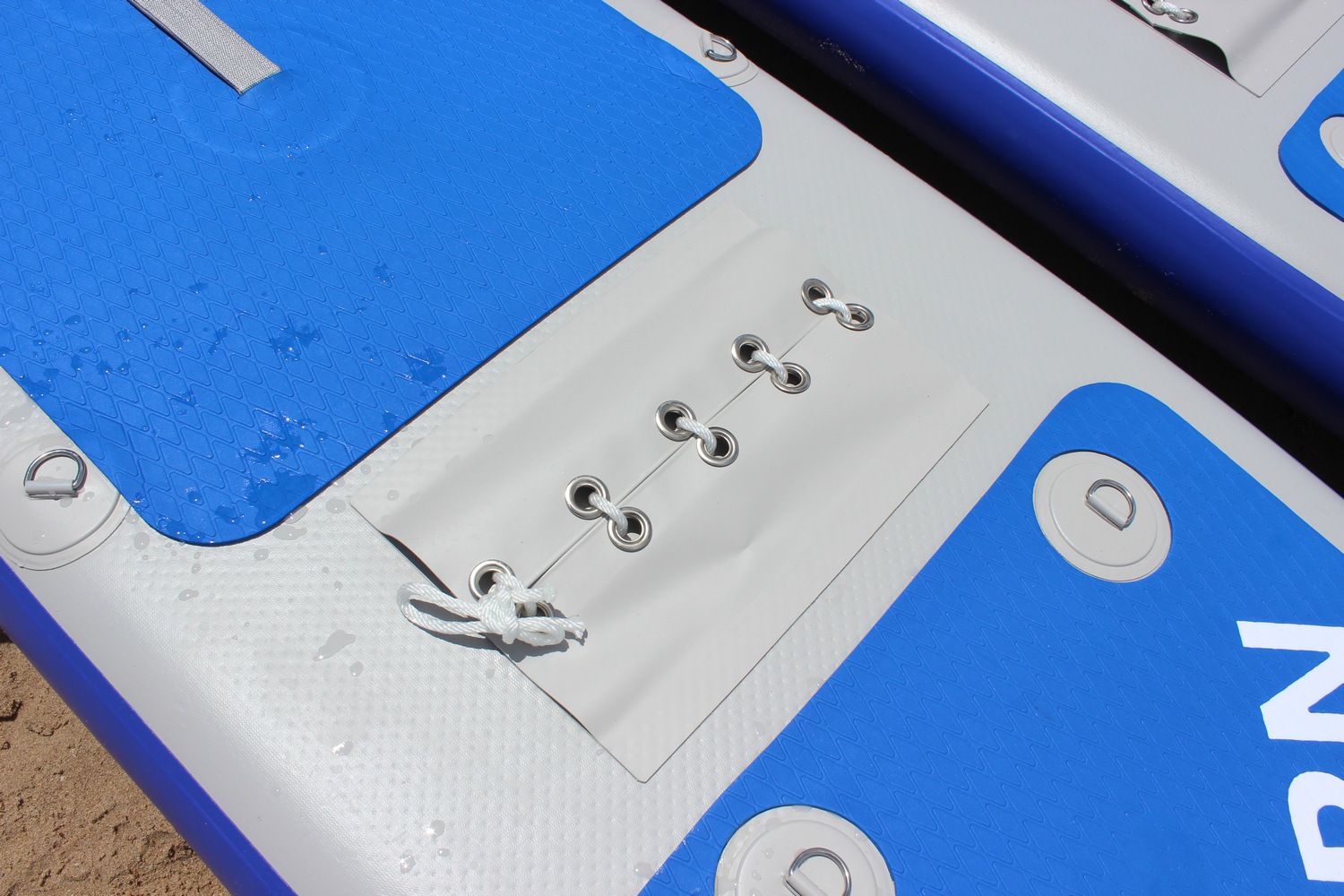

For stronger lacing, use parallel method, as shown here.
For best speed, get 55lbs trolling electric motor. You will need at least 12V 30Ah battery to run for about 45-1 hour at full speed, depending on weight load and water condition. For much longer run, get much heavier 12V 120Ah battery, or use 2 x 12V 60Ah batteries. Use one battery as far as you want to go, and use 2nd battery to make sure you can get back.
Always carry 2 kayak paddles or kayak paddle that can be split in 2 or at least 2 paddle board paddles, just in case if you need to get back to shore in case of emergency with motor or battery.
Always carry PFD devices, cell phone and whistle just in case of emergency.
Jannet 01/24/2020, 12:58 PM

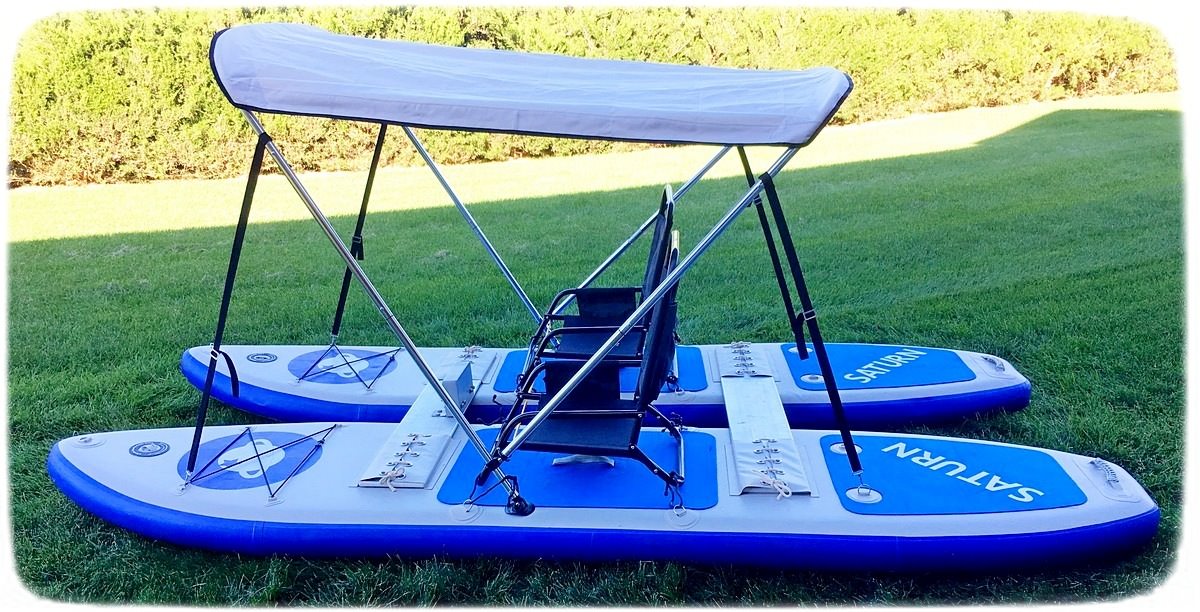

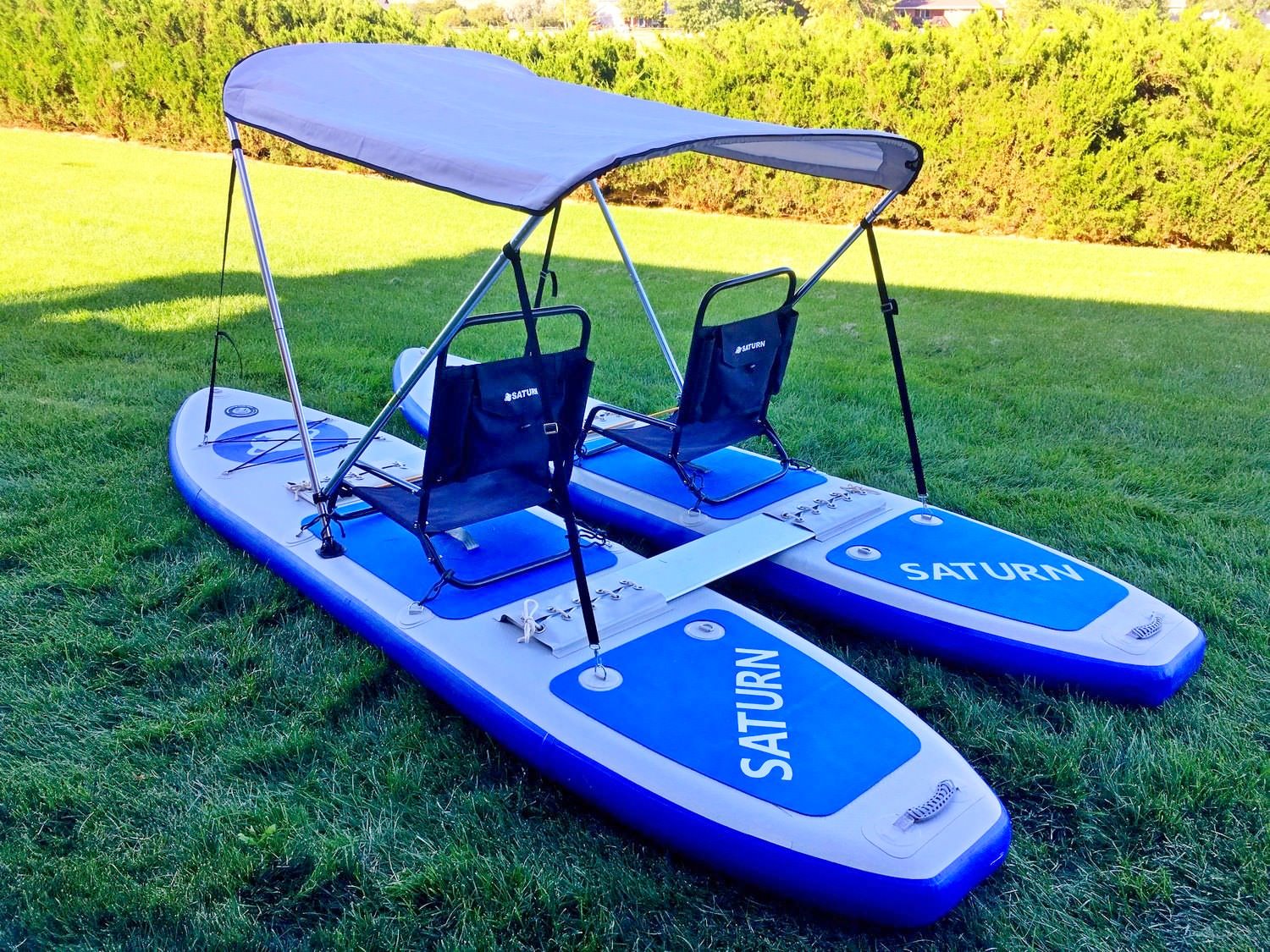

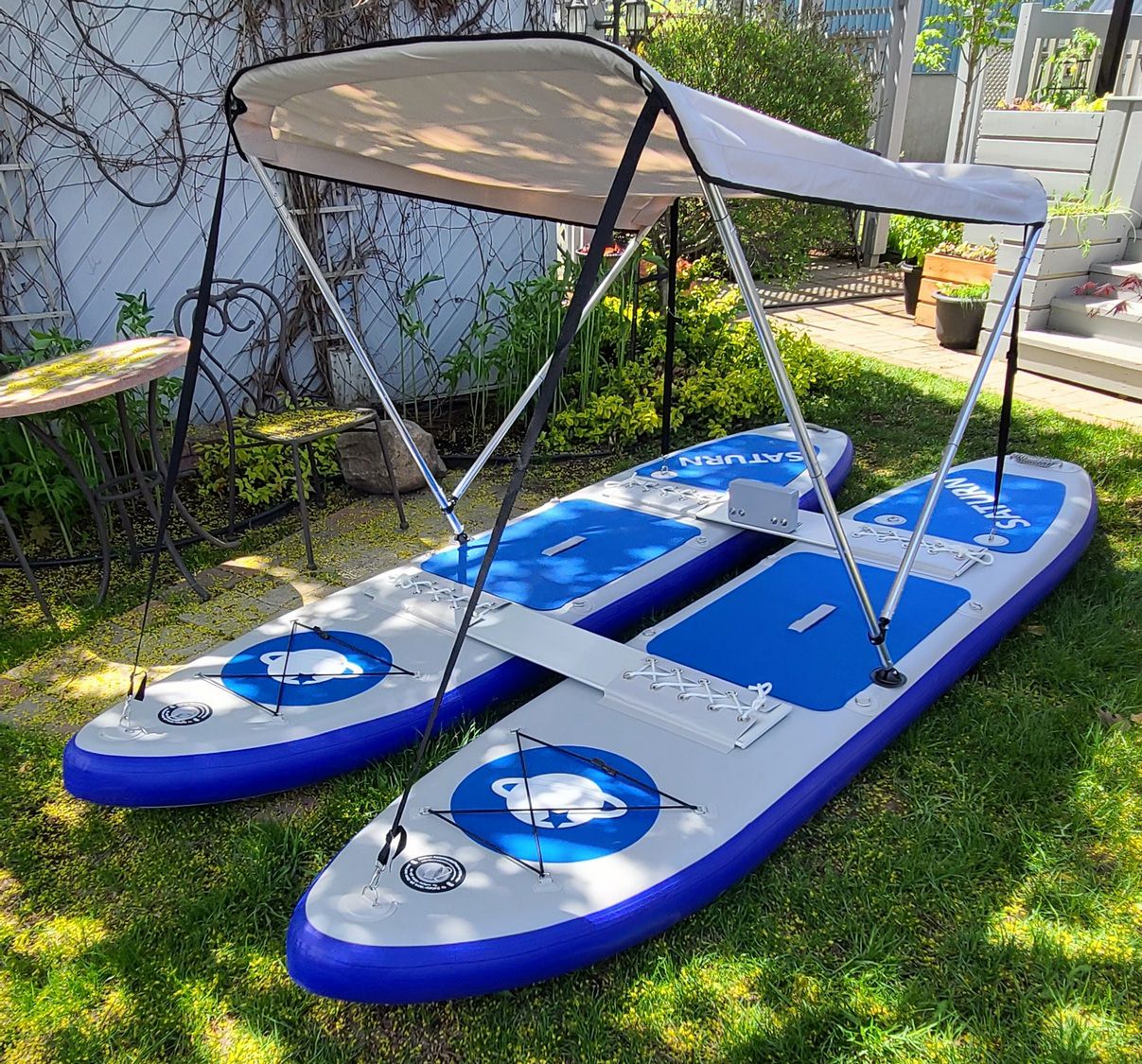

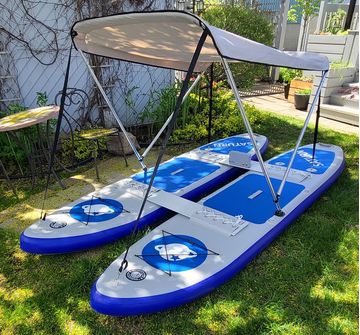

We paired ours with a Bimini top and a trolling motor and we felt like we were traveling on our own private home in the water, this is the ultimate experience to share with a love one. boatstogo is the best
