Marine Arch with Sun Top

Short description:
MSRP: $598.00
No products with the selected options in stock

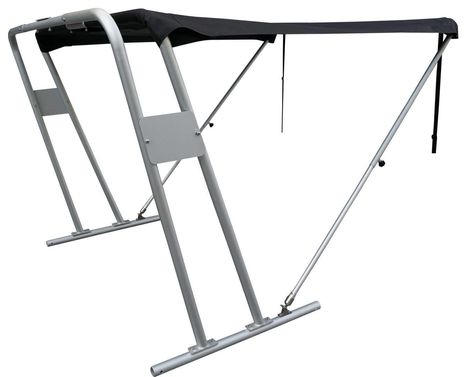

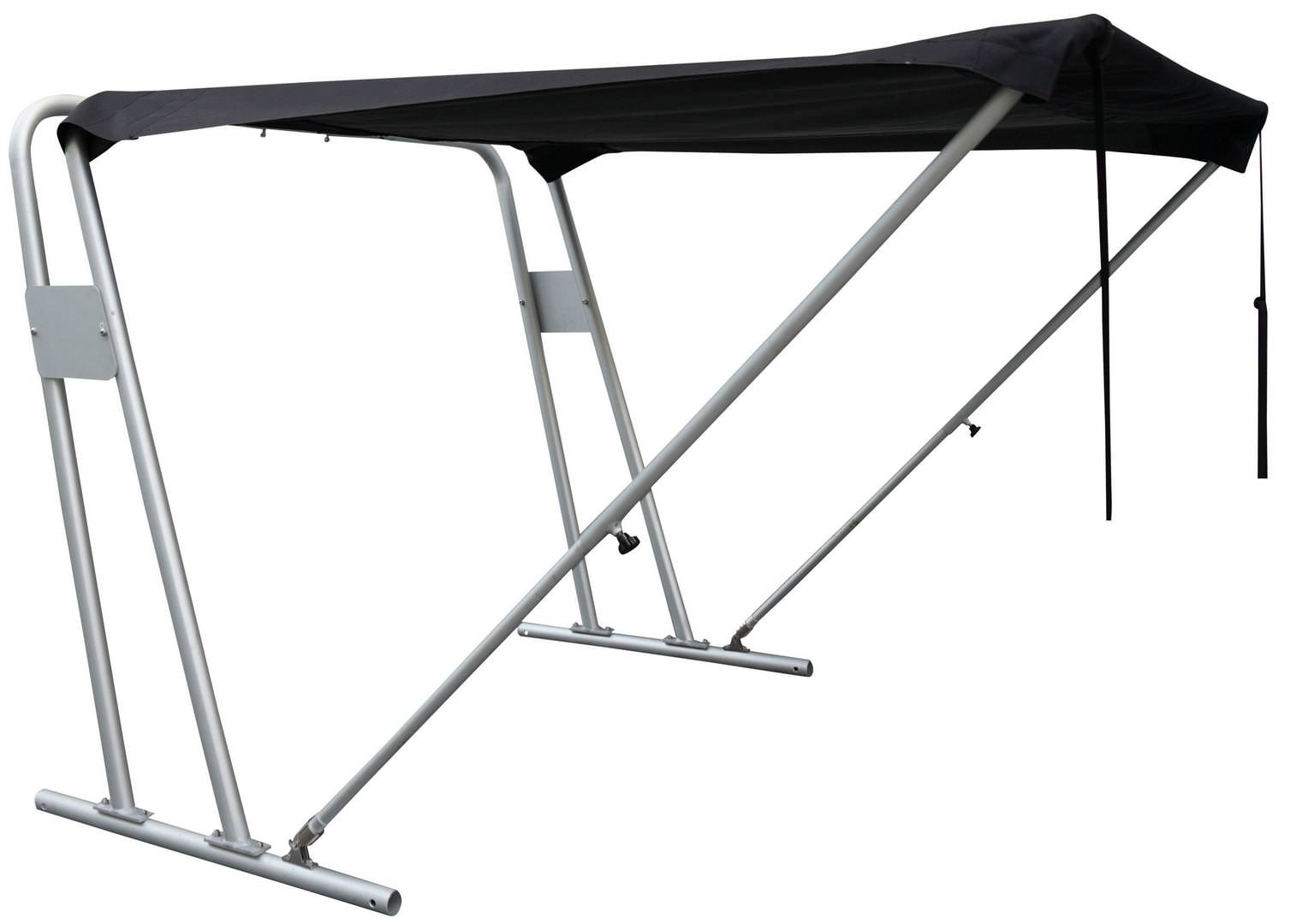

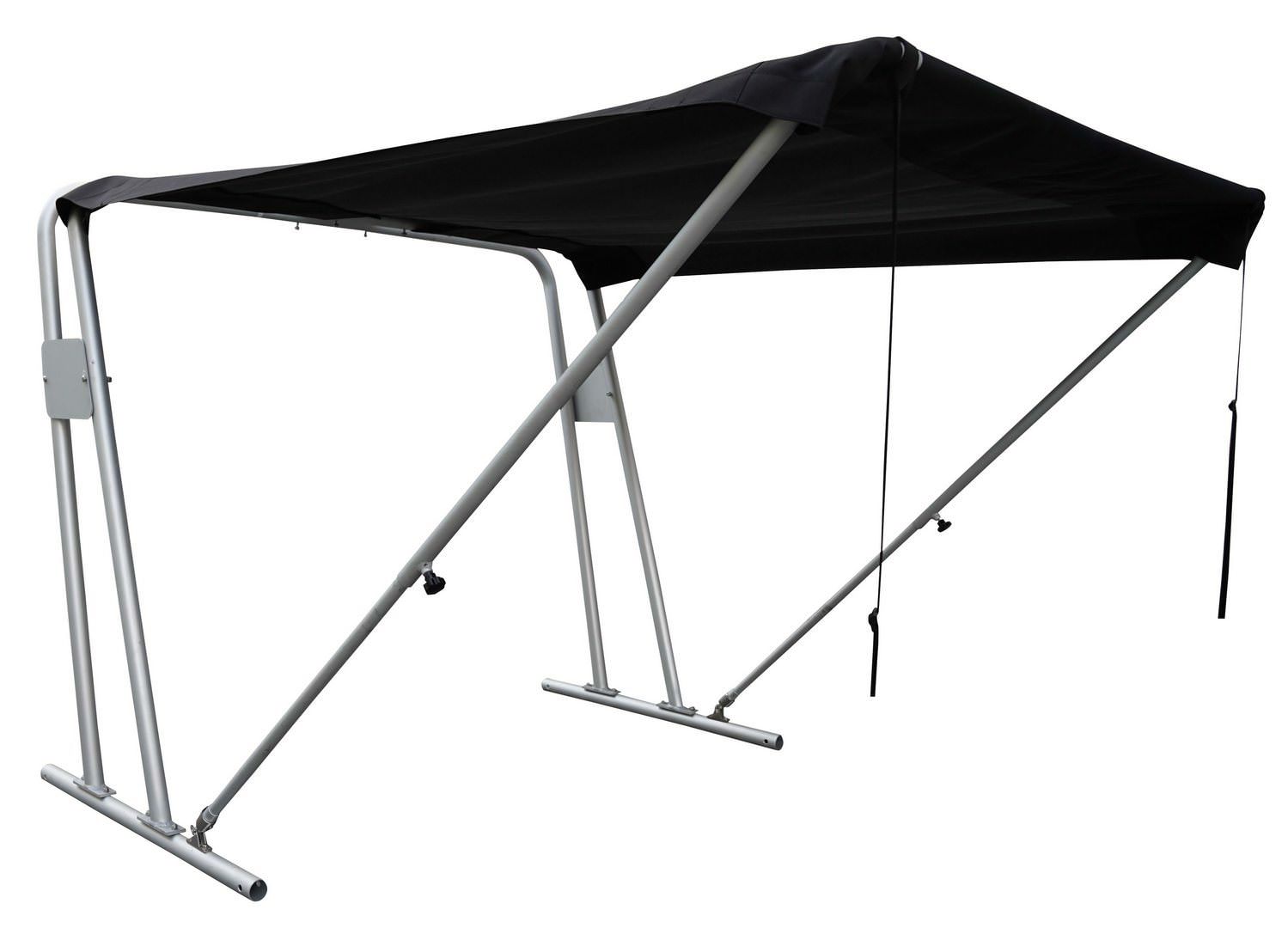

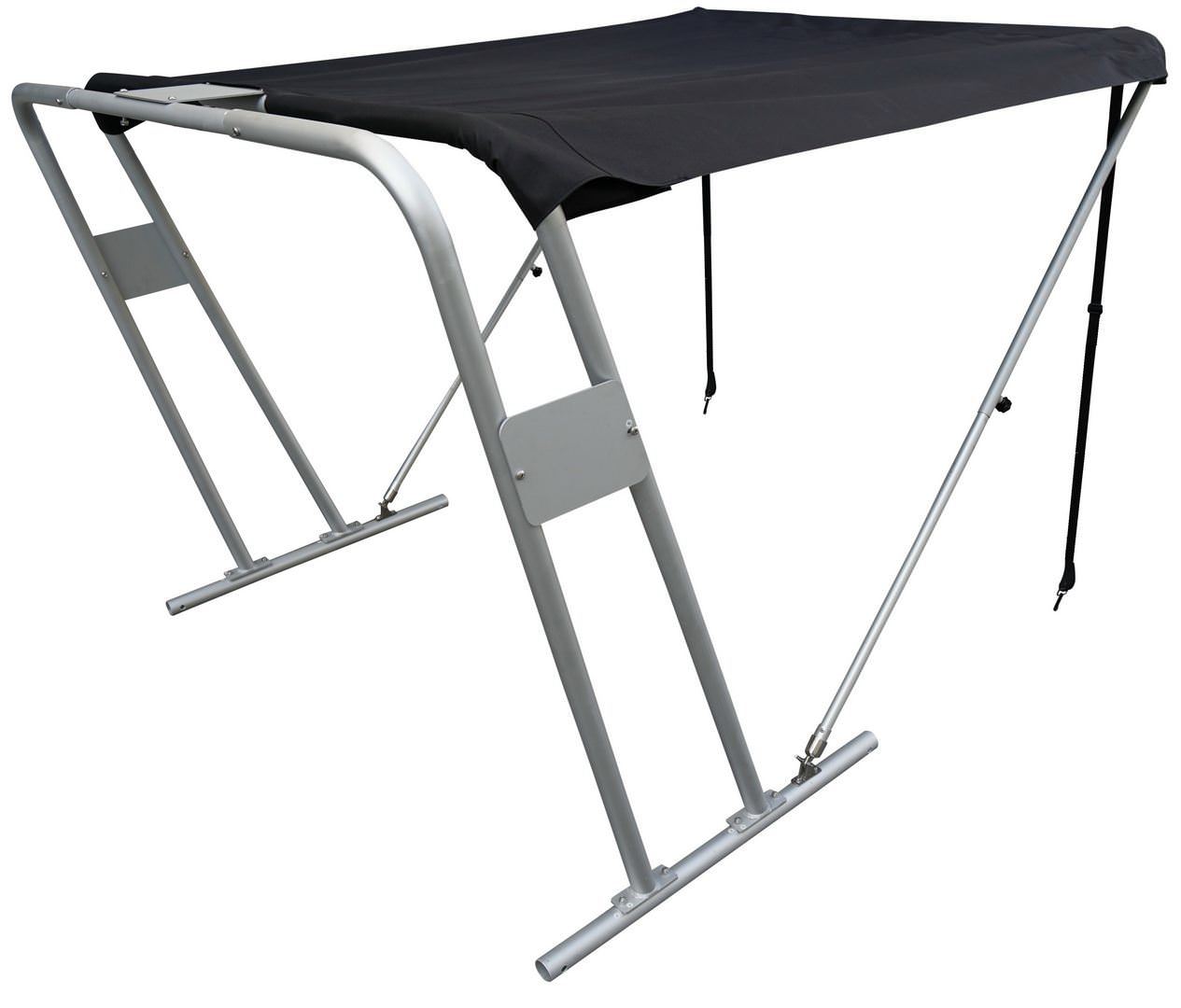

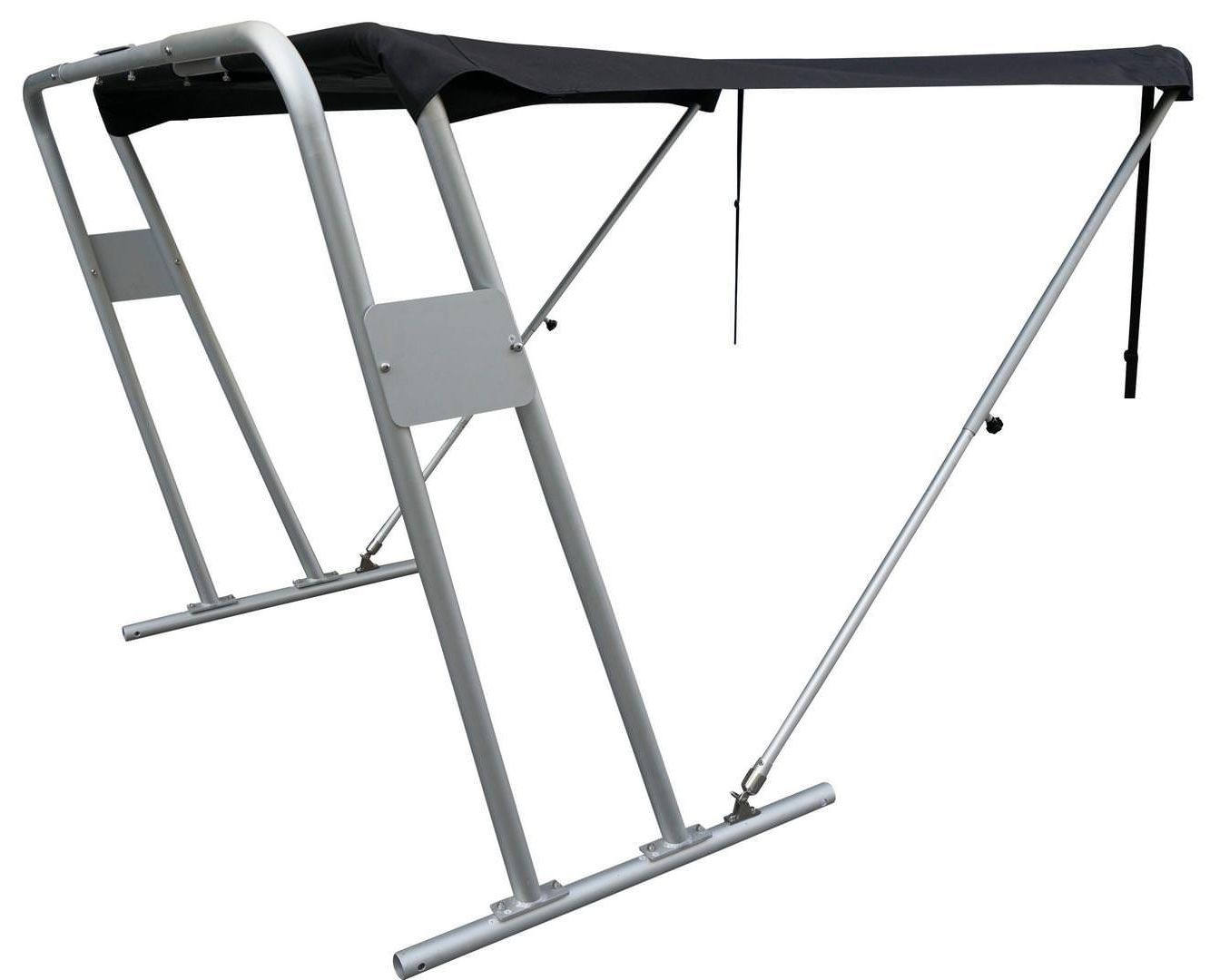

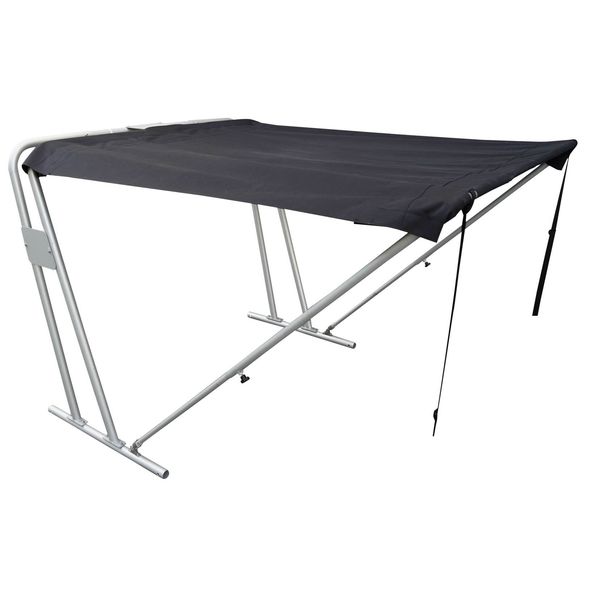

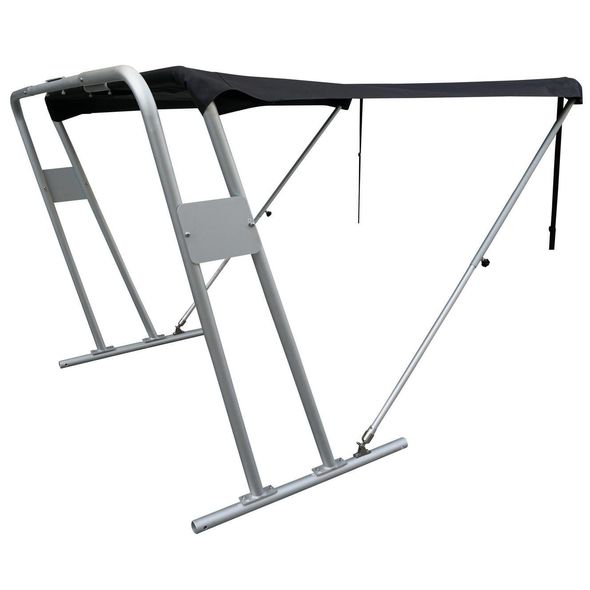

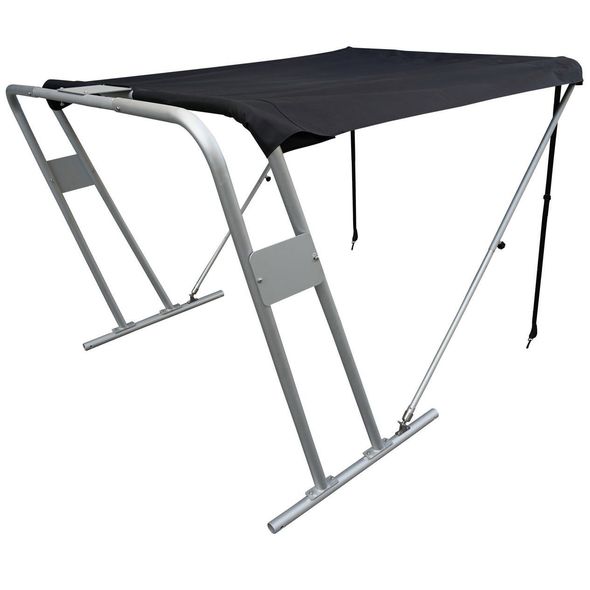

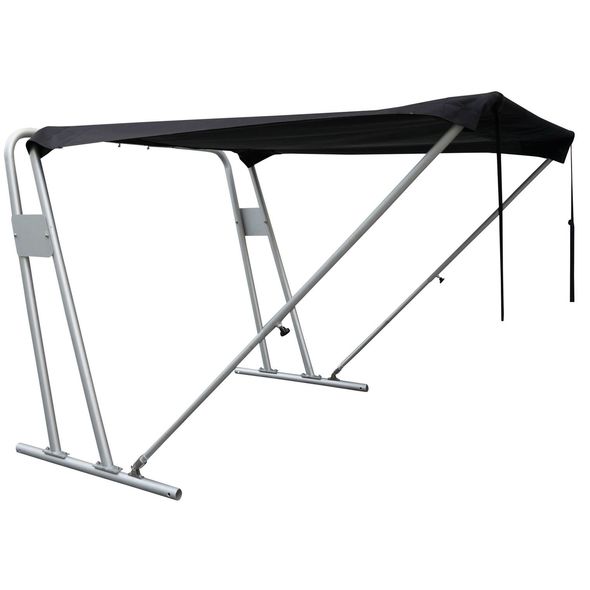

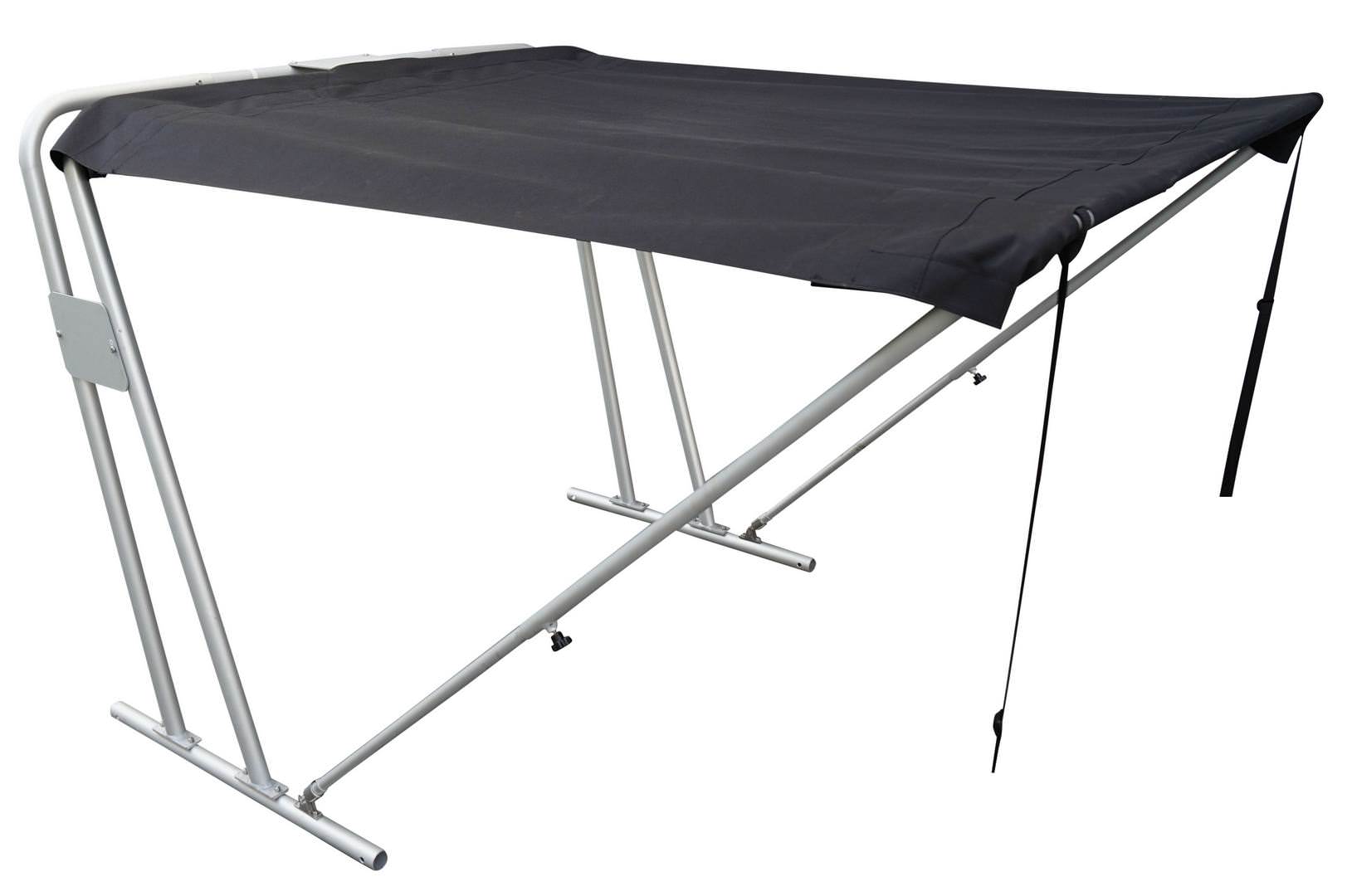

Heavy-Duty Aluminum Arch with Bimini Sun Top

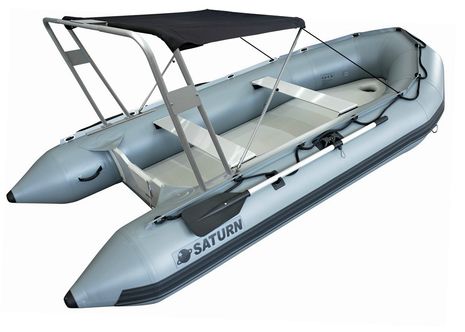

Adjustable width Radar Arch that fits most Saturn boats.

Make your boat look more sporty with radar arch mounted in a rear of your boat. Arch not only makes boat looks cool, it can also be used to mount fishing rods, lights, speakers and other type of equipment. It also comes with removable sun top to provide protection against UV light, heat and rain.

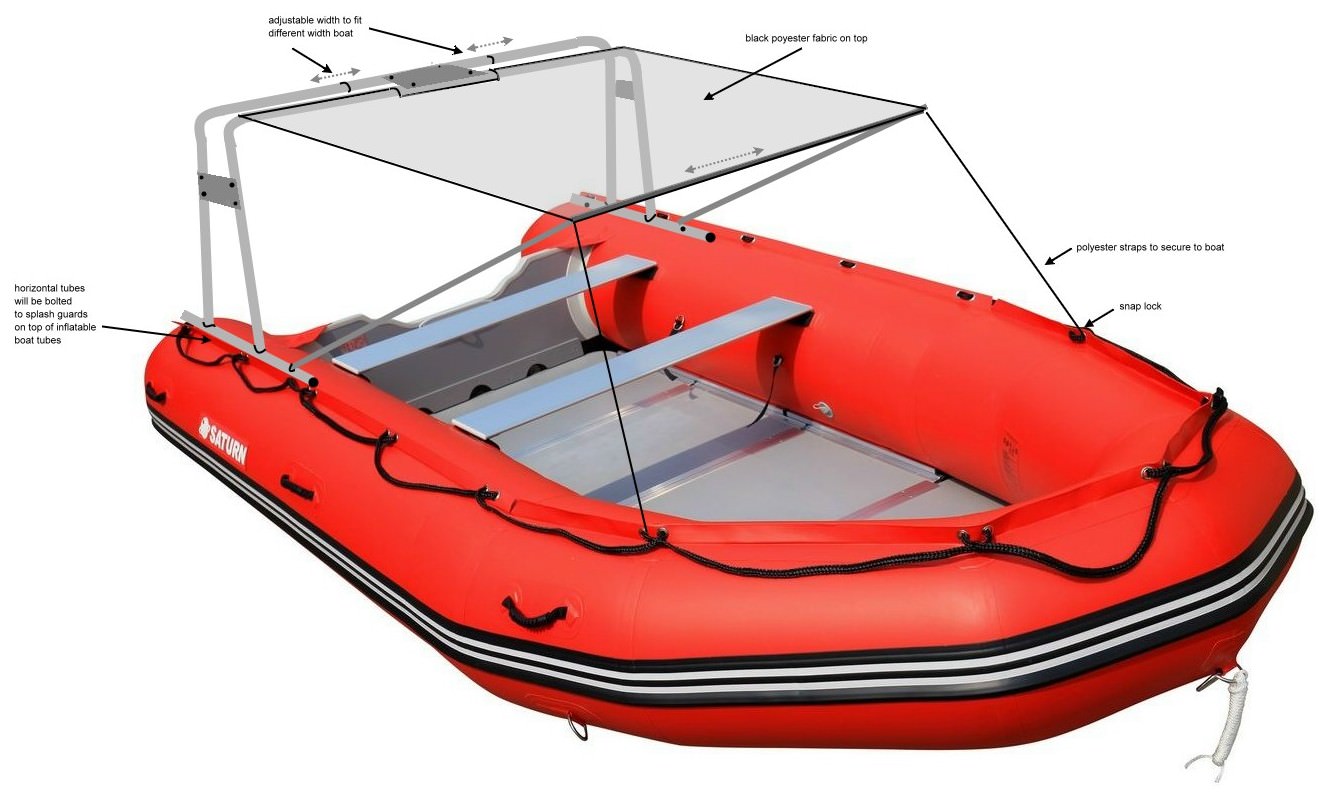

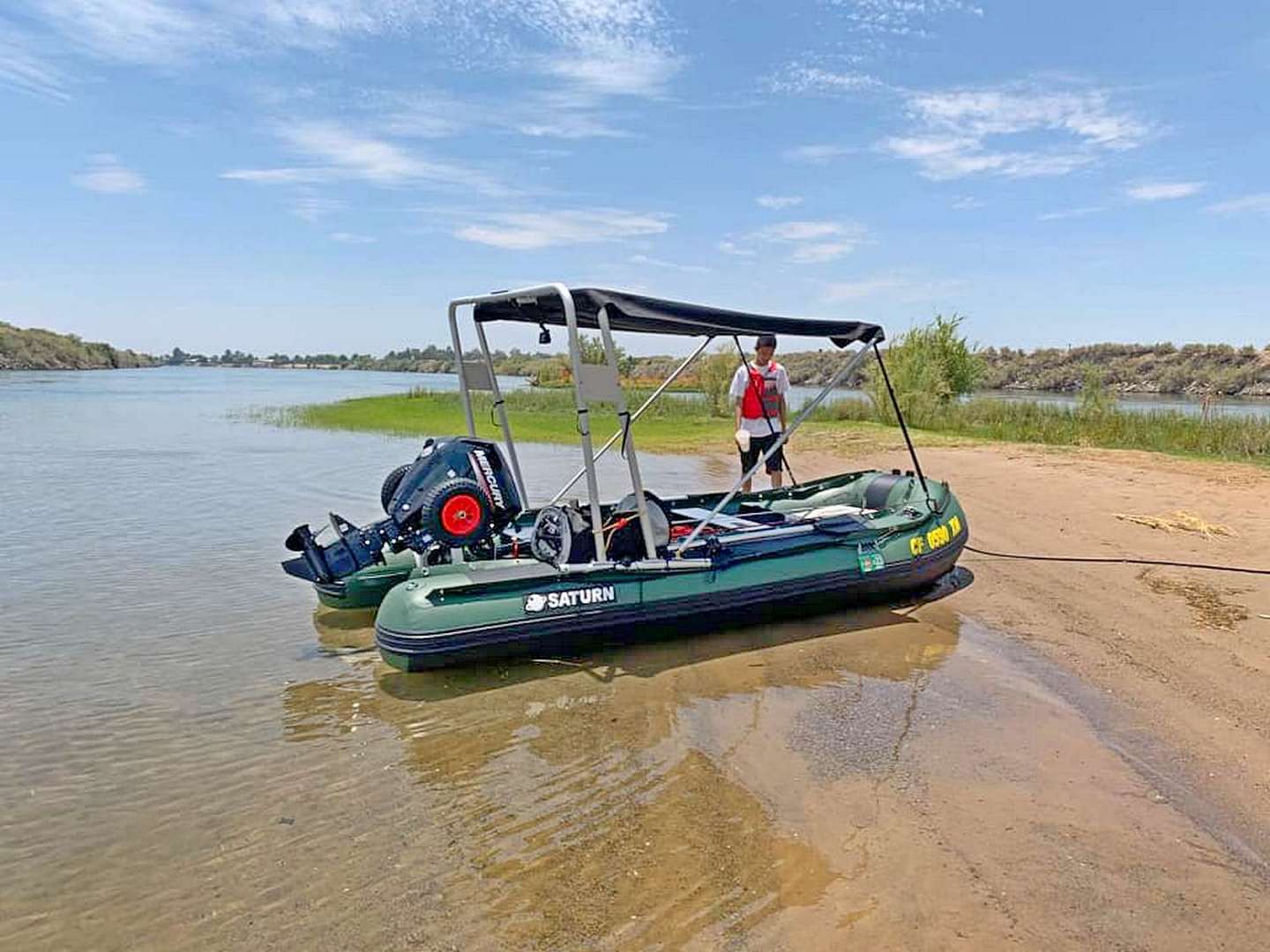

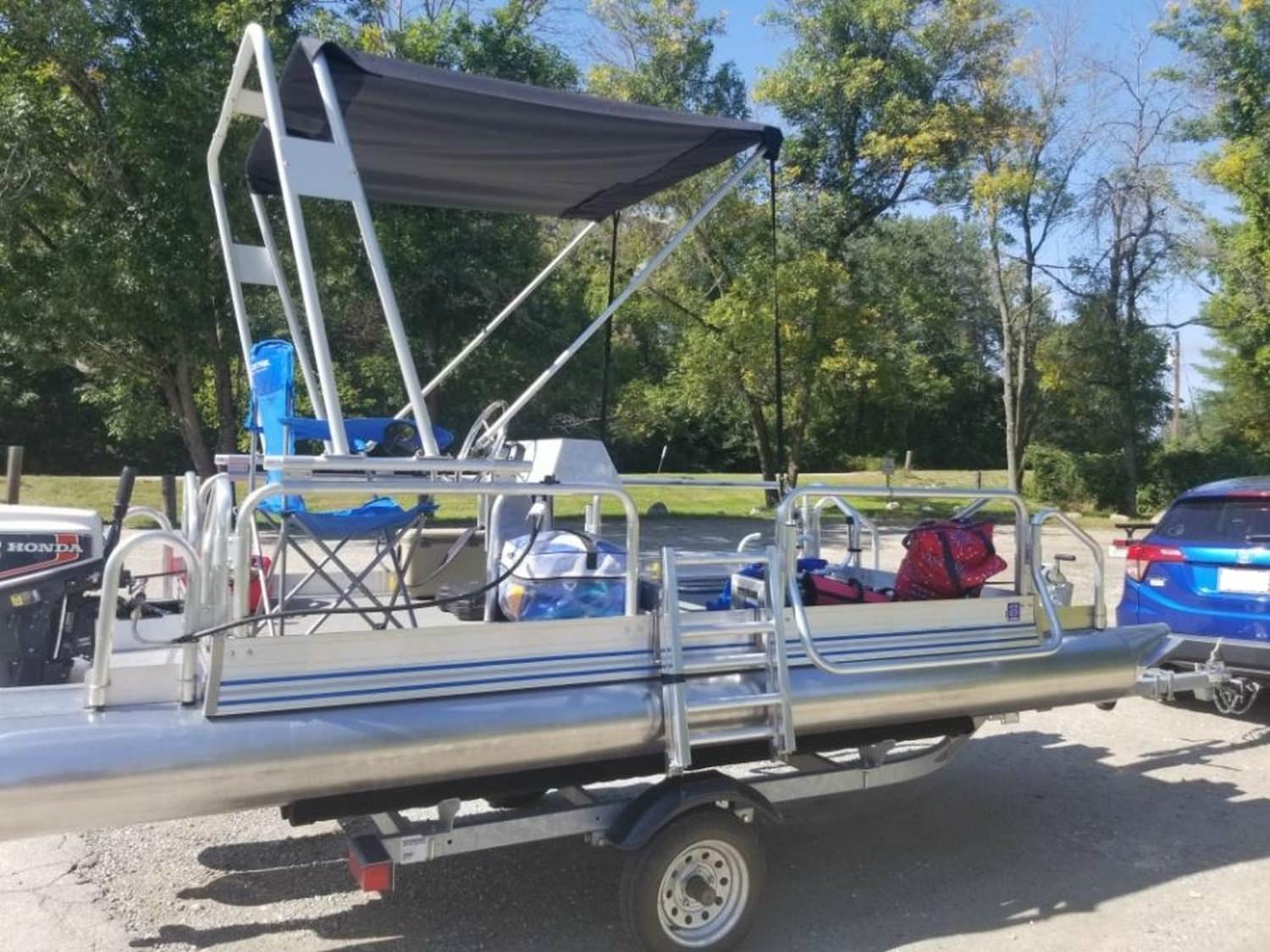

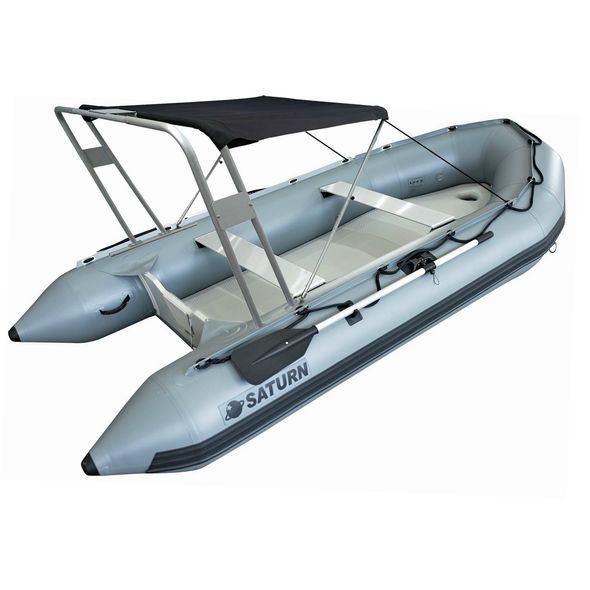

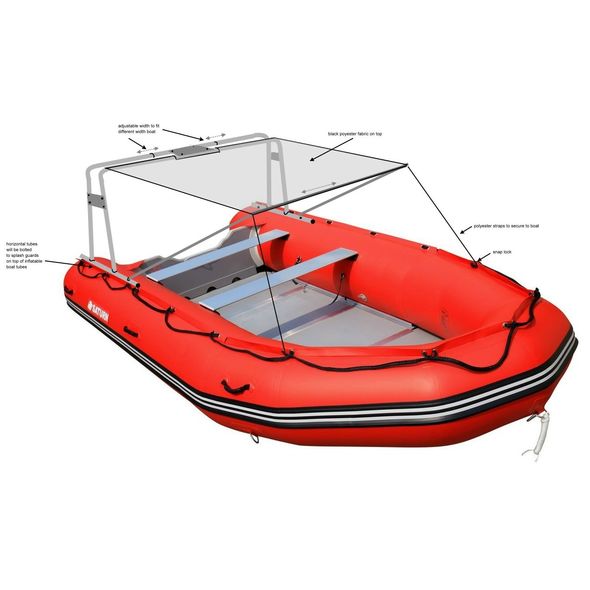

Arch comes with mounting tubes that can be secured to splash guards on top of Saturn inflatable boats. Tubes can be either secured to grommet in splash guards with lashing tie downs, or 4 horizontal holes can be drilled in both tubes, and bolts or thumb bolts can be used to secure mounting tubes directly to grommet holes in splash guards using 2 bolts on each tube. Arch can also be mounted on a non-inflatable boat without side mounting tubes, by drilling holes to install arch hardware directly to hard hull of boat.

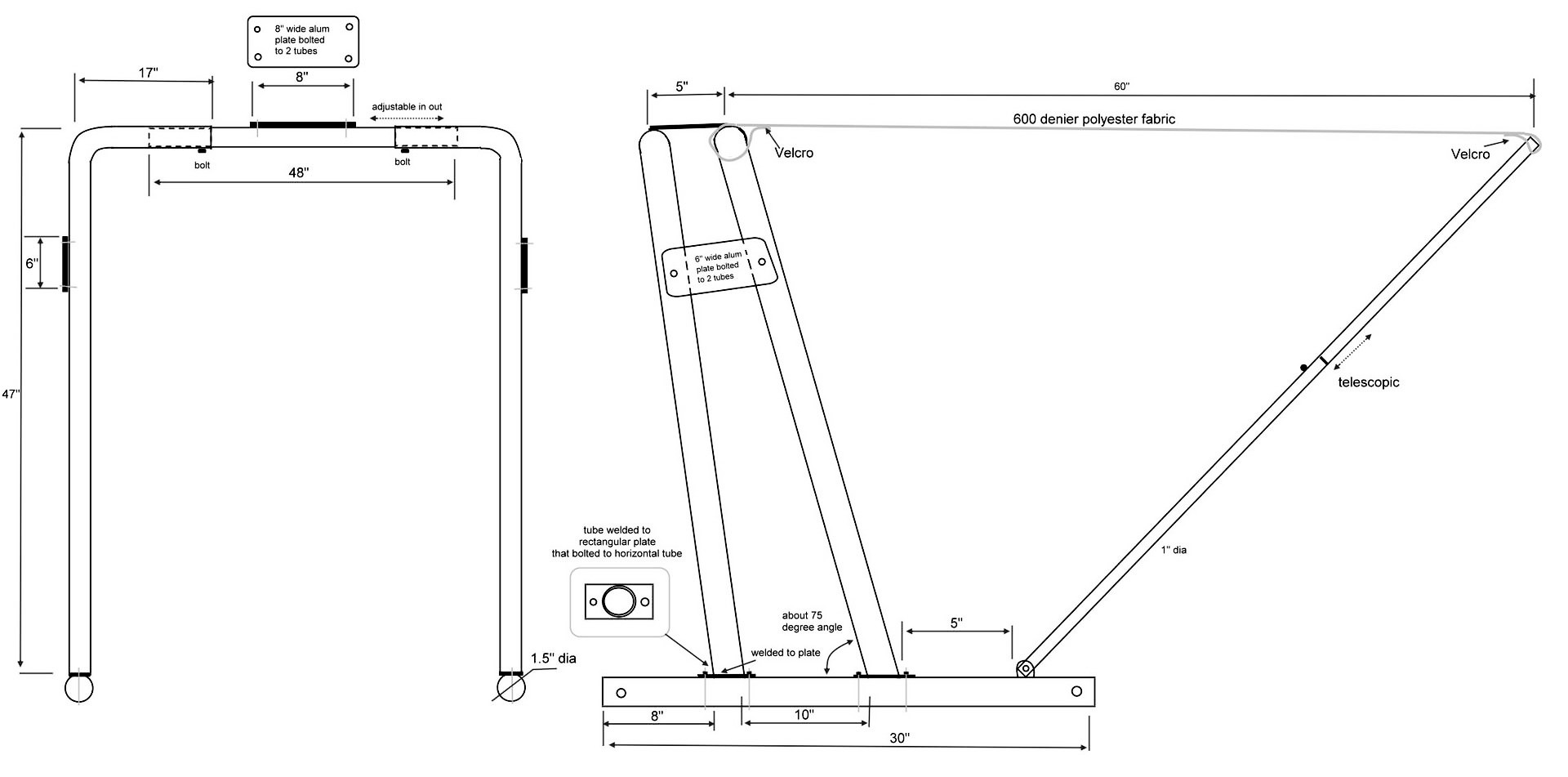

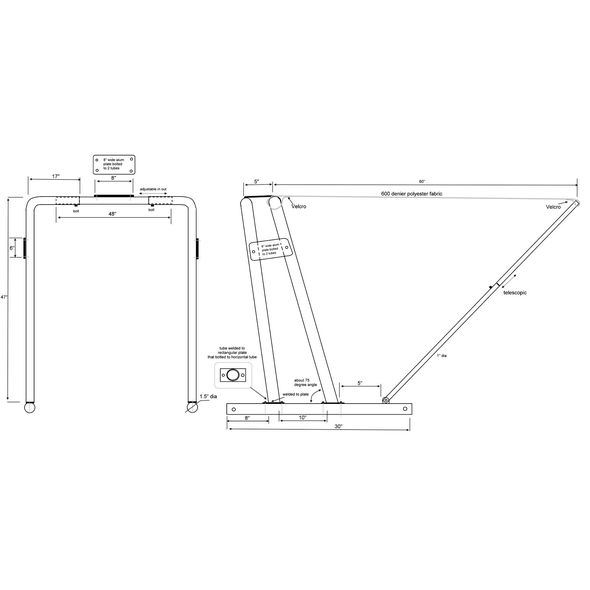

Arch can be made more narrow, to fit more narrower boats, by cutting tubes on top sections and bringing sides of arch closer together. It is DIY project that only required hacksaw to cut several tubes, and drill to make new holes. Please note that because it is limited run product, there is no printed instructions provided. Please refer to pictures on this web page for assembly and installation ideas. It is pretty much strait forward and easy to do.

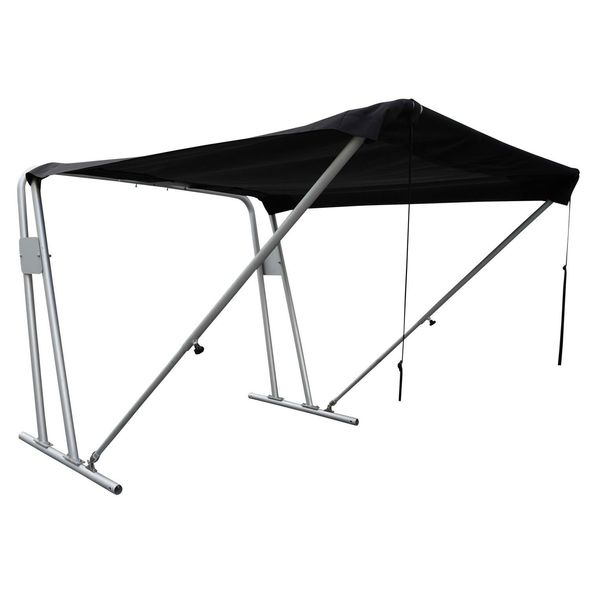

Arch can be used with or without bimini top section. Bimini section with forward pull tubes can be removed if not needed.

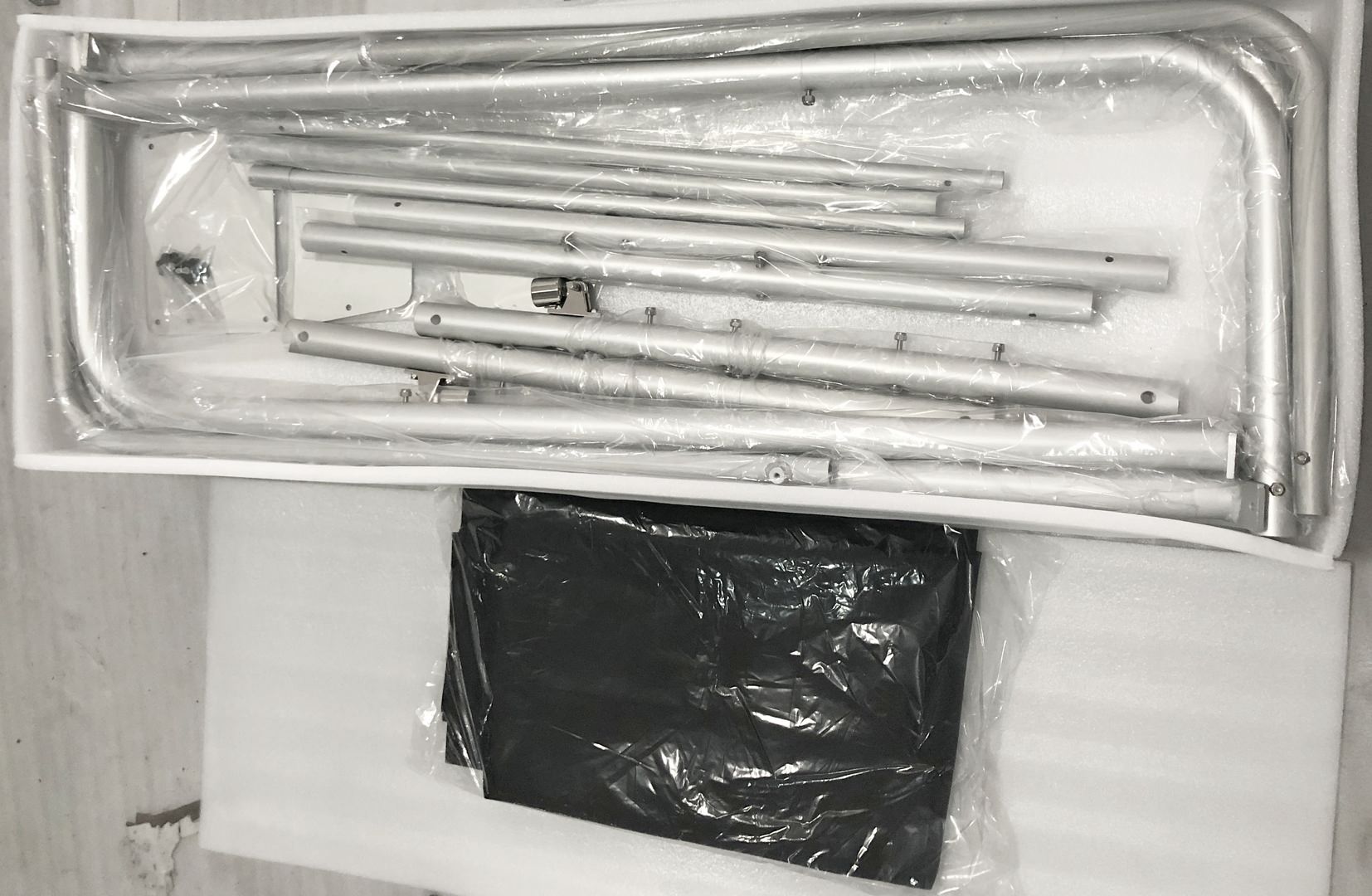

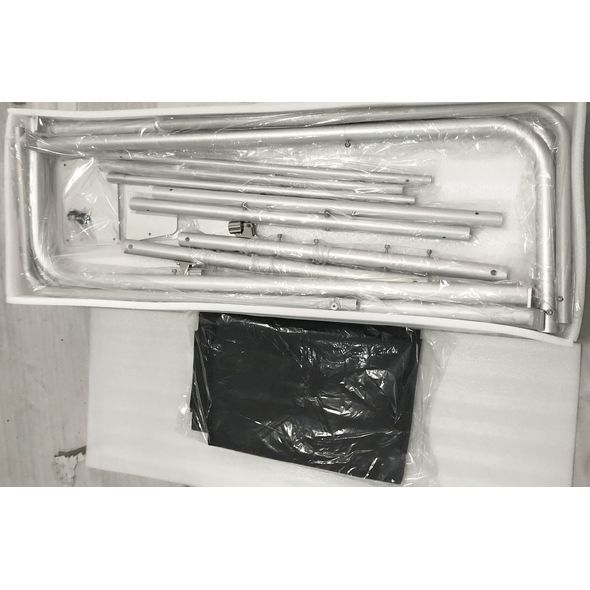

  • Easy assembly required. Just follow stickers with numbers to match parts together and refer to pictures on web page.
  • Please note that while 2 vertical frames of arch might look similar, they are different. One is rear and another is front.
  • Because it is limited run custom production, no printed manual included. Please visit web page for more information.
  • Arch weight - 24 lbs
  • Shipping weight - 28 lbs
  • Shipping size - 53x21x6"

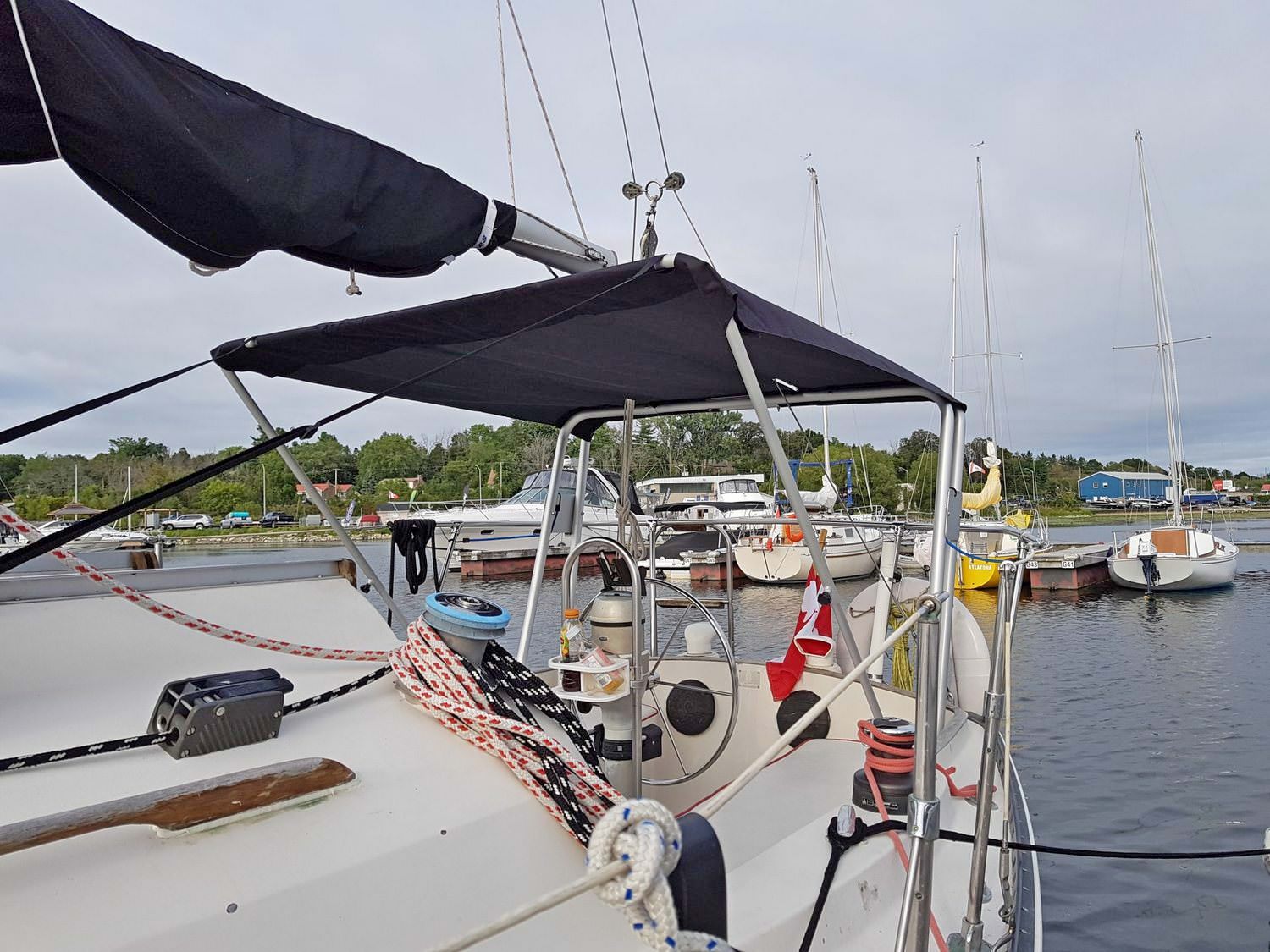

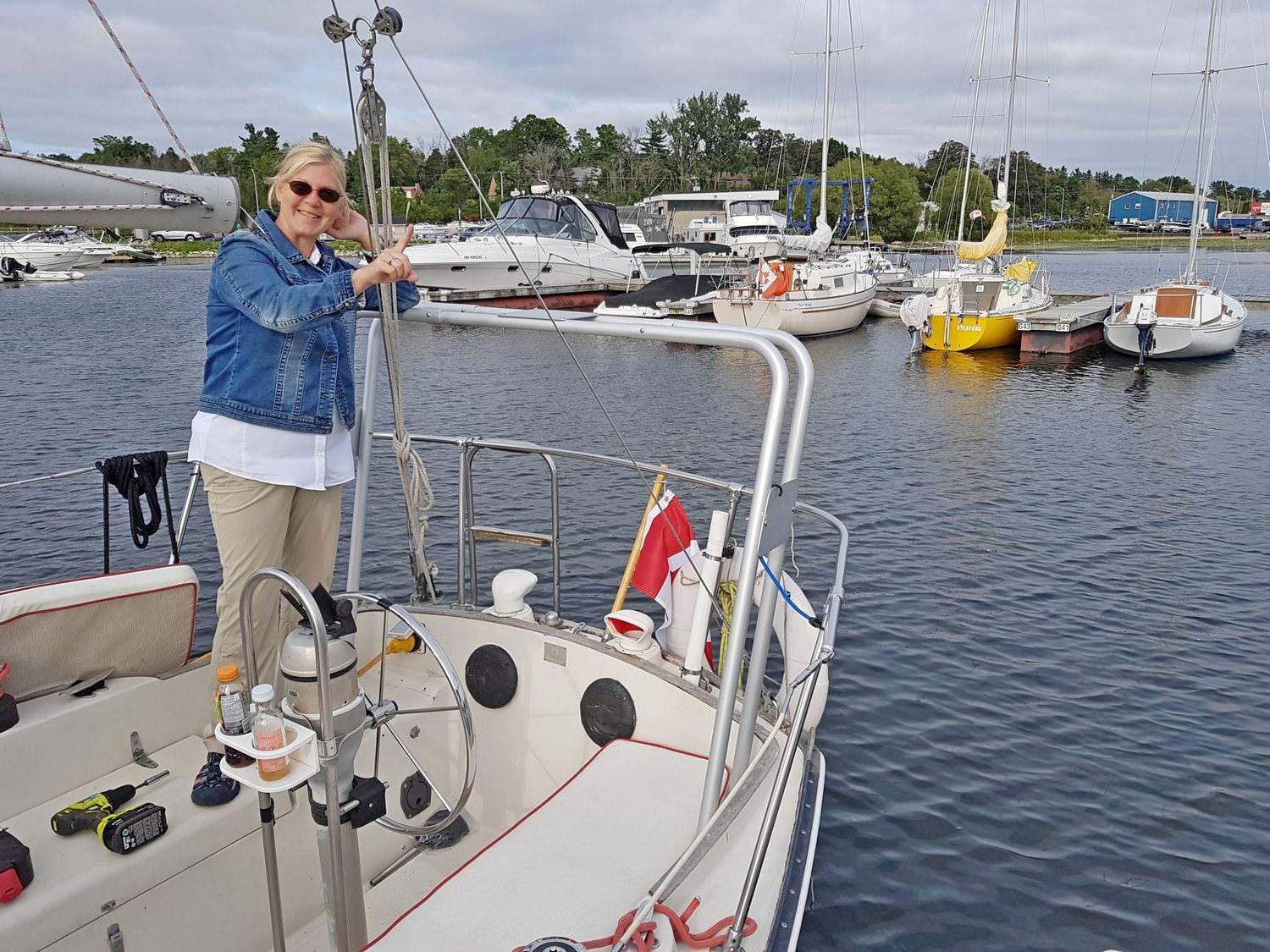

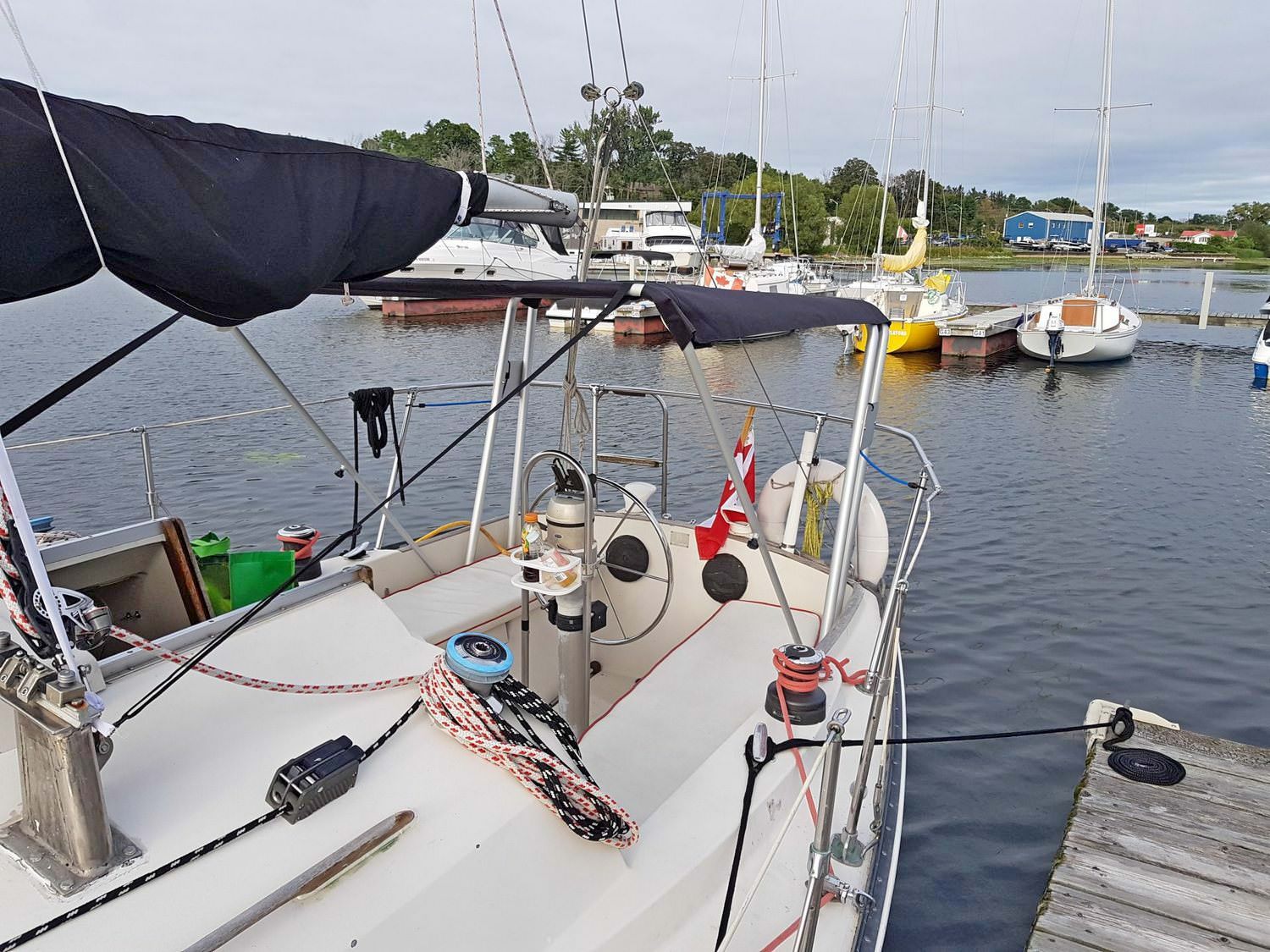

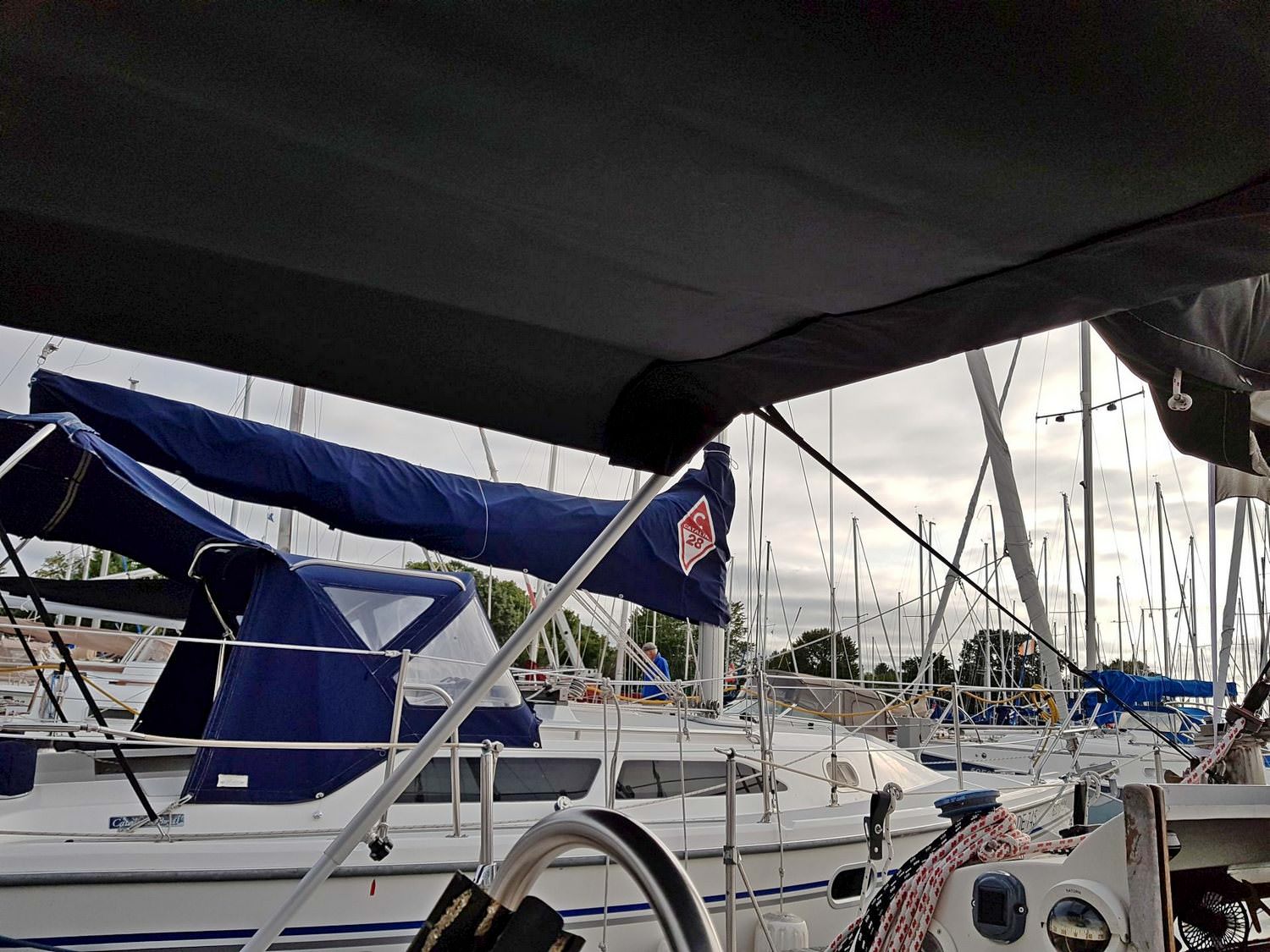

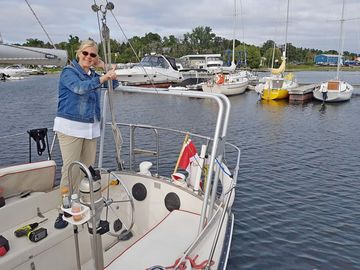

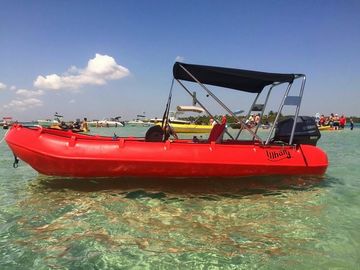

Example of similar type arch on non-inflatable boat.

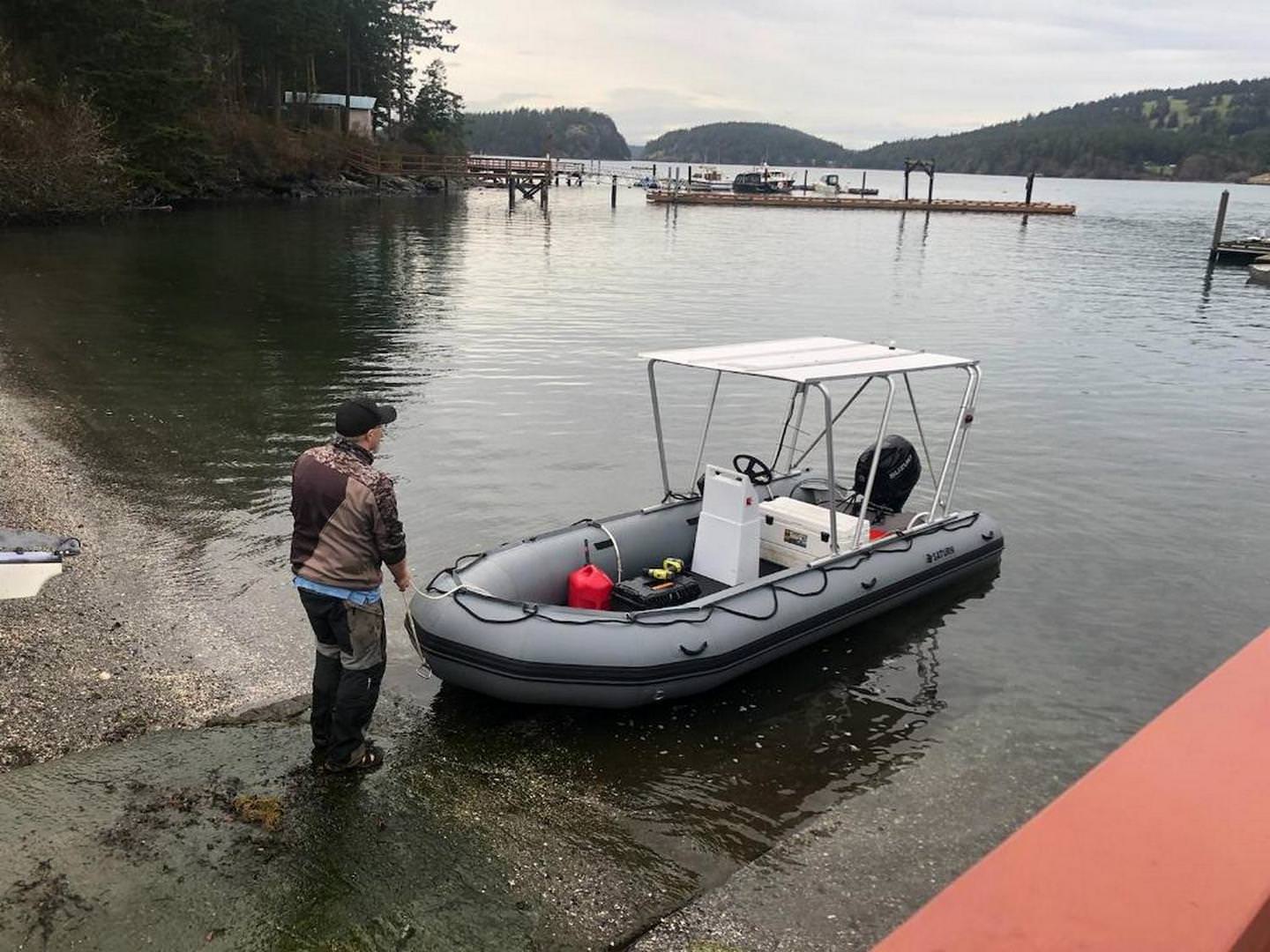

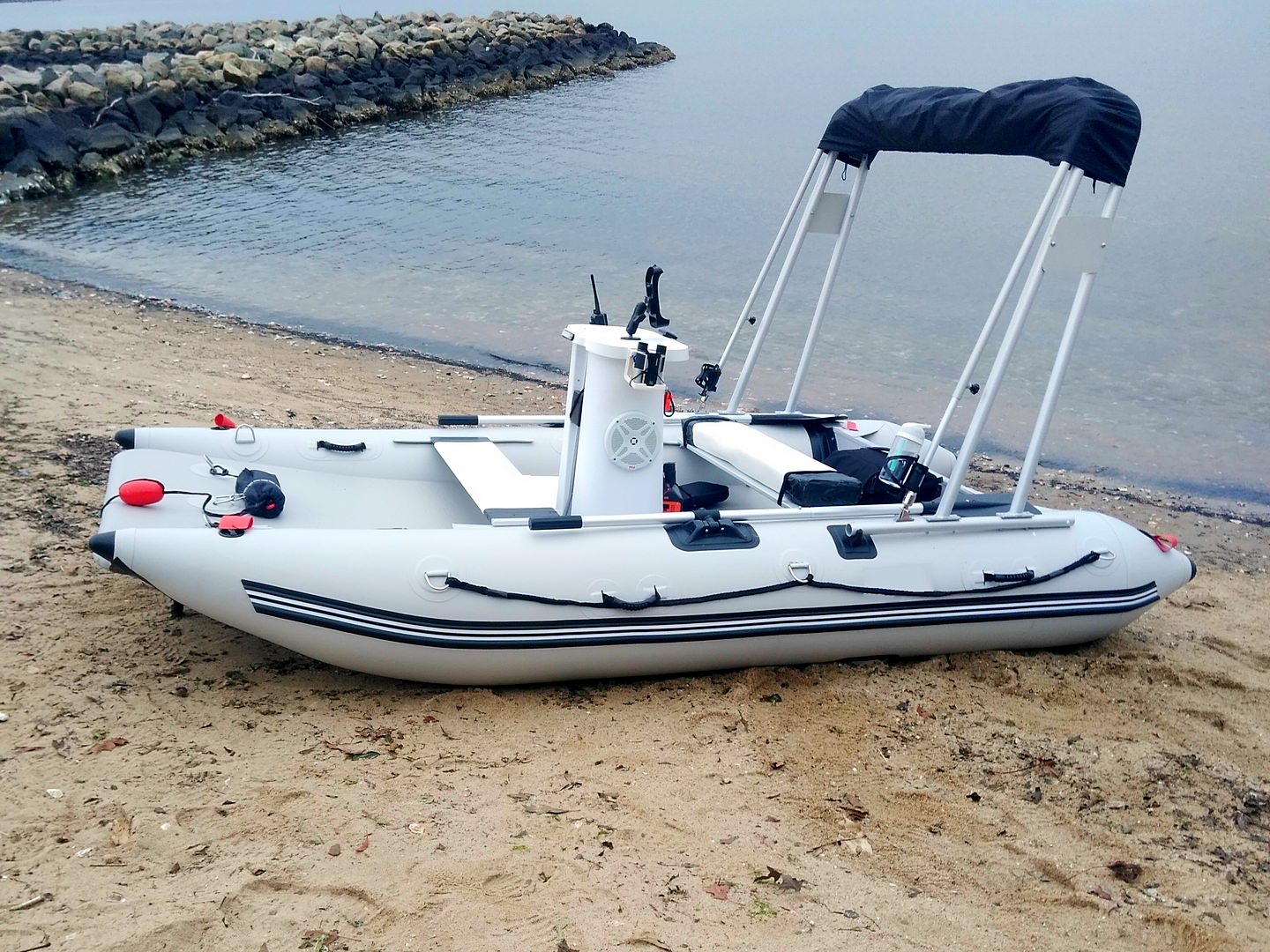

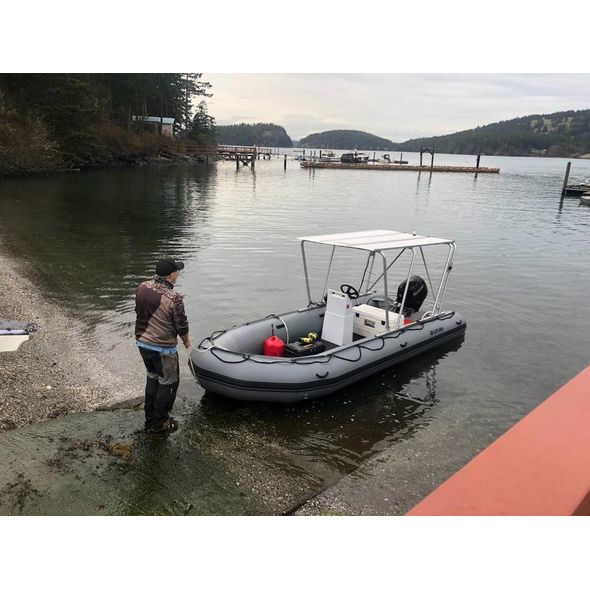

Love my radar arch, and my Saturn from! Great customer service and products. The arch is a product that should be custom fitted to your boat, so if you’re whining about no directions, you should find a handy friend who owns a few hand tools. Really, it’s not hard to install.

Don't search for an instruction manual, there isn't one! It's a general problem with boatstogo, someone should sit down and read/re-write instruction manuals for every product....I've ordered several products and the instructions have been either 1) completely absent 2) insufficient 3) contain spelling errors that leave you guessing. Other than that i'm happy with the store...
