NEW, Patent Pending, Remote Controlled 55 lbs 12V Electric Tolling Motor for small watercrafts.

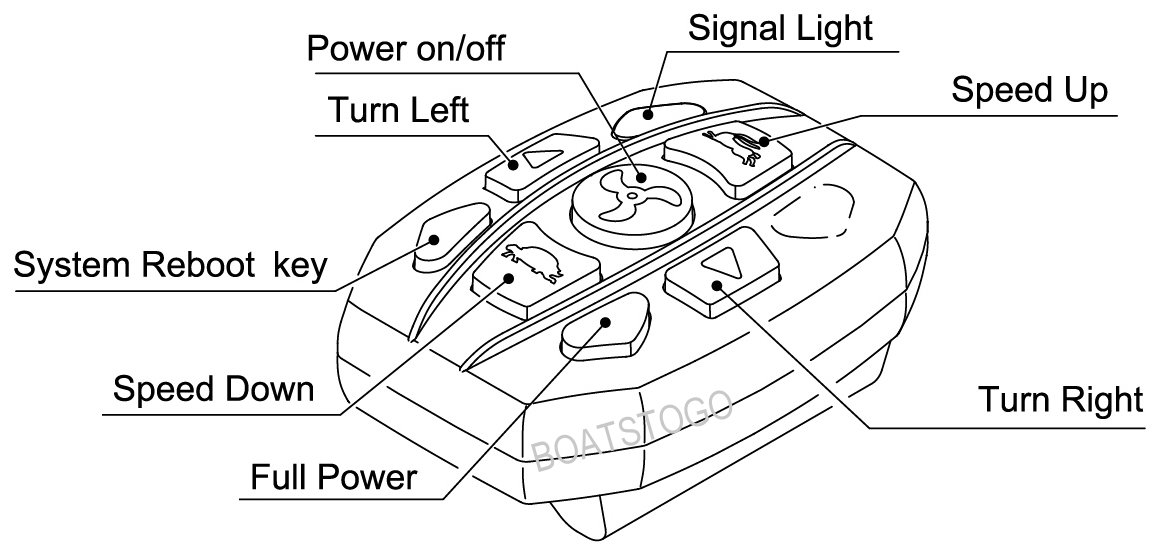

Remote Control for Electric Trolling MotorOur new electric trolling motor now comes with portable remote control that allows operation of motor from a distance. Left, Right, Speed Forward and Stop can be all operated from portable FOB remote. Now you don't have to seat by the transom holding to motor tiller, but can be relaxing anywhere on your boat, even in a bow.



Distributing operator weight in a middle of the watercraft significantly improves its performance and speed. Instead of pushing water in front of it in an effort to go on a plane, now small boat can easily glide through the water, those improving not only speed, but also battery power consumption and duration of the ride.

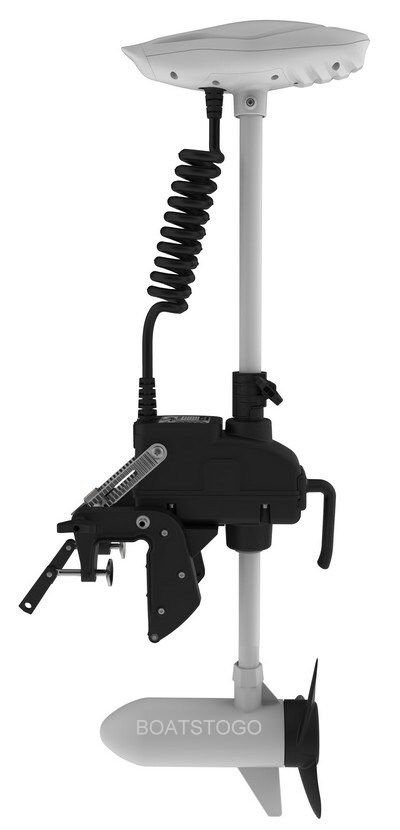

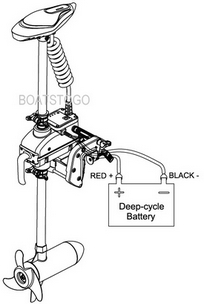

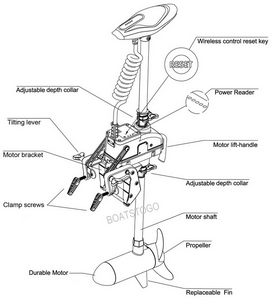

12V 55lbs Remote Controlled Trolling motor parts. Click to zoom in,        Elecrric Trolling Motor wiring diagram.

RC Electric motor uses 12V, with 50 Amp Max Draw. Battery Level reader built into controller housing displays accurate available battery power, and shows when battery need a recharging.

To operate this Trolling motor you will need 12 Volts "Deep Cycle"-type battery that sold in many retail, hardware or auto stores. You can get Deep Cycle battery in a Wall-Mart, K-Mart or Costco for about $55 and up. High-end Gel-Type Deep Cycle battery will run about $140. Portable and lightweight Lithium batteries start at about $300 and up. To charge battery you will also need Battery Charger, that will run about $30 to $60 depending on a brand and speed of charging.





Features:

  • Motor Weight - 25  lbs.
  • Shaft Length - 26".
  • Overall Length - 37", Width - 18".
  • Distance from transom mount to head - 17".
  • 55 lbs power thrust, 12V, 50 Amp Max Draw.
  • Adjustable Depth Collar - for changing the motor depth.
  • Convenient handle for carrying motor around.
  • Remote control allows operation from almost 100' away.
  • Nine speed levels for optimal energy saving.
  • Battery Reader - displays accurate battery level.
  • Warranty - 1 Year from date of purchase.
  • Quick Assembly of prop and tilt mechanism required.
  • New remote control now comes with re-chargeable battery.
  • Please download remote control charging instructions.
  • Available Color - WHITE

Please Read Important Warnings At Bottom of This Page

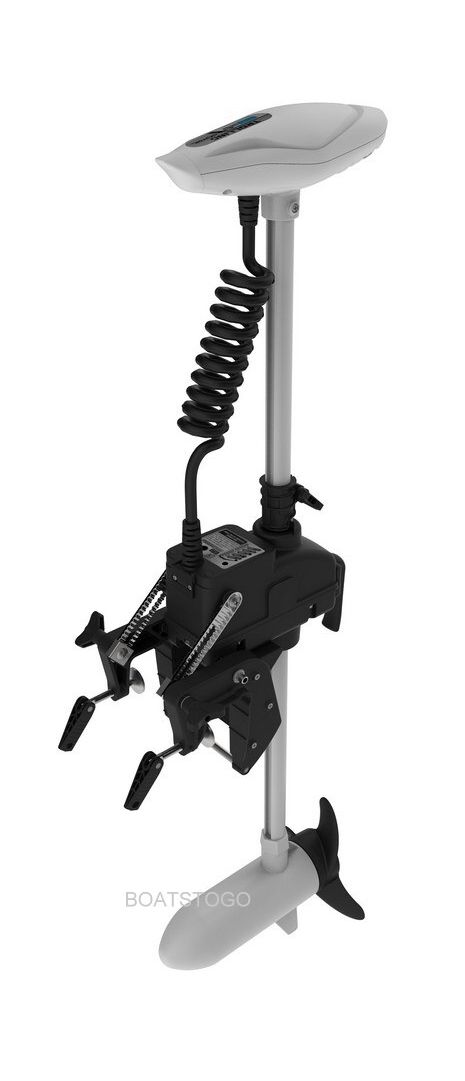

55lbs 12V RC Electric Trolling Motor OS55RC
In stock and ready to ship
SALE: $369.00 (MSRP: $738.00)
SHIPPING: $29.00 (by FedEx Ground)

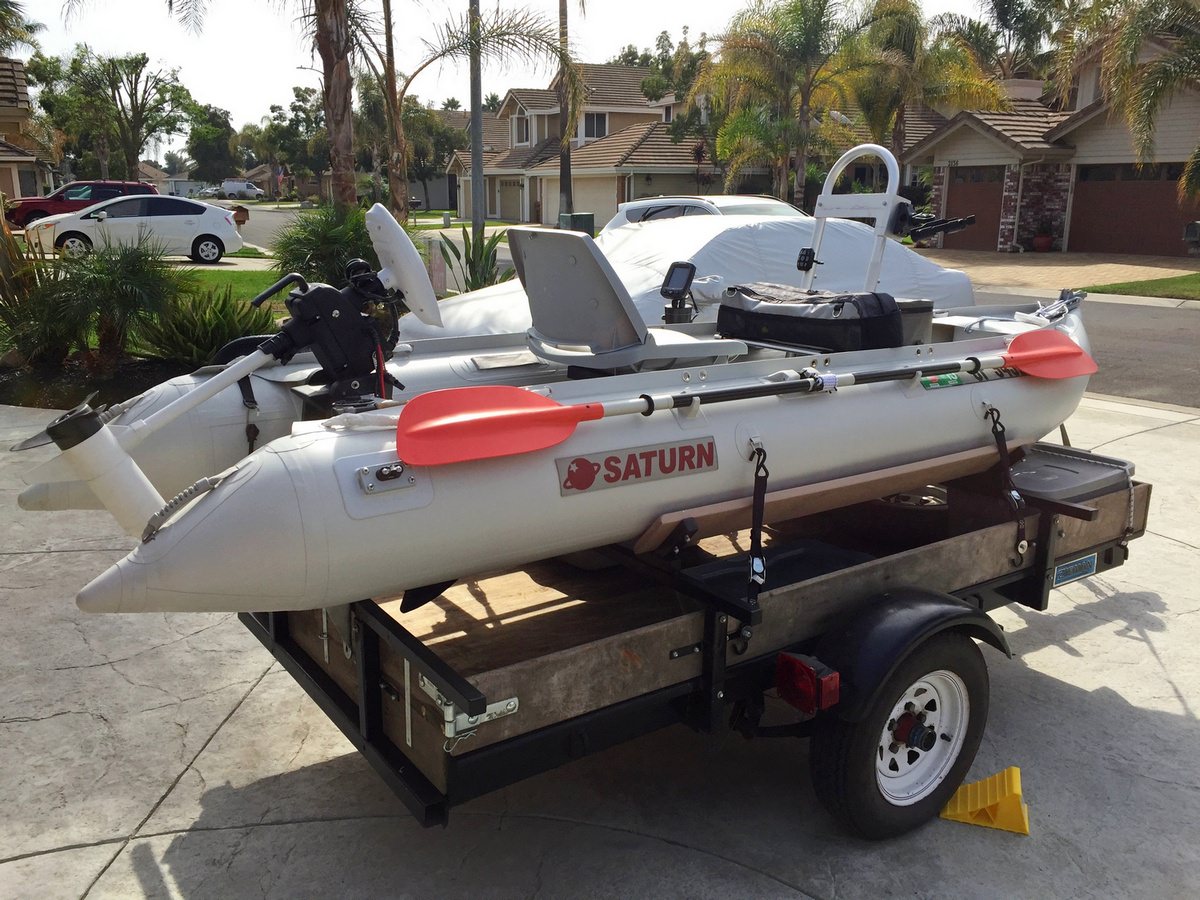

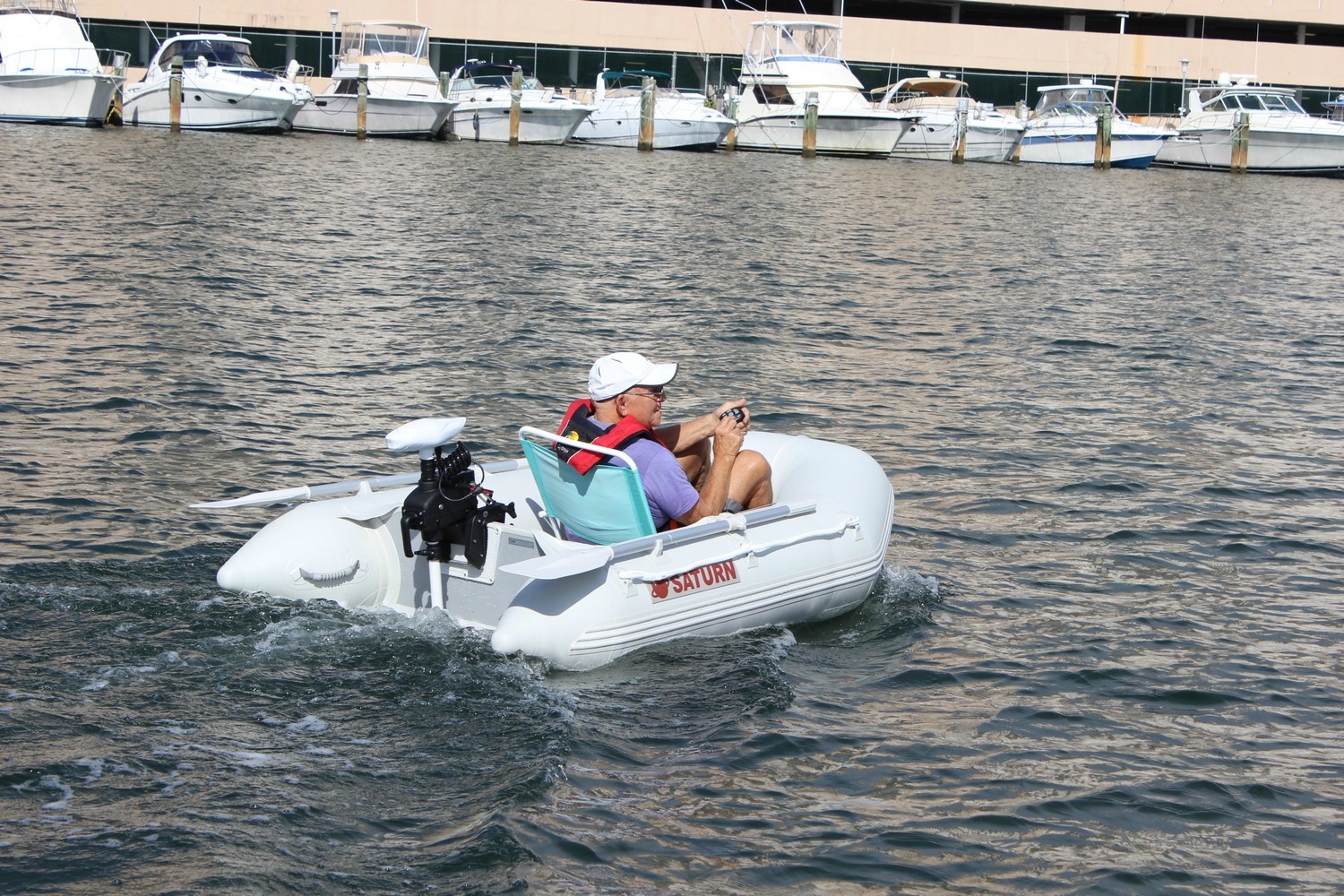

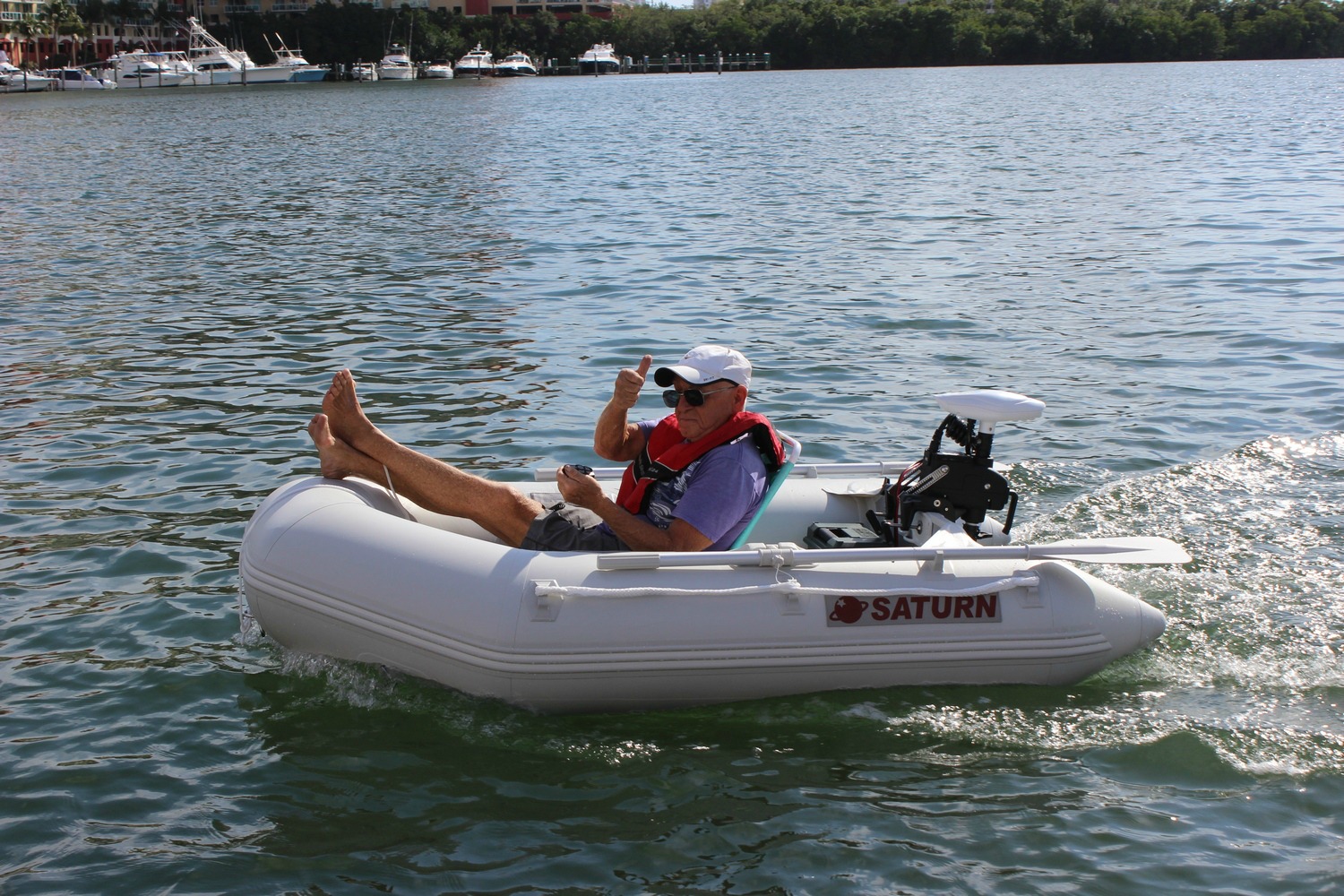

RC Electric Motor installed on Saturn SD230 inflatable boat

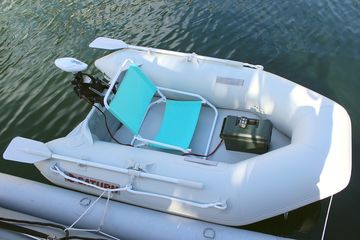

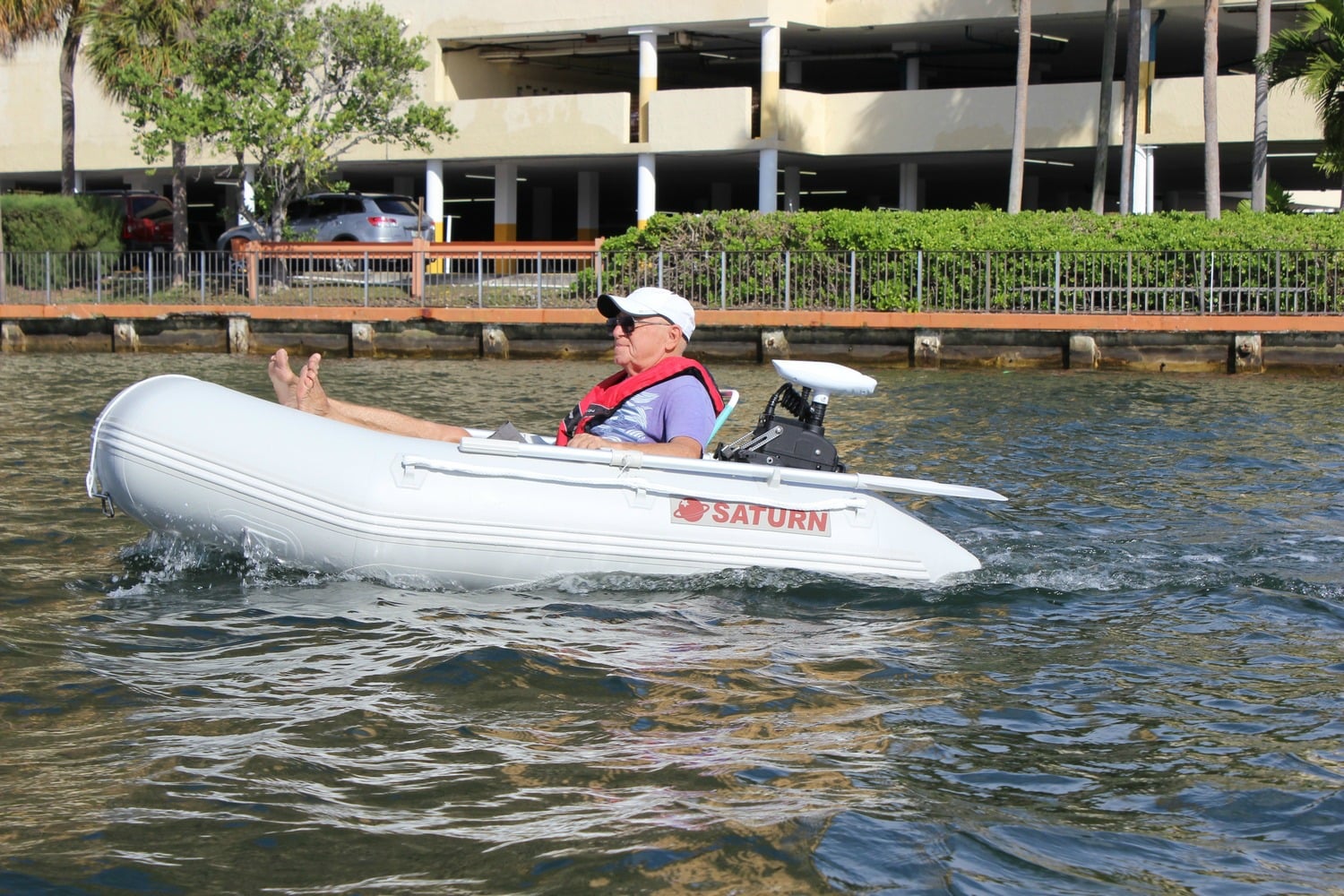

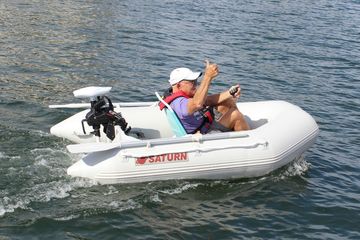

Saturn SD230 Inflatable Boat Dinghy Raft with 55lbs Electric Trolling Motor. Click to zoom in. Saturn SD230 Inflatable Boat Dinghy Raft with 55lbs Electric Trolling Motor. Click to zoom in.
Saturn SD230 Inflatable Boat Dinghy Raft with 55lbs Electric Trolling Motor. Click to zoom in. Saturn SD230 Inflatable Boat Dinghy Raft with 55lbs Electric Trolling Motor. Click to zoom in.
Saturn SD230 Inflatable Boat Dinghy Raft with 55lbs Electric Trolling Motor. Click to zoom in. Saturn SD230 Inflatable Boat Dinghy Raft with 55lbs Electric Trolling Motor. Click to zoom in.

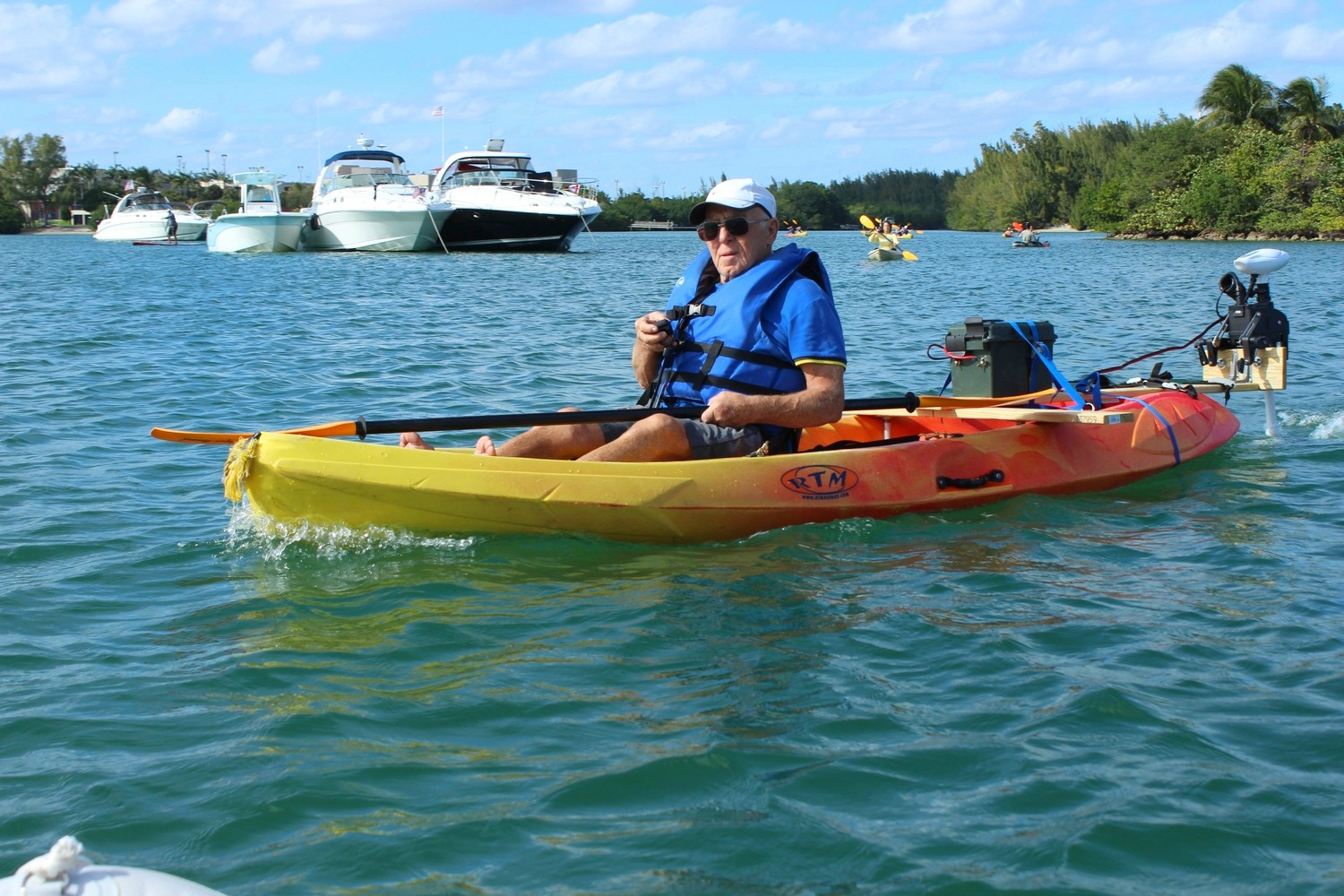

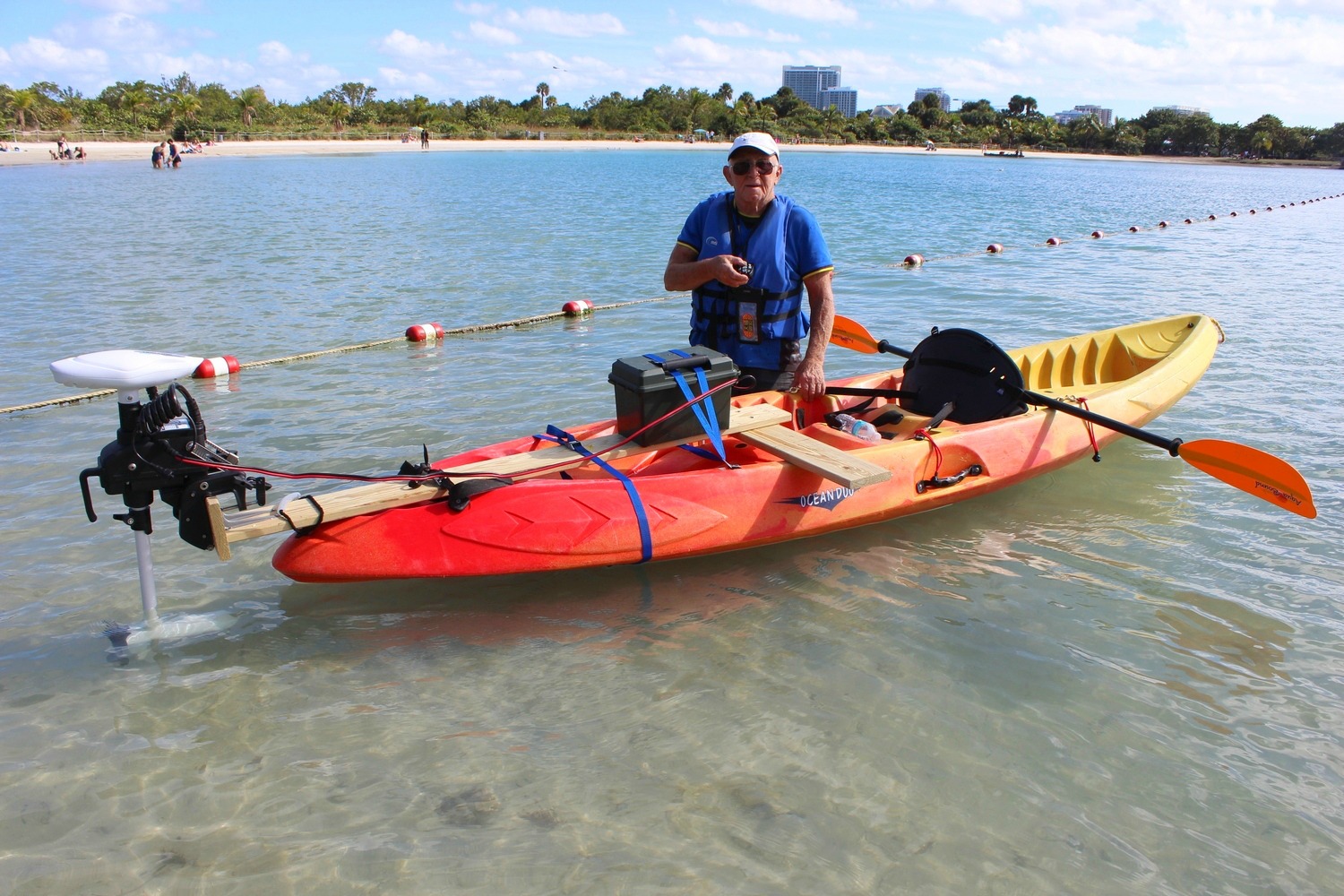

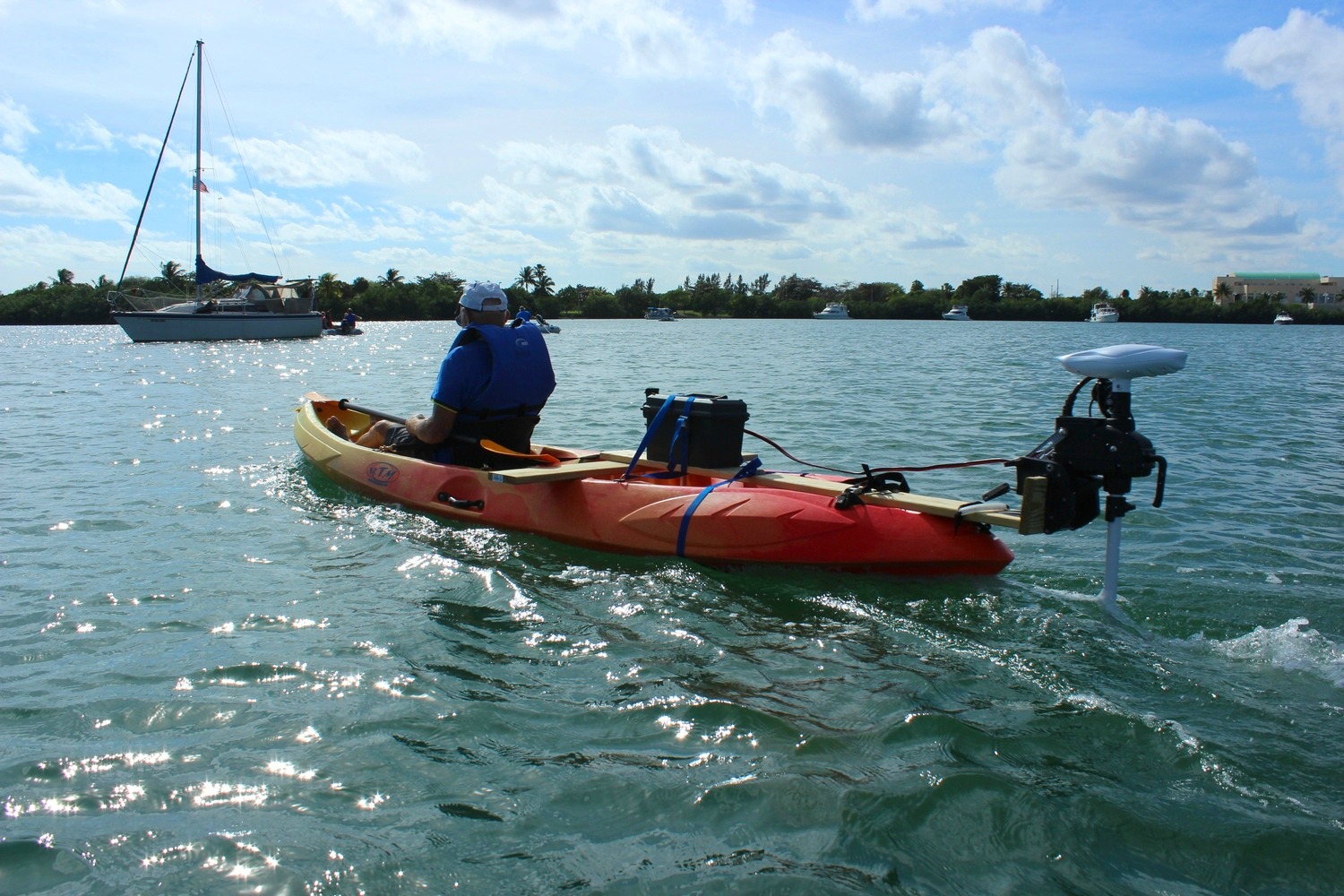

RC Electric Motor installed on kayak

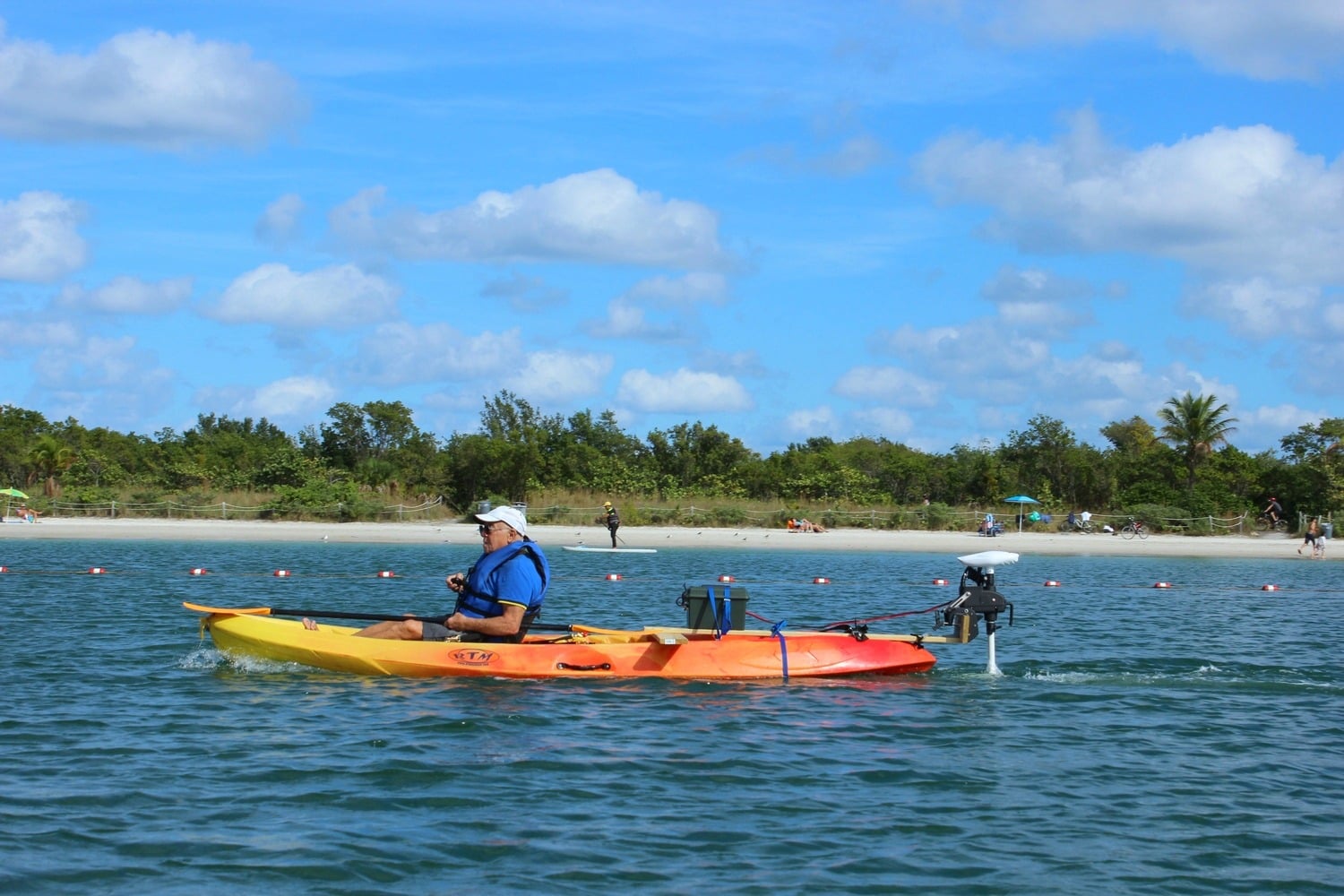

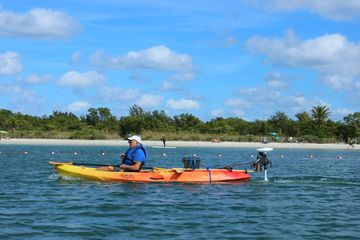

Remote Control Electric Trolling Motor installed on a plastic kayak. Click to zoom in. Remote Control Electric Trolling Motor installed on a plastic kayak. Click to zoom in.
Remote Control Electric Trolling Motor installed on a plastic kayak. Click to zoom in. Remote Control Electric Trolling Motor installed on a plastic kayak. Click to zoom in.
  Actual color of the motor black, not white.

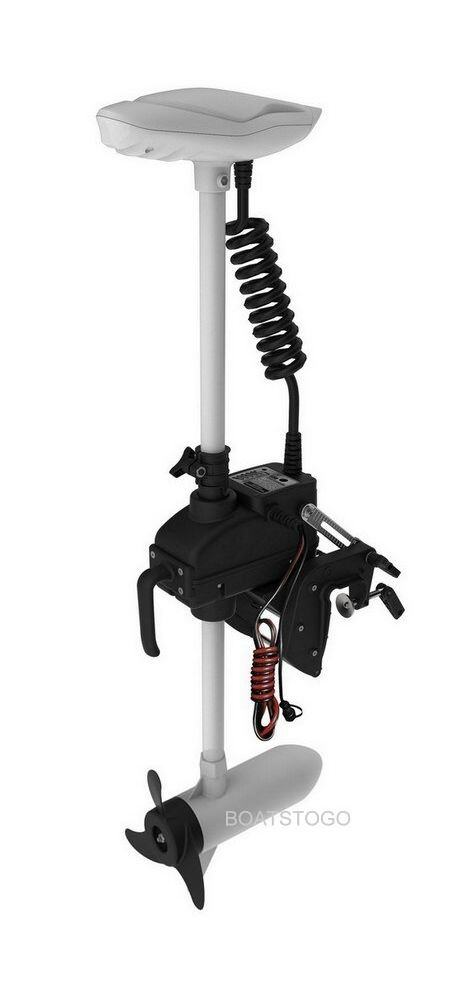

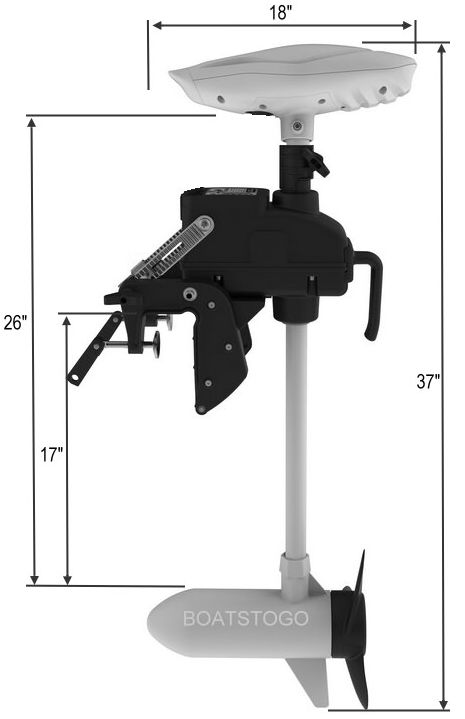

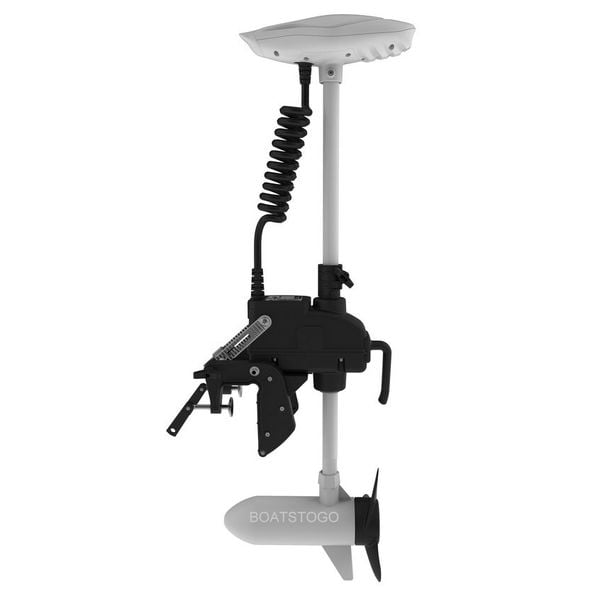

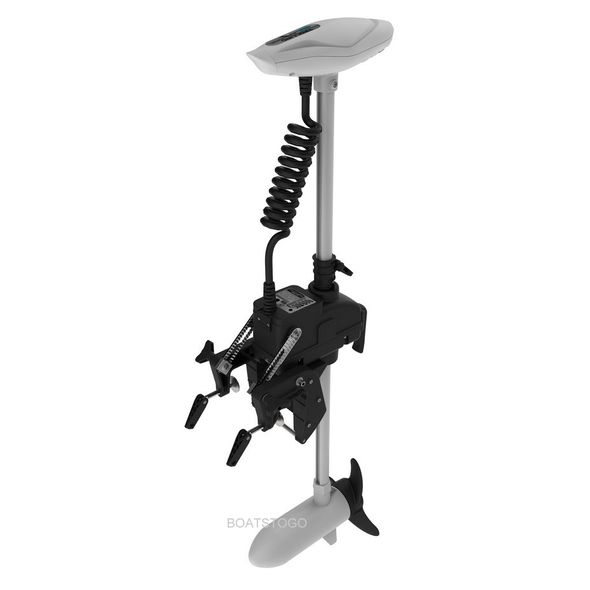

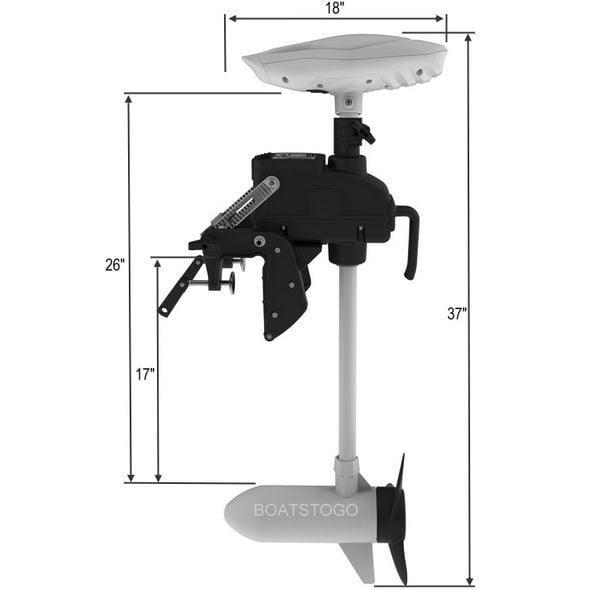

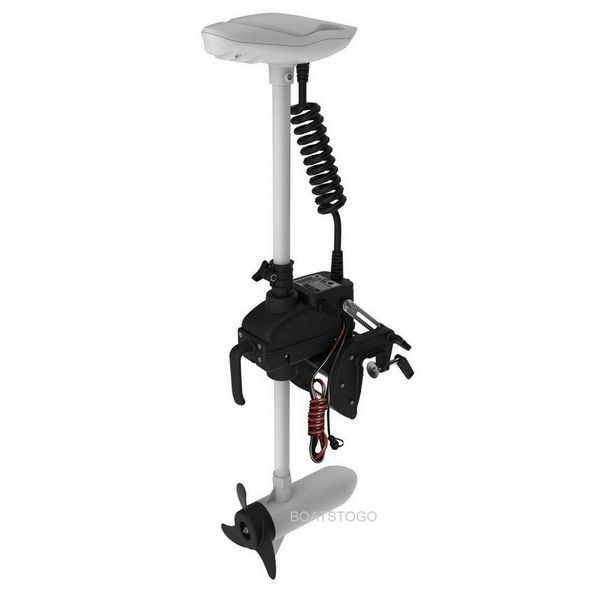

Remote Control Electric Trolling Motor. Remote Control Electric Trolling Motor. RC Electric Trolling Motor Dimensions. Click to zoom in.


Video of Remote Controlled Electric Motor





IMPORTANT! WARNING! PLEASE READ!

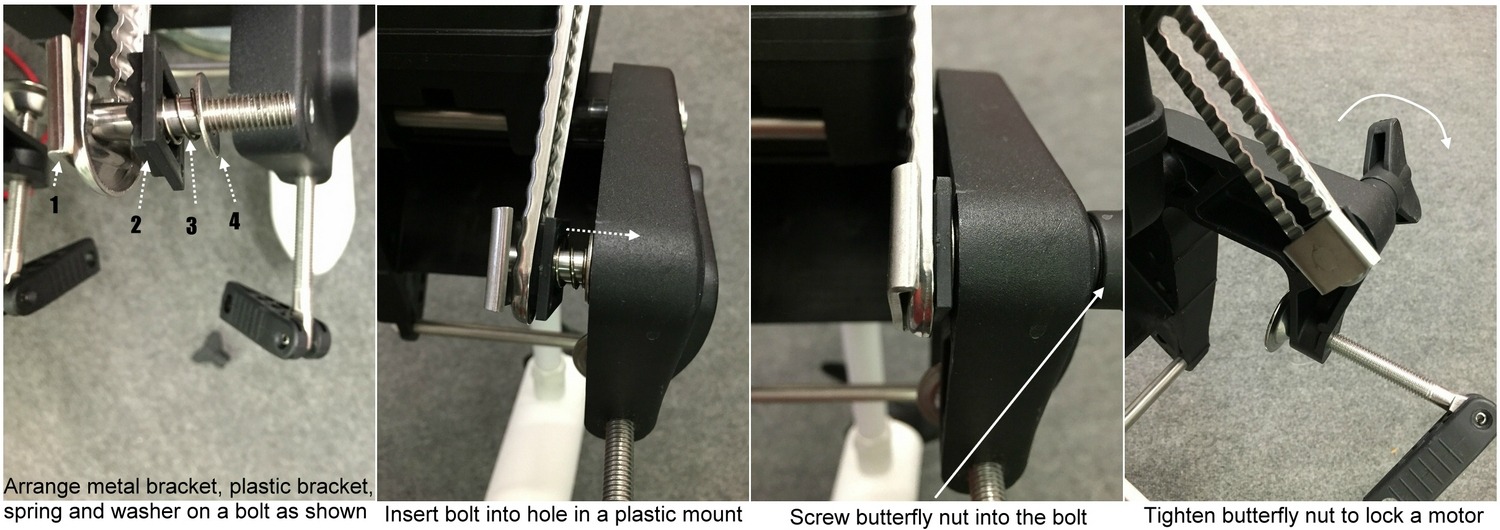

This motor model does not have a Reverse function. To ride in a reverse, motor need to be rotated 180 degree with a remote, or simply make 180 degree turn with a boat. To prevent motor jumping out of the water if it turned 180 degrees in a reverse, it is important that tilt level knobs are fully tightened on both sides, so that motor stays firmly in place. Click here for assembly of tilt level mechanism

When changing directions, press left or right button toward direction of the desired turn, and once turn is  complete, simply press opposite direction button to return motor into strait forward position to proceed with a set course, same way as you would normally do with a regular type of outboard motor. For example, if you want to make right turn, press right arrow number of times, and once turn is fully completed, press left arrow button same number of times to return motor into strait moving direction.

We strongly recommend installing $3 Quick Battery Disconnect in order to be able to easily turn off power to the motor in a situation that wireless connection between FOB and motor is suddenly lost due to low remote battery, radio interference or malfunctioning remote, while you are under way. In this situation you can easily disconnect power to the motor to kill the engine and take over your vessel with alternative means of propulsion, such as oars for example.
